| Brand | MAIERIC |
|---|---|
| Origin | Anhui, China |
| Model | MTIA |
| Instrument Type | Mid-Frequency Impedance Analyzer |
| Frequency Range | 0.05 Hz – 10 MHz |
| Frequency Resolution | 0.05% of set frequency |
| Basic Measurement Accuracy | ±0.05% |
| Impedance Range | 20 mΩ – 1 GΩ |
| Measurement Speed | 10,000 samples/s |
| Measurement Modes | Four-Terminal (Kelvin), Multi-Channel (up to 128 channels) |
| Excitation Voltage Range | 0.02 V – 2.0 V (10 mV resolution) |
| Compensation Methods | Open-Short-Load, Open-Load, Short-Load, Load-only |
| Supported Parameters | Z, θ, R, X, Ls/Lp, Cs/Cp, D, Q, Y, G, B |
| Equivalent Circuit Modeling | Yes |
| Data Visualization | Sweep plots, multi-channel mapping, time-series traces |
| Compliance | Designed for GLP-compliant lab environments |
| Brand | MAIERIC |
|---|---|
| Origin | Anhui, China |

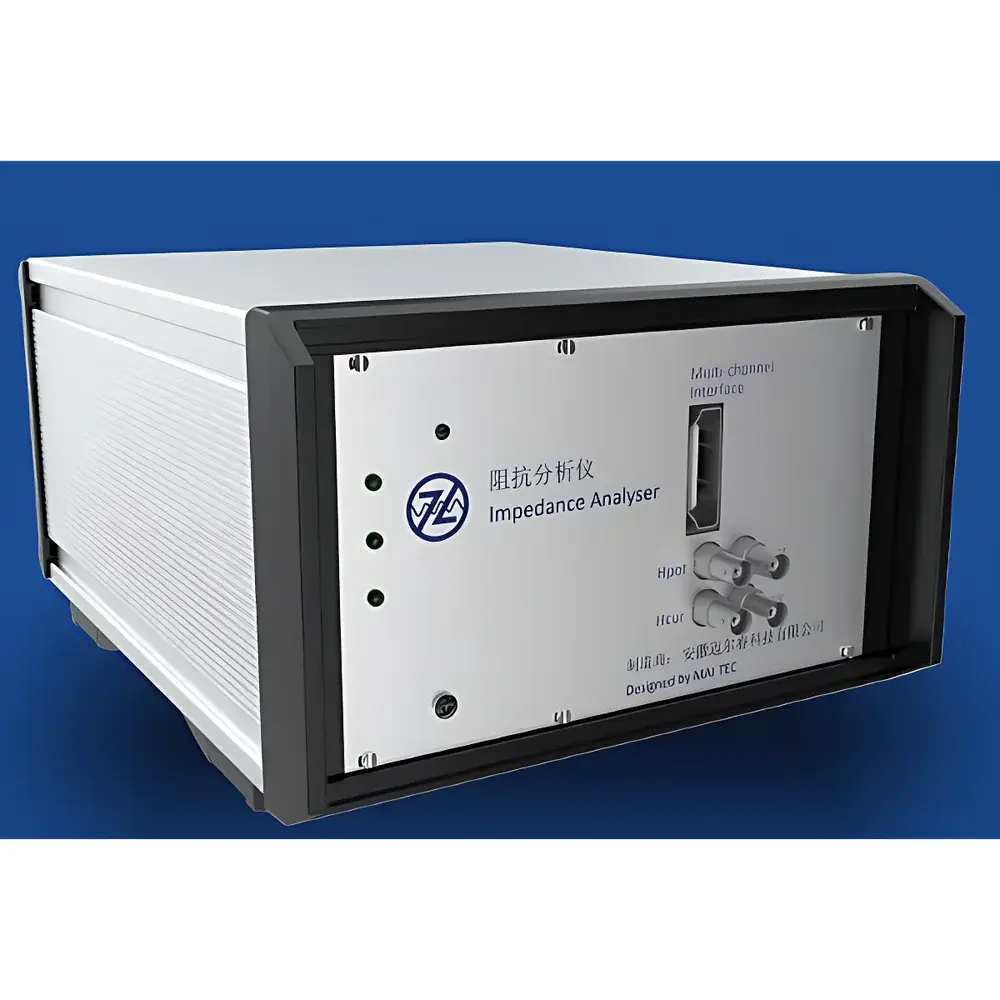

| Model | MTIA-8 |
| Instrument Type | Medium-Frequency Impedance Analyzer |
| Frequency Range | 0.01 Hz – 10 MHz |
| Frequency Resolution | 0.05 Hz |
| Basic Measurement Accuracy | ±0.05% |
| Impedance Range | 20 mΩ – 1 GΩ |
| Measurement Speed | 10,000 samples per second |
| Channel Capacity | Up to 128 parallel measurement channels (hardware-expandable) |
| Measurement Modes | Four-Terminal (Kelvin), Multi-Channel Synchronized Acquisition |
| Excitation Voltage Range | 0.02 V – 2.0 V (10 mV resolution) |
| Compensation Methods | Open-Short-Load, Open-Load, Short-Load, Load-only |
| Supported Parameters | Z, θ, R, X, Ls/Lp, Cs/Cp, D, Q, Y, G, B, Rs, Rp |
| Equivalent Circuit Fitting | Up to 7-element models (e.g., R-C, R-L-C, R-(C//R), etc.) |
