| Brand | ZEPTOOLS |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Model | LN-4H-06 |
| Vacuum Base Pressure | <6×10⁻³ Pa (pre-cooling), <6×10⁻⁴ Pa (at 77 K) |
| Probe Arm Count | 4 standard |
| Probe Positioning Range | 50 mm × 50 mm × 30 mm |
| Probe Positioning Resolution | <10 µm |
| Sample Stage Diameter | 50 mm |
| Temperature Range | 77 K–400 K |
| Temperature Stability | ±0.5 K |
| Microscope Optical Magnification | 0.58×–7× (with 1× objective) |
| Microscope Resolution | <2 µm |
| Camera | Full HD digital with coaxial + annular LED illumination |
| Focus Mechanism | Dual mechanical + optical fine focus |
| Electrical Leakage | <1 pA (DC) |
| Included Vacuum System | Imported turbomolecular pump set + full-range vacuum gauge |
| Temperature Controller | Intelligent PID-based digital controller |
| Optional Fiber Integration | Yes (replaces electrical probes) |
| RF Capability | Up to 100 GHz (optional probe configurations) |
| Chamber Diameter | 245 mm |
| X-Y Stage Accuracy | ±0.01 mm |
| Probe Shaft Stroke | 110 mm |
| Brand | ZEPTOOLS |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Optical Component |

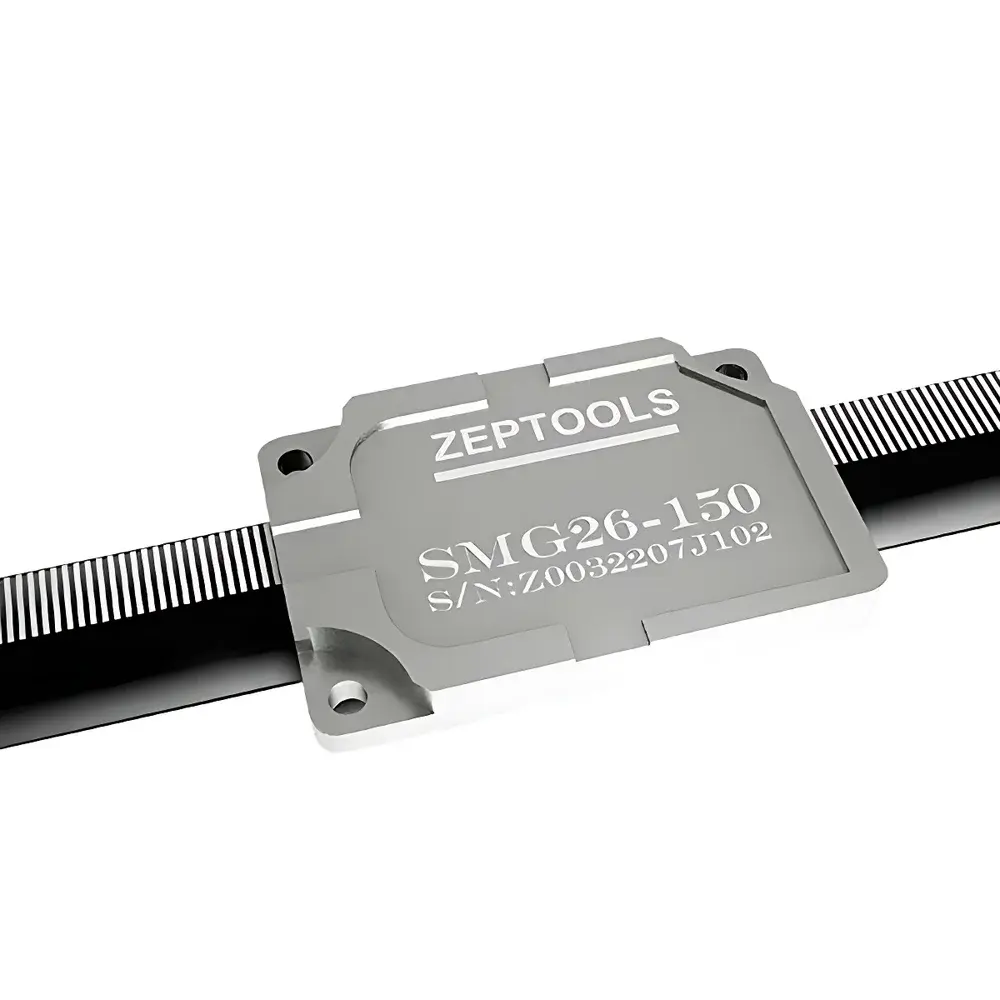

| Model | SMG26 |
| Grating Pitch | 256 µm |
| Absolute Accuracy | ±3 µm @ 20 °C |
| Operating Temperature Range | up to 100 °C |
| Subdivision Resolution (with TF15 interface) | 1 nm |
| Material | Low-Thermal-Expansion Glass |
| Installation Tolerance | ±0.1 mm |
| Vacuum Compatibility | UHV (≤10⁻⁹ mbar) |
| Compliance | Designed for UHV-compatible bake-out protocols (≤100 °C) |
| Brand | ZEPTOOLS |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic (China-Made) |
| Model | RF-8382A |
| Pricing | Upon Request |
| Product Type | Motorized Translation Stage |
| Drive Principle | Piezoelectric Ceramic Actuation |
| Rotation Range | Continuous 360° |
| Position Holding | Integrated Mechanical Lock |
| Environmental Compatibility | Ambient Air and High Vacuum (≤10⁻⁷ mbar) |
| Control Mode | Open-Loop and Closed-Loop (with Optional Capacitive or Strain-Gauge Feedback Module) |
| Resolution (Open-Loop) | Sub-100 nrad |
| Repeatability | ≤±50 nrad |
| Bidirectional Repeatability | ≤±75 nrad |
| Maximum Load Capacity | 1.2 kg (axial, centered) |
| Thermal Drift (24h, 23°C ±0.5°C) | <200 nrad |
| Vacuum-Compatible Materials | 316L Stainless Steel, Ceramic Insulators, Gold-Plated Electrical Contacts |
| Brand | ZEPTOOLS |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | 2DTrans-ams-03 |
| Product Type | Motorized Translation Stage |
| Sample Stage | 5-Axis Motorized Platform (X/Y/Z/α/β) |
| Carrier Slide Stage | 5-Axis Motorized Platform (X/Y/Z/α/β) |
| Rotation Precision (R) | ≤ ±0.01° |
| Linear Repeatability (XY) | ≤ ±2 µm |
| Vertical Repeatability (Z) | ≤ 1 µm |
| Tilt Precision (α/β) | ≤ ±0.005° |
| Heating Range | Up to 240 °C |
| Temperature Stability | ±0.1 °C |
| Microscope | Integrated Motorized Optical Microscope with HDMI Camera (8 MP, 30 fps) |
| Vacuum & Magnetic Sample Holding | Dual-mode Adsorption Module |
| Vibration Isolation | Desktop Pneumatic Air-Floating Platform |
| Motion Control Axes | 7-axis (ZT02) or 9-axis (ZT03) Controller |
| Brand | ZEPTOOLS |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Domestic |

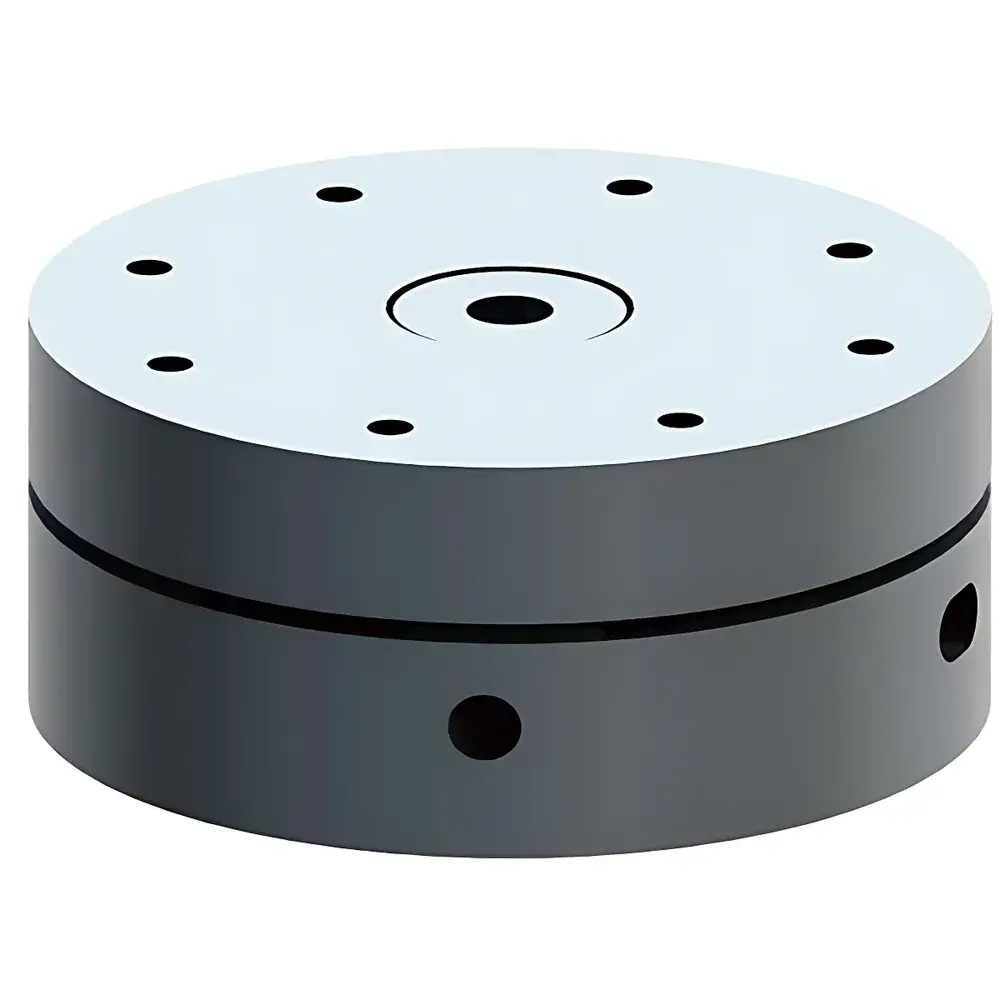

| Model | RF-33A |
| Pricing | Upon Request |
| Type | Motorized Rotary Translation Stage |
| Brand | ZEPTOOLS |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Origin | Domestic |
| Model | LHe-6H-06 |
| Pricing | Upon Request |
| Base Temperature | 6 K |
| Operating Temperature Range | 6 K to 400 K |
| Temperature Stability | ±0.05 K (auto-controlled) |
| Vacuum Base Pressure | <6×10⁻⁴ Pa (pre-cooling), <6×10⁻⁵ Pa (at 6 K) |
| Sample Stage Diameter | 50 mm |
| Stage Temperature Uniformity | ±0.01 K |
| Probe Arm Count | 6 |
| Probe Motion Range | 50 mm × 50 mm × 30 mm |
| Positioning Resolution | <10 µm |
| Microscope Optical Magnification | 1.4×–9× (with optional 2× auxiliary lens) |
| Video Magnification | ~700× |
| Imaging Resolution | <2 µm |
| Camera | Full HD digital with coaxial + annular LED illumination |
| Electrical Leakage | <1 pA (DC) |
| RF Capability | Up to 100 GHz (optional) |
| Vacuum Feedthroughs | 2 × KF40 flanges |
| Cryocooler | Sumitomo F-50 continuous-flow cryocooler |
| Control Interface | Touchscreen HMI + LabVIEW-compatible drivers |
| Included Vacuum System | Imported turbomolecular pump set + full-range vacuum gauge |
| Integrated Triax Cabling | 6 × Triax probe cables + 1 × additional Triax on stage base |
| Optional Fiber Integration | Replaceable electrical probes with single-mode or multimode optical fibers |
| System Power Consumption | 2.5 kW |
| Net Weight | 200 kg |
