| Brand | Axetris |
|---|---|
| Origin | Switzerland |
| Model | EMIRS Series 1 |
| Radiation Spectrum | 2–16 µm |
| Emission Principle | Micro-machined MEMS Blackbody Radiator |
| Modulation Speed | Fast Electrical Modulation (Chopper-Free) |
| Window Options | Sapphire, CaF₂, BaF₂, Ge |
| Compliance | IEC 60747-3-7 Class 7M3 (MEMS Robustness) |
| Power Consumption | Low |
| Lifetime | Extended Operational Life |
| Package | Hermetically Sealed TO-39 Metal Can |
| Brand | Axetris |
|---|---|
| Origin | Switzerland |

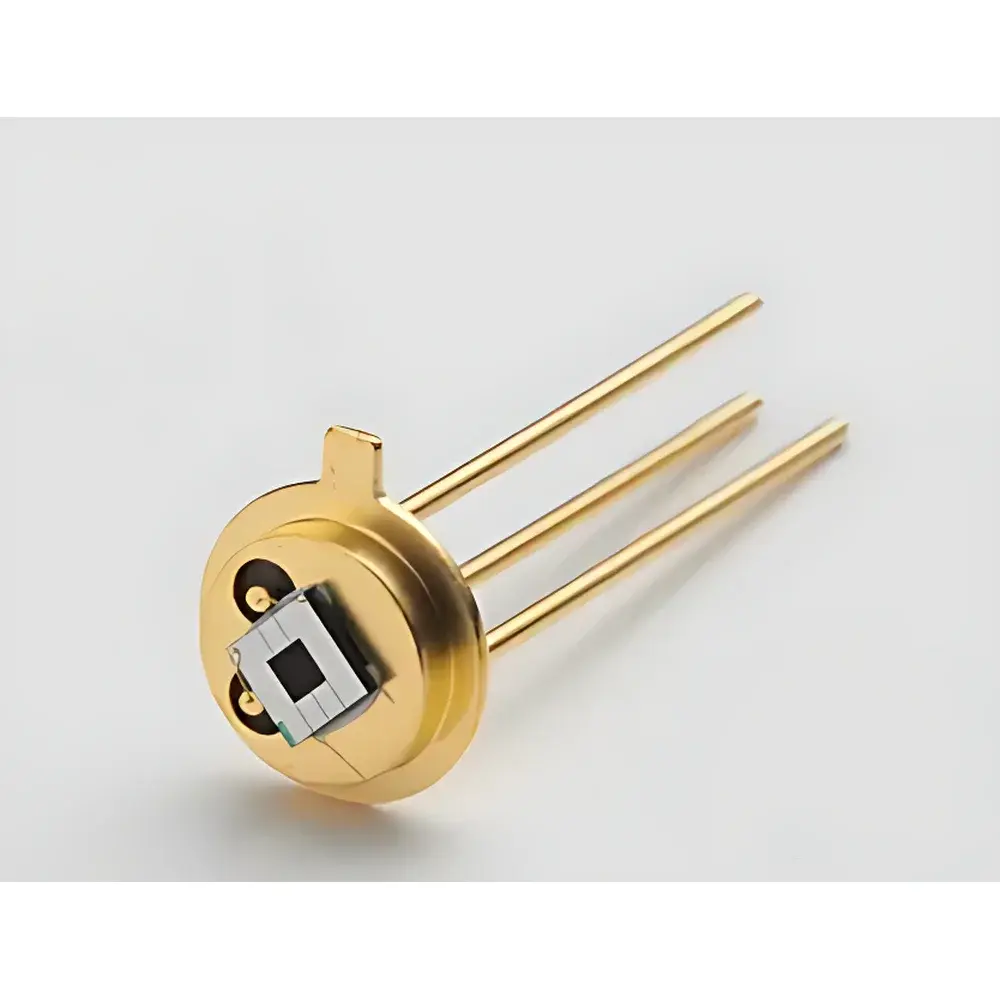

| Model | EMIRS50_AT06V |
| Housing | TO-46 metal can |
| Emission Range | 2–14 µm (blackbody-like spectral profile) |
| Modulation Capability | Electrical (chopper-free, DC–>100 Hz typical) |
| Substrate | Silicon MEMS platform with thin-film resistive element |
| Window Options | Sapphire or Barium Fluoride (BaF₂) |
| Power Consumption | <150 mW (typ. at 5 V, 25 °C ambient) |
| Lifetime | >50,000 hours (L₅₀ at rated drive conditions) |
| Radiation Efficiency | >90% (vs. ideal blackbody in 3–12 µm band) |
| Stability | <0.5% drift over 1,000 h (constant-current operation) |
| Brand | Axetris |
|---|---|
| Origin | Switzerland |

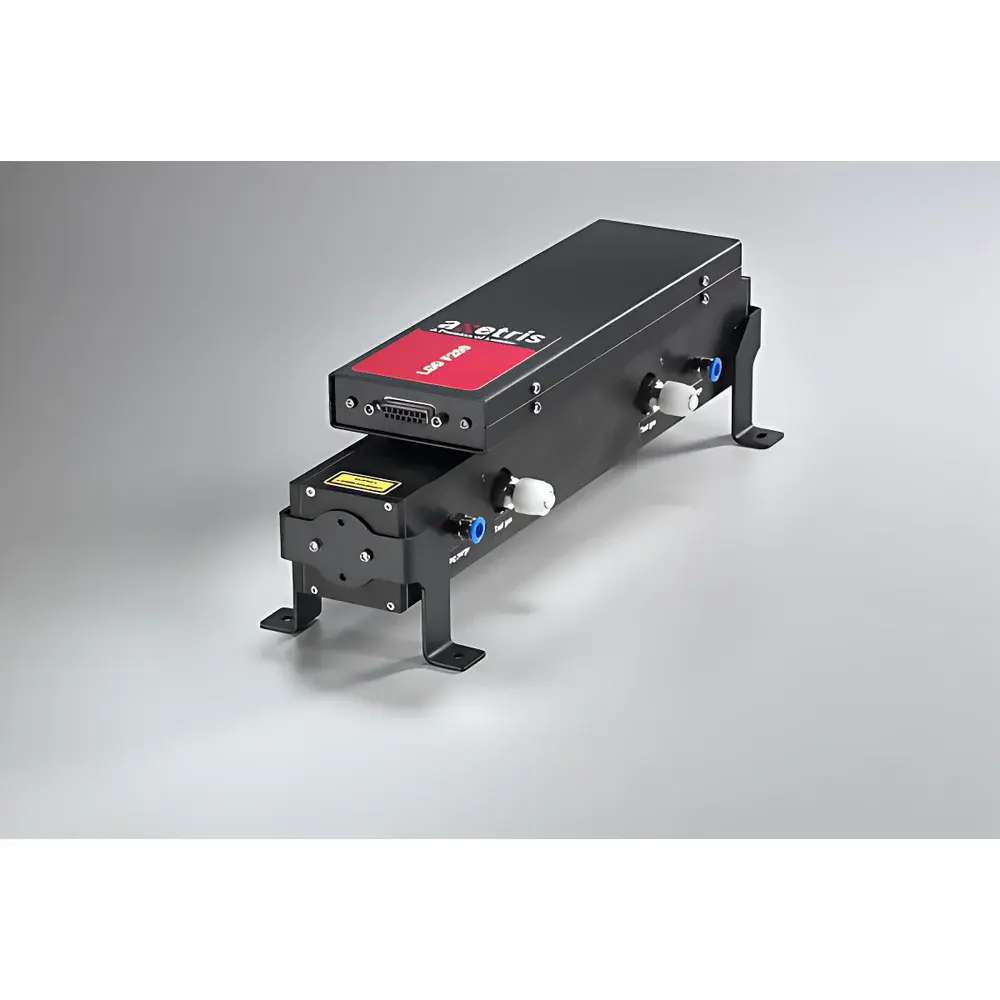

| Model | LGD Series |
| Detection Principle | Tunable Diode Laser Absorption Spectroscopy (TDLAS) |
| Target Gases | NH₃, CH₄, H₂O, CO₂, HCl, HF, O₂ |
| Design Type | OEM-integrated modular sensor |
| Operating Temperature Range (heated option) | up to 190 °C |
| Measurement Method | Non-contact, optical, in-situ absorption spectroscopy |
| Calibration | Factory-calibrated |
| Compliance Context | Designed for integration into systems compliant with IEC 61508 (SIL2-capable architecture), EN 14181 (QAL3 validation support), and applicable EPA Methods (e.g., Method 320 for HCl/HF) |
| Brand | Axetris |
|---|---|
| Origin | Switzerland |

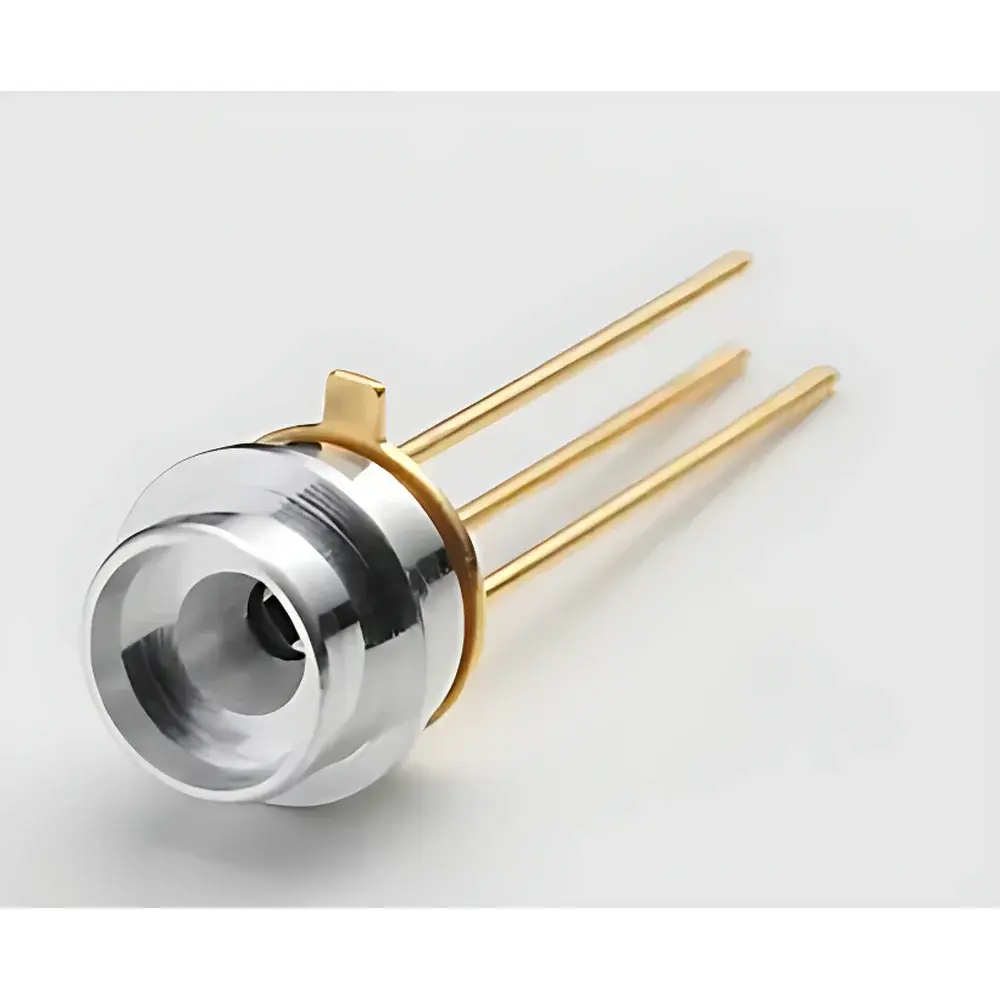

| Model | EMIRS50_AT06V_BR26M |
| Housing | TO-46 metal can |
| Emission Spectrum | 2–14 µm (blackbody-like) |
| Modulation Speed | kHz-range electrical modulation (chopper-free) |
| Emission Surface | Integrated reflective cavity (BR26M variant) |
| Window Options | Sapphire or Barium Fluoride (BaF₂) |
| Power Consumption | Low, typically <150 mW operating power |
| Lifetime | >50,000 hours MTTF |
| MEMS Architecture | Silicon-based micro-hotplate with dielectric emissive coating |
| Compliance | RoHS, REACH, ISO 9001-manufactured |
