| Brand | Axetris |
|---|---|
| Origin | Switzerland |

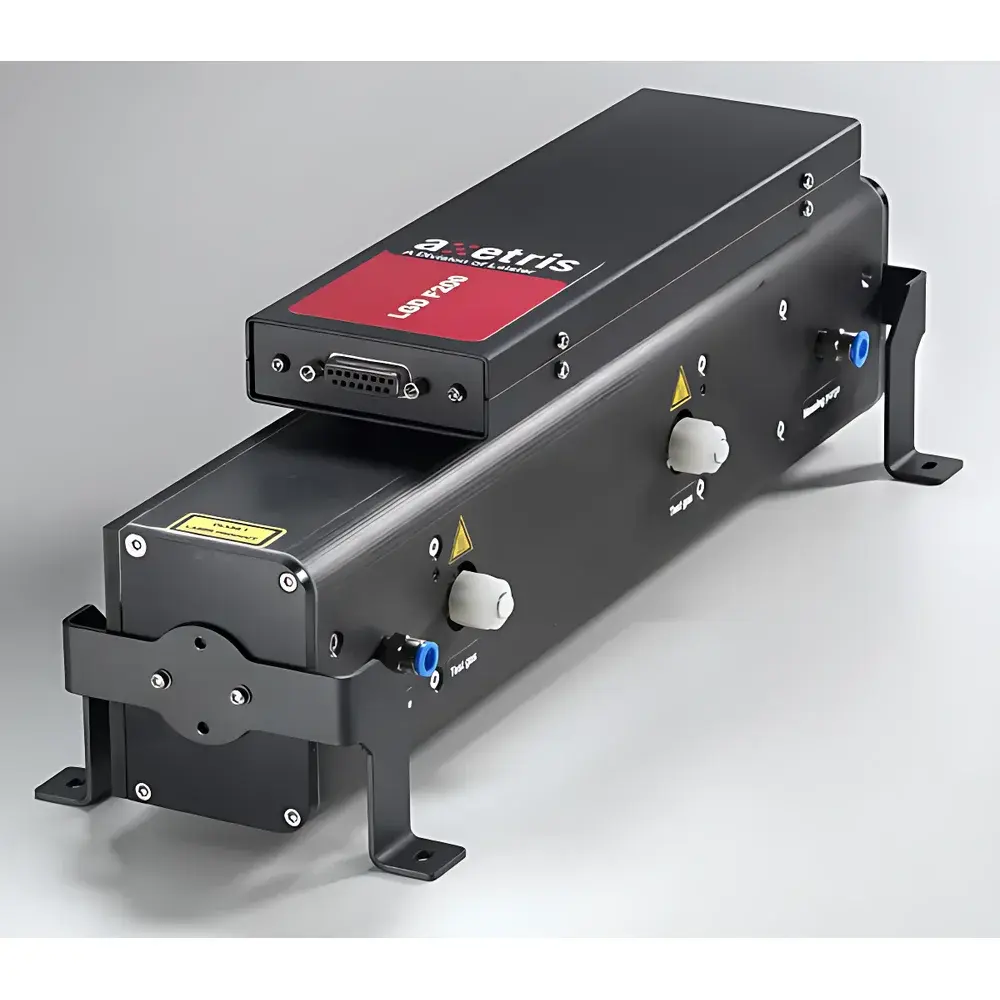

| Model | LGD F200 H |
| Instrument Type | Online |
| Detectable Gases | NH₃, HCl |
| Response Time | 2 s |
| Measurement Accuracy | ±2% of reading |
| Measurement Range | 0–100 ppm |
| Operating Temperature (Heated Version) | up to 220 °C |
| Detection Principle | Tunable Diode Laser Absorption Spectroscopy (TDLAS) |
| Brand | Axetris |
|---|---|
| Origin | Switzerland |
| Model | EMIRS50_REF1 |
| Housing | TO-46 metal can |
| Emission Spectrum | 2–14 µm (blackbody-like) |
| Window Material | Sapphire (standard), optional BaF₂ |
| Modulation Capability | Electrical (chopper-free, up to 100 Hz) |
| Radiant Efficiency | High |
| Power Consumption | Low (<150 mW typical) |
| Lifetime | >50,000 hours (L₅₀ at 25 °C ambient) |
| MEMS Architecture | Silicon-based microheater with dielectric emissive coating |
| Compliance | RoHS, REACH, ISO 9001-manufactured |
| Brand | Axetris |
|---|---|
| Origin | Switzerland |

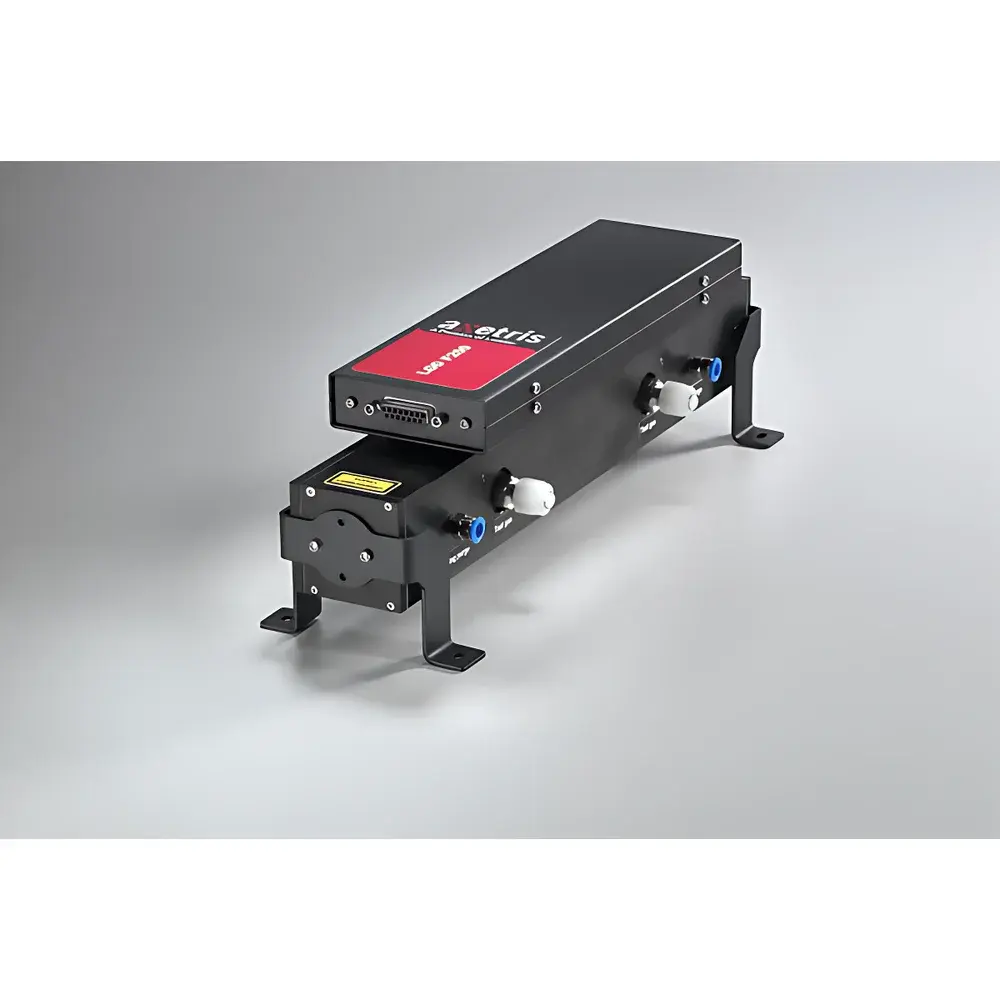

| Model | LGD Series |
| Detection Principle | Tunable Diode Laser Absorption Spectroscopy (TDLAS) |
| Target Gases | NH₃, CH₄, H₂O, CO₂, HCl, HF, O₂ |
| Design | OEM-ready modular optical sensor |
| Operating Temperature Range (Heated Option) | Up to 190 °C |
| Measurement Type | Non-contact, in-situ, continuous |
| Cross-Interference | Negligible due to spectral selectivity |
| Calibration | Factory-calibrated |
| Compliance Context | Designed for integration into systems compliant with IEC 61508 (SIL2-capable architectures), EN 14181 (QAL3), and EPA Method 205/207 (for extractive TDLAS configurations) |
| Brand | Axetris |
|---|---|
| Origin | Switzerland |
| Model | LGD HCL Series |
| Instrument Type | Online |
| Target Gas | Hydrogen Chloride (HCl) |
| Response Time | 2 s |
| Measurement Accuracy | ±0.8 ppm |
| Measurement Range | 0–50 ppm |
| Brand | Axetris |
|---|---|
| Origin | Switzerland |
| Model | LGD NH3 Series |
| Type | OEM-integrated online gas detection module |
| Detection Principle | Tunable Diode Laser Absorption Spectroscopy (TDLAS) |
| Target Gas | NH₃ (Ammonia) |
| Also Detects | H₂O, HCl (configurable) |
| Design | Modular, self-contained optical sensor unit |
| Calibration | Factory-calibrated |
| Response Time | <1 s (T₉₀) |
| Operating Temperature Range | –20 °C to +60 °C (standard) |
| high-temp option | up to 190 °C or 220 °C (heated probe variant) |
| Output Interface | Analog (4–20 mA, 0–10 V), digital (RS-485, Modbus RTU), optional Ethernet/IP or CAN bus |
| Enclosure Rating | IP65 (standard) |
| Compliance | CE, RoHS, EMC Directive 2014/30/EU |
| Software Support | Axetris LGD Configuration & Monitoring Suite (Windows/Linux) |
| Brand | Axetris |
|---|---|
| Origin | Switzerland |
| Model | EMIRS200, EMIRS50 |
| Housing | TO-39 metal can |
| Emitter Type | MEMS micro-hotplate with dielectric thin-film coating |
| Spectral Range | 2–16 µm (blackbody-like emission) |
| Modulation Capability | Direct electrical square-wave modulation (chopper-free) |
| Typical Power Consumption | <150 mW (EMIRS200), <300 mW (EMIRS50) |
| Radiant Efficiency | >30% (relative to ideal blackbody at same temperature) |
| Lifetime | >100,000 hours (at nominal drive conditions) |
| Environmental Certification | IEC 60747-17 / IEC 62047-21 compliant |
| Window Options | Sapphire (Al₂O₃), CaF₂, BaF₂, Ge |
| Mounting | Standard TO-39 header with optional reflective cup or protective cap |
| Brand | Axetris |
|---|---|
| Origin | Switzerland |
| Model | LGD Series |
| Detection Gases | NH₃, CH₄, H₂O, CO₂, HCl, HF, O₂ |
| Technology | Tunable Diode Laser Spectroscopy (TDLS) |
| Design | OEM-ready modular platform |
| Operating Temperature (heated option) | up to 190 °C |
| Measurement Principle | Non-contact, optical absorption spectroscopy |
| Calibration | Factory-calibrated |
| Cross-Interference | Negligible due to narrow-linewidth laser targeting fundamental ro-vibrational absorption lines |
| Brand | Axetris |
|---|---|
| Origin | Switzerland |
| Model | EMIRS200_AT01T_BR080 |
| Housing | TO-39 metal can |
| Emitter Type | MEMS-based micro-hotplate thermal IR source |
| Spectral Range | 2–16 µm (blackbody-like emission) |
| Modulation Capability | Electrical square-wave modulation up to 100 Hz (chopper-free) |
| Emissivity | >0.95 (typical, 2–14 µm) |
| Power Consumption | <120 mW (steady-state, 25°C ambient) |
| Lifetime | >50,000 hours (L50, constant drive at rated voltage) |
| Window Options | Sapphire, CaF₂, BaF₂, Ge |
| Compliance | IEC 61721-3-7 Class 7M3 (mechanical shock/vibration robustness |
| Brand | Axetris |
|---|---|
| Origin | Switzerland |
| Model | LGD Series |
| Detection Principle | Tunable Diode Laser Absorption Spectroscopy (TDLAS) |
| Target Gases | NH₃, CH₄, H₂O, CO₂, HCl, HF, O₂, and trace impurities in high-purity gases (He, H₂, N₂, CO₂) |
| Measurement Mode | Non-contact, in-situ or extractive |
| Response Time | <1 s (typ.) |
| Operating Temperature Range | –20 °C to +60 °C (standard) |
| Calibration | Factory-calibrated |
| Compliance | Designed for integration into systems compliant with IEC 61508 (SIL2 capable), CE, RoHS, and EMC Directive 2014/30/EU |
| Enclosure Rating | IP65 (module housing) |
| Brand | Axetris |
|---|---|
| Origin | Switzerland |
| Model | EMIRS200_AT01T_BR090 |
| Housing | TO-39 metal can |
| Emission Range | 2–16 µm (blackbody spectral profile) |
| Modulation Speed | DC to >100 Hz (electrical chopping, no mechanical chopper required) |
| Emissivity | >0.95 (typical, calibrated per ISO 18434-1) |
| Power Consumption | <120 mW (steady-state operation) |
| Lifetime | >50,000 hours (L50 at 70°C case temperature, per IEC 62504 Annex B) |
| Window Options | Sapphire, CaF₂, BaF₂, Ge |
| Compliance | IEC 60747-17 (MEMS devices), IEC 62040-3 (EMC), RoHS 2011/65/EU, REACH SVHC-free |
| Qualification | IEC 60068-2-64 (vibration), IEC 60068-2-27 (shock), IEC 60747-17 Class 7M3 (mechanical robustness — excluding CaF₂/BaF₂ window variants) |
| Brand | Axetris |
|---|---|
| Origin | Switzerland |
| Model Series | LGD |
| Detection Principle | Tunable Diode Laser Absorption Spectroscopy (TDLAS) |
| Target Gases | NH₃, CH₄, H₂O, CO₂, HCl, HF, O₂ |
| Design | OEM-optimized modular optical sensor platform |
| Operating Temperature Range (heated variant) | up to 190 °C |
| Measurement Type | Non-contact, in-situ, continuous |
| Cross-Interference | Negligible due to narrow-linewidth laser scanning and species-specific absorption lines |
| Calibration | Factory-calibrated |
| Compliance | Designed for integration into systems compliant with IEC 61508 (SIL2-capable architecture), EN 61000-6-2/6-4 (EMC), and ATEX/IECEx Zone 2 / Class I Div 2 ready (with appropriate host system certification) |
