| Brand | AMTK |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | LH-1209 |
| Price Range | USD 70,000–140,000 |
| Instrument Type | Magnetic Bead-Based Extraction System |
| Automation Level | Dedicated Fully Automated Platform |
| Throughput | 96 or 192 samples per run |
| Sample Volume Range | 0.5–200 µL |
| Processing Time per Batch | ~40 minutes |
| Elution Volume | Adjustable (typically 30–100 µL) |
| Plate Capacity | 25 deck positions |
| Operating Temperature | 23 °C ± 5 °C |
| Power Supply | 220 V AC, 50 Hz |
| Relative Humidity | 10–90% RH (non-condensing) |
| Yield | 4–8 µg genomic DNA from 100–200 µL fresh whole blood |
| Brand | AMTK |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | LH1406 |
| Instrument Type | Magnetic Bead-Based Purification System |
| Automation Level | Dedicated Fully Automated Platform |
| Throughput | 1–96 samples per run |
| Sample Volume Range | 0.5–200 µL |
| Processing Time per Batch | ~40 minutes |
| Elution Volume | Adjustable (typically 30–100 µL) |
| Ambient Operating Temperature | 23 °C ± 5 °C |
| Power Supply | 110/220 VAC, 50/60 Hz |
| Relative Humidity | 10–90% RH (non-condensing) |
| Deck Capacity | 12 deck positions |
| Extracted Yield (Human Whole Blood, 100–300 µL) | 4–8 µg total nucleic acid |
| Brand | AMTK |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Region of Manufacture | Domestic (China) |

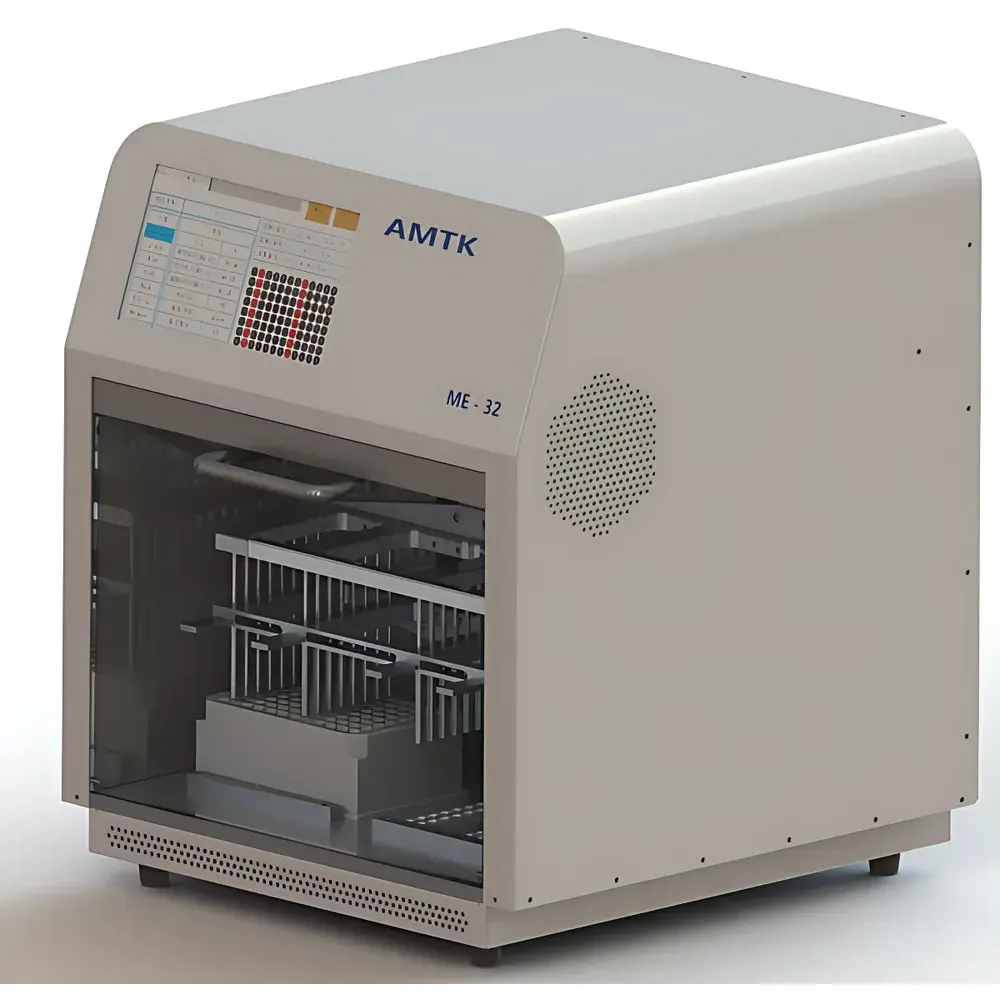

| Model | ME-32 |
| Instrument Type | Magnetic Bead-Based Extraction |
| Automation Level | Dedicated Fully Automated Platform |
| Throughput | 32 samples per run |
| Sample Volume Range | 20–1200 µL |
| Processing Time per Run | 15–30 minutes |
| Maximum Magnetic Bead Recovery Rate | >95% |
| Compatible Plate Format | 96-well deep-well plates |
| Heating Module Option | Ambient to +100 °C |
| Mixing Agitation | Multi-level programmable vortexing |
| Reagent Compatibility | Open-platform magnetic bead kits (third-party compatible) |
| Onboard UV Sterilization | Yes |
| Safety Interlock | Motorized lid sensor with automatic pause/resume |
| User Interface | 7-inch capacitive touchscreen, bilingual (English/Chinese) |
| Stored Protocols | >100 user-editable methods |
| Protocol Editor | Full graphical programming interface with stepwise parameter control (lysis temp, wash cycles, elution volume, mixing speed/duration, hold times) |
| Brand | AMTK |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |
| Model | ME-480 |
| Price Range | USD 140,000–280,000 |
| Instrument Type | Magnetic Bead-Based Extraction |
| Automation Level | Dedicated Fully Automatic |
| Batch Capacity | 480 samples per run |
| Sample Volume Range | 20–1000 µL |
| Processing Time per Batch | 15–30 minutes |
| Throughput Configuration | 96-channel magnetic rod array (5×96 = 480) |
| Temperature Control | 10 independent heating zones, 20–100 °C |
| Magnetic Field Strength | ≥5200 Gauss |
| Magnetic Bead Recovery Rate | ≥98% |
| Inter-Sample CV | <5% |
| Power Supply | AC 220 V, 50 Hz, 900 VA |
| Dimensions (W×D×H) | 1130 × 770 × 1160 mm |
| Weight | 175 kg |
| Aerosol Containment | Integrated HEPA H14 filter (≥99.99% efficiency for 0.3 µm particles), UV-C sterilization (100 µW/cm²), anti-drip baffles |
| Brand | AMTK |
|---|---|
| Origin | Jiangsu, China |
| Instrument Type | Magnetic Bead-Based Extraction |
| Automation Level | Dedicated Fully Automated Platform |
| Throughput | 96 or 192 samples per run |
| Sample Volume Range | 10–200 µL |
| Processing Time per Run | 15–30 minutes |
| Dimensions (L×W×H) | 110 × 75 × 88 cm |
| Weight | ~200 kg |
| Deck Capacity | 25 plate positions |
| Power Supply | AC 220 V, 50 Hz, 650 W |
| Pipetting Range | 2–200 µL |
| Compatible Tips | 250 µL standard or filter tips |
| Pipetting Precision | ≤4% CV at 10 µL |
| Pipetting Accuracy | ±8% at 10 µL |
| Regulatory Status | Class I Medical Device Filing (Su Su Yi Xie Bei 20181026) |
