| Brand | Chengmeng |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |
| Model | CM-30L Dedicated Nitrogen Generator for Nitrogen Evaporation Systems |
| Instrument Type | Nitrogen Generator |
| Nitrogen Generation Principle | Pressure Swing Adsorption (PSA) with Twin-Tower CMS System |
| Output Flow Rate | 0–32 L/min |
| Output Pressure | 0.6–0.8 MPa |
| Nitrogen Purity | 99–99.9% |
| Dew Point | < −10 °C |
| Power Supply | 220 V, 50 Hz |
| Power Consumption | 800 W |
| Dimensions (W×D×H) | 1100 × 800 × 1000 mm |
| Weight | 150 kg |
| Operating Temperature | 5–40 °C (Optimal: 20–25 °C) |
| Relative Humidity | ≤80% RH |
| Compressed Air Requirement | Oil-free, dew point < −10 °C, oil content < 0.01 ppm, pressure 0.6–0.8 MPa |

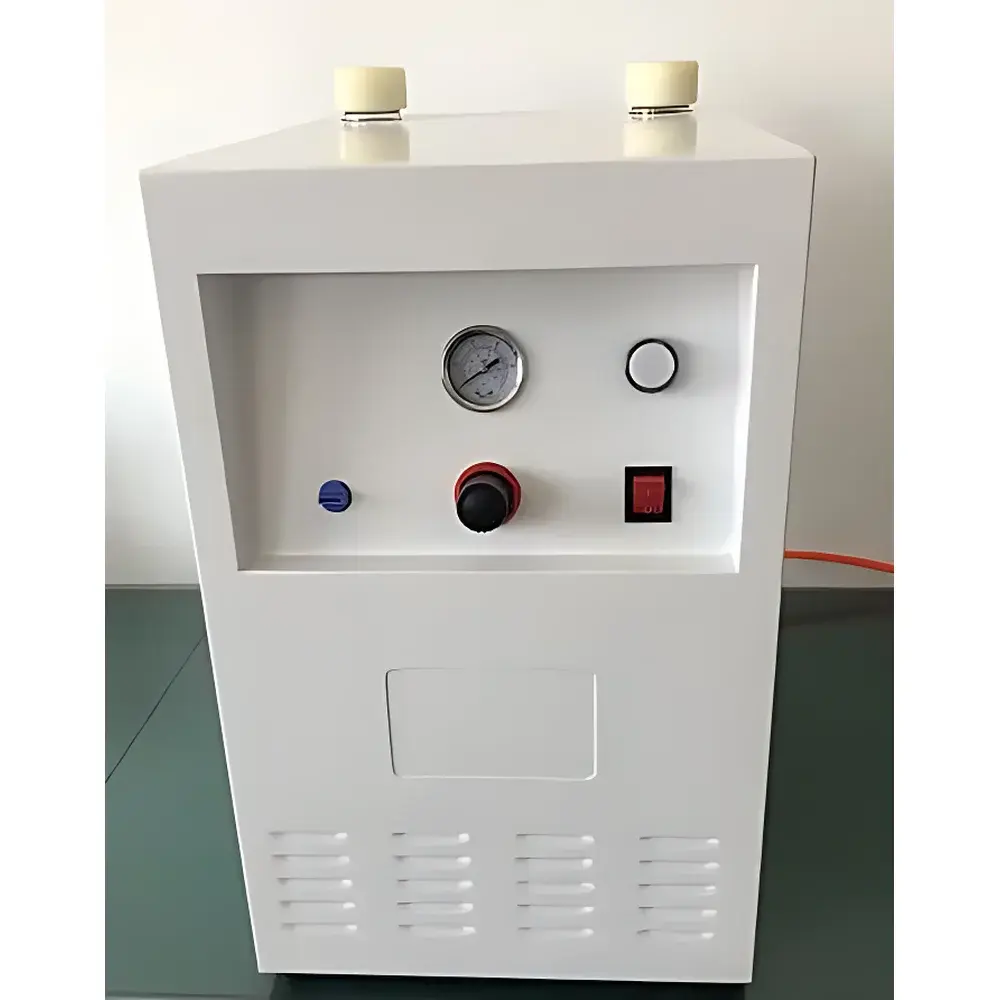

| Brand | Chengmeng Weiye |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | CM-20V |
| Compression Principle | Piston |
| Flow Rate | 0–20 L/min |
| Operating Pressure | 0–0.4 MPa |
| Dew Point | 3 °C |
| Particle Filtration Size | 0.01 µm |
| Pressure Stability | <0.002 MPa |
| Noise Level | <35 dB(A) |
| Input Voltage | 220 V, 50 Hz |
| Power Consumption | 450 W |
| Dimensions | 460 × 320 × 550 mm |
| Net Weight | 32 kg |
| Brand | Chengmeng |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |
| Model | CM-16L Nitrogen Generator |
| Instrument Type | PSA Nitrogen Generator |
| Nitrogen Generation Principle | Pressure Swing Adsorption (PSA) using imported carbon molecular sieve (CMS) |
| Output Flow Rate | 0–16 L/min |
| Output Pressure | 0.1–0.4 MPa (adjustable) |
| Nitrogen Purity | 99–99.9% (adjustable) |
| Dew Point | −20 °C |
| Power Supply | 220 V ±10%, 50 Hz |
| Power Consumption | 900 W |
| Burst Pressure | >1.0 MPa |
| Dimensions (W×D×H) | 620 × 510 × 820 mm |
| Operating Ambient Temperature | 0–40 °C |
| Noise Level | 55 dB(A) |
| Weight | 105 kg |
| Brand | Chengmeng Technology |
|---|---|
| Origin | Beijing, China |
| Model | CM-30LB |
| Output Flow | 0–30 L/min |
| Output Pressure | 116 psi (adjustable) |
| Nitrogen Purity | 95–99.9% |
| Dew Point | −10°C |
| Particle Size Limit | <0.01 µm |
| Total Power | 1.3 kW |
| Noise Level | ≤58 dB(A) |
| Dimensions (L×W×H) | 800×500×750 mm |
| Weight | 130 kg |
| Input Power | 220 V ±10%, 50 Hz |
| Operating Ambient | Temp ≤30°C, RH ≤60% |
