| Brand | Chengmeng |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |
| Model | CM2001 |
| Instrument Type | Automated Quantitative Concentrator |
| Temperature Range | Ambient to 95 °C |
| Temperature Control Accuracy | ±0.1 °C |
| Sample Capacity per Vial | Up to 50 mL |
| Maximum Parallel Channels | 60 |
| Heating Method | Water Bath |
| Gas Control | 12 Independent Solenoid-Valve-Controlled Channels (5 Nozzles per Channel) |
| Gas Pressure Range | 0–0.1 MPa (Adjustable in 0.01 MPa Steps) |
| External N₂ Supply Requirement | 0.2–0.8 MPa |
| Gas Consumption | ~500 mL/min per nozzle at 0.1 MPa |
| Auto-Replenishment | Integrated Level-Sensing Water Refill System |
| Safety Interlocks | Lid-Activated Pause/Resume, Low-Water & Low-Pressure Alarms |
| Display | Full-Color Touchscreen Interface |
| Power Supply | 220 V / 50 Hz |
| Dimensions (W×D×H) | 730 × 500 × 380 mm |
| Weight | 30 kg |
| Brand | Chengmeng |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |

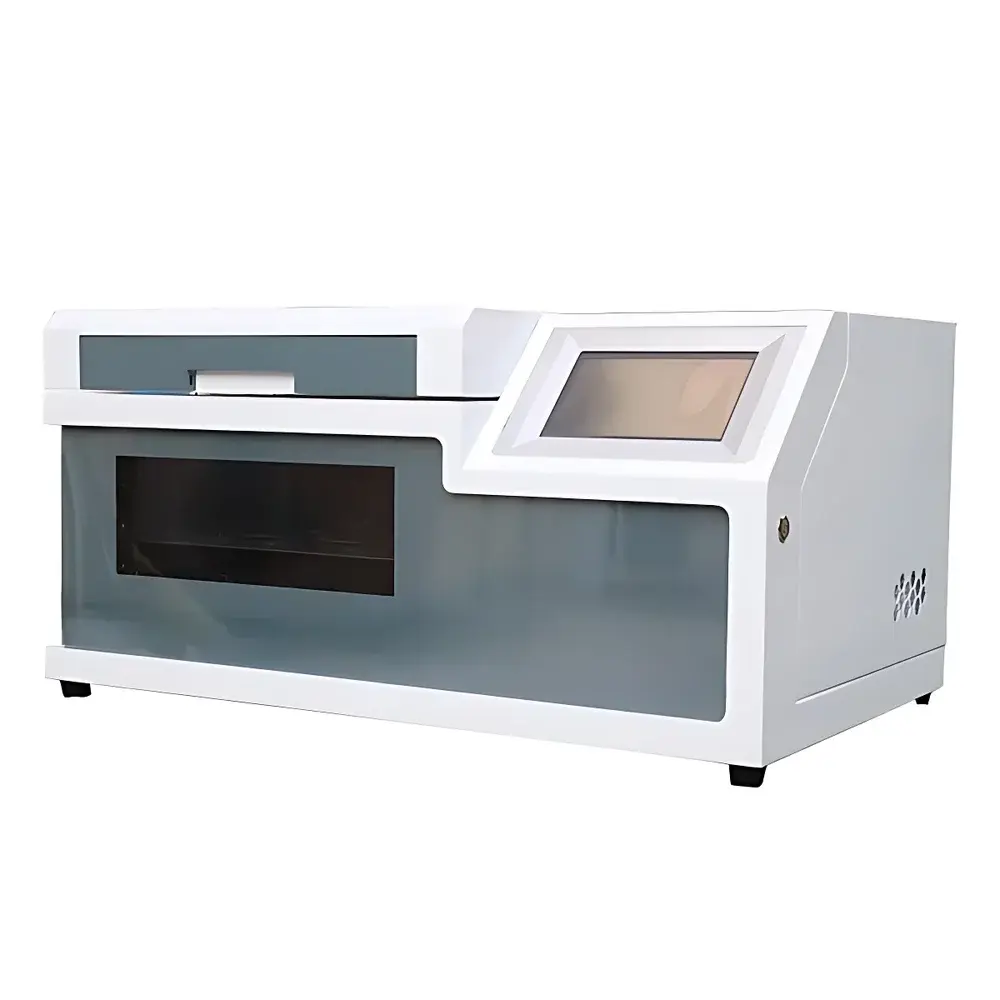

| Model | CM-24PUS Automated Nitrogen Evaporator |
| Instrument Type | Automated Quantitative Sample Concentrator |
| Temperature Range | Ambient to 100 °C |
| Temperature Control Accuracy | ±0.5 °C |
| Sample Volume Capacity | 1–200 mL |
| Sample Positions | Up to 24 parallel channels (configurable: 12/24/36/64 positions) |
| Heating Method | PID-Controlled Water Bath |
| Display | 8-inch HD Touchscreen (800×480 resolution) |
| Gas Control | Electromagnetic Valves with Real-Time Pressure & Flow Monitoring |
| Pressure Input Range | 7–145 psi |
| Output Pressure Range | 0–72.5 psi |
| Power Supply | 220 V / 110 V, 50 Hz |
| Rated Power | 2200 W |
| End-Point Detection | Optical Fiber Sensors for 0.5 mL and 1.0 mL auto-shutoff |
| Safety Features | Low-water-level alarm, over-temperature cutoff, dry-run protection, auto-drain module |
| Brand | Chengmeng Technology |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |
| Model | CMDS-12D |
| Instrument Type | Automated Quantitative Concentrator |
| Temperature Range | Ambient to 99 °C |
| Temperature Control Accuracy | ±0.5 °C |
| Sample Vessel Capacity | 50 mL or 150 mL |
| Heating Method | Dry-block (water bath optional) |
| Endpoint Detection | Optical sensor per channel |
| Adjustable Endpoint Volume | 1.0 mL, 0.5 mL, or near-dry (~0.1 mL) |
| Nitrogen Pressure Range | 0–0.1 MPa (adjustable in 0.01 MPa increments) |
| Inlet Gas Requirement | 0.2–0.8 MPa |
| Gas Consumption | ~500 mL/min per channel at 0.1 MPa |
| Endpoint Sensitivity | 10-level optical threshold adjustment |
| Power Supply | 220 V / 60 Hz |
| Dimensions | 650 × 450 × 308 mm |
| Weight | 21 kg |
| Brand | Chengmeng Technology |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Region of Manufacture | Domestic (China) |
| Model | CMDS-24D |
| Instrument Category | Automated Quantitative Concentrator |
| Temperature Range | Ambient to 99 °C |
| Temperature Control Accuracy | ±0.5 °C |
| Sample Capacity per Vial | 150 mL |
| Heating Method | Dry-Block (Water Bath Optional) |
| Endpoint Detection | Optical Sensor per Channel |
| Adjustable Endpoint Volumes | 1.0 mL, 0.5 mL, or Near-Dry (~0.1 mL) |
| Nitrogen Pressure Control | 0–0.1 MPa (adjustable in 0.01 MPa increments) |
| Inlet N₂ Supply Requirement | 0.2–0.8 MPa (max tolerance: 1.0 MPa) |
| Gas Consumption | ~500 mL/min per channel at 0.1 MPa |
| Endpoint Sensitivity | 10-Level Adjustable |
| Dimensions | 650 × 450 × 308 mm |
| Weight | 21 kg |
| Brand | Organomation |
|---|---|
| Origin | USA |
| Model | S-EVAP-RB Series Parallel Evaporator |
| Instrument Type | Automated Quantitative Concentrator |
| Temperature Range | 30–100 °C |
| Temperature Control Accuracy | ±2 °C |
| Solvent Bottle Capacity | 250 mL and 500 mL options |
| Safety Certifications | UL/cUL Listed |
| Compliance | ISO 14000-compatible operation |
| Brand | Chengmeng |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |
| Model | Chengmeng CM-12PUS Automated Nitrogen Evaporator |
| Instrument Type | Automated Quantitative Sample Concentrator |
| Temperature Range | Ambient to 100 °C |
| Temperature Control Accuracy | ±0.5 °C |
| Sample Volume Capacity per Vial | 50–150 mL |
| Maximum Simultaneous Samples | 64 (configurable: 12/24/36/64 positions) |
| Nitrogen Input Pressure Range | 7–145 psi |
| Output Pressure Range | 0–72.5 psi |
| Heating Power | 2200 W |
| Display | 8-inch HD Touchscreen (800×480 resolution) |
| Sample Detection | Optical Fiber Sensor for Endpoint Detection at 0.5 mL or 1.0 mL |
| Water Bath Material | Stainless Steel |
| Control Modes | Manual & Automatic |
| Compliance | Designed for GLP-compliant laboratories |
