| Origin | Beijing, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China-made) |

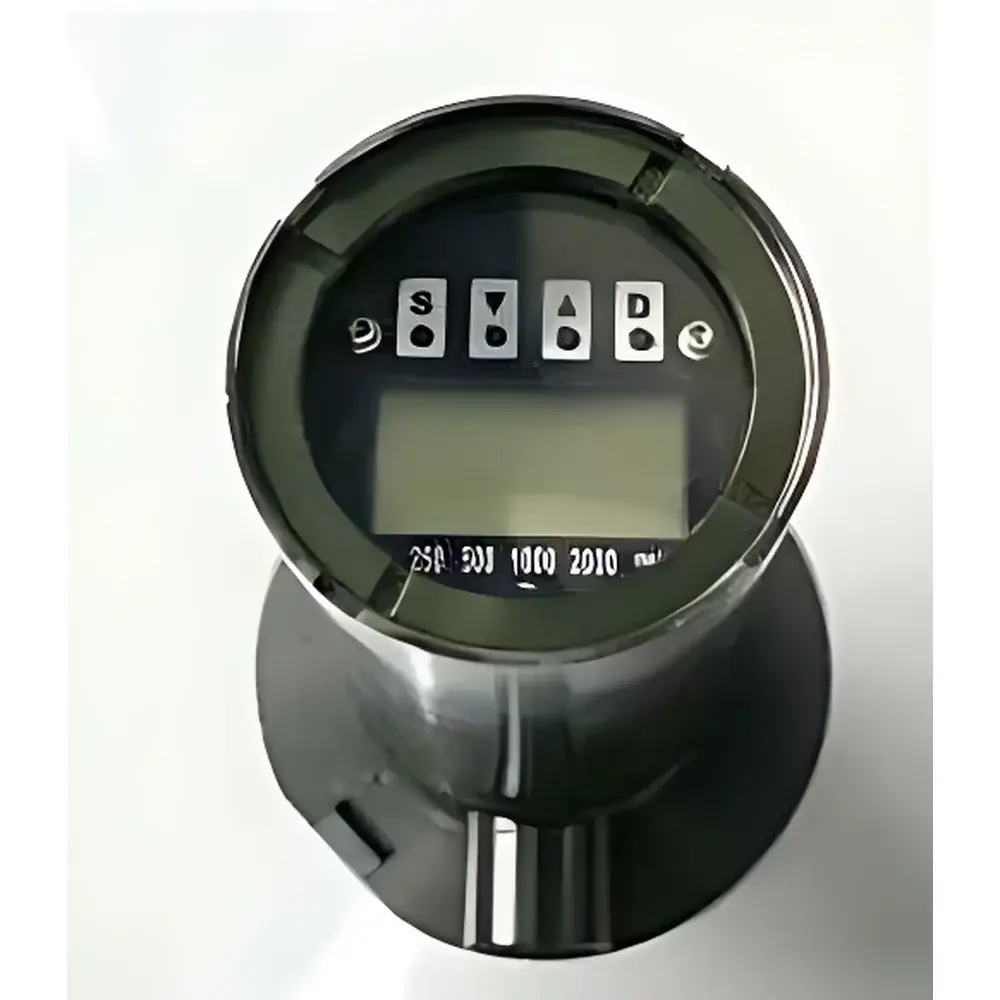

| Model | YQ-580 |
| Pricing | Available Upon Request |
| Measurement Principle | Laser Backscatter Photometry |
| Output Signal | 4–20 mA (max. load 500 Ω) |
| Power Supply | DC 16–24 V ±10% |
| Power Consumption | ≤3 W |
| Dimensions | 160 × 160 × 250 mm |
| Weight | 4 kg |
| Operating Temperature | −40 °C to +65 °C |
| Relative Humidity | 0–100% RH |
| Measurement Range | 0–200 mg/m³ (standard), extendable to 0–10 g/m³ (custom configuration) |
| Detection Limit | 2 mg/m³ |
| Accuracy | ±2% FS |
| Maximum Stack Diameter | 15 m |
| Minimum Stack Diameter | 1 m |
| Max. Flue Gas Temperature | 300 °C (high-temp version available upon customization) |
| Installation | Single-ended, tool-free mechanical mounting |
| Compliance | Designed for continuous emission monitoring (CEMS) integration per GB/T 16157, HJ 75–2017, and compatible with ISO 12141, ASTM D6216, and EU BREF reference methods |
| Origin | Beijing, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | ML-60 |
| Pricing | Available Upon Request |
| Humidity Range | 0–10 %vol |
| Humidity Accuracy | ±1 %vol |
| Temperature Range | −80 to +350 °C |
| Temperature Accuracy | ±0.2 °C |
| Display | LED LCD showing %vol H₂O, ppmv H₂O, RH%, and temperature |
| Sampling Method | Insertion-type probe |
| Sample Pressure | 0.2–10 bar (adjustable) |
| Sample Flow Rate | 1–3 L/min |
| Sample Line Material | Electropolished 316L Stainless Steel |
| Sensor Mount Thread | 0.750-16 UNF-2A |
| Optical Cell Connection | Swagelok® 6 mm or 1/4″ compression fitting |
| Operating Temperature | −20 to +60 °C (electronics), −60 to +250 °C (probe) |
| Storage Temperature | −10 to +50 °C |
| Ambient Humidity | ≤90 %RH, non-condensing |
| Optical Interface | FC/APC fiber connector |
| Communication | RS-485 (Modbus RTU) |
| Analog Output | 4–20 mA (isolated, configurable per parameter) |
| Power Supply | DC 24 V ±10 % or AC 220 V ±15 %, 50/60 Hz |
| Power Consumption | ~4 W |
| Origin | Imported |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Model | AKS-P8018A |
| Pressure Range | 0–100 MPa |
| Adjustment Resolution | 0.1 kPa |
| Pressure Medium | P816C Hydraulic Oil |
| Pressure Port | Three M20×1.5 Female Quick-Connect Threads |
| Dimensions | 460 × 385 × 178 mm |
| Weight | 13.2 kg |
