| Origin | USA |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |

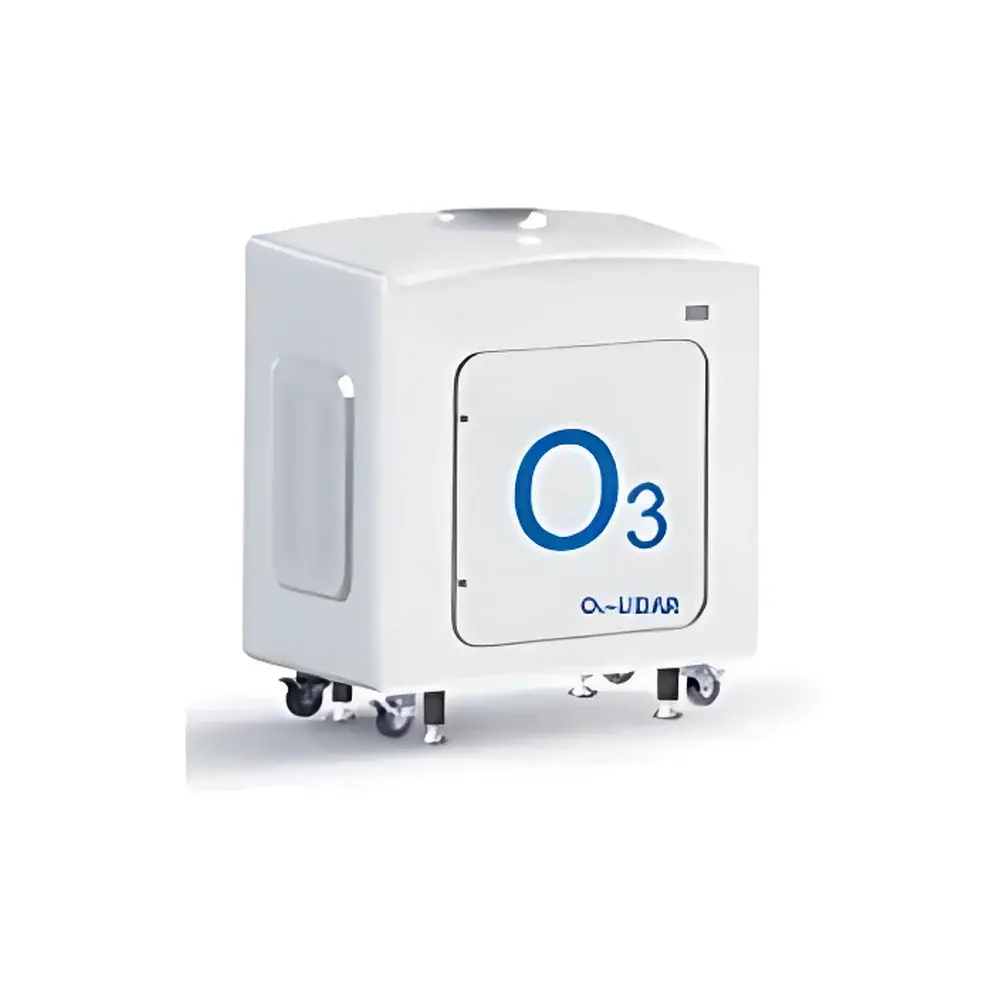

| Model | O3-LIDAR |
| Laser Source | Nd:YAG-based UV laser system (266 nm fundamental, 289 nm & 316 nm Raman-shifted) |
| Detector | High-quantum-efficiency photomultiplier tubes (PMTs) with solar-blind UV response |
| Operating Wavelengths | 289 nm and 316 nm (DIAL pair) |
| Maximum Detection Altitude | Up to 25 km (dependent on atmospheric conditions) |
| Pulse Repetition Frequency | 20–50 Hz |
| Origin | USA |
|---|---|
| Manufacturer Type | Distributor |
| Origin Category | Imported |

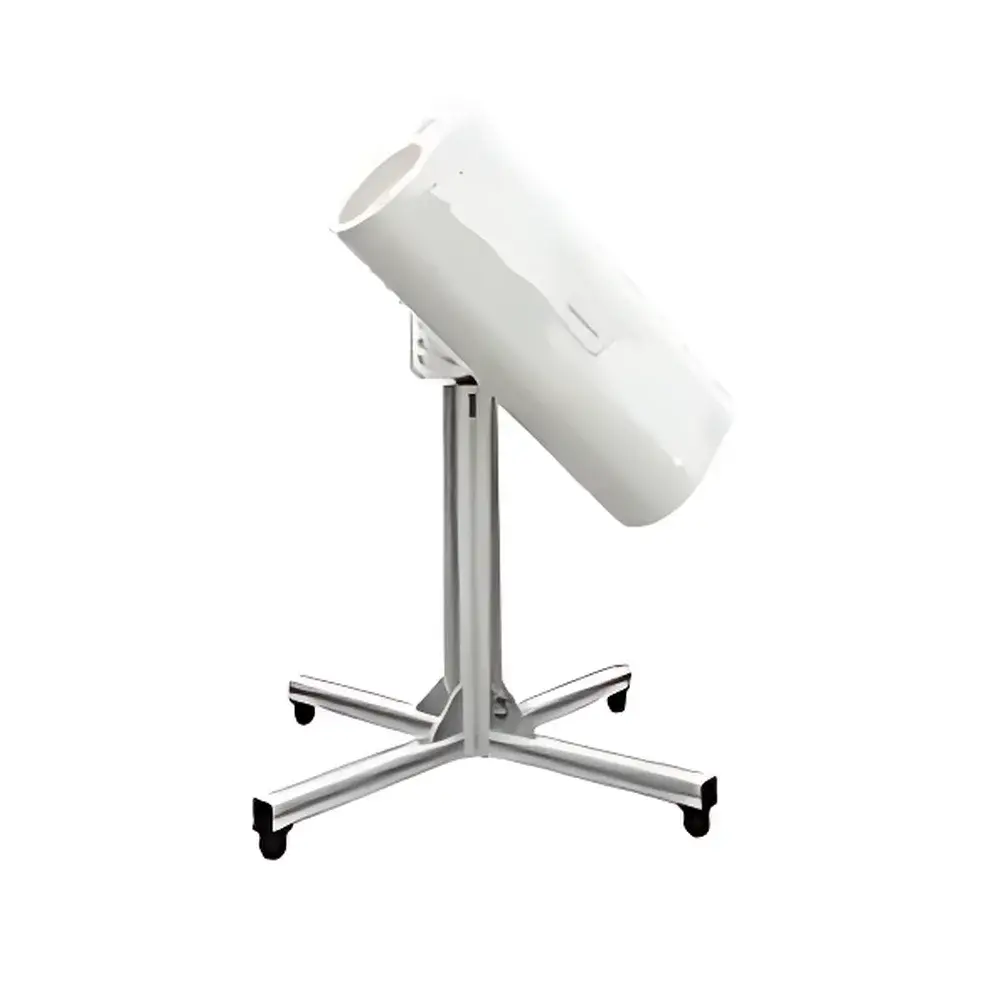

| Model | Portable |
| Price Range | USD 1,400 – 7,200 (est.) |
| Laser Source | Pulsed Solid-State Nd:YAG (1064 nm) |
| Detector | High-Sensitivity Avalanche Photodiode (APD) Array |
| Operating Wavelength | 1064 nm |
| Maximum Detection Altitude | 8 km (a.s.l.) |
| Pulse Repetition Frequency | 4 kHz |
| Spatial Resolution | Adjustable (7.5 m / 15 m / 30 m) |
| Laser Safety Class | Class 3B (IEC 60825-1) |
| Enclosure Rating | IP65 |
| Power Supply | 220 V AC or 12 V DC (battery-compatible) |
| Scan Mechanism | Integrated European-Made 3D Galvanometric Motor (±90° azimuth, ±45° elevation) |
