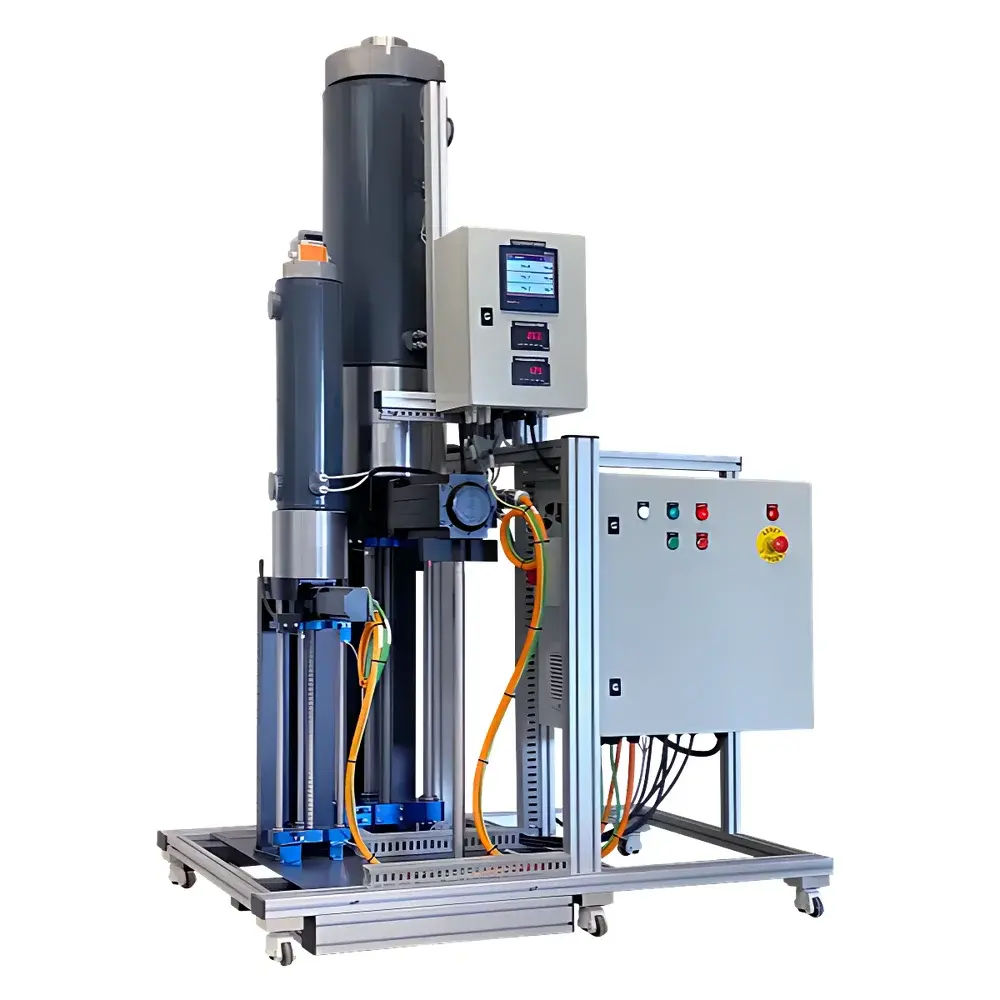

| Brand | Irian |
|---|---|
| Origin | France |
| Model | 2PE |
| Cylinder Pressure Capacity | 25 bar (360 psi) |
| Flow Rate (L/h) | P1: 0.013–100 |
| P2 | 100–6,000 |
| Cylinder Volumes | P1: 3 L |
| P2 | 30 L |
| Operating Temperature | +20 °C to +50 °C |
| Construction Material | ASTM A240 UNS S31603 (316L stainless steel) |
| Dimensions (H×W×D) | 2.15 × 1.43 × 0.91 m |
| Weight | 570 kg |
| Power Supply | 3-phase 400 VAC / 50 Hz / 32 A |
| Pressure Sensor | Full Scale 50 bar, Resolution 0.01 bar |
| Temperature Sensors | 2 × PT100 (cylinder ends), 1 × PT100 (motor-proximal outlet) |
| Analog Outputs | 2 × 4–20 mA |
| Encoder Feedback | Motor speed control interface |
| Safety System | Electronic pressure threshold with automatic motor shutdown + explosion-proof design |
| Calibration | Internal strain-gauge-based instrumentation for simultaneous pressure and thermal expansion monitoring |
| Control Interface | fluidmodBus RTU remote protocol |
