| Brand | French BROT-LAB |
|---|---|
| Origin | France |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported Equipment |
| Model | 1 22 12 |
| Pricing | Upon Request |
| Brand | BROT-LAB |
|---|---|
| Origin | France |
| Model | W 05 02 |
| Cutting Wheel Diameter | 400 mm (up to 500 mm optional) |
| Max Cutting Depth | 125 mm |
| Max Core Length | 300 mm (1000 mm optional) |
| Coolant | Water or Oil |
| Power Supply | 220 V AC, 50 Hz, 4000 W |
| Weight | 320 kg |
| Instrument Type | Precision Core Cutting Machine |
| Brand | WEIYEE |
|---|---|
| Origin | Guangdong, China |
| Model | MP-1DCH |
| Grinding Disc Diameter | 200 mm (8") |
| Number of Grinding Discs | 1 |
| Speed Range (Disc) | 50–1500 rpm, infinitely variable |
| Rotation Direction | Forward/Reverse selectable |
| Polishing Head Speed | 20–120 rpm, infinitely variable |
| Sample Capacity | Up to 4 specimens simultaneously |
| Power Supply | AC 220 V |
| Housing Material | Reinforced plastic-steel composite |
| Brand | WEIYEE |
|---|---|
| Origin | Guangdong, China |
| Model | Q-100ZL |
| Cutting Wheel Dimensions | Φ350 × 32 × 2.5 mm |
| Maximum Specimen Diameter | Φ100 mm |
| X-Axis Travel | 50 mm |
| Z-Axis Travel | 100 mm |
| Control Interface | Color Touchscreen |
| Cooling System | 60 L Closed-Circuit Recirculating Water Tank |
| Power Supply | 380 V AC, 3 kW |
| Operation Modes | Manual and Automatic |
| Equipment Type | Metallographic Cutting Machine |
| Brand | WEIYEE |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | WYP-1 (Direct-Pressure Type), WYP-2 (Lever-Arm Type) |
| Pricing | Available Upon Request |
| Brand | WEIYEE |
|---|---|
| Origin | Guangdong, China |
| Model | MP-1DSH |
| Disc Diameter | 200 mm (8") |
| Number of Grinding/Polishing Discs | 1 |
| Speed Range (Disc) | 50–1500 rpm, infinitely variable |
| Rotation Direction | Forward/Reverse selectable |
| Head Speed (Sample Holder) | 20–120 rpm, infinitely variable |
| Power Supply | 220 V AC |
| Housing Material | Reinforced Plastic-Steel Composite |
| Brand | WEIYEE |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | M-2 |
| Rotational Speed | 450 rpm |
| Grinding Disk Diameter | 203 mm (8") |
| Number of Grinding Disks | 2 |
| Origin | France |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | W0505 |
| Pricing | Available Upon Request |
| Brand | French BROT-LAB |
|---|---|
| Origin | France |
| Model | 1.22.10 |
| Power Supply | 400 V, 3-phase, 50/60 Hz |
| Spindle Motor | 0.55 kW |
| Pump Motor | 150 W |
| Spindle Speeds | 12 adjustable steps from 150 to 2,840 rpm |
| Core Diameter Range | 1", 1.5", 2", 3", 4" (25.4–101.6 mm) |
| Max Core Depth | 125 mm |
| Worktable Dimensions | 600 × 300 × 250 mm |
| Tilt Range | ±45° |
| Noise Level | <70 dB(A) |
| Coolant Options | Water or oil |
| Standard Accessories | Clamping bracket, adjustable tilting table, safety guard |
| Brand | WEIYEE |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | MP-2DSH |
| Speed Range (Platen) | 50–1500 rpm |
| Platen Diameter | 200 mm (8") |
| Number of Platens | 2 |
| Polishing Head Speed | 20–120 rpm |
| Voltage | 220 V AC |
| Rotation Direction | Forward/Reverse Selectable |
| Sample Capacity | Up to 4 specimens simultaneously |
| Pressure Control | Adjustable mechanical load system |
| Housing Material | Reinforced plastic-steel composite |
| Brand | French BROT-LAB |
|---|---|
| Origin | France |

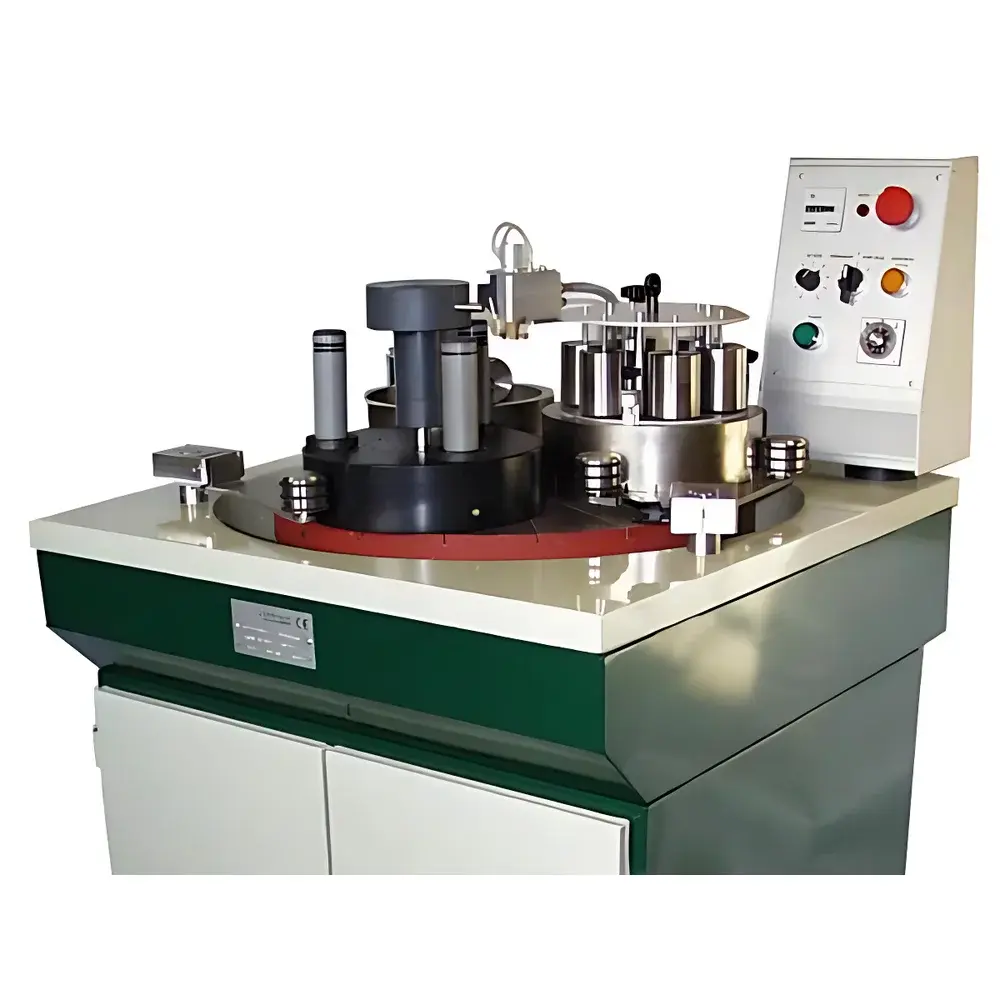

| Model | J0316 |
| Sample Holder Capacity | 6 × 30×45 mm or 3 × 60×45 mm thin sections |
| Vacuum Chuck Type | Vertical |
| Max. Simultaneous Samples (Rock Thin Sections) | 6 end-face preparations |
| Abrasive Delivery | Motor-synchronized auto-drip SiC slurry system |
| Platen Speed | Adjustable |
| Thickness Control Mechanism | Micrometer-driven, resolution: 0.01 mm |
| Platen Surface Treatment | Proprietary long-life hardened coating (20-year warranty) |
| Primary Application | Precision lapping of geological thin sections to target thickness ≤30 µm from ~150 µm starting thickness |
| Surface Finish Objective | Planar, scratch-free surface suitable for optical microscopy and fluid inclusion analysis |
| Brand | French BROT-LAB |
|---|---|
| Origin | France |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | 1.22.11 |
| Power Supply | 400 V, 3-phase, 50/60 Hz |
| Spindle Motor | 0.55 kW |
| Pump Motor | 150 W (recirculation only) |
| Spindle Speeds | 12 adjustable steps from 150 to 2,840 rpm |
| Core Diameter Range | Ø4 mm to Ø100 mm |
| Maximum Core Depth | 115 mm |
| Table Dimensions | 600 × 300 × 250 mm |
| Table Tilt Range | ±45° |
| Cooling Media | Water, oil, or liquid nitrogen (optional integrated recirculation system) |
| Drill Bit Internal Diameter | 1" (optional: 1.5", 2", 3", 4", or custom) |
| Noise Level | <70 dB(A) |
| Standard Accessories | Dual-clamp fixture, tilting table, safety guard |
| Optional Accessories | Integrated sediment-recycling water system, liquid nitrogen cooling module |
| Brand | French BROT-LAB |
|---|---|
| Origin | France |
| Model | J-02-15 |
| Blade Diameter | 175 mm |
| Maximum Stroke | 30 mm |
| Thickness Adjustment Resolution | 0.01 mm |
| Thickness Range (Standard Mode) | 100 µm (adjustable down to ±5 µm repeatability) |
| Vacuum Chuck System | Integrated, electric vacuum pump with solvent-resistant construction |
| Cooling System | Closed-loop recirculating water system (30 L capacity), direct nozzle spray onto blade |
| Frame Material | Corrosion-resistant steel chassis |
| Sample Holding | Vacuum suction platen with sealed gasket interface |
| Waste Collection | Polypropylene catch basin for coolant, slurry, and particulate debris |
| Compliance | Designed for ISO/IEC 17025-aligned lab environments |
| Origin | France |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | W0503 |
| Pricing | Available Upon Request |
| Blade Diameter | 350 mm |
| Max Cutting Depth | 100 mm |
| Max Core Length | 300 mm |
| Coolant Compatibility | Water or Oil |
| Power Supply | 220/380 V AC, 50 Hz, 3 HP |
| Weight | 82 kg |
| Dimensions | 1120 × 620 × 710 mm |
| Brand | WEIYEE |
|---|---|
| Origin | Guangdong, China |
| Model | MP-1DA |
| Platen Diameter | 200 mm (8") |
| Number of Platens | 1 |
| Speed Range (Platen) | 50–1500 rpm (infinitely variable) + 6 preset speeds (250/500/750/1000/1250/1500 rpm) |
| Platen Rotation | Forward/reverse selectable |
| Pressure Control | Pneumatic single-point loading with adjustable pressure |
| Head Rotation Speed | 20–120 rpm (infinitely variable) |
| Sample Capacity | Up to 8 specimens simultaneously |
| Control Interface | 7-inch high-resolution touchscreen |
| Drive System | Servo motor-driven vertical head lift |
| Startup Profile | Programmable soft-start curve |
| Liquid Dispensing | Dual-channel integrated reagent dispensing bottles |
| Power Supply | 220 V AC |
| Brand | WEIYEE |
|---|---|
| Origin | Guangdong, China |

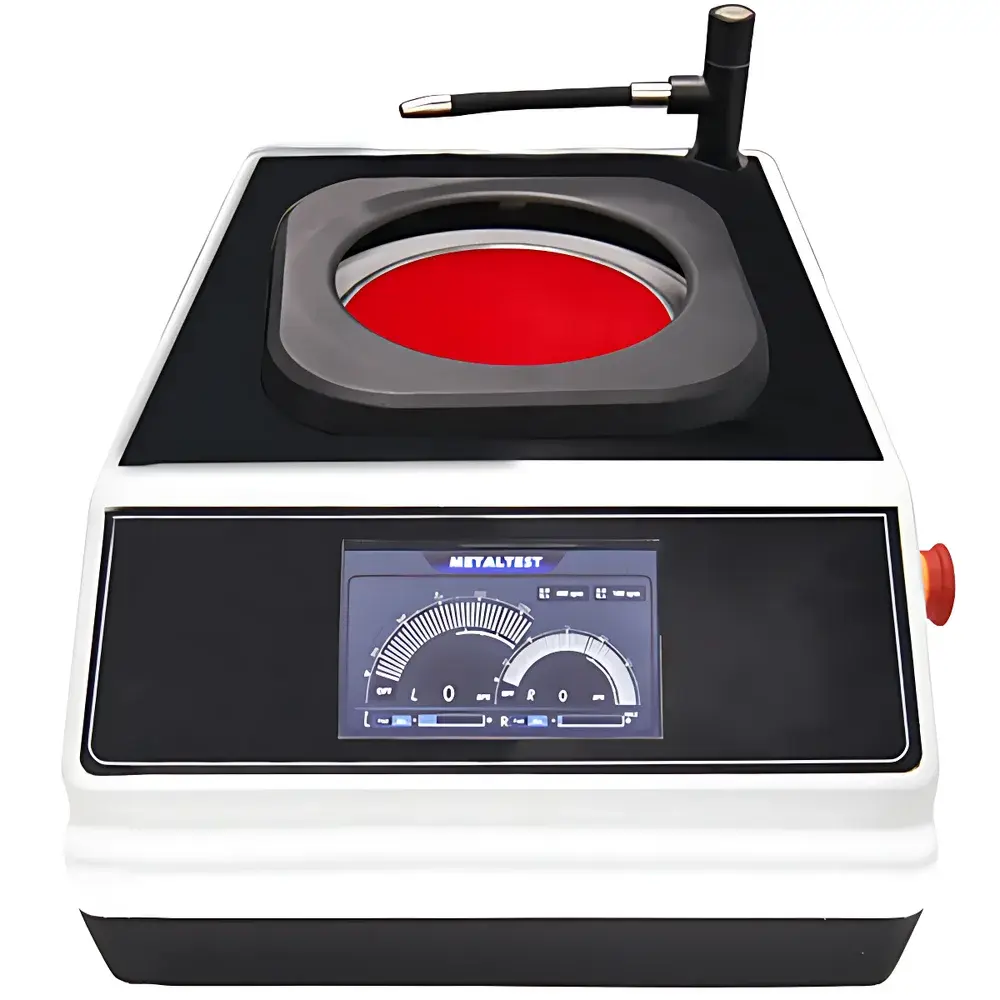

| Model | MP-1DC |
| Disc Diameter | 203 mm (8") |
| Number of Discs | 1 |
| Speed Range | 50–1500 rpm (bidirectional, continuously variable) |
| Control Interface | 7-inch industrial touchscreen |
| Power Supply | AC 220 V |
| Manufacturer Type | Authorized Distributor |
| Country of Manufacture | China |
| Brand | French BROT-LAB |
|---|---|
| Origin | France |
| Model | D 04 05 |
| Type | Hot Mounting Press |
| Temperature Range | 25–80 °C |
| Sample Capacity | 1–12 specimens simultaneously |
| Vacuum System | Low-noise electric vacuum pump |
| Rotating Platform Diameter | 200 mm |
| Dimensions (W×D×H) | 350 × 350 × 400 mm |
| Weight | 13 kg |
| Resin Injection Vessel | 125 mL glass funnel with PTFE stopper |
| Heating Plate | Adjustable, up to 80 °C |
| Vacuum & Temperature Monitoring | Integrated digital sensors |
| Brand | WEIYEE |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | MP-2D+MPT-1 |
| Grinding/Polishing Disc Diameter | 230 mm (9") |
| Number of Discs | 2 |
| Speed Range | 50–1000 rpm |
| Voltage | 220 V AC |
| Sample Capacity | Up to 4 specimens simultaneously (2 per station) |
| Pressure Control | Adjustable mechanical load system |
| Drive Type | Variable-frequency motor with stepless speed regulation |
| Origin | France |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | J0223 |
| Price | Upon Request |
| Motor | 3-phase, 300 V / 50 Hz, 0.5 HP (J0223) |
| Diamond Blade Diameter | 200 mm (J0223), 175 mm (J0215) |
| Rotational Speed | 2950 rpm |
| Minimum Thickness Setting | 0.01 mm |
| Maximum Sample Thickness | 30 mm |
| Cooling System | Circulating tap water (J0223), 30 L recirculating coolant reservoir (J0215) |
| Sample Holder Capacity | Two 30 × 45 mm slides or one 45 × 60 mm slide (J0223) |
| Compliance | Designed for ISO/IEC 17025-compliant geological sample preparation workflows |
| Brand | JinJunPai |
|---|---|
| Origin | France |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | microcut |
| Pricing | Upon Request |
| Brand | WEIYEE |
|---|---|
| Origin | Guangdong, China |
| Model | GTQ-5000B / GTQ-5000Z |
| Max. Cutting Diameter | Φ60 mm |
| Y-Axis Travel | 200 mm |
| Spindle Speed Range | 50–5000 rpm |
| Power Supply | 220 V AC, 1.1 kW |
| Cooling System | 30 L Closed-Loop Circulating Water Tank |
| Diamond Blade Specification | Φ200 × 32 × 1.0 mm |
| Control System | Industrial PLC with Touchscreen HMI |
| Instrument Type | Precision Cutting Machine |
| Brand | French BROT-LAB |
|---|---|
| Origin | France |
| Type | Precision Cutting Machine |
| Motor | 3-phase, 400 V, 0.5 CV, 50/60 Hz |
| Blade Diameter | 200 mm (optional range: 150–250 mm) |
| Rotational Speed | 2950 rpm |
| Maximum Core Length | 250 mm |
| Cooling | Continuous tap-water supply |
| Viewing Window | 360° transparent polycarbonate enclosure |
| Sample Holders | Irregular rock fixture & cylindrical core fixture |
| Collection System | Polypropylene spill-proof catch basin |
| Surface Finish | Corrosion-resistant epoxy-polyester coating |
| Safety Features | IP54-rated electrical enclosure, integrated circuit breaker, anti-vibration base, splash guard |
| Brand | OMNICAL |
|---|---|
| Origin | USA |
| Type | Refrigerated & Heating Circulating Bath |
| Models | CB2008, OB1008, HB2020, TB1505.025, UB7507.05 |
| Temperature Range | −90 °C to +250 °C |
| Bath Volume | 3 L to 20 L |
| Temperature Stability | ±0.01 °C to ±0.05 °C |
| Circulation Mode | Internal & External (Dual-Loop) |
| Compliance | CE, UL 61010-1, RoHS |
| Brand | French BROT-LAB |
|---|---|
| Origin | France |
| Model | J-04-02 |
| Type | Electrically Heated Sample Mounting System for Thin-Section Preparation |
| Compliance | CE-marked, RoHS-compliant |
| Power Supply | 230 V AC, 50/60 Hz |
| Max. Operating Temperature | 120 °C (adjustable in 1 °C increments) |
| Heating Uniformity | ±2 °C across 150 mm × 150 mm surface |
| Ultrasonic Frequency | 40 kHz |
| Weight Capacity (Press Frame) | 5 kg (with calibrated loading bar) |
| Thickness Measurement Resolution | 1 µm (digital micrometer) |
| Balance Accuracy | 0.1 mg (0.0001 g), 210 g capacity |
