| Brand | B&W Tek |
|---|---|
| Origin | USA |

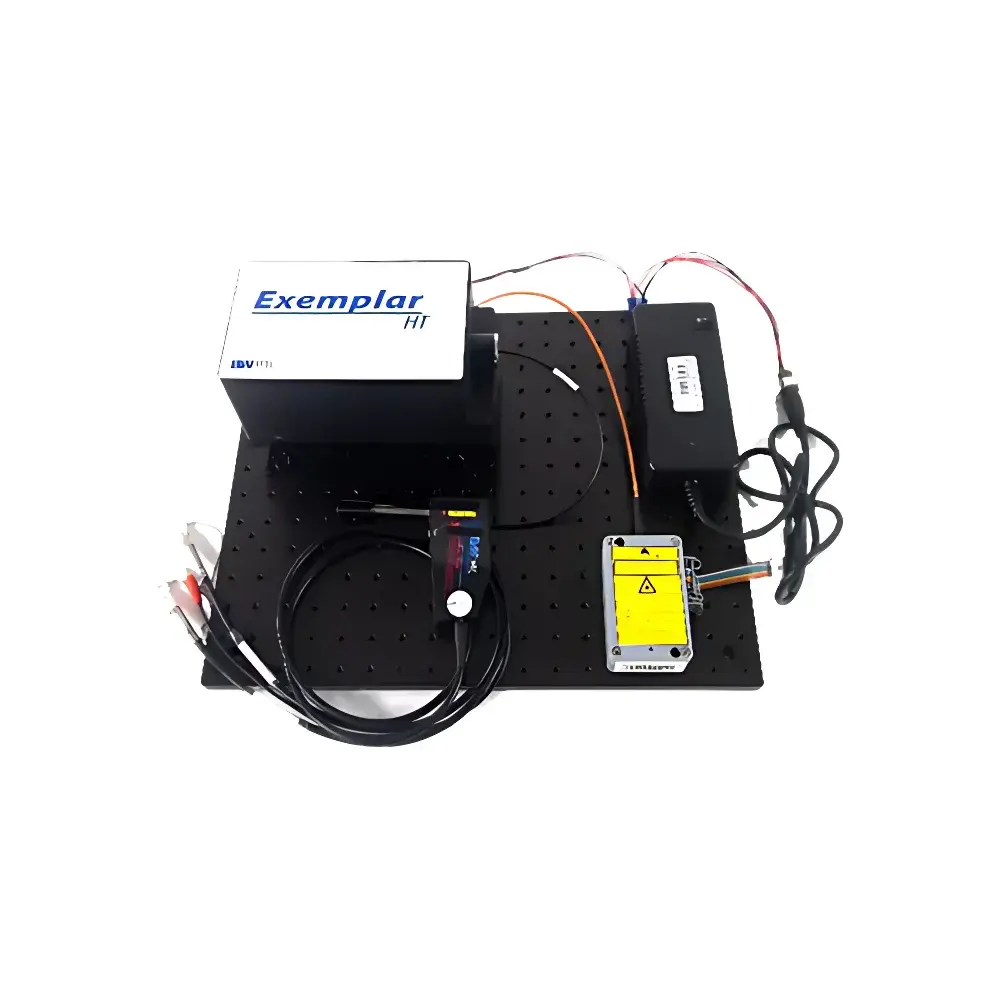

| Model | DIY Raman – 785 |
| Spectrometer Type | Grating-based Raman Spectrometer |
| Spectral Range | 788–1067 nm |
| Spectral Resolution | 4.5 cm⁻¹ @ 912 nm |
| Excitation Wavelength | 785 nm |
| Raman Shift Range | 150–3350 cm⁻¹ (dependent on probe selection) |
| Detector | Back-illuminated CCD (2048-pixel), TE-cooled to –25 °C (research-grade) |
| Dimensions (research-grade) | 220 × 180 × 130 mm |
| Weight (research-grade) | 3.4 kg |
| Laser Compliance | FDA 21 CFR 1040 (component-level sale only) |
| Brand | B&W Tek |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Product Category | Imported Instrument |

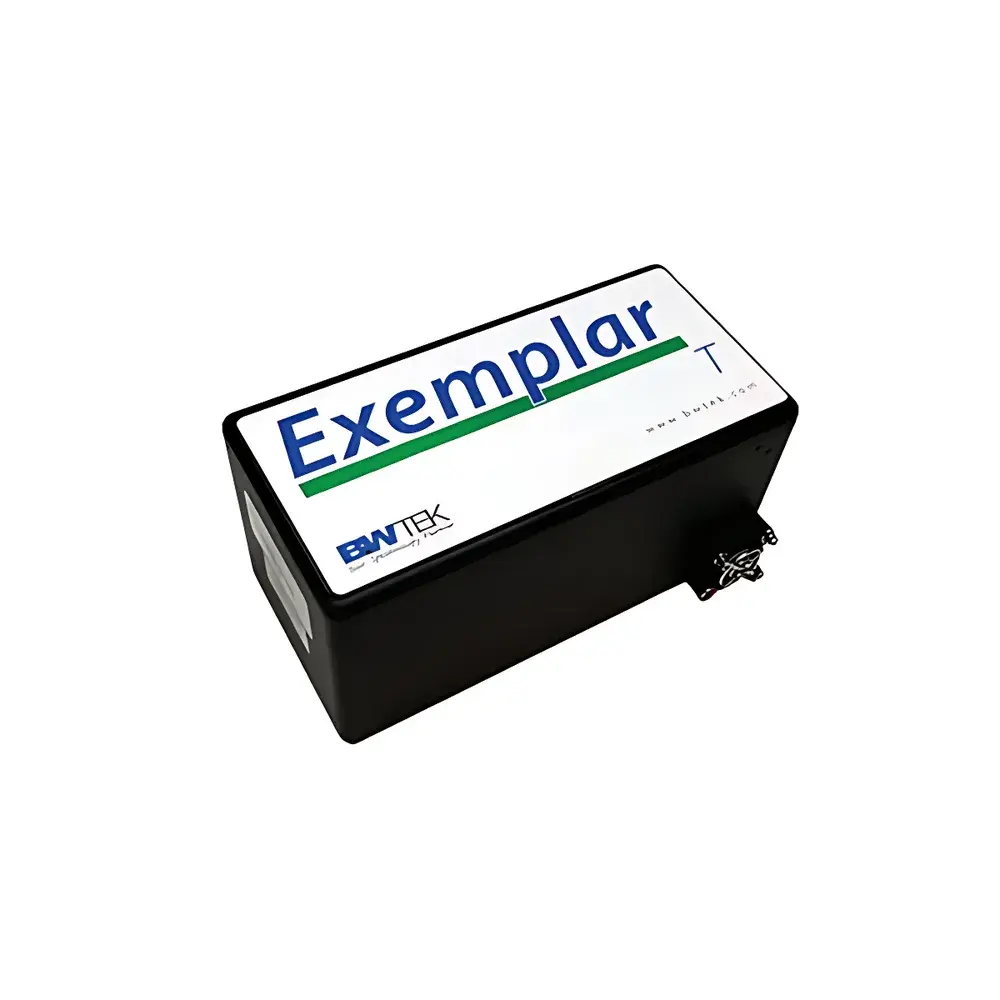

| Model | BTC665N |
| Pricing | Upon Request |
| Spectral Range | 532–1100 nm |
| Detector | Back-Illuminated CCD |
| Optical Resolution (FWHM) | 0.16–0.37 nm |
| Sensitivity | 75 photons/count @ 400 nm |
| Dynamic Range | 50,000 (typical) |
| Stray Light | <0.08% @ 600 nm |
| Brand | B&W Tek |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | DIY Raman – 1064 |
| Instrument Type | Grating-Based Raman Spectrometer |
| Spectral Range | 1047 nm – 1450 nm |
| Spectral Resolution | 10 cm⁻¹ @ 1296 nm |
| Excitation Wavelength | 1064 nm |
| Raman Shift Range | 100 – 2500 cm⁻¹ (probe-dependent) |
| Detector | Linear InGaAs Array |
| Thermoelectric Cooling | −20 °C |
| Dimensions | 163 mm × 93.6 mm × 67.8 mm |
| Weight | ~1.25 kg |
| Laser Module | BRM-1064-450-100-22-DIY (450 mW standard, customizable power) |
| Probe Model | BAC100B-1064-HT |
| Laser Attenuation | OD6 (default) |
| Probe Shaft Material | 304 Stainless Steel |
| Probe Shaft Length | 76.2 mm |
| Probe Shaft Diameter | 9.4 mm |
| Working Distance | 5.9 mm |
| Max Operating Temperature | 80 °C (non-immersion) |
| Brand | APL/Applied Photonics Ltd |
|---|---|
| Origin | United Kingdom |
| Manufacturer Status | Authorized Distributor |
| Product Origin | Imported |
| Model | LIBS Probe 60 |
| Instrument Type | Handheld |
| Integration | Integrated Unit |
| Laser Pulse Energy | 50–60 mJ |
| Operating Depth | 10–30 m underwater |
| Laser Source | Air-Cooled, Flashlamp-Pumped Passive Q-Switched Nd:YAG |
| Repetition Rate | Up to 1 Hz |
| Gas Purge Mechanism | Compressed Air Jet for Optical Path Drying |
| Brand | APL / Applied Photonics Ltd |
|---|---|
| Origin | United Kingdom |
| Distributor Type | Authorized Distributor |
| Origin Category | Imported |

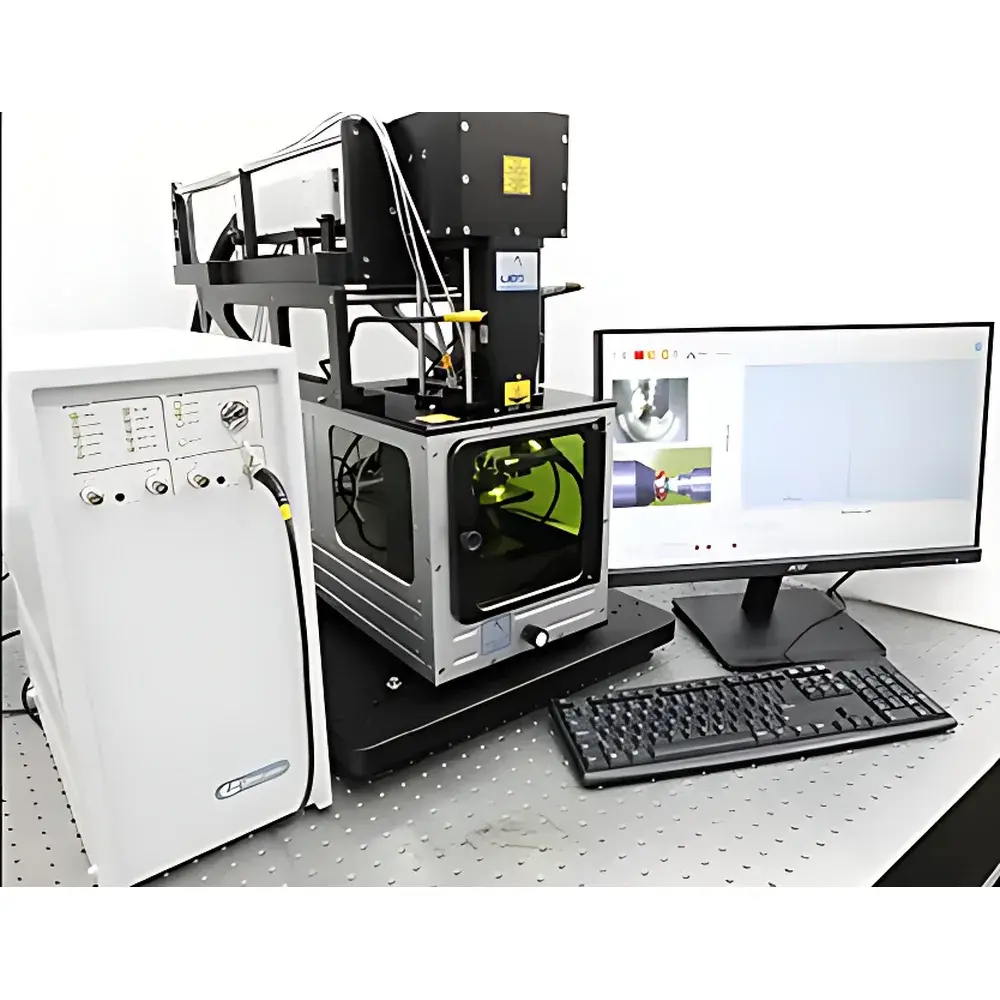

| Model | Gemmology |
| Instrument Type | Benchtop |
| Integration | Integrated |
| Laser Wavelength | 266 nm |
| Pulse Energy | >20 mJ per pulse |
| Repetition Rate | Up to 10 Hz |
| Spectral Range (configurable) | 185–1000 nm |
| Number of Spectrometer Channels | Up to 8 |
| Imaging | Dual high-resolution color cameras (top-view + side-view, orthogonal to laser axis) |
| Sample Chamber | Modular — SC-2L manual chamber standard |
| Gas Purge | External inert gas interface (Ar, N₂, He, air) |
| Software | LIBSoft™ v5.x (2-year free upgrade included) |
| Brand | APL/Applied Photonics Ltd |
|---|---|
| Origin | United Kingdom |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |

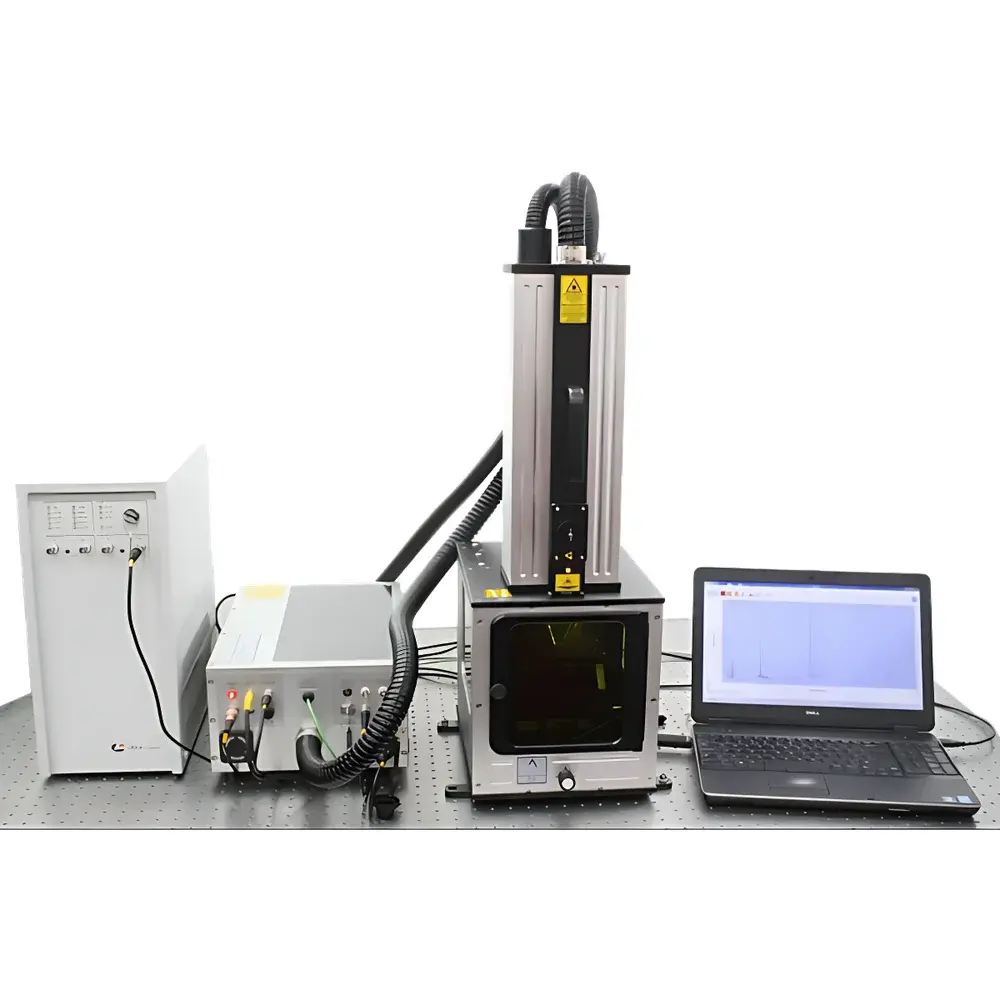

| Model | 150-10 |
| Instrument Type | Benchtop |
| Integration | Integrated |
| Laser Energy | >20 mJ |
| Laser Wavelength | 1064 nm |
| Repetition Rate | 10 Hz (150 mJ) or 20 Hz (120 mJ) |
| Plasma Light Collection Channels | 6 or 8 |
| Spectrometer Support | Up to 8 independent spectrometers |
| Spectral Range | ~182–1016 nm |
| Sample Chamber Options | Modular, motorized multi-axis stage, open-beam configuration |
| Gas Purge | Compatible with Ar, N₂, He, or air supply |
| Optional Imaging Kit | IMG-HR (2.5 MP color imaging) |
| Software | LIBSoft™ (free updates for 2 years) |
| Host Computer | External laptop or desktop required (specifications available upon request) |
