| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Status | Authorized Distributor |
| Product Category | Imported Instrument |

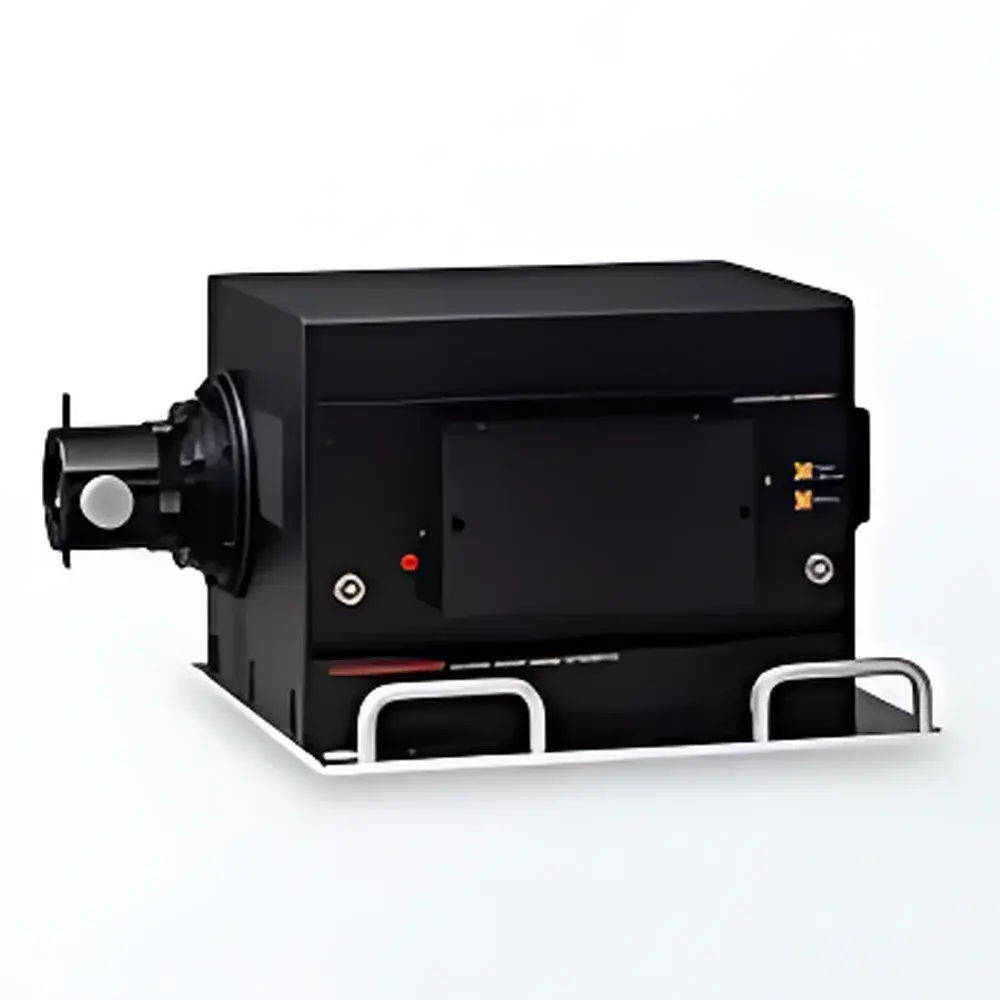

| Model | C16910 |
| Instrument Type | Repetitively Scanning Streak Camera |
| Photocathode Materials | S-20 / S-1 / S-20MgF₂ / S-25 / S-20ER |
| Photocathode Active Area | 0.15 mm × 4.5 mm ±5% (with ORCA-Flash4.0 V3) |
| Spectral Response Ranges | 200–850 nm |
| Spatial Resolution | ≥35 lp/mm (at photocathode center, λ = 530 nm) |
| Temporal Resolution | <800 fs FWHM (M16911-01) |
| Scan Repetition Rate | 74–165 MHz (M16911-01) |
| Scan Duration Range | ~60 ps to 1/6 fs (M16911-01 w/ ORCA-Flash4.0 V3) |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Power Consumption | ~250 VA |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Status | Authorized Distributor |
| Product Category | Imported |
| Model | C13410 |
| Price Range | USD 420,000 – 700,000 |
| Instrument Type | Synchronized Scanning Streak Camera |
| Photocathode Material | S-20 / S-1 |
| Photocathode Dimensions | 7.0 mm × 17.48 mm |
| Spectral Response Range | 200–850 nm (S-20) / 300–1060 nm (S-1) |
| Spatial Resolution | ≥18 lp/mm (at photocathode center, λ = 530 nm) |
| Temporal Resolution | <5 ps (at fastest sweep range) |
