| Brand | CIMEL |
|---|---|
| Origin | France |

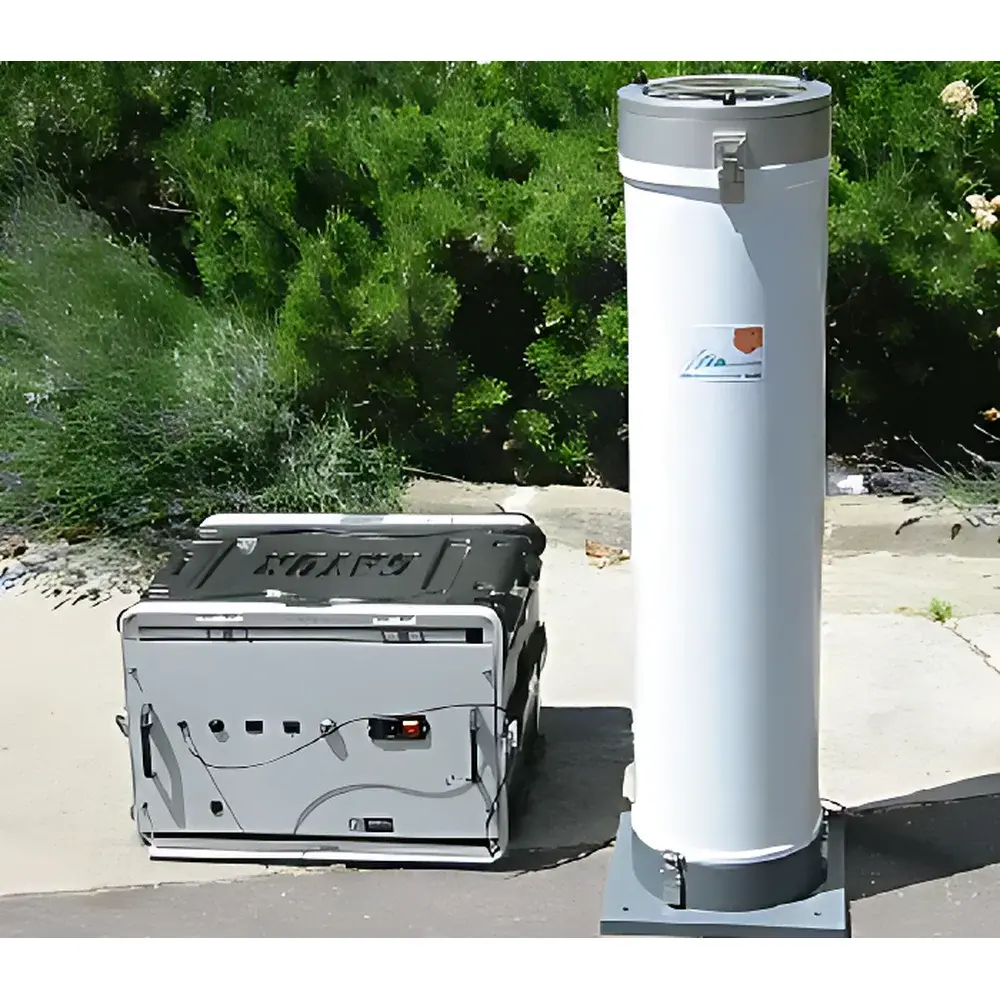

| Model | CE370-2 |
| Eye-Safe Laser Pulse Energy | 8–12 µJ |
| Laser Wavelength | 532 nm |
| Pulse Repetition Rate | 5 kHz |
| Pulse Width | <12 ns |
| Telescope Type | Galilean |
| Aperture Diameter | 200 mm |
| Effective Focal Length | 900 mm |
| Field Stop | Double |
| Total Field of View (FOV) | 55 µrad (standard fiber) / 55/110 µrad (enhanced fiber) |
| Detector | Si APD with 55% Quantum Efficiency |
| Filter Bandwidth | 0.2 nm |
| Spatial Resolution | 15 m |
| Maximum Detection Range | Up to 30 km (atmosphere-dependent) |
| Range Gates | 2048 |
| Data Acquisition Mode | Photon Counting |
| Maximum Counting Rate | 20 Mc/s |
| Operating Temperature | –10 °C to +40 °C |
| Power Supply | 100/115/230 VAC, ≤500 W |
| Weight | 35 kg |
| Enclosure | 6U Rack-mounted Electronics + Telescope (Ø220 mm × 500 mm) |
| Fiber Interconnect | 10 m optical fiber |
| Optional Dual-Axis Scanner | Azimuth –180° to +180°, Zenith 0° to 90°, Positional Accuracy ±3′ |
| Brand | Cimel |
|---|---|
| Origin | France |

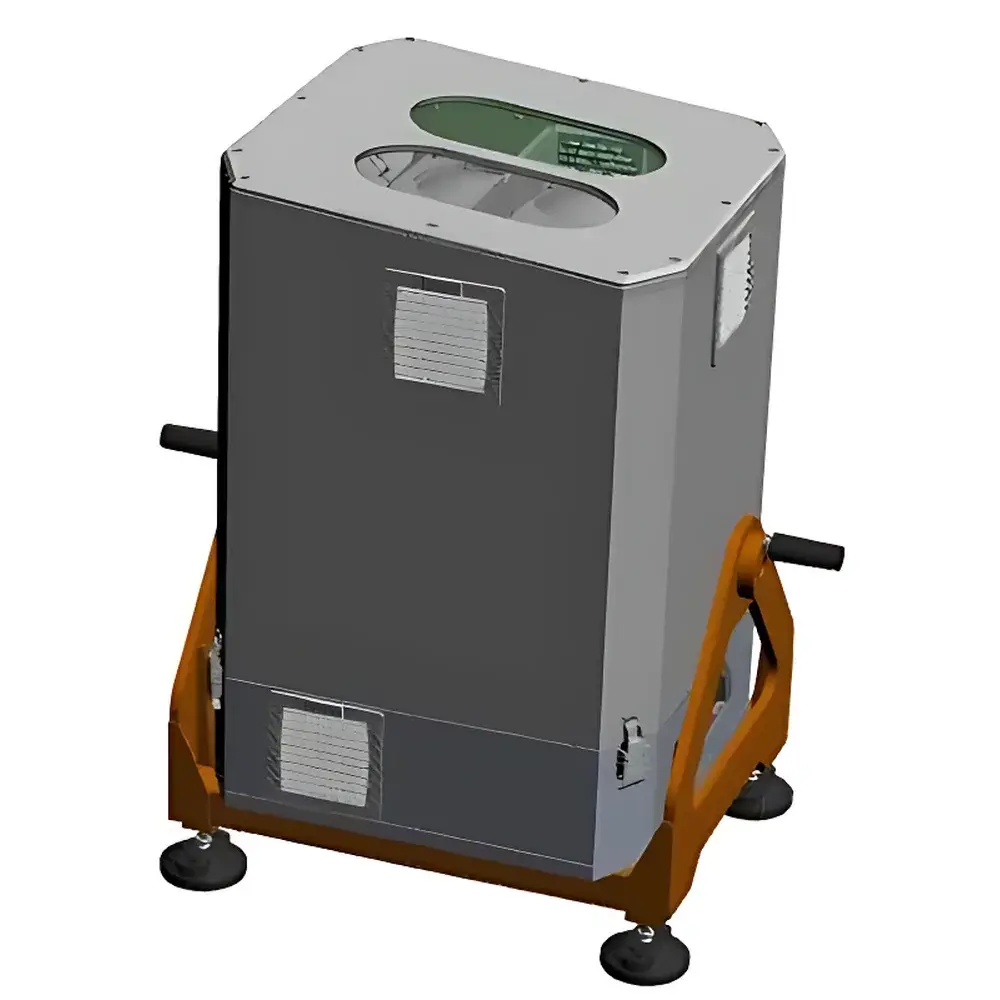

| Model | CE376 |
| Laser Sources | Frequency-doubled Nd:YAG (532 nm), Pulsed Laser Diode (<850 nm) |
| Detectors | APD with QE 55% / 70% |
| Operating Wavelengths | 532 nm (green) and <850 nm (NIR) |
| Maximum Detection Altitude | 13 km |
| Pulse Repetition Rate | 5000 Hz |
