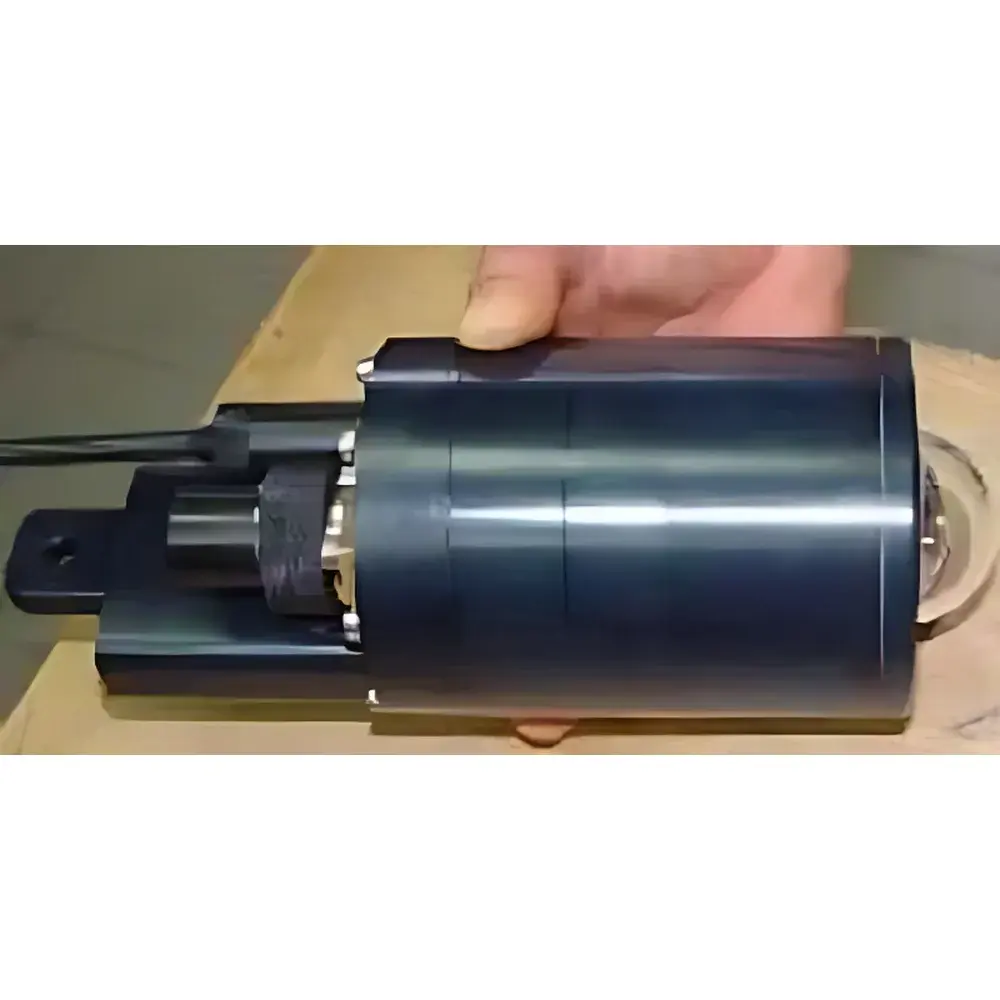

| Brand | Cimel |
|---|---|
| Origin | France |
| Model | CE350 |
| Instrument Type | Portable Radiometer |
| Measurement Domain | Atmospheric and Submersible Radiance Distribution |
| Spectral Channels (nm) | 406, 438, 494, 510, 560, 628 |
| Radiance Range | 5×10⁻⁵ – 1 W·m⁻²·nm⁻¹·sr⁻¹ |
| Field of View | ±92° |
| Sensor | Anti-blooming CMOS |
| Dynamic Range | 5 decades |
| Physical Dimensions | Ø96 mm × 260 mm |
| Remote Operation Distance | Up to 200 m (fiber-optic or shielded cable) |
| Integrated Auxiliary Sensors | Digital compass, tilt sensor, pressure (depth), temperature, humidity |
| Optical Design | Patented telecentric hemispherical lens with motorized filter wheel |

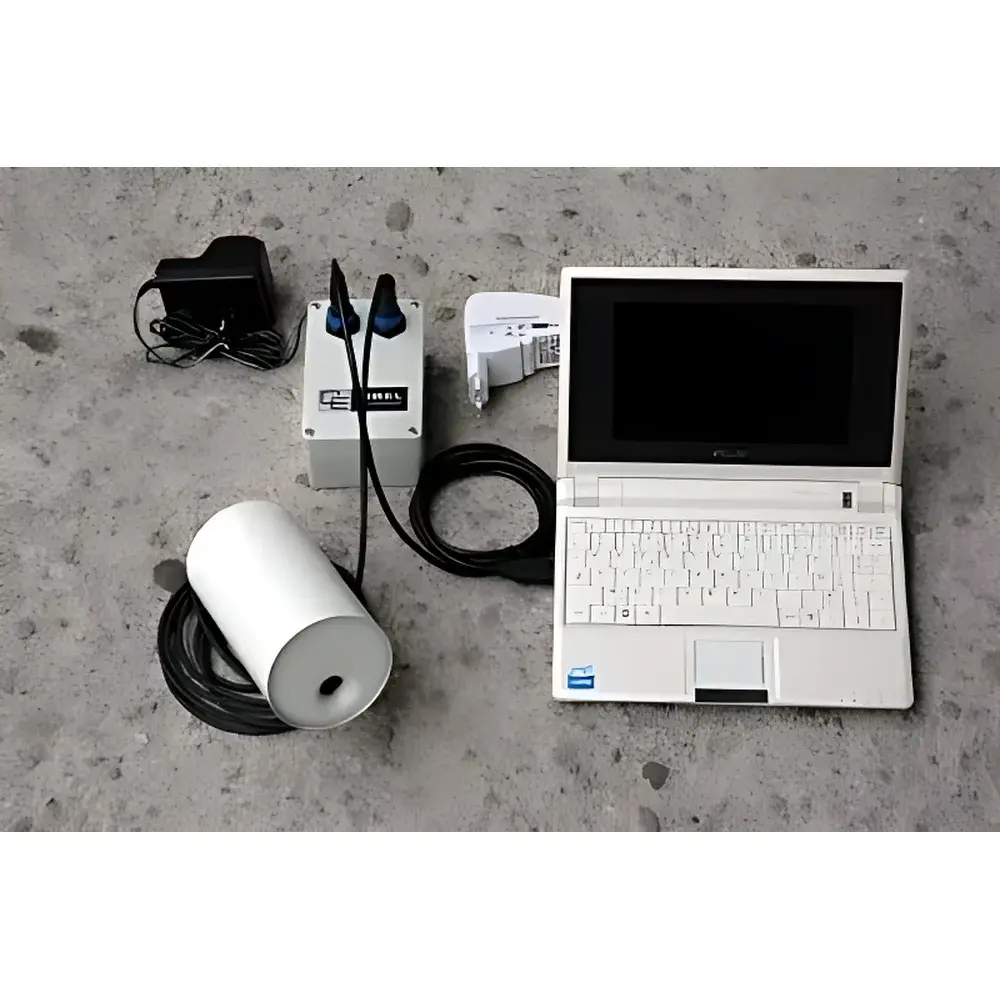

| Brand | Cimel |
|---|---|
| Origin | France |
| Model | CE312 |
| Instrument Type | Portable Radiometric Sensor |
| Application Domain | Environmental Monitoring, Atmospheric Science, Remote Sensing Calibration |
| Spectral Configuration | CE312-1 (4-band) or CE312-2 (6-band) |
| Temperature Range | −80 °C to +60 °C |
| Temperature Resolution | 0.01 °C |
| Response Time | 1 s |
| Field of View | 10° |
| Operating Ambient Temperature | −20 °C to +50 °C |
| Power Supply | Integrated Rechargeable Battery (12 V), Optional Solar Panel |
| Data Storage | Internal Memory via Control Box |
| Measurement Modes | Manual Sampling, Programmable Timed Acquisition |
| Spectral Bands | CE312-1: 8–13 µm, 8.2–9.2 µm, 10.3–11.3 µm, 11.5–12.5 µm |
| CE312-2 | 8–13 µm, 8.1–8.5 µm, 8.5–8.9 µm, 8.9–9.3 µm, 10.3–11.0 µm, 11.0–11.7 µm |
| Origin | Beijing, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (PRC) |

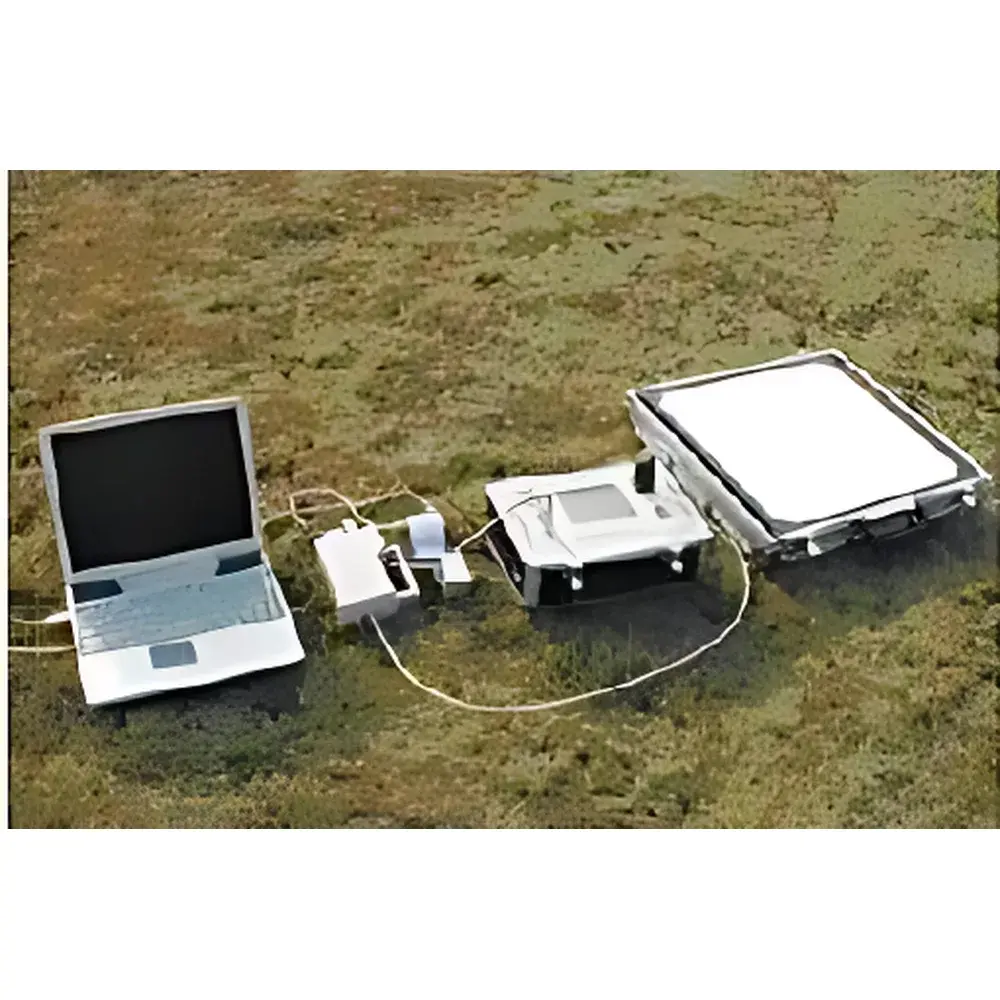

| Model | ISI921VF |
| Pricing | Available Upon Request |
| Instrument Type | Spectroradiometer |
| Spectral Channels | 512 / 256 / 128 |
| Spectral Range | 380–1050 nm |
| Spectral Resolution | 2 nm / 4 nm / 8 nm @ 700 nm |
| Wavelength Accuracy | ±0.7 nm / ±1.4 nm / ±2.8 nm |
| Measurement Dynamic Range | >1000:1 (60 dB) |
| Standard Configuration | Host Unit ×1, Optical Head ×1, Smart Battery Charger ×1, Rugged Carry Case ×1, USB Communication Cable ×1, Software CD ×1, 2-m Extendable Handheld Mast ×1 |
| Optional Accessories | Calibrated Reflectance Panels (various sizes & reflectance levels), GPS Module, Synchronized Imaging Module, Extended Mast (~10 m), Indoor Calibration Light Source, Fixed-Position Mounting Frame, BRDF Measurement Rig |
| Brand | Cimel |
|---|---|
| Origin | France |
| Model | CE332 |
| Instrument Type | Spectroradiometer |
| Spectral Channels | 3 thermal infrared bands |
| Central Wavelengths | 8.7 µm (1.0 µm FWHM), 10.8 µm (1.0 µm FWHM), 13.0 µm (1.0 µm FWHM) |
| Measurement Frequency | 6.25 Hz (EU) / 7.5 Hz (US) |
| NEDT | ≤0.03 °C at 20 °C |
| Temperature Range | –30 °C to +50 °C |
| Field of View | 3° |
| Temperature Resolution | 0.001 °C |
| Temperature Accuracy | ±0.01 °C |
| Integration Time | 10 ms |
| Bandwidth | ~2 Hz |
| GPS Synchronization | Yes |
| Calibration | In-flight manual rapid recalibration supported |
| Housing | Dual-layer insulated, hermetically sealed for airborne operation |
| Communication | RS-232 interface (max. cable length: 150 m) |
| Power Supply | 12 V DC |
| Weight | 2.4 kg |
| Dimensions | 13 cm (W) × 20 cm (H) × 13 cm (D) |
| Software | Airborne Radiometer v1.0 (Windows 95/98/ME/NT4/2000 compatible) |
| Data Output | Real-time 1- or 3-channel radiance & brightness temperature |
