| Brand | Brookfield |
|---|---|
| Origin | USA |
| Manufacturer Type | Manufacturer |
| Origin Category | Imported |

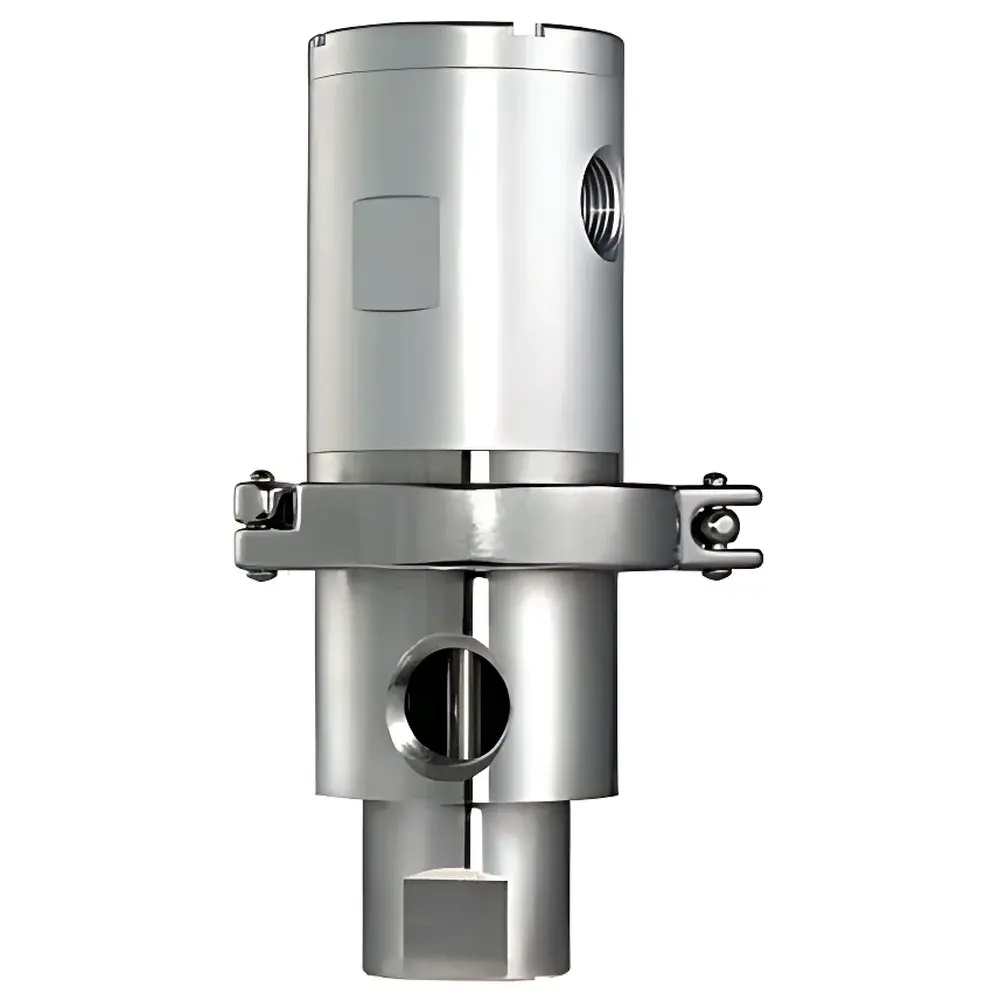

| Model | FAST-101 |
| Viscosity Range | 1–12,000 cSt (Newtonian fluids at 25 °C, NIST-traceable) |
| Temperature Range | −20 °C to 200 °C (−4 °F to 392 °F) |
| Pressure Rating | Vacuum to 200 psi |
| Repeatability & Stability | ±1% of reading |
| Power Supply | 115/230 V AC auto-sensing, 50–60 Hz |
| Electrical Connection | FAST-101TSY: Standard 3/4″ NPT or 1″ NPT |
| FAST-102FTSY | 2½″ 3-A sanitary tri-clamp inlet, 2″ tri-clamp outlet |
| Wetted Materials | 316 stainless steel |
| Sensor O-ring Material | Isolast® (fluoroelastomer) at probe tip |
| internal cavity | EPDM or Kalrez® (optional) |
| Optional Configurations | 3-A sanitary compliance |
| Brand | Brookfield |
|---|---|
| Origin | USA |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported Industrial Instrument |

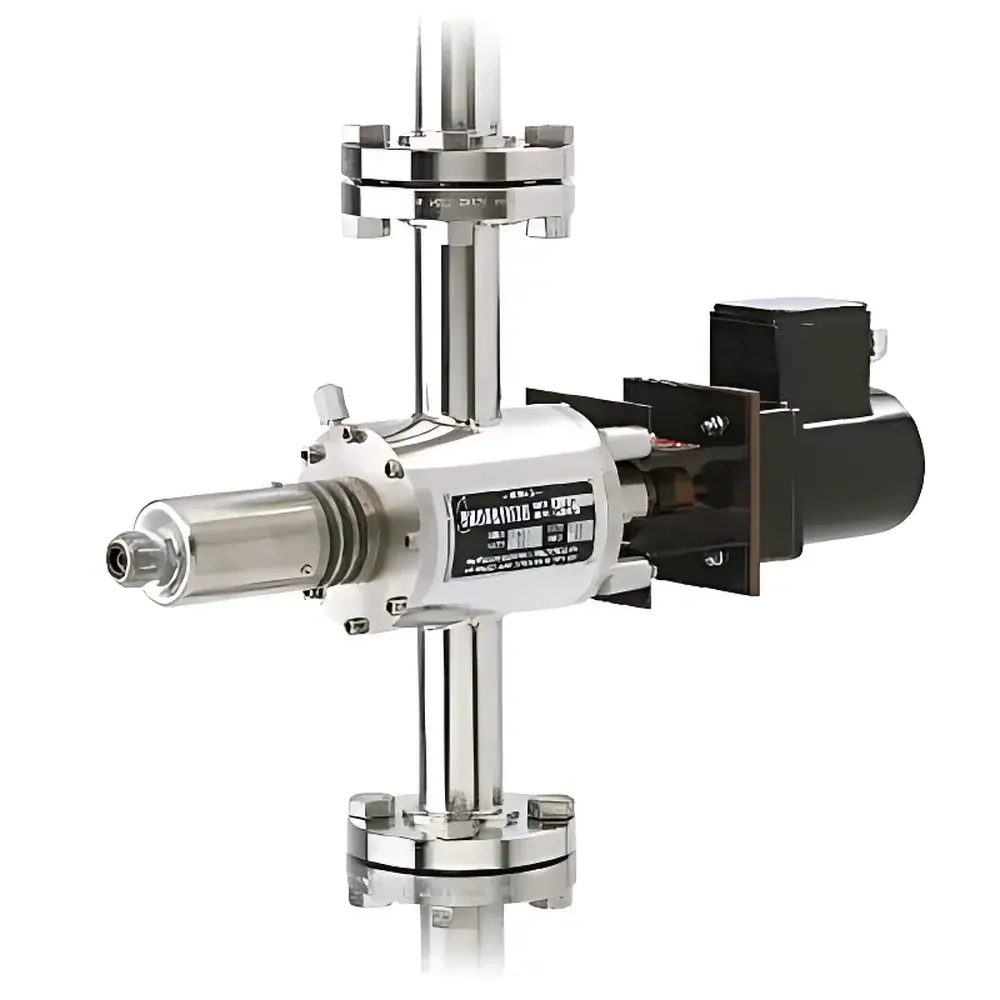

| Model | TT-100 |
| Price Range | USD 14,000 – 70,000 |
| Brand | Brookfield |
|---|---|
| Origin | USA |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported Industrial Online Viscometer |

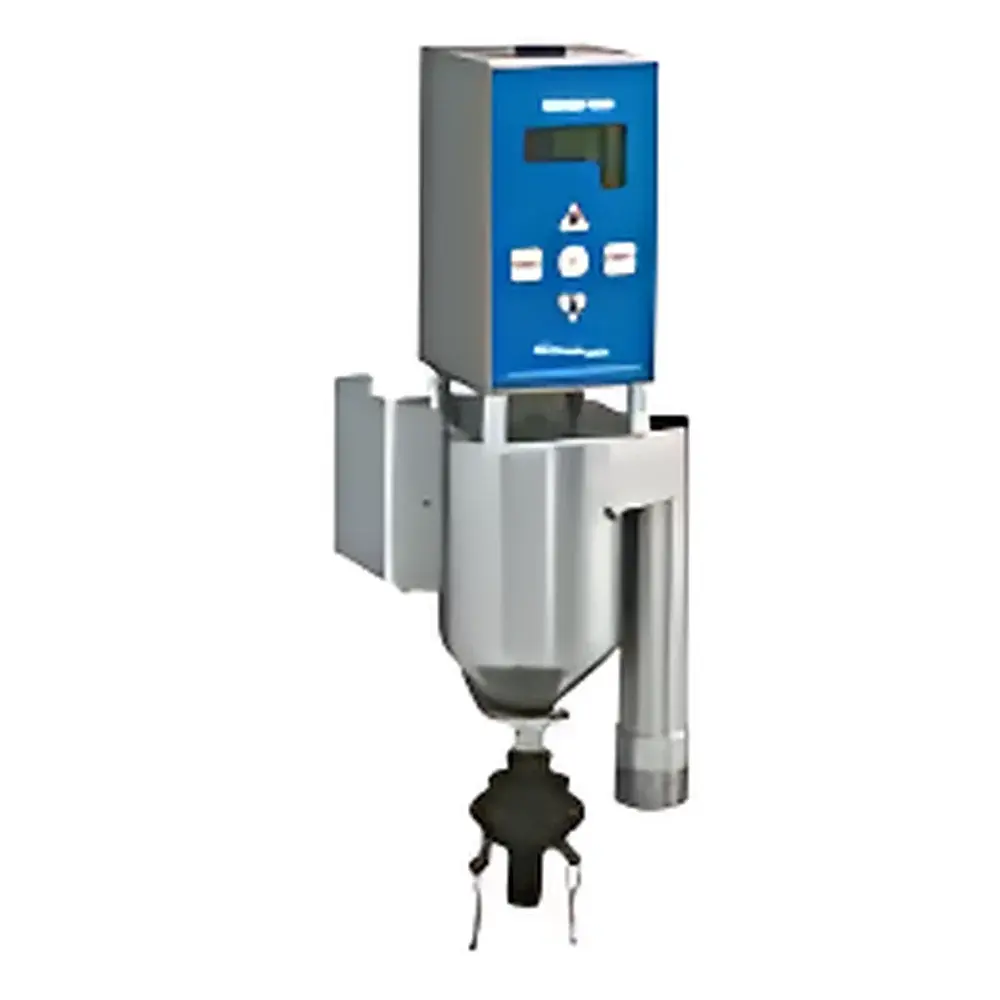

| Model | VTE-250 |
| Viscosity Range | 1–10,000 cP |
| Measurement Principle | Rotational (Coaxial Cylinder, Couette Flow) |
| Display | Digital LCD with Keypad Interface |
| Repeatability | ±0.2% of Full Scale |
| Accuracy | ±1% of Full Scale |
| Output Signal | 4–20 mA (2-wire loop powered) |
| Control Output | Relay-rated up to 3 A, electromagnetic valve compatible |
| Power Supply | 115/230 VAC, 50/60 Hz, 100 W |
| Enclosure Rating | NEMA 1 |
| Max Flow Rate | 1 GPM (3.79 L/min) |
| Operating Pressure | Ambient (atmospheric) |
| Sample Chamber Material | Optional polymer (e.g., PTFE-lined or FDA-compliant thermoplastic) |
| Mounting | In-line or side-stream bypass configuration with universal bracket and quick-connect fittings |
| Cleaning | Tool-free chamber removal for CIP-compatible maintenance |
