| Brand | DLAB |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Regional Classification | Domestic (China) |

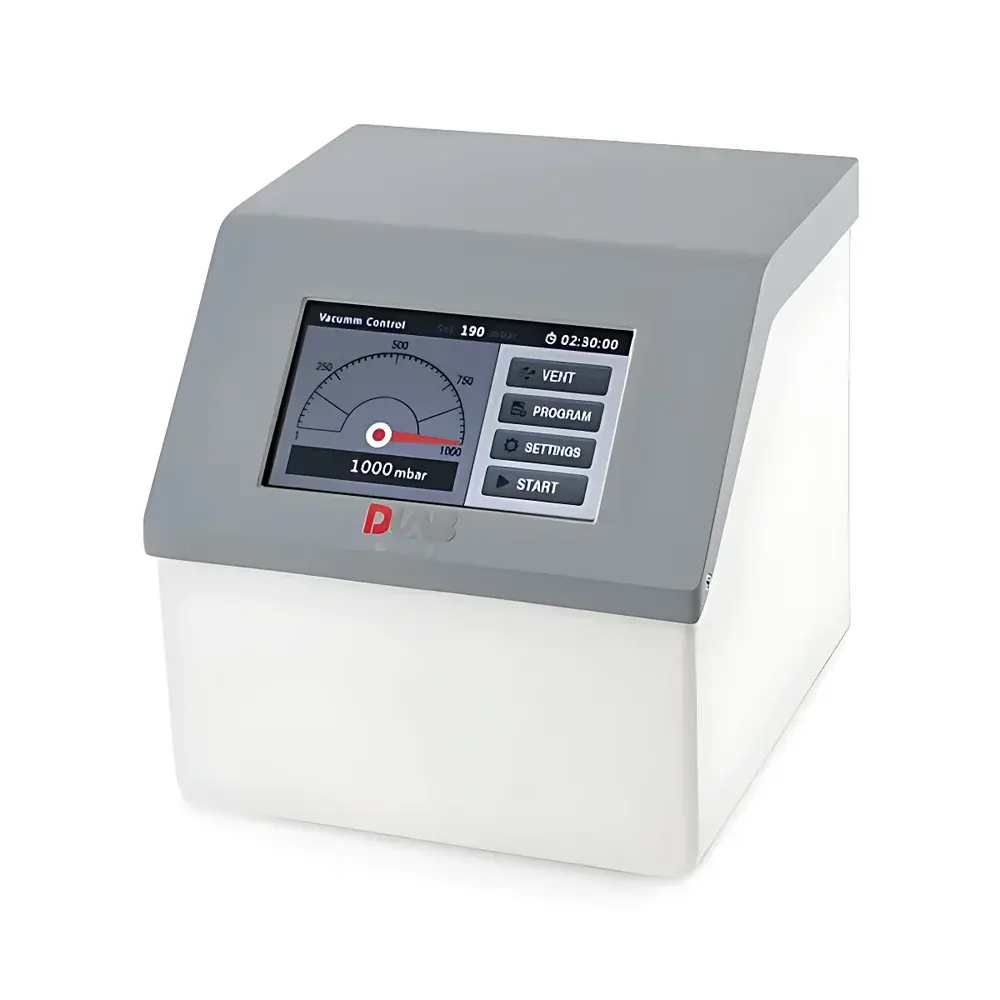

| Model | VC100 |
| Instrument Category | Vacuum Control System |
| Product Type | Oil-Lubricated Vacuum Pump Integrated Controller |
| Maximum Vacuum Level | 1 mbar |
| Vacuum Setpoint & Measurement Range | 1–1000 mbar |
| Control Modes | Single-Point Mode & Programmable Multi-Step Mode |
| Stored Programs | 5 user-defined programs (up to 5 segments per program) |
| Display | 5-inch TFT touch screen |
| Sensor Overpressure Limit | 1500 mbar |
| Gas Inlet Valve | Integrated inert gas purge valve |
| Venting Function | One-touch atmospheric venting |
| Pump Power Control | Auto-on/off relay output (compatible with oil-sealed rotary vane pumps) |
| Wetted Materials | PTFE, ceramic, silicone, polypropylene |
| External Dimensions | 189 × 207 × 193 mm (W × D × H) |
| Weight | 4.0 kg |
| Motor Power Rating | 600 W |
| Input Voltage | 110–240 V AC, 50/60 Hz |
| Operating Environment | 10–40 °C, ≤80% RH (non-condensing) |
| Brand | DLAB |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |

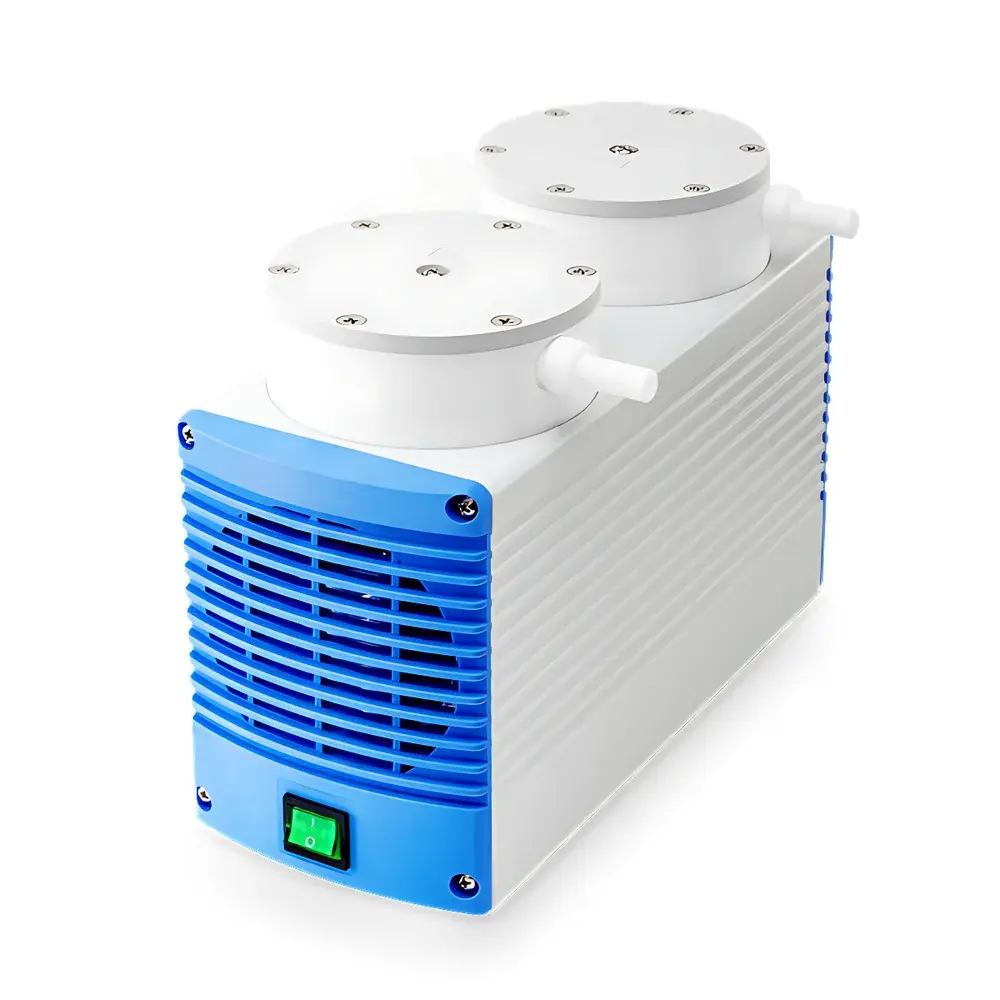

| Instrument Type | Diaphragm Pump |
| Ultimate Vacuum Pressure | 13 mbar |
| Motor Power | 95 W |
| Motor Speed | 1450 rpm |
| Noise Level | ≤50 dB(A) |
| Inlet/Outlet Port Size | 8 mm |
| Operating Mode | Continuous Duty |
| Gas-Contact Materials | PTFE (Polytetrafluoroethylene) |
| Flow Rate (L/min) at Vacuum Levels | 25 @ 1000 mbar |
| Thermal Overload Protection | Integrated Auto-Reset Circuit |
| Optional Accessory | Corrosion-Resistant Vacuum Regulator & Particulate Filter |
