| Brand | Aode |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |

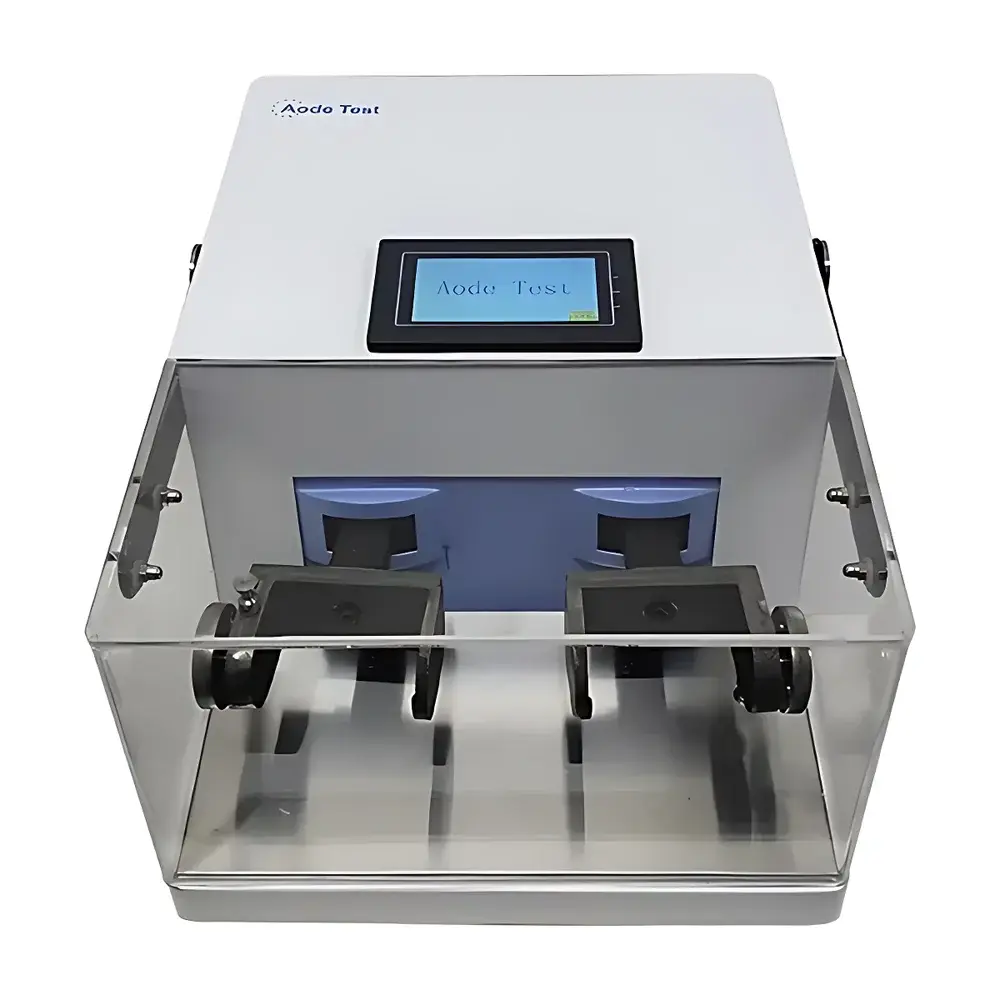

| Model | AD-107 (220228) |
| Instrument Type | Vibratory Ball Mill |
| Sample Compatibility | Cryogenic Samples |
| Maximum Feed Size | 8 mm |
| Final Particle Size | ≤5 µm |
| Throughput Capacity | 40 g per batch |
| Dimensions (W×D×H) | 440 × 230 × 340 mm |
| Weight | 20 kg |
| Power Supply | 220 V, 50 Hz, 160 W |
| Grinding Vessels | Two standard jars (25 mL and 50 mL) |
| High-Throughput Adapter | Supports up to 48 tubes (2 mL or 5 mL) |
| Operating Frequency | Adjustable up to ~3600 cycles/min |
| Safety | Transparent chamber with interlocked stop mechanism |
| Compliance | Designed for GLP-compliant lab environments |
| Brand | Aode |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | AD-107 |
| Instrument Type | Vibratory Ball Mill |
| Sample Applicability | Hard & Brittle Materials |
| Max. Feed Size | 10 mm |
| Final Particle Size | ≤5 µm |
| Batch Capacity | 100 mL |
| Operating Frequency | ~3600 rpm |
| Dimensions (W×D×H) | 440 × 230 × 340 mm |
| Power Supply | 220 V, 50 Hz, 160 W |
| Weight | 20 kg |
| Grinding Vessels | 25 mL & 50 mL stainless steel jars |
| Adapter Configuration | Dual-arm horizontal rack (2 jars) or 48-tube high-throughput adapter |
| Safety | Transparent polycarbonate chamber with interlocked stop mechanism |
| Optional Operation Modes | Progressive start/stop, timed run, intermittent cycling, cryogenic grinding-compatible |
| Brand | Aode |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Direct Manufacturer |
| Region of Origin | Domestic (China) |

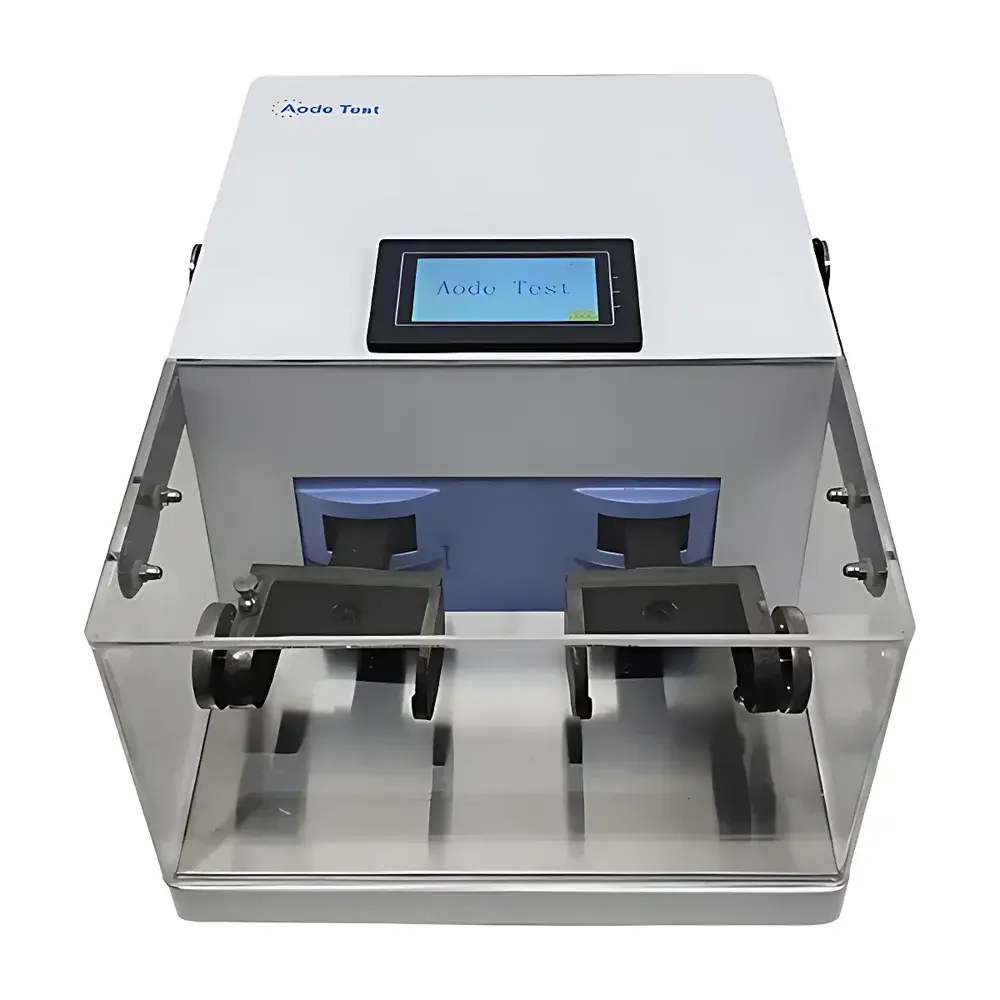

| Model | Aode107 |
| Price Range | USD 7,000 – 14,000 |
| Instrument Type | Vibratory Ball Mill |
| Sample Suitability | Hard, Brittle, Fibrous, Elastic, Tough, Soft, and Biological Materials (e.g., Plant Tissues, Animal Organs) |
| Final Particle Size | ≤5 µm |
| Feed Particle Size | ≤5 mm |
| Batch Capacity | 100 mL per run |
| Operating Frequency | ~3600 oscillations/min |
| Chamber Configuration | Dual horizontal grinding stations |
| Vessel Options | 25 mL & 50 mL elliptical jars |
| Power Supply | 220 V, 50 Hz, 160 W |
| Dimensions (W×D×H) | 440 × 230 × 340 mm |
| Net Weight | 20 kg |
| Safety | Transparent polycarbonate chamber with interlocked stop mechanism |
| Cooling Compatibility | Cryogenic grinding supported (liquid nitrogen or refrigerated adapters) |
