| Brand | Aode |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Direct Manufacturer |
| Equipment Category | Domestic |
| Model | DV-200R |
| Price | USD 3,100 (FOB) |
| Brand | Aode |
|---|---|
| Origin | Liaoning, China |
| Manufacturer | Yes |
| Model | Aode75 |
| Power Supply | 220 V, 50 Hz |
| Dimensions (W×D×H) | 30 × 54 × 26 cm |
| Door Opening Height | 80 cm |
| Weight | 18 kg |
| Vibration Frequency | 3600 cycles/min (60 Hz base air column resonance) |
| Adjustable Frequency Range | 2–300 Hz |
| Sieving Time Range | 1.00–99.99 min |
| Max. Sieving Capacity | 10 g |
| Min. Sieving Capacity | 0.1 g |
| Particle Size Range | 5 µm – 4.75 mm |
| Max. Stackable Sieves | 6 |
| Vertical Tapping | Integrated intermittent impact mechanism |
| Standard Compliance | GB/T 13220 (China), ASTM E323, ASTM D161 |
| Sieve Certification | NMI-traceable aperture verification with individual calibration certificate per sieve set |
| Noise Level | <65 dB(A) |
| Control System | Microprocessor-based digital timer and frequency controller |
| Optional Software | Automated mass-based fraction quantification, cumulative/differential particle size distribution calculation, real-time curve plotting (D10/D50/D90), CSV export, audit trail support |
| Brand | Aode |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Direct Manufacturer |
| Region Category | Domestic (China) |
| Model | Aode-75 Ultrasonic Sieve Shaker |
| Price Range | USD 7,000 – 14,000 |
| Power Supply | 220 V, 50 Hz |
| Weight | 18 kg |
| Dimensions (W×D×H) | 30 × 54 × 26 cm |
| Door Opening Height | 80 cm |
| Vibration Frequency | 3600 cycles/min (60 Hz fundamental air column resonance) |
| Adjustable Ultrasonic Frequency Range | 2–300 Hz |
| Sieving Time Range | 1.00–99.99 min |
| Max. Number of Sieves | 6 stacked |
| Max. Sample Mass | 10 g |
| Min. Sample Mass | 0.1 g |
| Particle Size Range | 5 µm – 4.75 mm |
| Vertical Tapping Mode | Programmable intermittent impact |
| Standard Sieve Compliance | GB/T 13220 (China), ASTM E323, ASTM E161 |
| Certifications | National Metrology Verification Certificate for each sieve set |
| Software Option | Optional PC-based sieving analysis software with automatic mass logging, particle size distribution calculation, and cumulative/differential curve generation |
| Brand | Aode |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Manufacturer |
| Model | Aode-200 |
| Measurement Range | 5 µm – 4000 µm |
| Maximum Sample Load | 100 g |
| Sieving Stages | 2 |
| Input Voltage | 220 VAC, 50 Hz |
| Operating Negative Pressure | 0 to −1000 Pa |
| Air Flow Rate | 30–120 m³/h |
| Rotational Speed | 5–30 rpm |
| Display | 7-inch color TFT touchscreen |
| Dimensions (W×D×H) | 300 × 400 × 225 mm |
| Weight | 20 kg |
| Standard Sieve Compatibility | ≤203 mm diameter |
| Pressure Display Accuracy | <5% |
| Minimum Time Setting | 1 min |
| Typical Sieving Duration | 2–5 min |
| Environmental Temp. | −10°C to 50°C |
| Relative Humidity | <90% RH |
| Brand | Aode |
|---|---|
| Model | Aode75 Type 20114 |
| Origin | Liaoning, China |
| Manufacturer | Direct Producer |
| Category | Domestic Laboratory Instrument |
| Price | USD 8,100 (FOB) |
| Brand | Aode |
|---|---|
| Model | Aode200B |
| Drive Type | Electromagnetic 3D Vibration |
| Sample Compatibility | Dry powders, granules, and fine/coarse aggregates |
| Software Integration | Embedded sieve analysis software with automatic mass upload, real-time distribution calculation, and ASTM/USP-compliant reporting |
| Compliance | Meets ISO 2591-1, ASTM E11, USP <786>, and Chinese Pharmacopoeia IV sieve requirements |
| Data Output | Automatic particle size distribution (%) per sieve mesh, cumulative/differential curves, PDF/CSV export, unlimited report storage |
| Power Supply | 220 VAC, 50 Hz |
| Brand | Aode |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Manufacturer |
| Country of Origin | China |
| Model | Aode-200F |
| Principle | Air Jet Sieving |
| Measurement Range | 20 µm – 45 mm |
| Maximum Sample Load | 100 g |
| Number of Sieve Layers | 1 |
| Brand | Aode |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Direct Manufacturer |
| Model | Aode-200S (121224) |
| Price Range | USD 14,000 – 28,000 |
| Dimensions | 50 × 38 × 99 cm |
| Weight | 28 kg |
| Power Supply | 220 V AC, 60 W |
| Operating Temperature | 0–40 °C |
| Relative Humidity | <85% RH |
| Sieving Capacity | 10–100 g per run |
| Standard Sieve Diameter | 200 mm |
| Maximum Stackable Sieves | 8 layers |
| Sieving Time Range | 1.00–99.99 min |
| Frequency Range | 2–300 Hz |
| Vertical & Lateral Impact Mode | Adjustable |
| Minimum Separation Cut-Off | 5 µm |
| Maximum Particle Size Handled | 800 µm |
| Air-Driven Vibration Rate | Up to 3600 cycles/min |
| Brand | Aode |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | Aode-200BZS |
| Price | USD 70 (FOB) |
| Operating Principle | Electromechanical Vibration Sieving |
| Particle Size Range | 5 µm – 80 mm |
| Maximum Sample Load | 3 kg |
| Stackable Sieve Levels | 10 |
| Brand | Aode |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Manufacturer |
| Country of Origin | China |
| Model | Aode200-20108 |
| Price | USD 5,300 (approx.) |
| Brand | Aode |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | Aode-200A (Ref. 220509) |
| Price Range | USD 2,800 – 7,000 |
| Measurement Range | Dry method: 32 µm – 25 mm |
| Wet method | 20 µm – 25 mm |
| Ultrasonic precision sieving | 5 µm – 25 mm |
| Amplitude Adjustment | 0.2 – 3 mm |
| Sieve Diameter | Up to 203 mm (standard ASTM/ISO/EU-compliant sieves) |
| Stack Capacity | 10 layers for 50-mm-height sieves |
| Sample Load Capacity | 6 kg |
| Sieve Stack Height | ~560 mm |
| Dimensions (W×H×D) | 350 × 200 × 520 mm |
| Weight | 30 kg |
| Vibration Frequency | 3000 – 3600 cycles/min |
| Power Supply | 220 V / 110 V, 350 W, 50 Hz / 60 Hz |
| Control Interface | 7-inch color capacitive touchscreen |
| Vibration Mode | Electromagnetic 3D excitation |
| Sieving Motion | Triaxial抛掷 (3D tossing) motion |
| Sieving Modes | Continuous, intermittent, or time-programmed |
| Software | SMART Sieve Analysis Suite — auto-calculates residue per layer, cumulative residue, fractional residue, passing rate, cumulative passing rate, mass loss % |
| Compliance | GB/T 6003.1–2012, GB/T 6003.2–1997, Ph. Eur. 2.9.38, ISO 3310-1:2016, ISO 565:2022, ASTM E11–23 |
| Sieve Material | AISI 304 stainless steel |
| Data Interface | RS-232 port for bidirectional communication with balance and PC |
| User Management | Dual-role login (Administrator / Operator) with role-based permissions |
| Mechanical Design | S-shaped dual-phase locking lid + quick-release clamping system |
| Transparency | Optical-grade transparent lid and interlayer spacers for real-time process observation |
| Data Storage | Local onboard memory + external PC export (CSV, PDF, XML) |
| Brand | Aode |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | Aode-200 |
| Price Range | USD 2,800 – 7,000 |
| Sieve Diameter Options | 75 mm, 100 mm, 150 mm, 200 mm, 203 mm |
| Particle Size Range | 20 µm – 80 mm |
| Amplitude Adjustment | 0–3 mm (adjustable) |
| Vibration Frequency | 3,000 cycles/min |
| Sieve Stages | Up to 15 levels (for 32 mm-height sieves) |
| Operating Modes | Continuous or Intermittent vibration |
| Sample Capacity | 3.5 kg max |
| Power Supply | 220 V AC, 50 Hz, 400 W, 5 A |
| Dimensions (W×H×D) | 350 × 520 × 200 mm |
| Weight | 40 kg |
| Display | 7-inch capacitive touchscreen interface |
| Data Interface | RS-232 serial port for PC connectivity |
| Software Features | Automated mass acquisition, real-time sieve residue calculation, cumulative % retained, % passing, % on each sieve, distribution curve generation (linear/logarithmic scale), user role management (admin/operator), audit trail logging, unlimited data storage and export (CSV/PDF) |
| Brand | Aode |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Manufacturer |

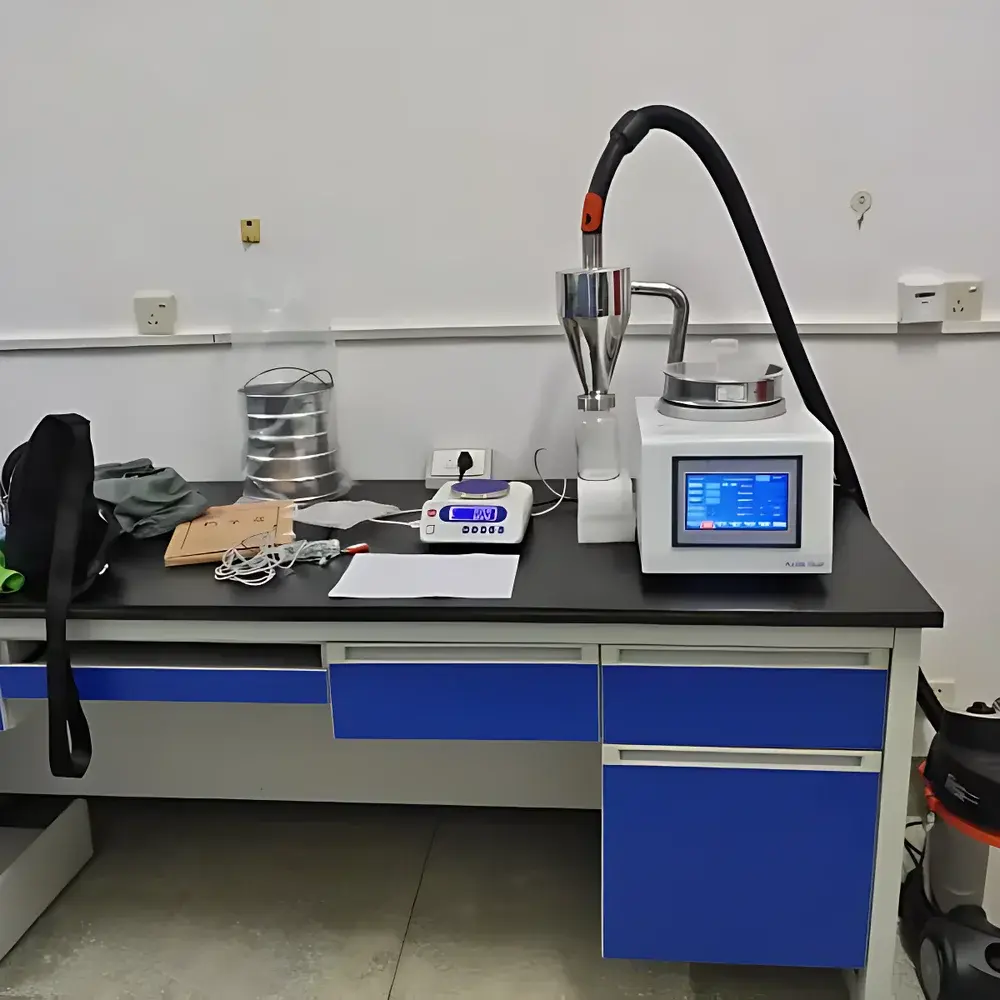

| Model | Aode-200-1 |
| Measurement Range | 5 µm – 5 mm |
| Maximum Sample Load | 100 g |
| Sieve Stages | 1 (up to 2 with optional accessories) |
| Operating Negative Pressure | 0 to −10 kPa |
| Airflow Rate | 30–120 m³/h |
| Rotational Speed | 5–30 rpm |
| Screen Diameter Compatibility | 75 mm, 150 mm, 200 mm, 203 mm |
| Repeatability | <1% |
| Accuracy | <1% |
| Sieve Residue Collection Efficiency | 99.9% |
| Display | 7-inch color TFT touchscreen |
| Data Storage Capacity | >50,000 tests |
| Power Supply | 220 VAC, 50 Hz |
| Weight | 20 kg |
| Dimensions (W×D×H) | 300 × 400 × 225 mm |
| Brand | Aode |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Direct Manufacturer |
| Model | Aode-200A |
| Price Range | USD 2,800 – 7,200 |
| Measurement Range | Dry method: 32 µm – 25 mm |
| Wet method | 20 µm – 25 mm |
| Ultrasonic precision sieving | 5 µm – 25 mm |
| Amplitude Adjustment | 0.2 – 3 mm |
| Sieve Diameter | Up to 203 mm (standard ASTM/ISO/EU pharmacopoeia sieves) |
| Stack Capacity | 10 layers for 50-mm-height sieves |
| Sample Load Capacity | 6 kg |
| Sieve Tower Height | ~560 mm |
| Dimensions (W×H×D) | 350 × 200 × 520 mm |
| Weight | 30 kg |
| Vibration Frequency | 3000 – 3600 cycles/min |
| Power Supply | 220 V / 110 V, 350 W, 50 Hz / 60 Hz |
| Control Interface | 7-inch color touchscreen |
| Vibration Mechanism | Electromagnetic 3D excitation |
| Sieving Motion | Triaxial throwing motion |
| Sieving Modes | Continuous, intermittent, time-programmed |
| Software Functions | Automatic calculation of residue per fraction, cumulative residue, fractional passing rate, cumulative passing rate, mass loss % |
| Compliance | GB/T 6003.1–2012, GB/T 6003.2–1997, Ph. Eur. 2.9.38, ISO 3310-1:2016, ISO 565:2022, ASTM E11–23 |
| Sieve Material | AISI 304 stainless steel |
| Data Interface | RS-232 port for integration with analytical balances and PCs |
| User Management | Dual-role login (Administrator & Operator) with hierarchical permissions |
| Audit Trail | Full electronic record of method parameters, operator ID, timestamps, and raw data export (CSV/PDF) |
| Clamping System | S-shaped dual-phase quick-lock lid mechanism |
| Visual Monitoring | Transparent polycarbonate lid and inter-sieve viewing rings |
| Data Storage | On-device internal memory + PC export (no cloud dependency) |
| Brand | Aode |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | AD200A |
| Price | USD 5,300 (approx.) |
| Sieve Diameter Options | 75 mm / 100 mm / 150 mm / 200 mm / 203 mm |
| Particle Size Range | 20 µm – 80 mm |
| Vibration Mode | Electromagnetic 3D Oscillation |
| Frequency | 3000 cycles/min |
| Adjustable Amplitude | 0–3 mm |
| Sieve Stack Capacity | 12-tier (full-height, 50 mm) or 24-tier (half-height, 25 mm) |
| Operating Modes | Continuous or Intermittent |
| Sample Weight Capacity | 6 kg |
| Power Supply | 220 V, 50 Hz, 400 W, 5 A |
| Dimensions (W×H×D) | 350 × 520 × 200 mm |
| Weight | 30 kg |
| Display | 7-inch TFT capacitive touchscreen |
| Interface | RS-232 for PC connectivity |
| Software | Integrated sieve analysis software with GLP-compliant audit trail, user role management (admin/operator), auto-weight integration, real-time calculation of residue %, passing %, cumulative retained %, and distribution curve generation |
| Compliance | Designed to support USP <786>, ASTM E11, ISO 3310-1, and pharmacopoeial sieve testing requirements |
| Brand | Aode |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Manufacturer |
| Origin Category | Domestic |
| Model | Aode-75 |
| Price Range | USD 7,000 – 14,000 |
| Sieving Capacity | 10 g |
| Dimensions (W×H×D) | 30 × 54 × 26 cm |
| Door Height | 80 cm |
| Weight | 18 kg |
| Power Supply | 220 V, 50 Hz |
| Frequency Range | 2–300 Hz |
| Sieving Time Range | 1–99.99 min |
| Stacking Capacity | Up to 6 × 75-mm-diameter standard sieves |
| Sieve Specifications | Internal Diameter 75 mm, External Diameter 90 mm, Height 25 mm |
| Particle Size Range | 5 µm – 4.5 mm |
| Axial Tapping Direction | Vertical |
| Operating Environment | 0–40 °C, RH < 85 % |
| Compliance | GB/T 13220, ASTM E323, ASTM D161 |
