| Brand | Armfield |
|---|---|
| Origin | United Kingdom |
| Model | FT2 |
| Type | Benchtop Hammer Mill with Replaceable Perforated Screens |
| Screen Options | 8 interchangeable perforated plates (standard aperture range: 0.5 mm to 6.0 mm) |
| Drive System | Single-phase induction motor with thermal overload protection |
| Safety Compliance | CE-marked, conforms to EN 61000-6-3 (EMC) and EN 61000-6-2 (immunity) |
| Construction | Stainless steel grinding chamber and feed hopper, anodized aluminum housing |
| Cleaning | Tool-free disassembly of rotor assembly, screen retention ring, and hopper for full-access cleaning |
| Power Supply | 230 V AC, 50 Hz, 1.1 kW |
| Brand | Armfield |
|---|---|
| Origin | United Kingdom |
| Model | FT102X, FT104X |
| Capacity | 60 L/h (for 2 L bottles) |
| Processing Vessel | 30 L |
| Bottle Volume Range | 0.15–2.0+ L |
| CO₂ Solubility | >10 g/L |
| Operating Temperature | 4–20 °C |
| Filling Modes | Pre-mix and Post-mix |
| Gas Options | CO₂ (primary), N₂ (inert blanketing) |
| Control Interface | Full-color touchscreen with embedded help system |
| Preset Programs | 32 |
| Compliance Support | Designed for GLP-aligned lab-scale process development |
| Cleaning | Enhanced CIP routines for heater and nozzle assemblies |
| Dual-mode operation | Batch and continuous |
| Optional Integration | FT104X capping/filling module |
| Brand | Armfield |
|---|---|
| Origin | United Kingdom |
| Model | FT174X |
| Flow Rate | 12–60 L/h (water-equivalent) |
| Max Processing Temperature | >150 °C |
| Heating Methods | Direct steam injection (DSI) and/or indirect (tubular & plate heat exchangers) |
| Sterilization Mode | Aseptic processing capable |
| Configuration | Modular, reconfigurable via sanitary quick-connect fittings and flexible product tubing |
| Control Interface | Touchscreen HMI with stage-based operator prompts |
| Optional Modules | In-line homogenizer, pre-heater, condenser, CIP system, USB data logging, electronic flow meter |
| Compliance | Designed to meet hygienic design principles per EHEDG Guideline Doc. 8 and 3-A Sanitary Standards 01-05 |
| Brand | Armfield |
|---|---|
| Origin | United Kingdom |
| Model | FT110X |
| Extraction Volume | 1 L |
| Operating Temperature | Ambient (20–25 °C) |
| Maximum Pressure | 100 bar |
| Solvent Compatibility | Ethanol, Glycerol, Water, and other GRAS/food-grade solvents |
| Control System | Microprocessor-based with real-time digital display |
| Safety Features | Automatic pressure regulation, fault detection, and audible/visual alarm |
| Compliance | Designed for GLP-compliant laboratories |
| Brand | Armfield |
|---|---|
| Origin | United Kingdom |
| Model | FT9 |
| Production Capacity | 45 L/h |
| Maximum Operating Pressure | 70 bar (1015 psi) |
| Homogenization Index (whole milk) | ≤5.0% |
| Feed Tank Capacity | 4.5 L stainless steel (hygienic grade) |
| Pressure Gauge Range | 0–300 bar |
| Motor Power | 0.18 kW |
| Electrical Supply | FT9-A: 220–240 V / 1Φ / 50 Hz |
| FT9-B | 120 V / 1Φ / 60 Hz |
| Dimensions (H×W×L) | 0.56 × 0.56 × 0.41 m |
| Net Weight | 60 kg |
| Material | Hardened stainless steel cylinder, valve, and plunger |
| Homogenization Index compliance | Meets ISO 5530-1 for fat globule size distribution assessment in dairy emulsions |
| Brand | Armfield |
|---|---|
| Origin | United Kingdom |
| Model | FT141 / FT142 |
| Capacity | 10 L or 20 L (selectable) |
| Heating | Steam-jacketed (indirect) + optional direct steam injection |
| Cooling | Water-cooled jacket |
| Vacuum capability | Yes, integrated vacuum system |
| UHT function | FT142 only, up to 140 °C at 3 bar |
| Shear mechanism | High-shear rotor-stator emulsifier with adjustable speed |
| Agitation | Dual-stage — top-mounted light-duty agitator with retractable scraper blades + high-speed homogenizing impeller |
| Sealing | Hygienic mechanical shaft seal with water flush |
| Control | PLC-based electronic control panel with HMI interface |
| Compliance | Designed to meet 3-A Sanitary Standards (hygienic design principles), suitable for GLP-compliant pilot-scale development |
| Brand | Armfield |
|---|---|
| Origin | United Kingdom |
| Model | FT80/81 |
| Configuration | Dual-mode (Spray Drying or Spray Cooling) |
| Chamber Aspect Ratio (Height | Diameter): 3:1 |
| Discharge Section | Conical |
| Atomization | Twin-Fluid Nozzle System (Co-current & Counter-current Configurable) |
| Air Handling | Independently Variable-Speed Inlet & Exhaust Fans |
| Filtration Option | Bag Filter Kit Available |
| Monitoring | Integrated Relative Humidity Sensor at Inlet |
| Safety | Spark Arrestor on Inlet Fan |
| Enclosure Rating | IP65 Control Console |
| Data Logging | Full Parameter Recording with USB/PC Export Capability |
| Noise Level | Low-Noise Operation |
| Cleanability | Tool-Free Disassembly for Inspection & Cleaning |
| Mobility | Compact, Wheeled Base Design |
| Compliance Support | Designed for GLP-aligned lab environments |
| Brand | Armfield |
|---|---|
| Origin | United Kingdom |
| Model | FT40 |
| Batch Capacity | 5–20 L |
| Jacket Temperature Range | 1 °C to 85 °C |
| Vessel Material | 316 Stainless Steel |
| Integrated Mixer | Silversen™ High-Shear Impeller |
| Control System | Onboard Touchscreen HMI with Data Logging |
| Heating/Cooling | Dual-Purpose Thermostatic Jacket |
| Compliance | Designed for GLP/GMP-aligned laboratory-scale food process development |
| Brand | Armfield |
|---|---|
| Origin | United Kingdom |
| Model | FT32 |
| Heating Method | Steam-heated |
| Configuration | Twin-drum rotary dryer |
| Application | Laboratory-scale drying and moisture removal studies |
| Brand | Armfield |
|---|---|
| Origin | United Kingdom |
| Model | FT22 |
| Evaporator Tube Length | 1.36 m |
| Heat Transfer Area | 0.08 m² |
| Evaporation Rate | 10 L/h |
| Steam Consumption | 15 kg/h |
| Operating Steam Pressure | 1.7 bar |
| Condenser Area | 0.17 m² |
| Feed Tank Capacity | 30 L |
| Concentrate Tank Capacity | 5.0 L |
| Condensate Tank Capacity | 5.0 L |
| CIP Pump Flow Rate | 8 L/min (20 ft H₂O) |
| System Vacuum | 225 mmHg |
| Power Supply (FT22-A) | 220–240 V / 1-phase / 50 Hz / 3 kW |
| Power Supply (FT22-B) | 120 V / 1-phase / 60 Hz / 3 kW |
| Height | 2.6 m |
| Width | 0.78 m |
| Depth | 0.65 m |
| Gross Weight | 330 kg |
| Shipping Volume | 2.40 m³ |
| Brand | Armfield |
|---|---|
| Origin | United Kingdom |
| Model | FT74XTS |
| Maximum Sterilization Temperature | 150 °C |
| Product Flow Rate | 20 L/h |
| CIP Flow Rate | 120 L/h |
| Sterilization Capacity | 50 L/h (with plate heat exchanger) |
| Holding Time Display | Yes |
| F₀ Calculation & Display | Yes |
| Touchscreen Interface | 800 × 480 px Full-Color LCD |
| Pre-set Programs | 32 |
| Data Logging | USB Storage (standard), PC Connectivity (optional) |
| Flow Measurement | Electromagnetic Flow Sensor |
| Holding Tube | Adjustable |
| Cooling Stages | Single-stage standard, dual-stage optional |
| Heat Exchanger Configurations | Interchangeable plate or tubular modules |
| CIP System | Integrated high-pressure hot water recirculation |
| Enclosure | Integrated stainless-steel cabinet |
| Environmental Rating | IP54-rated for humid laboratory environments |
| Level Sensing | Product tank ultrasonic level sensor |
| Brand | Armfield |
|---|---|
| Origin | United Kingdom |
| Model | FT5 |
| Type | Benchtop Ribbon Mixer with Interchangeable Single-Conical Drum Attachment |
| Speed Control | Variable, Continuous Adjustment |
| Construction | 316 Stainless Steel Contact Surfaces |
| Drive System | Precision Geared Motor with Digital Speed Display |
| Compliance | Designed for Food Processing R&D Environments in Accordance with EU Machinery Directive 2006/42/EC and Hygienic Design Principles per EHEDG Doc. Type EL (Equipment Layout) |

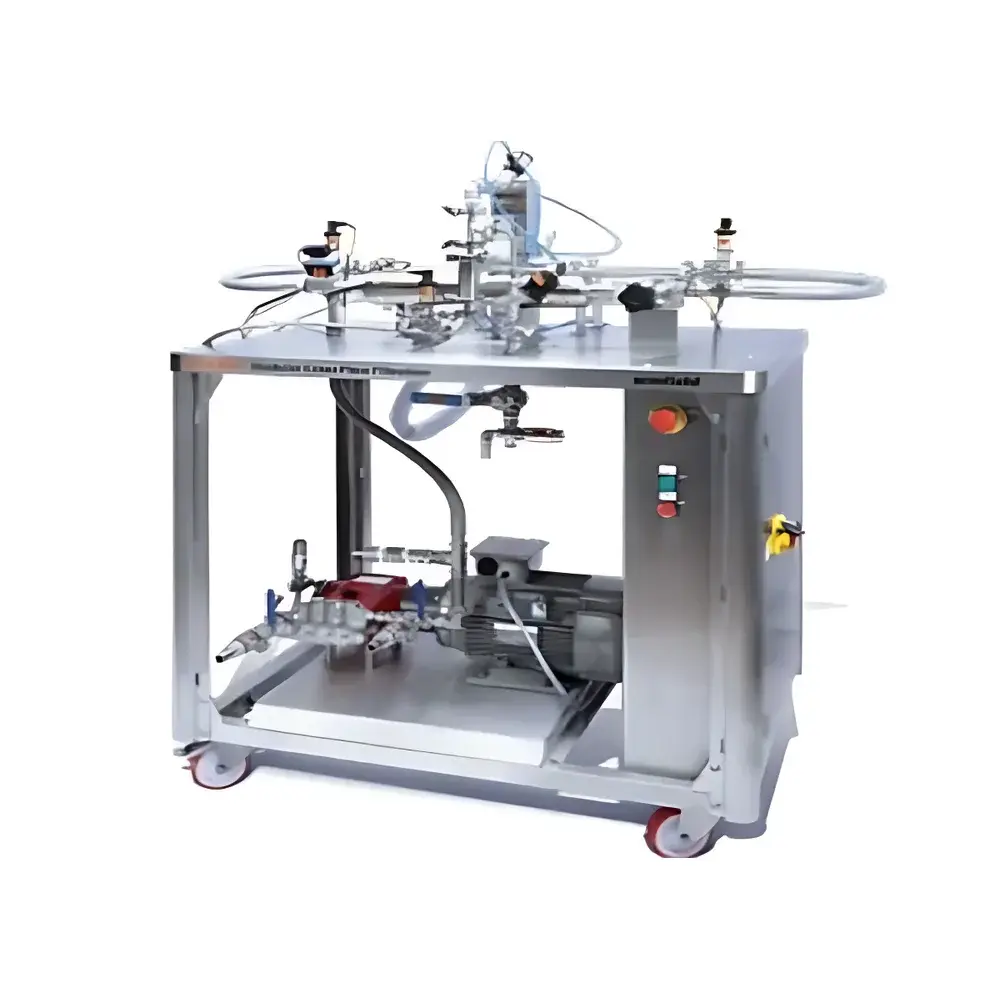

| Brand | Armfield |
|---|---|
| Origin | United Kingdom |
| Model | FT18MKII |
| Maximum Operating Pressure | 50 bar |
| Membrane Module Options | Ceramic, Spiral-Wound, Hollow-Fiber, Tubular |
| CIP Capability | Yes |
| Backwash Capability | Select Modules |
| Transmembrane Pressure (TMP) Monitoring | Yes (Inlet/Outlet of Retentate & Permeate Lines) |
| Permeate Flow Measurement | Electronic Flowmeter + Optional Mass-Balance Mode |
| Data Logging | Full Sensor Array with Timestamped Export |
| Software Integration | Armfield PC-Based Control & Visualization Suite |
| Brand | Armfield |
|---|---|
| Origin | United Kingdom |
| Model | FT19 |
| Type | Batch Autoclave for Liquid Bottled Products |
| Application | Thermal Sterilization of Milk and Similar Beverages |
| Brand | Armfield |
|---|---|
| Origin | United Kingdom |
| Model | FT28 |
| Type | Laboratory-Scale Continuous Screw Press |
| Application | Edible Oil Extraction from Oilseeds |
| Capacity | 1–5 kg/h (typical, depending on seed moisture and oil content) |
| Screw Diameter | 28 mm |
| Motor Power | 0.37 kW |
| Speed Control | Variable Frequency Drive (0–60 rpm) |
| Construction | AISI 304 Stainless Steel Contact Parts |
| Feed Hopper Volume | 2 L |
| Dimensions (W×D×H) | 450 × 320 × 680 mm |
| Weight | 42 kg |

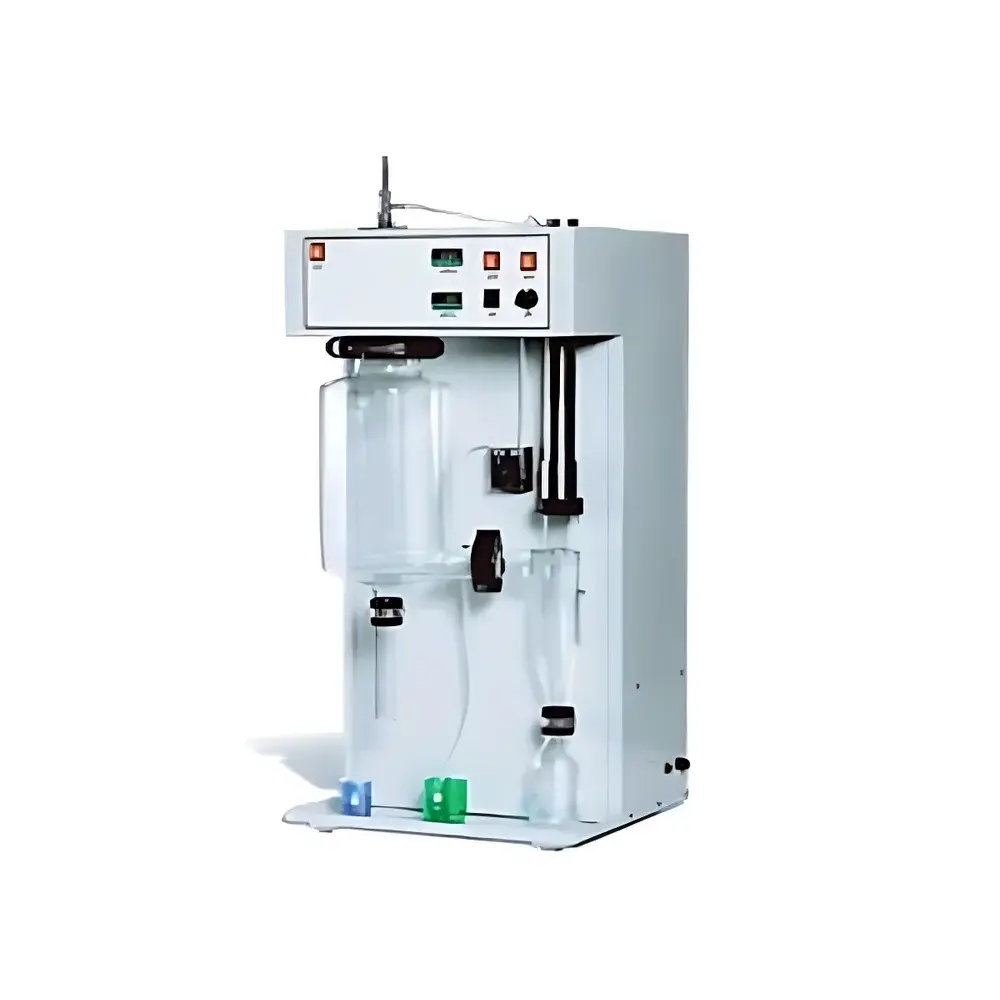

| Brand | Armfield |
|---|---|
| Origin | United Kingdom |
| Model | FT30MKIII |
| Construction | All-Glass Enclosure |
| Design Type | Benchtop Laboratory Spray Dryer |
| Observation Capability | Real-Time Visual Monitoring of Drying Process |
| Feed Capacity | Up to 500 mL/h (Typical Aqueous Solutions) |
| Inlet Temperature Range | 40–220 °C (Adjustable in 1 °C Increments) |
| Outlet Temperature Range | 30–120 °C |
| Atomization | Two-Fluid Nozzle (Compressed Air-Assisted) |
| Drying Chamber Diameter | 120 mm |
| Collection Efficiency | >95% for Particles >1 µm |
| Power Supply | 230 V AC, 50/60 Hz |
