| Brand | Anyan |
|---|---|
| Origin | Zhejiang, China |
| Model | AYAN-DC36S |
| Heating Method | Water Bath |
| Temperature Range | Ambient to 100 °C (±1 °C) |
| Temperature Uniformity | ±1 °C |
| Sample Capacity | 36 positions (also available in 48- and 60-position configurations) |
| Tube Diameter Compatibility | 16 mm (customizable) |
| Gas Flow Control | Independent electromagnetic valve per channel |
| Power Supply | 220 V, 50 Hz |
| Display | 7-inch capacitive touchscreen interface |
| Programmable Temperature Profiles | 50-segment ramp/soak |
| Timing Range | 0–999 min |
| Pressure Regulation Range | 0–0.8 MPa |
| Sealing System | Dual-glass door with internal recirculating fan |
| Ventilation Interface | Rear exhaust port (compatible with fume hood integration) |

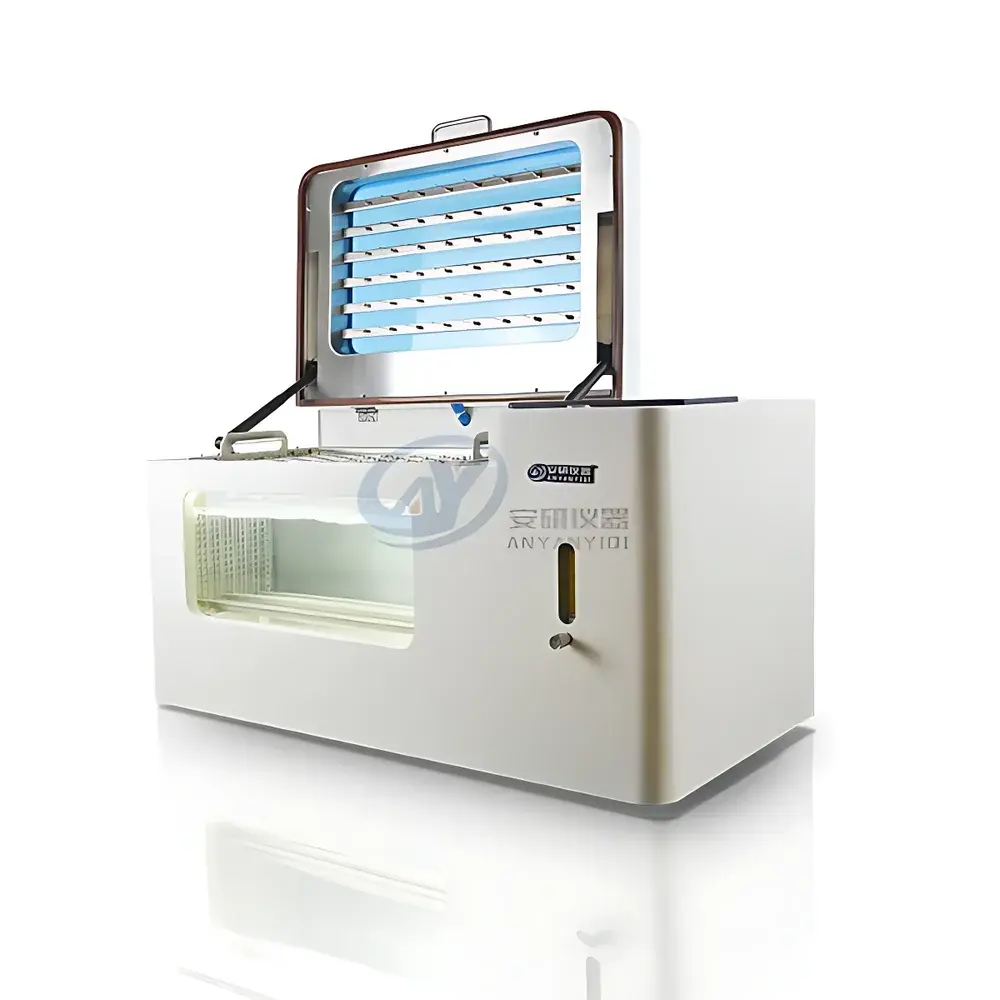

| Brand | ANYAN |
|---|---|
| Model | AYAN-DC60S |
| Heating Method | Water Bath |
| Temperature Range | Ambient to 100 °C (±1 °C) |
| Temperature Uniformity | ±1 °C |
| Sample Capacity | 60 positions |
| Tube Diameter Compatibility | 10–29 mm |
| Gas Flow Rate | 500 mL/min |
| Heating Power | 220 W |
| Visual Access | Dual transparent side windows |
| Control Interface | 7-inch LCD touch screen |
| Programmable Temperature Steps | 50 segments |
| Timer Range | 0–999 min |
| Pressure Regulation | 0–0.8 MPa (independently adjustable per channel) |
| Safety Features | Over-temperature alarm, built-in exhaust fan, dual-sealed door, automatic shut-off |
| Power Supply | 220 V, 50 Hz |
| Weight | 28 kg |
| Brand | ANYAN |
|---|---|
| Origin | Zhejiang, China |
| Model | AYAN-B80 |
| Feed Capacity | 2 L |
| Effective Evaporation Area | 0.1 m² |
| Evaporator Internal Diameter | 80 mm |
| Condensation Area | 0.2 m² |
| Collecting Flask Capacity | 2 L |
| Operating Vacuum | ≤1 Pa |
| Heating Temperature Range | Ambient to 300 °C |
| Condensing Temperature | −20 °C |
| Rotational Speed | 300 rpm |
| Motor Power | 200 W |
| 刮板角度 | 45° |
| Cooling System | Integrated dual-stage condenser with refrigerated coolant circulation |
| Brand | Anyan |
|---|---|
| Origin | Jiangsu, China |
| Model | AYAN-DC48S |
| Heating Method | Water Bath |
| Temperature Range | Ambient to 100 °C (±1 °C) |
| Temperature Uniformity | ±1 °C |
| Sample Capacity | 48 positions |
| Tube Diameter | 16 mm (optional) |
| Gas Flow Control | Independent per channel |
| Power Supply | 220 V, 50 Hz |
| Display | 7-inch LCD touchscreen |
| Temperature Programming | 50-segment ramp/soak |
| Timer Range | 0–999 min |
| Pressure Regulation | 0–0.8 MPa |
| Sealing System | Dual-sealed observation door with internal recirculating fan |
| Data Storage | Built-in multi-set parameter logging |
| Key Specifications | Brand: ANYAN |
|---|---|
| Origin | Zhejiang, China |
| Model | AYAN-F100 |
| Feed Capacity | 2 L |
| Effective Evaporation Area | 0.16 m² |
| Evaporator Internal Diameter | 100 mm |
| Condenser Area | 0.25 m² |
| Dual Collection Flasks | 2 × 2 L |
| Vacuum Level | ≤1 Pa |
| Heating Temperature Range | Ambient to 300 °C |
| Condenser Temperature | −20 °C (primary), −5 °C (secondary) |
| Wiper Speed | 300 rpm |
| Motor Power | 240 W |
| Film Thickness | <0.5 mm |
| Construction Material | Borosilicate Glass 3.3 (DIN ISO 3585), SS316L + PTFE wipers, FKM or PTFE-coated seals |
| Brand | JTONE |
|---|---|
| Origin | Guangdong, China |
| Model | AYJ-5 |
| Construction Material | Borosilicate 3.3 Glass |
| Tower Height | ≈2800 mm |
| Tower Diameter (ID) | 25 mm |
| Pot Volume | 5 L |
| Packing Effective Height | 1 m |
| Maximum Heating Temperature | 300 °C |
| Ultimate Vacuum (Open System) | ≤0.1 mbar |
| Condenser Type | Vertical |
| Heat Exchange Area | 0.2 m² |
| Reflux Ratio Control | Yes |
| Continuous Sampling Valve | Yes |
| Temperature Monitoring | Integrated Digital Display |
| Power Supply | 220 V, 50/60 Hz, Single Phase |
| Brand | JTONE |
|---|---|
| Origin | Guangdong, China |
| Model | JTZL-6Y |
| Instrument Type | Quartz Glass Distillation Apparatus |
| Heating Method | Far-Infrared Ceramic Heating |
| Cooling Method | Integrated Compressor-Based Refrigeration System |
| Distillation Rate | 12 mL/min |
| Heating Ramp Time | 5–20 min |
| Heating Units | 6 Independent Far-Infrared Ceramic Heaters |
| Temperature Control Range | Ambient to 400 °C |
| Endpoint Detection | Dual-Mode (Weight-Based ±2 mL Accuracy + Timer) |
| Power Supply | 220 V / 50 Hz |
| Distillation Vessel Capacity | 250 mL × 6 or 500 mL × 6 (Customizable) |
| Anti-Suckback Protection | Electromagnetic Vacuum Break Valve |
| Micro-Boil Regulation | Dynamic Power Modulation |
| Safety Features | Gold-Coated Thermal Insulation Base, Flame-Free Operation, IPX4 Water Resistance |
