| Brand | Instron |
|---|---|
| Origin | USA |
| Manufacturer | Instron Corporation |
| Product Type | Electromechanical Universal Testing Machine |
| Model Numbers | 68TM-5, 68TM-10, 68TM-30, 68TM-50, 68TM-100 |
| Maximum Load Capacity | 5 kN, 10 kN, 30 kN, 50 kN, or 100 kN |
| Load Accuracy Class | 0.5 or 1 (per ISO 7500-1 / ASTM E4) |
| Data Acquisition Rate | Up to 5 kHz (simultaneous force, displacement, strain) |
| Force Measurement Accuracy | ±0.5% of reading from 0.1% to 100% FS (with 2580 series load cells + Advanced Performance option) |
| Displacement Accuracy | ±0.01 mm or ±0.05% of reading (whichever is greater) |
| Strain Measurement Compliance | ASTM E83, ISO 9513, EN 10002-4, BS 3846 |
| Speed Accuracy | ±0.1% of set speed (under zero or constant load) |
| Operating Temperature | 5–40 °C |
| IP Rating | IP2X |
| Power Supply | 100–240 VAC ±10%, 47–63 Hz |
| Brand | Instron |
|---|---|
| Origin | USA |
| Manufacturer | Instron Corporation |
| Model | 34TM-100 |
| Load Capacity | 100 kN |
| Load Accuracy | ±0.5% of reading (down to 1/250 FS), ±1% of reading (down to 1/500 FS) |
| Crosshead Travel | 1097 mm (E1), 1582 mm (E2) |
| Vertical Test Space | 1168 mm (E1), 1672 mm (E2) |
| Horizontal Test Space | 420 mm |
| Speed Range | 0.05–508 mm/min |
| Position Resolution | 16.78 nm |
| Frame Axial Stiffness | 180 kN/mm |
| Data Acquisition Rate | Up to 1 kHz (synchronized force, displacement, strain) |
| Power Supply | 100–240 VAC ±10%, 47–63 Hz |
| Operating Temperature | 5–40°C |
| IP Rating | IP2X |
| Brand | Instron |
|---|---|
| Origin | USA |
| Manufacturer Type | Manufacturer |
| Origin Category | Imported |
| Model | KPX |
| Instrument Type | Hydraulic Universal Testing Machine |
| Load Capacity Options | 600 kN, 1500 kN, 2000 kN, 3500 kN |
| Actuator Speed | High-speed hydraulic actuation |
| Test Space | Single-column, single-test-space architecture |
| Stroke Length | Extended travel for large-scale specimens |
| Brand | Instron |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Manufacturer |
| Regional Category | Domestic (China) |
| Model | Instron Strain Gauge Measurement System |
| Instrument Type | Electromechanical Universal Testing Machine |
| System Composition | 4-Channel Dynamic Resistive Strain Amplifier |
| Required Hardware | Instron testing system equipped with 1–2 dedicated strain input channels |
| Brand | Instron |
|---|---|
| Origin | USA |
| Manufacturer | Instron Corporation |
| Product Type | Electromechanical Universal Testing Machine |
| Model Variants | 68SC-05 / 68SC-1 / 68SC-2 / 68SC-5 |
| Load Capacity | Up to 5 kN |
| Compliance | ASTM, ISO, GB, USP, FDA 21 CFR Part 11 (via Bluehill® Universal), GLP/GMP-ready |
| Data Acquisition Rate | Up to 5 kHz (force, displacement, strain synchronized) |
| Force Accuracy | ±0.5% of reading from 0.1% to 100% FS (with 2580 series load cells, Advanced Performance option) |
| Displacement Accuracy | ±0.01 mm or 0.05% of reading (whichever is greater) |
| Strain Accuracy | Compliant with ASTM E83, ISO 9513, EN 10002-4, BS 3846 |
| Operating Temperature | 5–40°C |
| Power Supply | 100–240 VAC ±10%, 47–63 Hz |
| IP Rating | IP2X |
| Brand | Instron |
|---|---|
| Origin | USA |
| Manufacturer | Instron Corporation |
| Product Type | Electromechanical Universal Testing Machine |
| Model | 34FM-100 / 34FM-300 |
| Load Capacity | 100 kN / 300 kN |
| Load Accuracy | ±0.5% of reading (full scale to 1/250 FS), ±1.0% of reading (1/250 FS to 1/500 FS) |
| Displacement Accuracy | ±0.02 mm or ±0.15% of reading (whichever is greater) |
| Data Acquisition Rate | Up to 1 kHz (synchronized force, displacement, strain) |
| Power Supply | Single-phase 208–240 VAC ±10%, 47–63 Hz |
| Operating Temperature | +5°C to +40°C |
| IP Rating | IP2X |
| Compliance | CE-marked, compliant with applicable EN, ISO 7500-1, ASTM E4, ASTM E83, ISO 9001, and GLP/GMP-relevant traceability requirements |
| Brand | Instron |
|---|---|
| Origin | USA |
| Manufacturer | Instron Corporation |
| Product Type | Electromechanical Universal Testing System |
| Load Capacity Options | 400 kN (5988) / 600 kN (5989) |
| Vertical Test Space | 2050 mm (5988) / 2000 mm (5989) |
| Control Architecture | Digital Closed-Loop Servo-Controlled |
| Compliance Standards | ASTM E4, E8, E9, E21, ISO 7500-1, ISO 5893, USP <1041>, FDA 21 CFR Part 11 (with Bluehill software configuration) |
| Data Acquisition Rate | Up to 10 kHz |
| Speed Range | 0.001–1000 mm/min (programmable in 0.001 mm/min increments) |
| Position Resolution | ≤ 0.1 µm |
| Load Cell Options | 1 N to 600 kN full-scale, interchangeable via Auto-ID recognition |
| Integrated Interfaces | Gigabit Ethernet, USB 3.0, Analog I/O (up to 4 channels), Digital I/O |
| Brand | Instron |
|---|---|
| Origin | USA |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Origin Category | Imported |
| Model | MDX |
| Instrument Type | Hydraulic Universal Testing Machine |
| Control System | Instron 59-Series Controller (1000 Hz Closed-Loop Rate) |
| Drive System | High-Response Servo Valve (200 Hz Bandwidth) |
| Hydraulic Power Unit | Instron V11b Variable-Pressure Pump |
| Clamp Integration | Integrated Hydraulic Wedge Grips in Crosshead |
| Software | Instron Partner Software |
| Load Capacity Options | 600 kN, 1000 kN, 1500 kN |
| Brand | Instron |
|---|---|
| Origin | USA |
| Manufacturer Type | Manufacturer |
| Origin Category | Imported |
| Model | LX |
| Instrument Type | Hydraulic Universal Testing Machine |
| Load Capacity Options | 150 kN, 300 kN, 600 kN |
| Force Measurement Accuracy | ±0.5% of reading (down to 1/250 of load cell full scale) |
| Strain Measurement Accuracy | ±0.5% of extensometer reading (down to 1/50 of extensometer full scale) |
| Data Acquisition Rate | Up to 500 Hz synchronized across all channels |
| Power Supply | Single-phase 220 V ±10%, 50 Hz, 2750 VA |
| Dimensions (H×W×D) | 2356–2502 mm × 675–915 mm × 675–877 mm |
| Weight | 590–1474 kg |
| Brand | Instron |
|---|---|
| Origin | USA |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Origin | Imported |
| Model | 68FM-100 / 68FM-300 |
| Instrument Type | Electromechanical Universal Testing Machine |
| Load Capacity | 100 kN, 300 kN |
| Load Accuracy | Class 0.5 per ISO 7500-1 and ASTM E4 |
| Brand | Instron |
|---|---|
| Origin | USA |
| Manufacturer Type | Direct Manufacturer |
| Origin Category | Imported |

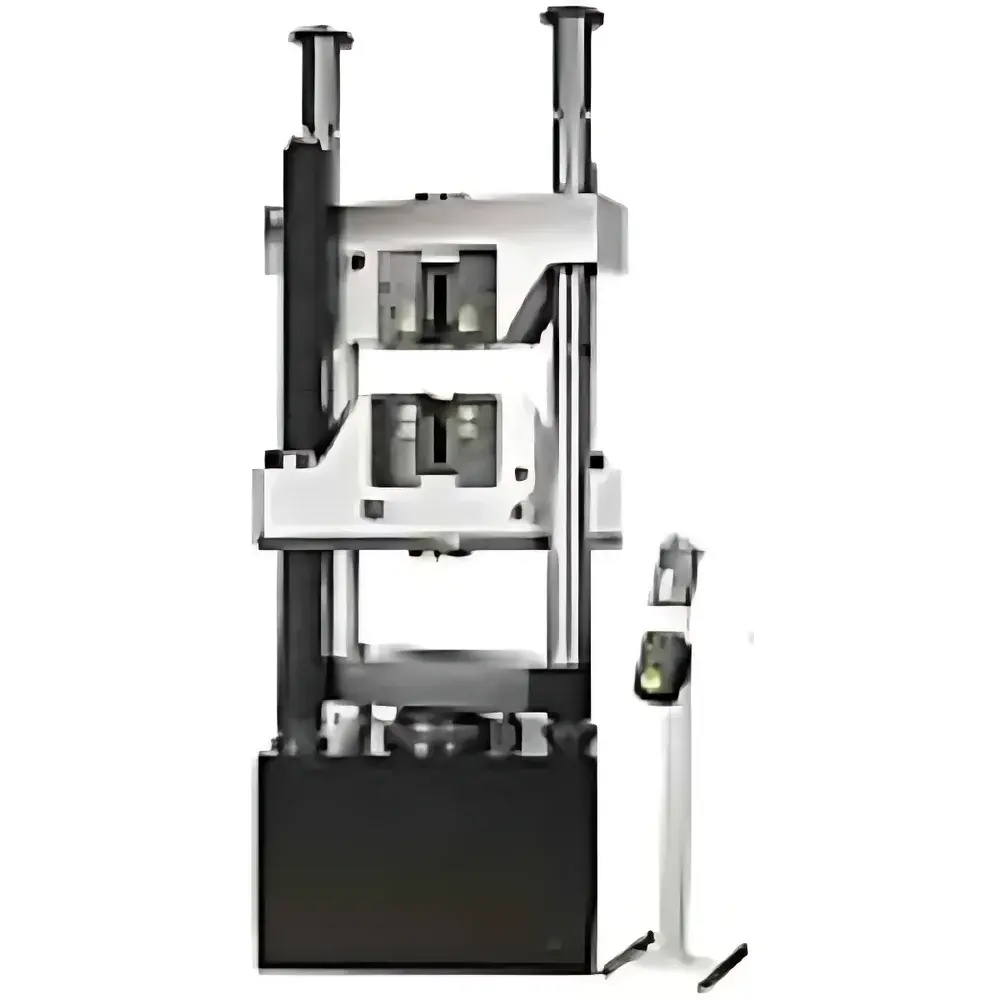

| Model | HDX |
| Instrument Type | Hydraulic Universal Testing Machine |
| Frame Load Capacity | 1000 kN |
| Test Speed (Full Load) | 100 mm/min (39 in/min) |
| Position Resolution (Standard) | 6.35 µm (0.00025 in) |
| Position Accuracy (Standard) | ±1% or 0.254 mm (0.01 in), whichever is greater |
| Position Resolution (High-Resolution Option) | 1.27 µm (0.00004 in) |
| Position Accuracy (High-Resolution Option) | ±0.5% or 0.13 mm (0.005 in), whichever is greater |
| Actuator Stroke | 254 mm (10 in) |
| Crosshead Adjustment Speed | 300 mm/min (12 in/min) |
| Tensile Test Space (Open Crosshead) | 0–760 mm (0–30 in) |
| Tensile Test Space (Closed Crosshead) | 0–1270 mm (0–50 in) |
| Specimen Gauge Length Range (Open Crosshead) | 400–1050 mm (16–41.5 in) |
| Specimen Gauge Length Range (Closed Crosshead) | 400–1665 mm (16–65.5 in) |
| Compression Test Space | 0–1000 mm (0–39.5 in) |
| Horizontal Clearance | 741 mm (29.2 in) |
| Floor Footprint | 1228 mm W × 832 mm D (48.4 in × 32.8 in) |
| Maximum Operating Height | 3366 mm (132.5 in) |
| Brand | INSTRON |
|---|---|
| Origin | USA |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported Instrument |
| Models | 34SC-05 / 34SC-1 / 34SC-2 / 34SC-5 |
| Instrument Type | Electromechanical Universal Testing Machine |
| Load Capacity | Up to 5 kN |
| Force Measurement Accuracy | ±0.5% of reading from 0.4% to 100% FS |
| Displacement Accuracy | ±0.02 mm or ±0.15% of reading (whichever is greater) |
| Speed Accuracy | ±0.2% of set speed (at zero or constant load) |
| Data Acquisition Rate | Synchronized force, displacement, and strain channels up to 1 kHz |
| Motor Type | Brushless AC Servo Motor |
| Operating Temperature | 5–40°C |
| IP Rating | IP2X |
| Compliance | ASTM, ISO, GB, USP, FDA 21 CFR Part 11 (via Bluehill Universal software) |
| Brand | Instron |
|---|---|
| Origin | USA |
| Manufacturer Type | Manufacturer |
| Origin Category | Imported |
| Model | DX |
| Instrument Type | Hydraulic Universal Testing Machine |
| Load Capacities | 150 kN, 300 kN, 600 kN |
| Crosshead Speed Accuracy | ±0.5% of set speed |
| Load Measurement Accuracy | ±0.5% of reading (down to 1/250 of load cell full scale) |
| Strain Measurement Accuracy | ±0.5% of extensometer reading (down to 1/50 of extensometer full scale) |
| Data Acquisition Rate | Up to 500 Hz synchronized across all channels |
| Power Supply | Single-phase 220 V ±10%, 50 Hz, 2750 VA |
| Dimensions (H×W×D) | 2353–2458 mm × 675–915 mm × 675–877 mm |
| Weight | 1000–2041 kg |
| Brand | Instron |
|---|---|
| Origin | USA |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported Instrument |
| Model | AutoInjector |
| Instrument Type | Electromechanical Universal Testing Machine |
| Compliance | ISO 11608, FDA 21 CFR Part 11, ISO 13485, ISO/IEC 17025, GMP/GLP-ready |
| Brand | Instron |
|---|---|
| Origin | USA |
| Manufacturer | Instron Corporation |
| Product Type | Electromechanical Universal Testing Machine |
| Model Numbers | 34TM-5 / 34TM-10 / 34TM-30 / 34TM-50 / 34TM-100 |
| Maximum Load Capacity | 5 kN, 10 kN, 30 kN, 50 kN, or 100 kN |
| Load Accuracy Class | ISO 7500-1 Class 0.5 and Class 1 |
| Data Acquisition Rate | Up to 1 kHz (simultaneous force, displacement, and strain channels) |
| Displacement Accuracy | ±0.02 mm or ±0.15% of reading (whichever is greater) |
| Speed Accuracy | ±0.2% of set speed (at zero or constant load) |
| Power Supply | 100–240 VAC ±10%, 47–63 Hz (single-phase) |
| Operating Temperature | +5 °C to +40 °C |
| IP Rating | IP2X |
| Brand | Instron |
|---|---|
| Origin | USA |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Origin Category | Imported |
| Model | 68FM-100 / 68FM-300 |
| Instrument Type | Electromechanical Universal Testing Machine |
| Load Capacity | Up to 300 kN |
| Software Platform | Bluehill® Universal |
| Compliance | ASTM, ISO, GB Standards |
| Drive System | Brushless AC Servo Motor |
| Continuous Operation Capability | Up to 10 days (cyclic, creep, relaxation) |
| Base Construction | 12 mm Thick Wear-Resistant Coated Steel Table |
| Safety Architecture | Patented Operator Protection System with Workflow-Governed State Control |
| Positioning | Automated Gauge Length Recall & Collision-Avoidance Beam Stop |
| Brand | INSTRON |
|---|---|
| Origin | USA |
| Manufacturer Type | Manufacturer |
| Origin Category | Imported |
| Model | KPX |
| Instrument Type | Hydraulic Universal Testing Machine |
| Load Capacity Range | 600–3,500 kN (135,000–800,000 lbf) |
| Test Space Configuration | Single-Space Frame (Tension & Compression Capable) |

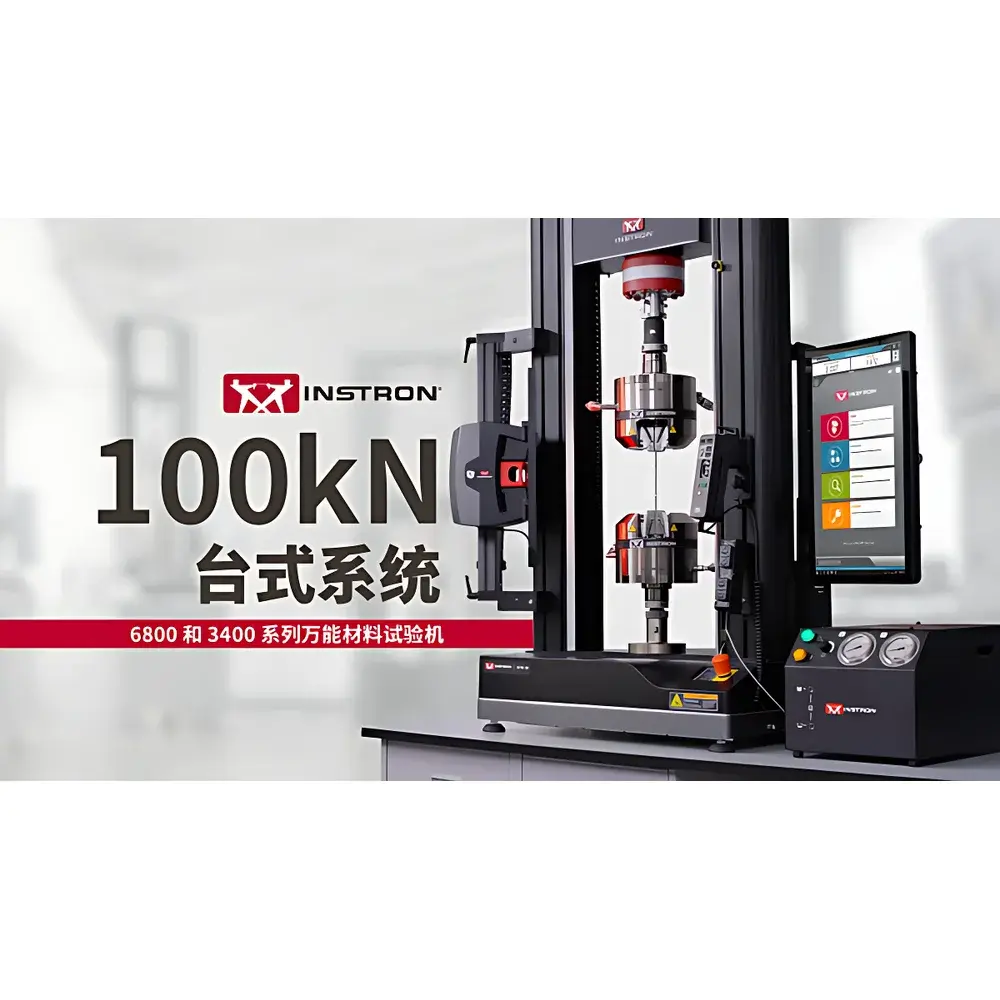

| Brand | Instron |
|---|---|
| Origin | USA |
| Manufacturer | Instron Corporation |
| Model | 68TM-100 |
| Load Capacity | 100 kN |
| Load Accuracy | ±0.5% of reading (down to 0.1% FS with 2580 series transducers, Advanced Performance option) |
| Position Resolution | 2.69 nm |
| Crosshead Travel | 1097 mm (E1) / 1582 mm (E2) |
| Vertical Test Space | 1168 mm (E1) / 1672 mm (E2) |
| Horizontal Test Space | 420 mm |
| Speed Range | 0.001–508 mm/min |
| Data Acquisition Rate | Up to 5 kHz (synchronized force, displacement, strain) |
| Compliance | ASTM E4, E8, E9, E21, ISO 6892-1, ISO 7500-1, GB/T 228.1, EN 10002-4, ISO 9513 |
| Frame Capacity | 1,000 kN |
|---|---|
| Test Speed | 100 mm/min |
| Actuator Stroke | 254 mm |
| Crosshead Adjusting Speed | 300 mm/min |
| Compression Opening | 0–1000 mm |
| Horizontal Opening (Between Columns) | 741 mm |
| Test Space Configuration | Dual-Space (Tension & Compression) |
| Jaw Interface | Hydraulic Open-Front & Manual Closed-Pocket Crossheads |
| Specimen Flexibility | Multi-size Coverage with Minimal Jaw Face Set |
