| Brand | Instron |
|---|---|
| Origin | United Kingdom |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Origin | Imported |
| Model | E3000 |
| Frequency Range | 100 Hz |
| Frame Weight | 240 kg |
| Power Supply | Single-phase AC |
| Maximum Dynamic Axial Load | ±3000 N |
| Maximum Static Axial Load | ±2100 N |
| Test Stroke | 60 mm |
| Footprint | < 0.3 m² (3.2 ft²) |
| Cooling Method | Temperature-Controlled Air Cooling |
| Frame Architecture | High-Stiffness Dual-Column with Top-Mounted Actuator |
| Actuator Technology | Direct-Drive Linear Motor |
| Load Sensing | Dynacell™ Dynamic Load Cell |
| Position Feedback | Optical Encoder with Dedicated Position Channel |
| Control System | Instron Digital Controller with Stiffness-Based Tuning Algorithm |
| Software Platform | Console™ (system control), Bluehill® Universal (static testing), WaveMatrix 3 (dynamic/fatigue testing) |
| Compliance | Designed for GLP/GMP environments |
| Brand | Instron |
|---|---|
| Origin | United Kingdom |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported Instrument |
| Model | E20000 Biaxial Tension-Torsion |
| Maximum Dynamic Load | 20 kN |
| Maximum Dynamic Torque | 130 N·m |
| Frequency Range | Up to 100 Hz |
| Stroke | 75 mm |
| Displacement/Angle Resolution | 5 nm (optical encoder) |
| System Footprint | < 1.2 m² |
| Mass | 1288 kg |
| Actuation Type | Electromagnetic (Oil-Free) |
| Brand | Instron |
|---|---|
| Origin | United Kingdom |
| Manufacturer | Instron (UK) Ltd. |
| Type | Electro-hydraulic servo fatigue testing machine |
| Maximum Test Load | ±100 kN |
| Frame Weight | 625 kg |
| Actuator Stroke | ±150 mm |
| Footprint | < 0.5 m² |
| Controller | 8800MT Digital Controller with 19-bit resolution |
| Brand | Instron |
|---|---|
| Origin | United Kingdom |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Origin Category | Imported |
| Model | E1000 |
| Quotation | Upon Request |
| Instrument Type | Electromechanical Fatigue Testing System |
| Frequency Range | Up to 100 Hz |
| Frame Weight | 92 kg |
| Brand | Instron |
|---|---|
| Origin | United Kingdom |
| Manufacturer | Instron (UK) Ltd. |
| Type | Electro-hydraulic servo fatigue testing system |
| Model | 8874 |
| Maximum axial force | ±25 kN |
| Maximum torque | ±100 N·m |
| Axial stroke | 100 mm |
| Torsional range | ±130° |
| Frame stiffness | High-rigidity dual-column architecture |
| Footprint | < 0.4 m² |
| Frame weight | 287 kg |
| Controller | 8800MT dual-axis digital controller with 19-bit resolution |
| Load cell technology | Patented Dynacell™ integrated load cell |
| Actuator location | Upper crosshead-mounted bidirectional servo actuator |
| Crosshead adjustment | Hydraulic lift + manual locking |
| Compatible power unit | 3520 Series hydraulic power supply |
| Brand | Instron |
|---|---|
| Origin | United Kingdom |
| Manufacturer | Instron (UK) Ltd. |
| Type | Electro-Hydraulic Servo Fatigue Testing Machine |
| Maximum Test Load | ±250 kN |
| Frame Weight | 1330 kg |
| Footprint | < 1.2 m² |
| Stroke | 150 mm |
| Actuator Type | Dual-acting servo-hydraulic cylinder with hydrostatic bearings |
| Load Cell Technology | Dynacell™ |
| Controller | Instron 8800MT Digital Controller |
| Software Platform | WaveMatrix™ (dynamic), Bluehill® (quasi-static), LCF & Fracture Mechanics Add-ons |
| Compliance | ASTM E4, E8, E606, E647, ISO 1099, ISO 6892-1, USP <1089>, FDA 21 CFR Part 11 (with audit trail enabled) |
| Brand | Instron |
|---|---|
| Origin | United Kingdom |
| Manufacturer | Instron Corporation |
| Type | Electro-Hydraulic Servo Fatigue Testing Machine |
| Maximum Test Load | ±500 kN |
| Frame Weight | 2450 kg |
| Actuator Stroke | 250 mm |
| Footprint | < 1.6 m² |
| Controller | Instron 8800MT Digital Controller |
| Compatible Power Unit | 3520 Series Hydraulic Power Supply |
| Load Cell Technology | Patented Dynacell™ |
| Frame Configuration | Dual-Column, Floor-Mounted, High-Stiffness Precision-Aligned |
| Bearing Type | Hydrostatic Bearing Actuator |
| Crosshead Adjustment | Hydraulic Elevating and Locking System |
| Software Platform | WaveMatrix (dynamic), Bluehill® (static), LCF/Fracture Mechanics Add-ons |
| Compliance | ASTM E4, E8, E606, E647, E1820 |
| Brand | INSTRON |
|---|---|
| Origin | United Kingdom |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Origin | Imported |
| Model | E20000 |
| Instrument Type | Electromagnetic Fatigue Testing System |
| Maximum Test Load | 20 kN |
| Frequency Range | Up to 100 Hz |
| Host Weight | 1225 kg |
| Brand | Instron |
|---|---|
| Origin | United Kingdom |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported Instrument |

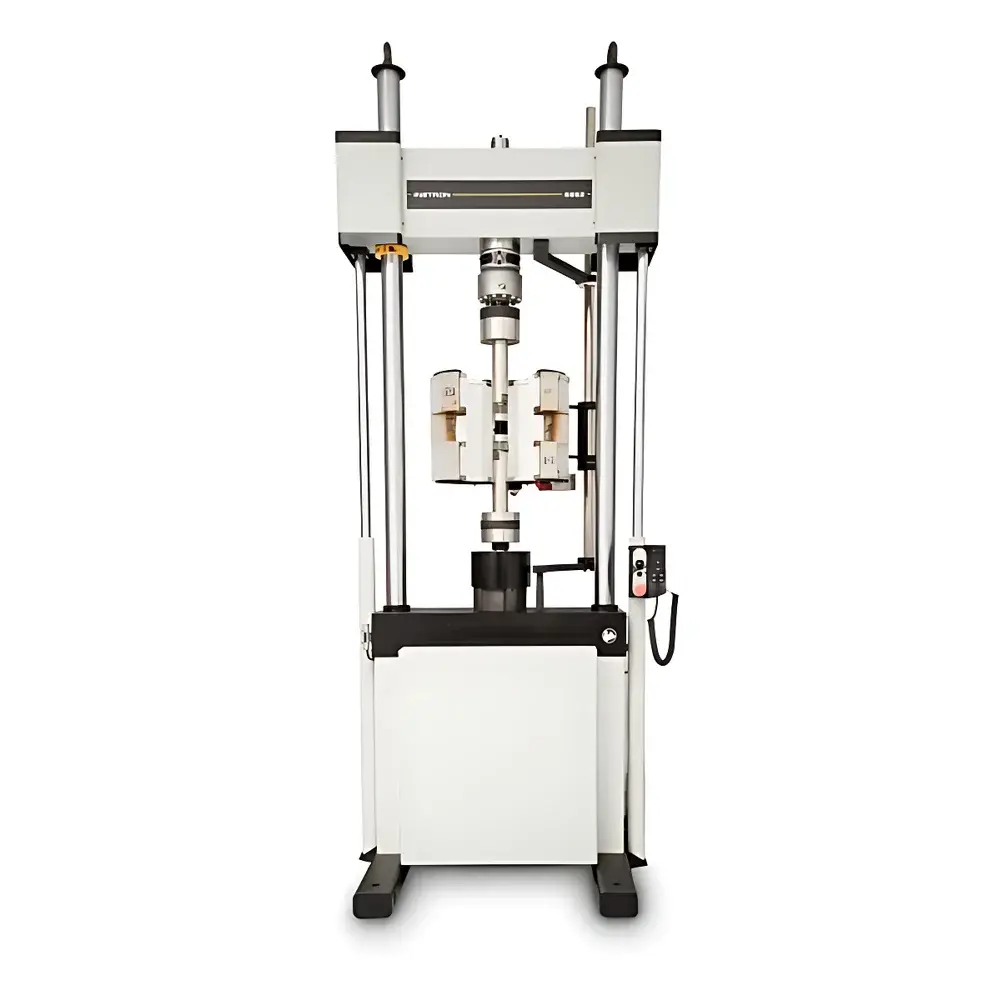

| Model | 8862 |
| Instrument Type | Electro-Mechanical Servo Fatigue Testing System |
| Maximum Test Load | 100 kN |
| Frame Weight | 1458 kg |
| Brand | Instron |
|---|---|
| Origin | United Kingdom |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Import Status | Imported |
| Model | E10000 Axial-Torsional |
| Test Force Capacity | ±10 kN (axial), ±100 N·m (torsional) |
| Frequency Range | up to 100 Hz |
| Frame Weight | 994 kg |
| Power Supply | Single-phase AC |
| Cooling | Temperature-controlled air cooling |
| Frame Footprint | < 0.8 m² (8.6 ft²) |
| Stroke | ±60 mm |
| Torsion Range | ±135° / ±16 revolutions |
| Control System | Instron Dynacell™ dynamic load cell + digital controller with stiffness-based tuning |
| Software Platform | Console™, compatible with WaveMatrix 3™ (dynamic), Bluehill® Universal™ (static), and application-specific modules |
| Brand | Instron |
|---|---|
| Origin | United Kingdom |
| Manufacturer | Instron (UK) Ltd. |
| Type | Imported |

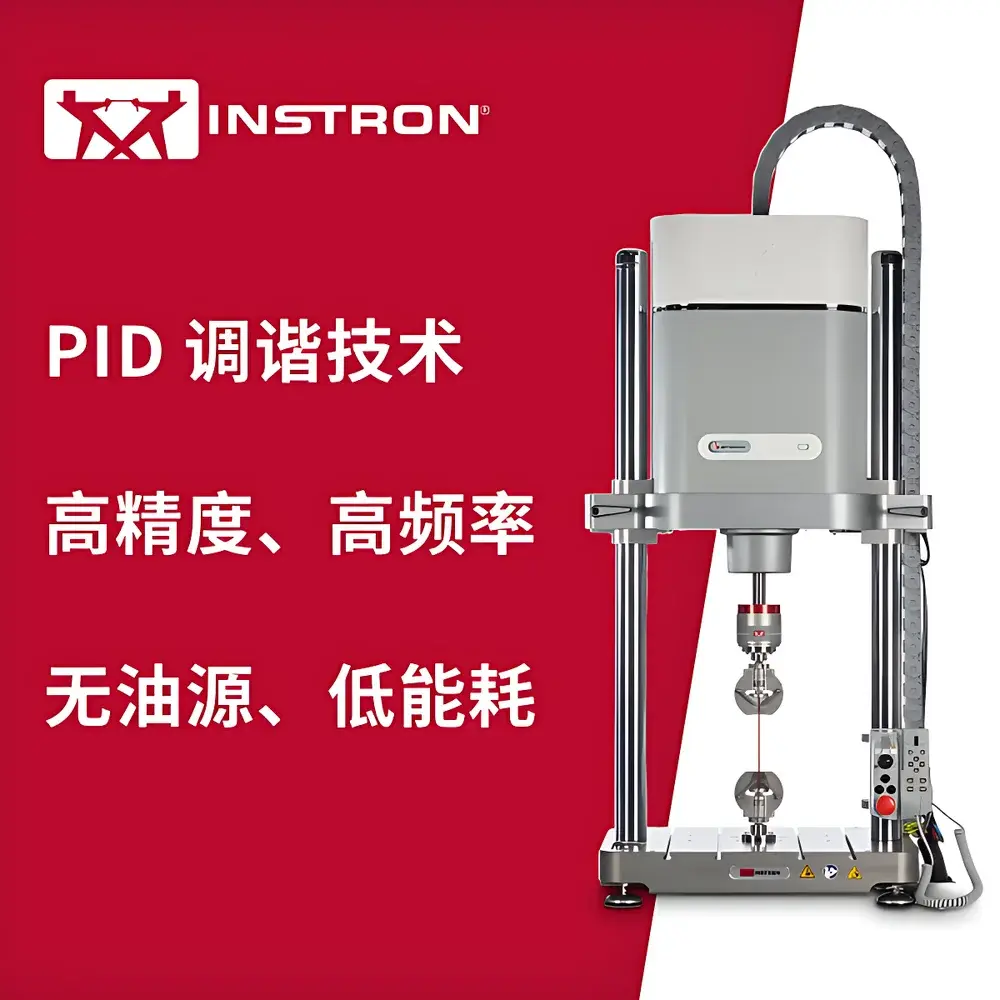

| Model | E3000 Biaxial Tension-Torsion |
| Frequency Range | 0–100 Hz |
| Frame Weight | 250 kg |
| Power Supply | Single-phase AC |
| Max Dynamic Axial Load | ±3000 N |
| Max Dynamic Torque | ±25 N·m |
| Stroke | ±60 mm |
| Torsional Range | ±135° / ±16 revolutions |
| Cooling | Temperature-controlled air cooling |
| Frame Stiffness | High-rigidity dual-column architecture with optical encoder-based position feedback |
| Control System | Digital controller with stiffness-based tuning algorithm for axial and torsional channels |
| Software Compatibility | WaveMatrix 2 (dynamic), Bluehill Universal (quasi-static), ASTM/ISO-compliant test method libraries |
| Brand | INSTRON |
|---|---|
| Origin | United Kingdom |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported Instrument |

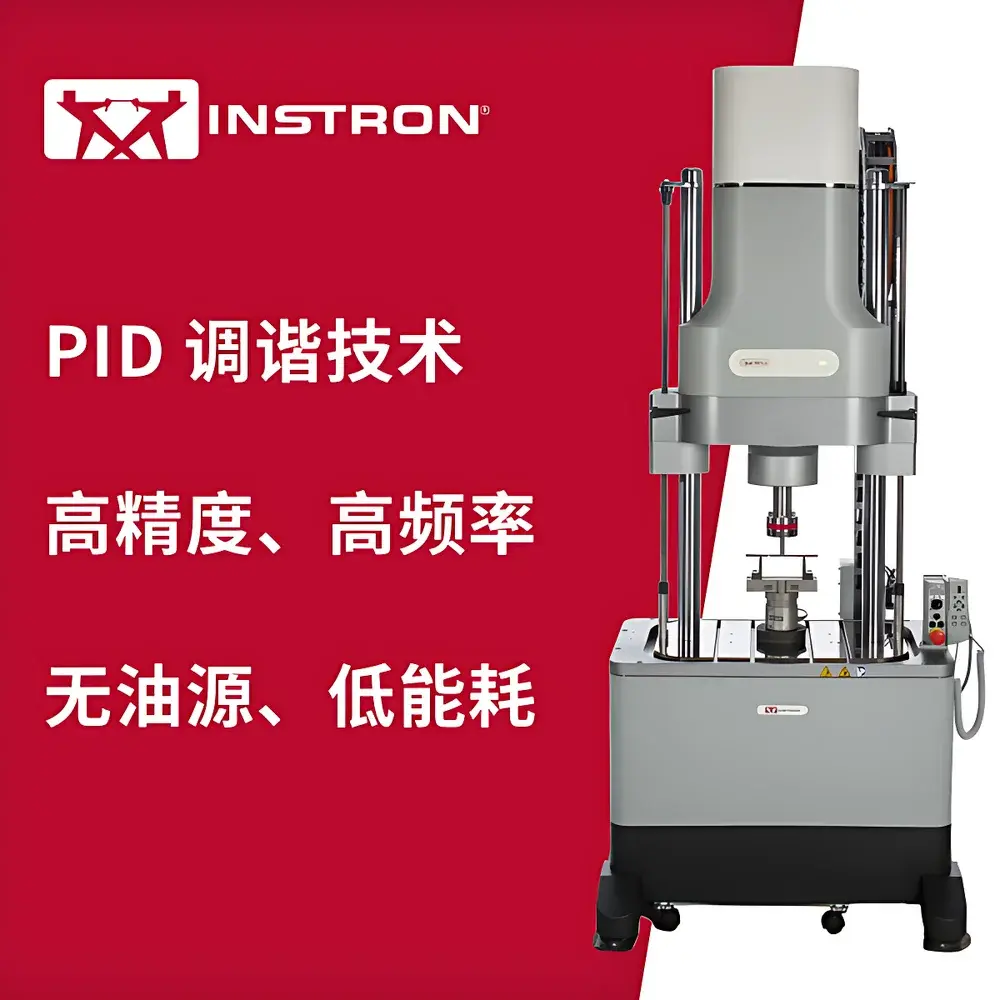

| Model | ElectroPuls E10000 |
| Maximum Test Force | ±10,000 N |
| Frequency Range | Quasi-static to 100 Hz |
| Actuator Stroke | 60 mm |
| Host Weight | 50–150 kg |
| Power Supply | Three-phase |
| Compliance | ASTM E4, E8, E21, E606, ISO 1099, ISO 6892-1, ISO 12106, USP <1043>, FDA 21 CFR Part 11 (with optional audit trail module) |
| Brand | Instron |
|---|---|
| Origin | USA |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Origin Category | Imported |

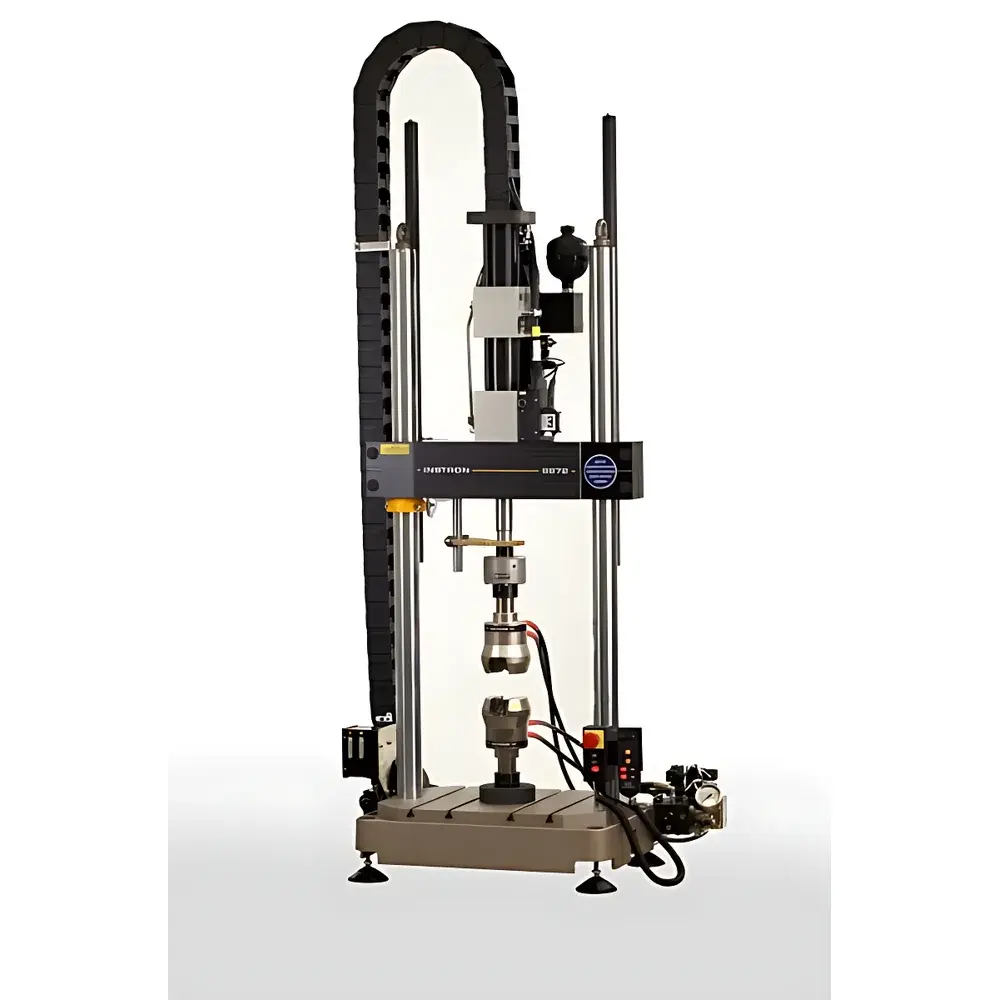

| Models | 8871, 8872, 8874, 8801 |
| Pricing | Available Upon Request |
| Brand | Instron |
|---|---|
| Origin | United Kingdom |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported Instrument |
| Model | TMF |
| Instrument Type | Thermal-Mechanical Fatigue Tester |
| Compliance Standards | ASTM E2368, ISO 12111 |
| Brand | Instron |
|---|---|
| Origin | United Kingdom |
| Manufacturer | Instron Corporation |
| Type | Electro-Hydraulic Servo Fatigue Testing Machine |
| Maximum Test Load | ±25 kN |
| Frame Weight | 287 kg |
| Footprint | < 0.4 m² |
| Actuator Stroke | 100 mm |
| Actuator Mounting | Upper Crosshead |
| Frame Configuration | Dual-Column, High-Stiffness, Precision-Aligned |
| Load Cell Technology | Patented Dynacell™ |
| Controller | Instron 8800MT Digital Controller |
| Compatible Power Unit | 3520 Series Hydraulic Power Supply |
| Software Platform | WaveMatrix (dynamic), Bluehill (static), Fracture Mechanics Add-on |
| Brand | Instron |
|---|---|
| Origin | United Kingdom |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Origin Category | Imported |
| Model | VHS |
| Test Machine Type | Electro-Hydraulic Servo Fatigue Testing System |
| Maximum Test Force | ±35 kN, ±40 kN, ±65 kN, ±160 kN |
| Velocity Range | Up to 20 m/s (VHS 65/80 optional at 25 m/s) |
| Machine Weight | 2500 kg, 2900 kg, or 5300 kg depending on configuration |
| Brand | Instron |
|---|---|
| Origin | United Kingdom |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported Instrument |
| Model | E10000 |
| Instrument Type | Electromagnetic Fatigue Testing Machine |
| Maximum Test Force | ±10 kN (Dynamic), ±7 kN (Static) |
| Frequency Range | Up to 100 Hz |
| Frame Weight | 950 kg |
| Power Supply | Single-Phase AC |
| Cooling Method | Temperature-Controlled Air Cooling |
| Test Stroke | 60 mm |
| Footprint | < 0.8 m² (8.6 ft²) |
