| Brand | Jihengpin |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | HP-DLT |
| Price Range | USD 1,400 – 4,200 |
| Max Test Force | 50 N (optional ranges available) |
| Force Resolution | 0.001 N |
| Force Accuracy | ±1% of reading |
| Displacement Resolution | 0.01 mm |
| Displacement Accuracy | ±1% |
| Speed Range | 1–600 mm/min (digital DC motor control) |
| Test Space | 300 mm |
| Dimensions (W×D×H) | 540 × 280 × 1450 mm |
| Weight | ~70 kg |
| Power Supply | 200 V, 50 Hz |
| Operating Environment | 10–45 °C, 20–80% RH |
| Compliance | GB/T 5019.2–2009 |
| Display | Full Chinese LCD interface |
| Control Mode | Touch-key + optional PC software (USB/RS232) |
| Brand | Jihengpin |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Model | ZGY-TA |
| Force Range | 1 kg, 5 kg, 10 kg, 20 kg, 30 kg, or 50 kg (standard configuration: 20 kg) |
| Force Accuracy | ±0.5% of full scale |
| Displacement Resolution | 0.01 mm |
| Position Accuracy | 0.001 mm |
| Test Speed Range | 0.1–10 mm/s (software-adjustable) |
| Speed Resolution | 0.1 mm/s (accuracy >99%) |
| Maximum Travel Distance | 320 mm |
| Data Acquisition Rate | >2000 samples/sec (4-channel simultaneous acquisition) |
| Dimensions (W×D×H) | 500 × 500 × 1200 mm |
| Weight | 85 kg |
| Power Supply | 220 V, 50 Hz |
| Standard Configuration | Main unit, proprietary control software, Lenovo PC, HP inkjet printer, three probes (5 mm cylinder, 20 mm cylinder, 25.4 mm flat plunger) |
| Brand | Jihengpin |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Region | Domestic (China) |
| Model | HP-CQYD |
| Cutting Width Options | 10 mm, 15 mm, 20 mm, 25 mm, 30 mm, 50 mm |
| Tolerance | ±0.1 mm |
| Blade Material | High-Carbon Steel |
| Handle Material | Ergonomic ABS + Stainless Steel Reinforcement |
| Custom Length | Unlimited (user-defined specimen length) |
| Price | USD 52 (FOB Shandong) |
| Brand | Jihengpin |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |

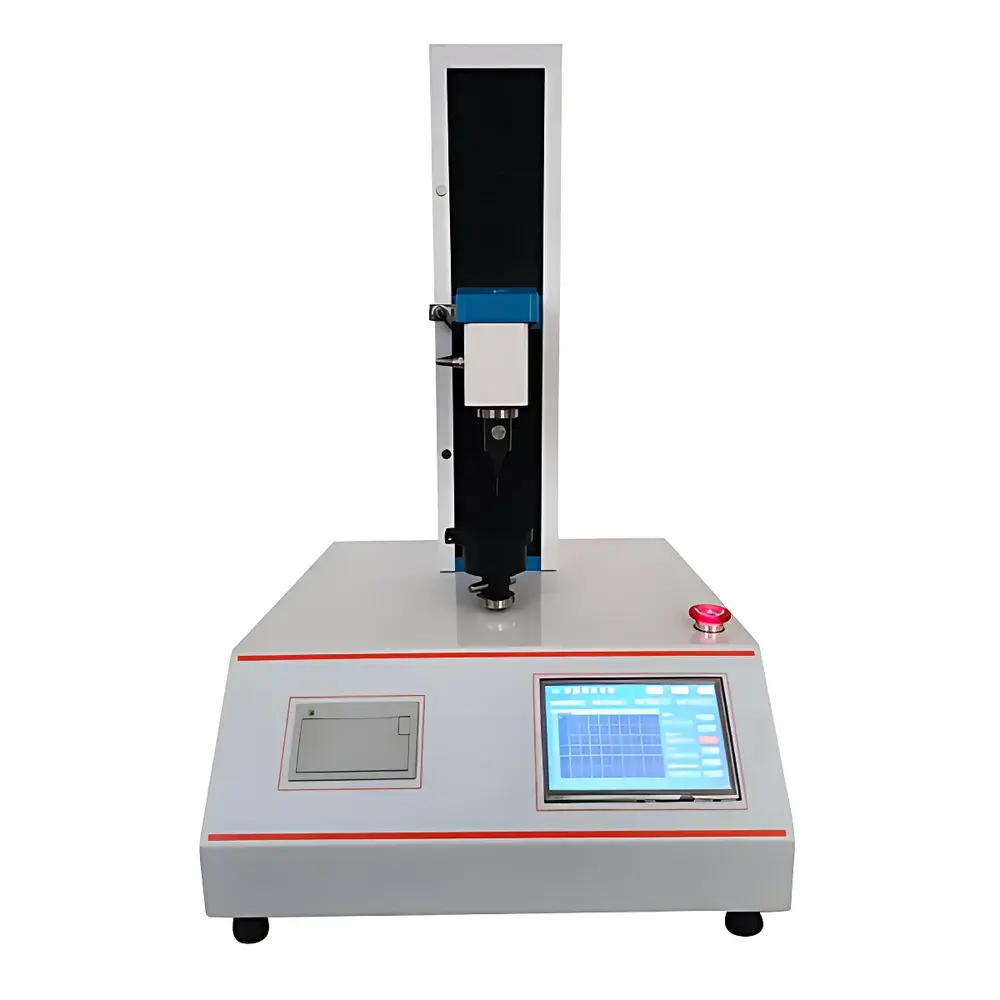

| Model | HP622 |
| Compliance | YY/T 0681.13–2014, ASTM F1306–2016 |
| Force Range | 0–50 N |
| Resolution | 0.1 N |
| Accuracy | ±1% FS |
| Test Speed | 25 mm/min (adjustable 0–300 mm/min) |
| Sample Size | 75 mm × 75 mm |
| Clamp Aperture | Ø35 mm |
| Probe | Hemispherical, compliant with YY/T 0681.13 |
| Dimensions | 330 × 335 × 550 mm |
| Weight | ~55 kg |
| Power Supply | 220 V, 50 Hz |
| Brand | Hengpin (Ji'nan) |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |

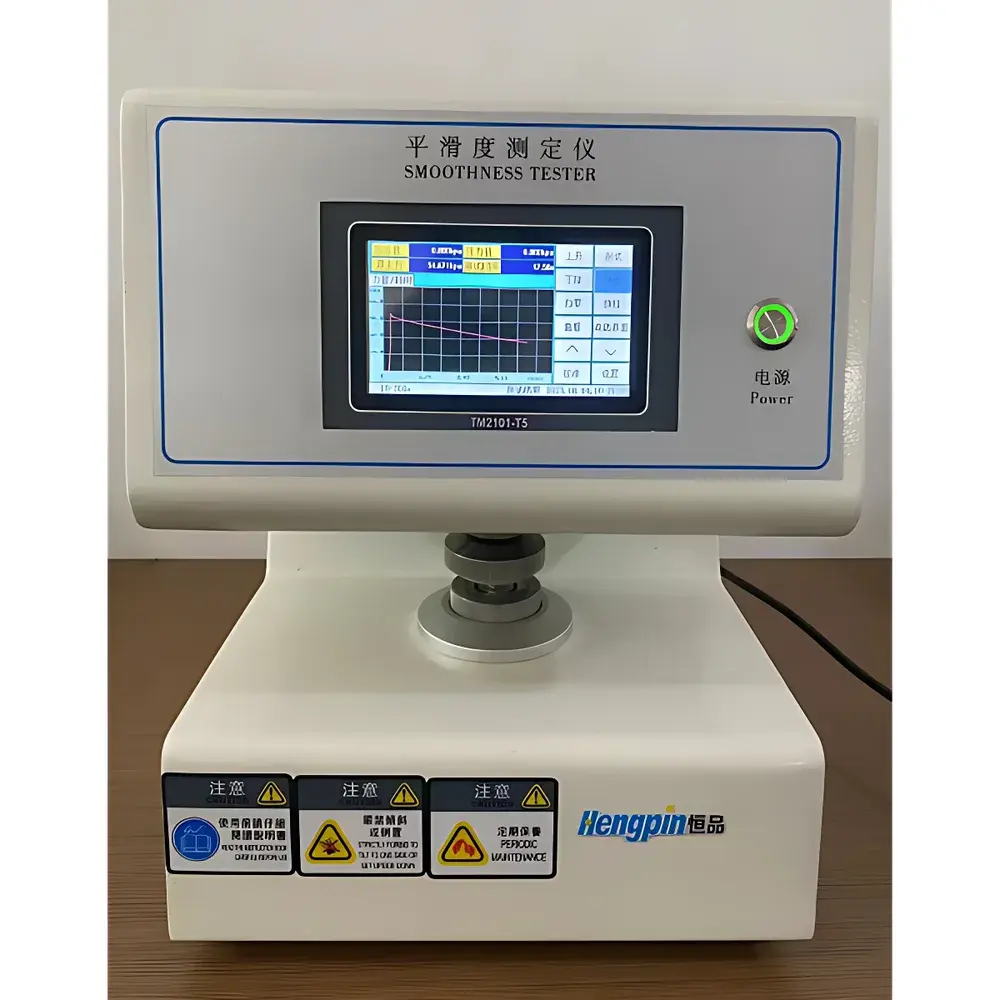

| Model | HP-PHD-02 |
| Price Range | USD 1,400 – 2,800 |
| Measurement Range | 0–9999 s |
| Accuracy | ±0.1 s |
| Test Area | 10 ± 0.05 cm² |
| Power Supply | AC 220 V, 50 Hz |
| Dimensions | 360 × 390 × 510 mm |
| Weight | ~40 kg |
| Vacuum Source | Oil-free Imported Vacuum Pump |
| Display | LCD with Chinese UI |
| Data Output | Integrated Thermal Micro Printer |
| Chamber Modes | Auto-switching between Large and Small Volume Chambers (Small Chamber Test Time ≈ 1/10 of Large Chamber) |
| Brand | Jihengpin |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | ZGY-TA TPA Universal Texture Analyzer |
| Force Range | 1–50 kg (standard configuration: 20 kg) |
| Force Resolution | 0.01 kg |
| Force Accuracy | ±0.5% of full scale |
| Test Speed Range | 0.1–10 mm/s (software-adjustable) |
| Speed Resolution | 0.1 mm/s (accuracy >99%) |
| Maximum Travel Distance | 320 mm |
| Displacement Resolution | 0.01 mm |
| Dimensions (W×D×H) | 500 × 500 × 1200 mm |
| Weight | 85 kg |
| Power Supply | 220 V, 50 Hz |
| Brand | Jihengpin |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Manufacturer |
| Country of Origin | China |
| Model | HP-BD48A |
| Price Range | USD 1,400 – 2,800 |
| Illuminant | Simulated D65 |
| Geometry | Diffuse/0° (d/0) |
| Sphere Diameter | 150 mm |
| Aperture | 25 mm |
| Repeatability | σ(Y₁₀) < 0.1, σ(x₁₀, y₁₀) < 0.001 |
| Accuracy | ΔY₁₀ < 1.0, Δx₁₀/Δy₁₀ < 0.01 |
| Sample Size | ≥Φ30 mm, ≤40 mm thickness |
| Power Supply | AC 220 V, 50 Hz, 0.3 A |
| Operating Environment | 10–30 °C, RH ≤85% |
| Dimensions | 364 × 264 × 400 mm |
| Weight | 17 kg |
| Brand | Jihengpin |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Model | HP-DLT |
| Max. Test Load | 50 N |
| Load Resolution | 0.001 N |
| Force Accuracy | ±1% of reading |
| Displacement Resolution | 0.01 mm |
| Speed Range | 1–600 mm/min |
| Test Space (Compression) | 300 mm |
| Dimensions (W×D×H) | 540 × 280 × 1450 mm |
| Weight | ~70 kg |
| Power Supply | 200 V, 50 Hz |
| Operating Environment | 10–45 °C, 20–80% RH |
| Compliance | GB/T 5019.2–2009 |
| Display | Full Chinese LCD interface |
| Control Mode | Touch-key + optional PC-based software (USB/RS232) |
| Protection | Overload protection, mechanical limit switches |
| Accuracy Class | Class 1 (GB/T 228.1) |
| Brand | Jihengpin |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Manufacturer |
| Country of Origin | China |

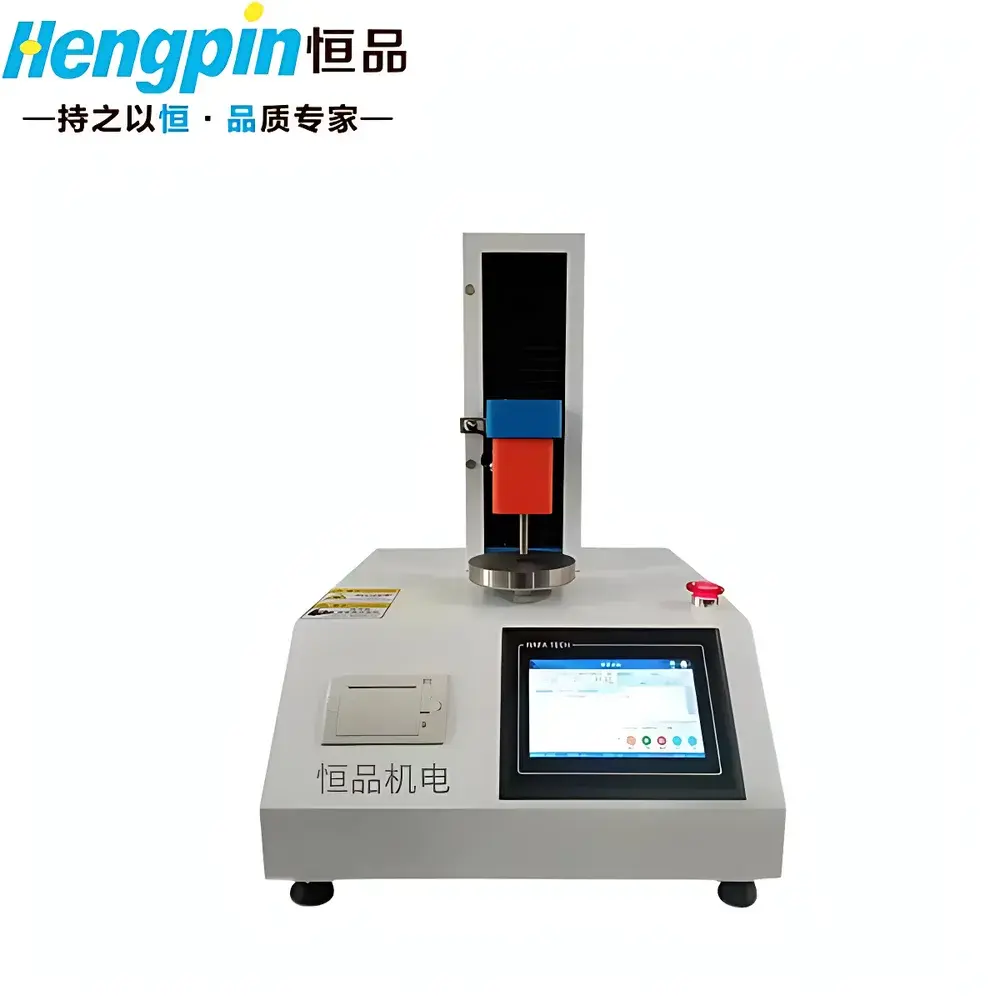

| Model | HP612H |
| Price Range | USD 1,400 – 4,200 |
| Load Capacity Options | 50 N (also available: 100 N, 500 N, 1000 N) |
| Resolution | 0.1 N |
| Accuracy | ±0.5% FS |
| Test Speed | 1–300 mm/min |
| Probe Diameter | 2 mm |
| Parallelism of Compression Plates | <0.025 mm |
| Lower Platen Diameter | 100 mm |
| Dimensions (W×D×H) | 430 × 350 × 710 mm |
| Weight | 65 kg |
| Power Supply | 220 V, 50 Hz |
| Compliance | ASTM D1321-10 |
| Brand | Jihengpin |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Model | HP622 |
| Key Specifications | Load Range 0–50 N |
| Resolution | 0.1 N |
| Accuracy | ±1% FS |
| Test Speed | 25 mm/min (adjustable 0–300 mm/min) |
| Sample Size | 75 mm × 75 mm |
| Clamp Aperture | Ø35 mm |
| Probe | Hemispherical, compliant with YY/T 0681.13–2014 |
| Dimensions | 330 × 335 × 550 mm |
| Weight | ~55 kg |
| Power Supply | 220 V, 50 Hz |
| Brand | Jihengpin |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |

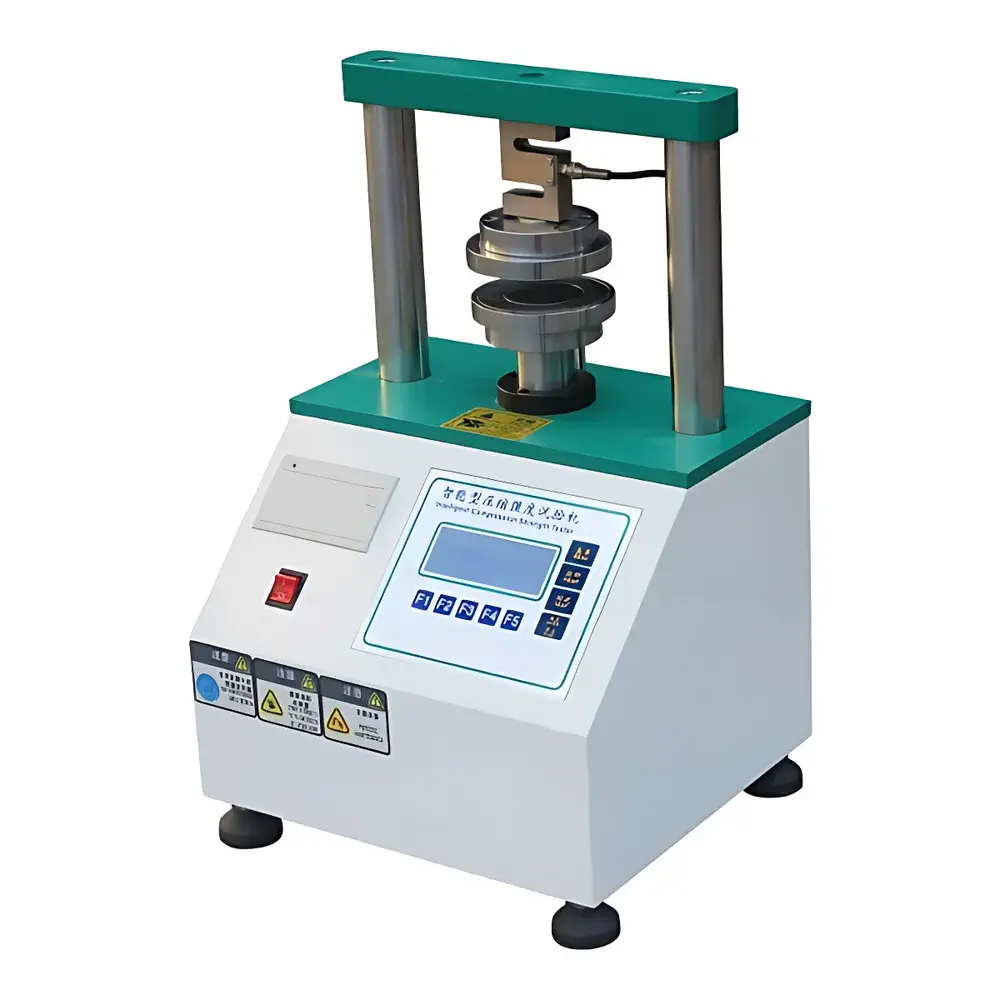

| Model | HP-YSY3000 |
| Measurement Range | 60–3000 N |
| Accuracy | <1% (typical ≤0.3%) |
| Resolution | 0.1 N |
| Platen Speed | 12.5 ± 2.5 mm/min |
| Platen Diameter | 120 mm (customizable) |
| Max Platen Gap | 80 mm (customizable) |
| Power Supply | AC 220 V, 3 A, 50 Hz |
| Dimensions (W×D×H) | 360 × 330 × 510 mm |
| Weight | ~55 kg |
