| Brand | Jinhuatester |
|---|---|
| Model | RCJ-01 |
| Application | Thermal shock resistance testing of glass pharmaceutical and beverage containers |
| Standards Compliance | GB/T 4547–2007, YBB 00182003–2015 |
| Temperature Range | 10–90 °C |
| Temperature Accuracy | ±0.5 °C |
| Hot/Cold Bath Capacity | 70 L each |
| Power Consumption | 6500 W |
| Lift Load Capacity | 30 kg |
| Basket Dimensions | Ø280 × 320 mm |
| Overall Dimensions | 1000 × 780 × 1600 mm |
| Weight | 185 kg |
| Control System | 7-inch color touchscreen with PID temperature control |
| Construction | Stainless steel hot/cold baths and motorized lifting basket |
| Safety | Integrated earth-leakage circuit breaker |
| Environmental Operating Conditions | 10–40 °C ambient, ≤50% RH |
| Brand | Jinhuatester |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |

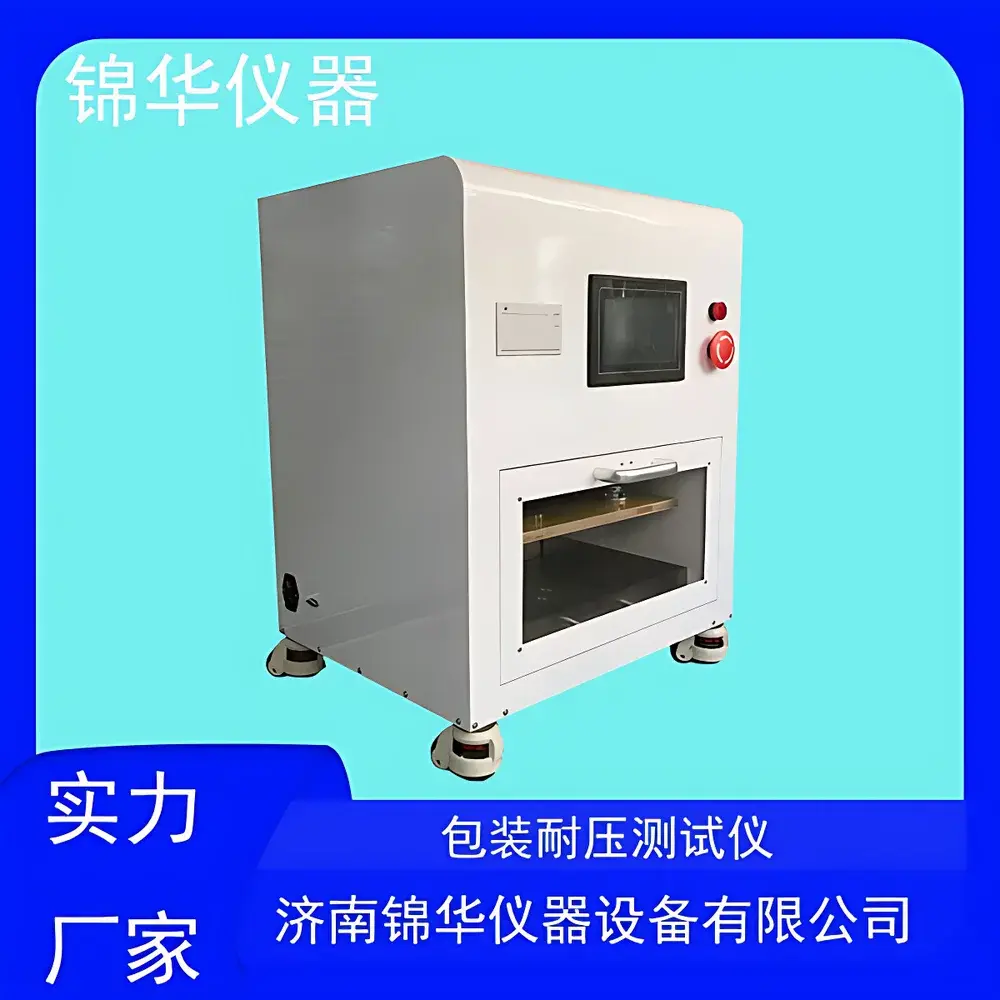

| Model | BNY-01 |
| Measurement Range | 3000 N (customizable) |
| Resolution | 0.1 N |
| Specimen Dimensions | 420 mm × 320 mm (customizable) |
| Specimen Height Capacity | 10–200 mm (customizable) |
| Overall Dimensions | 550 × 490 × 800 mm (L×W×H) |
| Weight | 36 kg |
| Operating Environment | 23 ± 2 °C, RH ≤ 80 % (non-condensing) |
| Power Supply | 220 V, 50 Hz |
| Compliance | GB/T 16491, GB 4857.16, ASTM D642, ASTM D4169, TAPPI T804, ISO 2872, ISO 12048, JIS Z0212, GB/T 10004 |
| Brand | Jinhuatester |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |

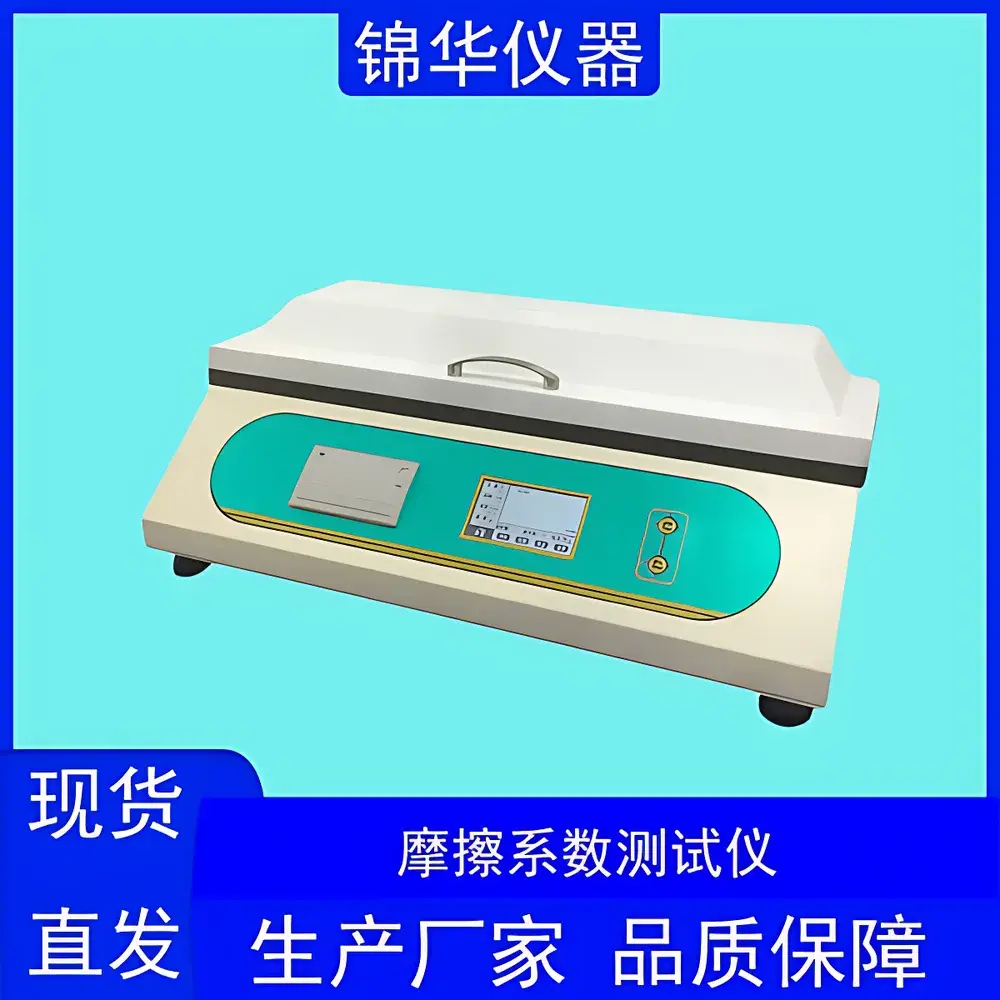

| Model | MXD-02 |
| Measuring Range | 5 N (standard), optional 10 N / 30 N |
| Accuracy | ±0.2% FS |
| Test Stroke | 330 mm |
| Slider Masses | 200 g, 500 g (standard) |
| Test Speed | 0–1000 mm/min (adjustable) |
| Specimen Height Capacity | 0–30 mm |
| Power Supply | AC 220 V, 50 Hz |
| Power Consumption | 100 W |
| Dimensions (L×W×H) | 640 × 300 × 230 mm |
| Net Weight | 22 kg |
| Compliance | GB 10006–1998, ISO 8295–1995, ASTM D1894–01, TAPPI T816 |
| Brand | Jinhuatester |
|---|---|

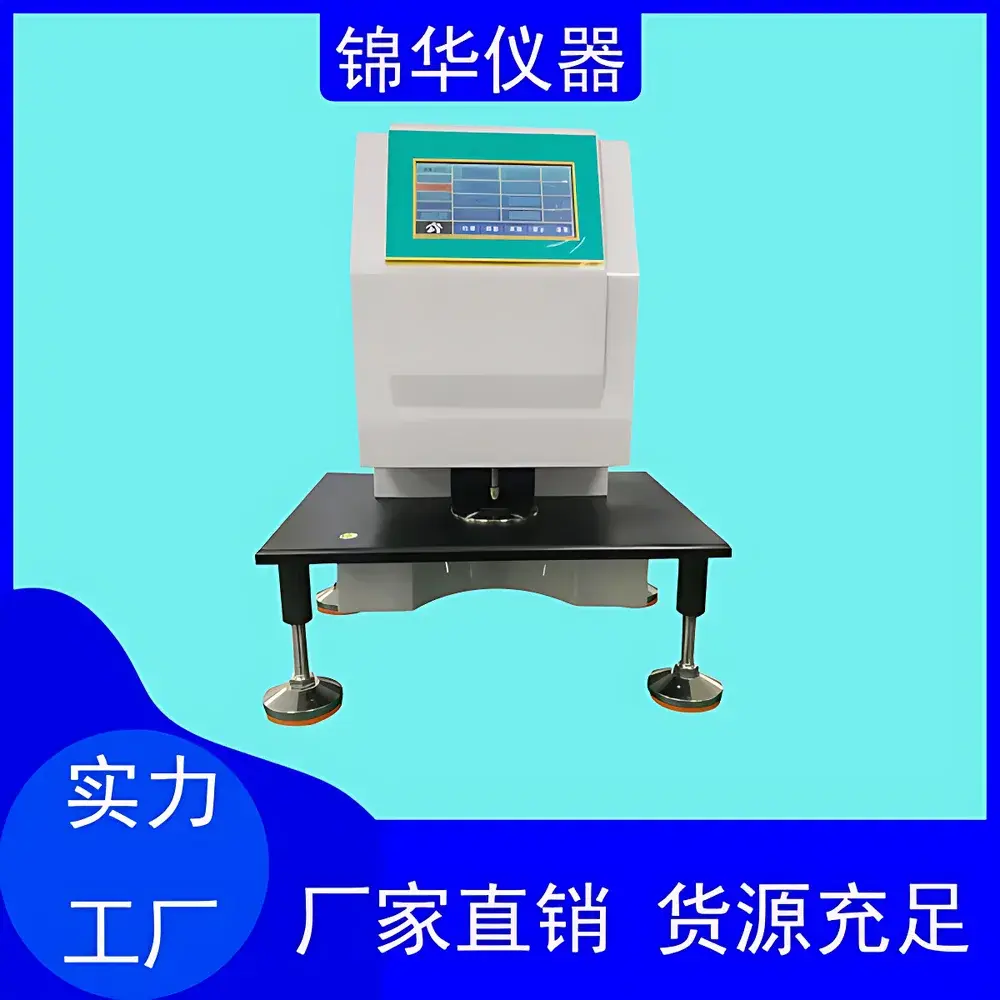

| Model | CHY-01 |
| Measurement Principle | Mechanical Contact with Controlled Load & Defined Foot Area |
| Measurement Range | 0–5 mm (customizable fixtures available) |
| Resolution | 0.1 µm |
| Accuracy | ±0.5 µm |
| Measuring Pressure | 17.5 ± 1 kPa (for films), 100 ± 1 kPa (for paper, requires optional paper-specific anvil) |
| Contact Area | 50 mm² (film mode), 200 mm² (paper mode) |
| Traverse Speed | 10 mm/min (adjustable) |
| Display | Color LCD with real-time values, statistics (mean, min, max, SD), and graphical trend view |
| Data Output | RS232 serial interface |
| Optional Accessories | Automated multi-point sample feeder, thermal printer module |
| Compliance | Designed per ISO 4593, ASTM D6988, ISO 534, TAPPI T411, and GB/T 451.3 |
| Power Supply | AC 220 V, 50 Hz |
| Dimensions (W×D×H) | 454 × 352 × 500 mm |
| Net Weight | 30 kg |
| Brand | Jinhuatester |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |

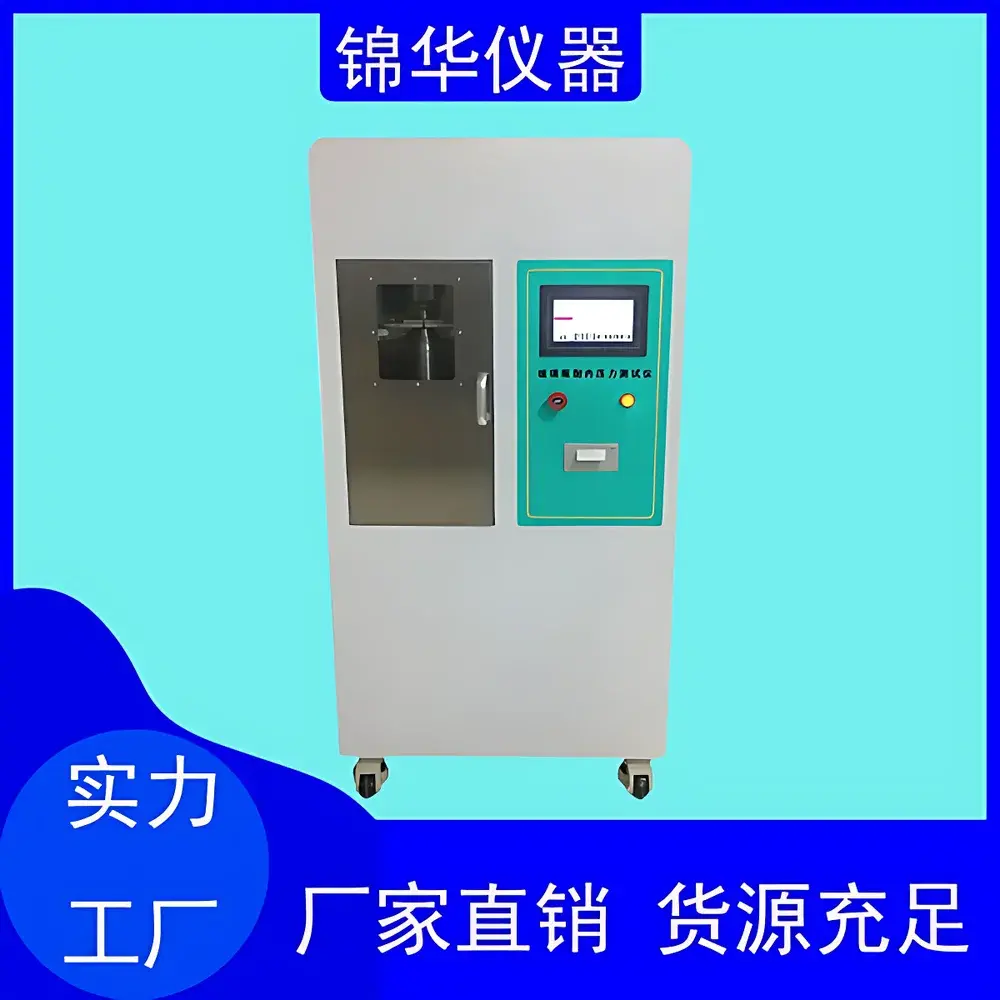

| Model | NNY-01 |
| Sensor Range | 0–6 MPa (7.2 MPa safe overload) |
| Combined Accuracy | <0.5% FS |
| Display Resolution | 0.0001 MPa |
| Pressure Ramp Rate | 0.4–0.58 ±0.1 MPa/s (adjustable, equivalent to 5.8 ±1 bar/s) |
| Test Medium | Deionized Water |
| Operating Temperature | 5–50 °C |
| Power Supply | 220 V, 50 Hz |
| Rated Power | 0.6 kW (integrated RCD protection) |
| Dimensions | 600 × 400 × 1240 mm |
| Weight | 136 kg |
| Brand | Jinhuatester |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | NNY-01 |
| Price | USD 145 (approx. based on ¥1000) |
| Sensor Range | 0–6 MPa |
| Safety Overload | 7.2 MPa |
| Combined Accuracy | <0.5% FS |
| Display Resolution | 0.0001 MPa |
| Pressurization Rate | 0.4–0.58 ±0.1 MPa/s (adjustable, compliant with ISO 7458 and GB/T 4546-2008) |
| Test Medium | Deionized Water |
| Operating Temperature | 5–50 °C |
| Power Supply | 220 V, 50 Hz |
| Rated Power | 0.6 kW (integrated RCD protection) |
| Dimensions | 600 × 400 × 1240 mm |
| Weight | 136 kg |
| Brand | Jinhuatester |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Model | HST-01 |
| Sealing Temperature Range | Ambient to 300 °C |
| Temperature Control Accuracy | ±0.1 °C |
| Sealing Time Range | 0.1–999.9 s |
| Delay Time Range | 0.1–999.9 s |
| Sealing Pressure Range | 0.05–0.7 MPa |
| Sealing Area | 260 mm × 10 mm (customizable) |
| Power Supply | 220 V, 50 Hz |
| Dimensions (L×W×H) | 360 × 270 × 375 mm |
| Weight | 30 kg |
