| Brand | Amsterdam Scientific Instruments (ASI) |
|---|---|
| Origin | Netherlands |

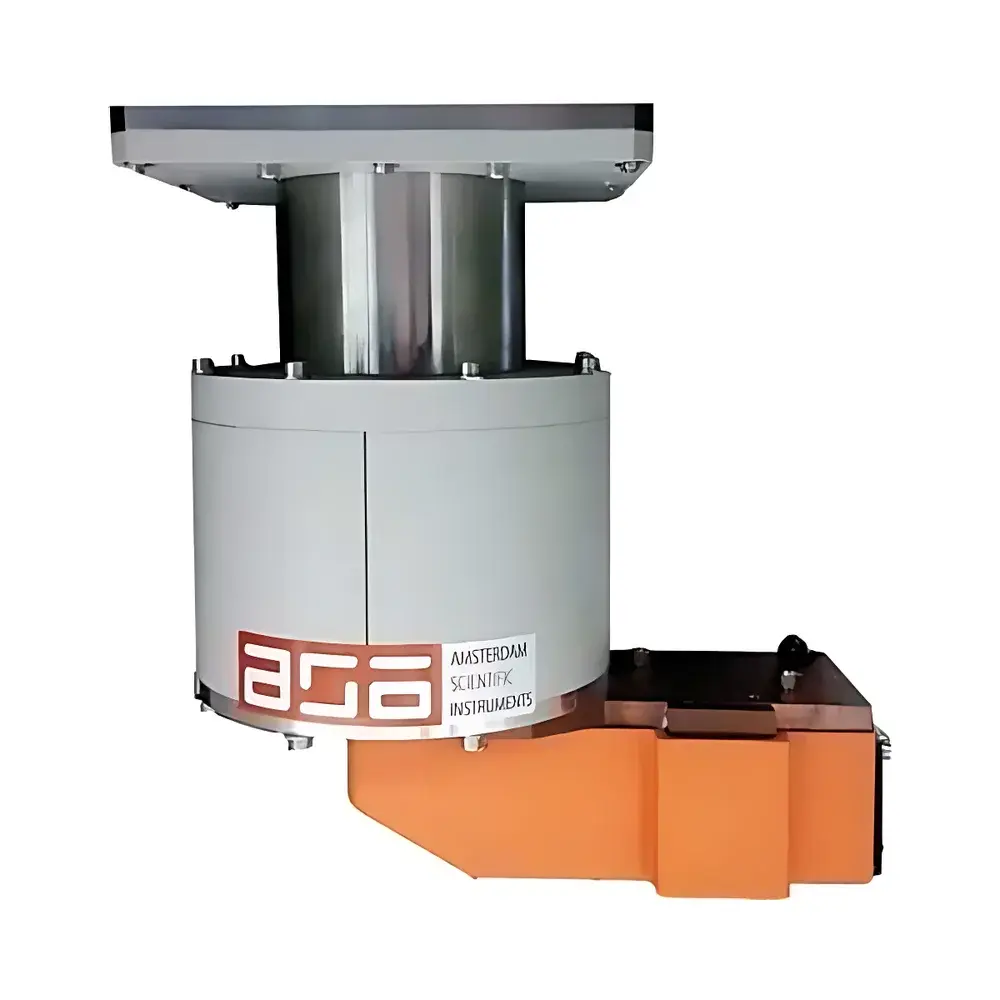

| Model | Cheetah M3/T3 Ultra (512 × 1024) |
| Sensor Technology | Medipix3RX / Timepix3 hybrid pixel architecture |
| Pixel Size | 55 µm |
| Radiation Tolerance | >1 GGy (electron beam, Giga-eV equivalent) |
| Readout | SPIDR3 or SPIDR3 Turbo (event-driven or frame-based) |
| Data Interface | Gigabit Ethernet (TCP/UDP) to Linux (Ubuntu) workstation |
| Mounting Options | Bottom-mount static or side-insert retractable |
| Compliance | Designed for GLP/GMP-adjacent TEM environments |
| Software Integration | SerialEM, Instamatic, PantaRhei, LiberTEM via RESTful Serval API |
| Brand | Amsterdam Scientific Instruments (ASI) |
|---|---|
| Origin | Netherlands |
| Model | LynX T3 or M3 |
| Pixel Pitch | 55 µm |
| Sensor Options | Si, GaAs, CdTe |
| Readout Speed | Up to >500 MHz (LynX T3), 1800 fps (LynX 1800), 120 fps (LynX 120) |
| Energy Thresholds | 1–8 adjustable thresholds |
| Frame Buffer | On-chip, configurable |
| Compliance | Designed for GLP/GMP-aligned workflows, compatible with ISO/IEC 17025 traceable calibration protocols |
| Software Interface | Native support for EPICS, TANGO, and HDF5-based data streaming |
