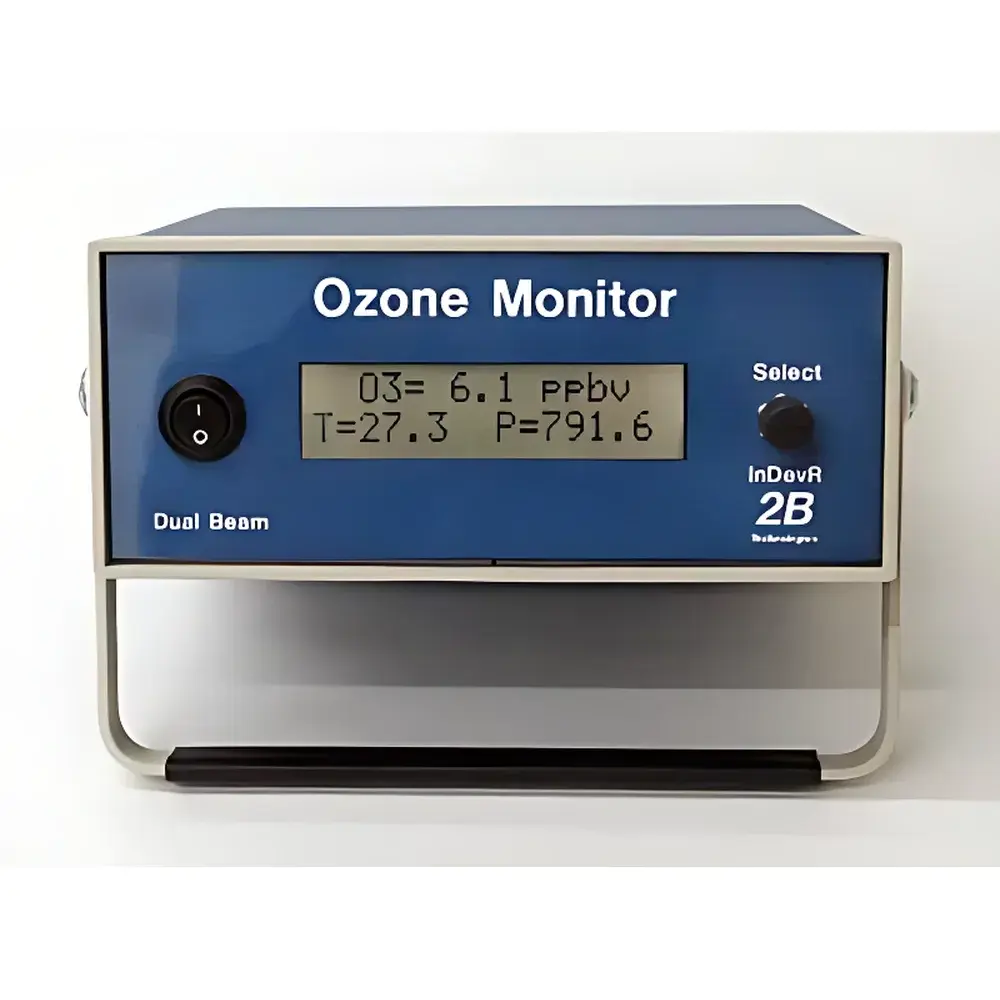

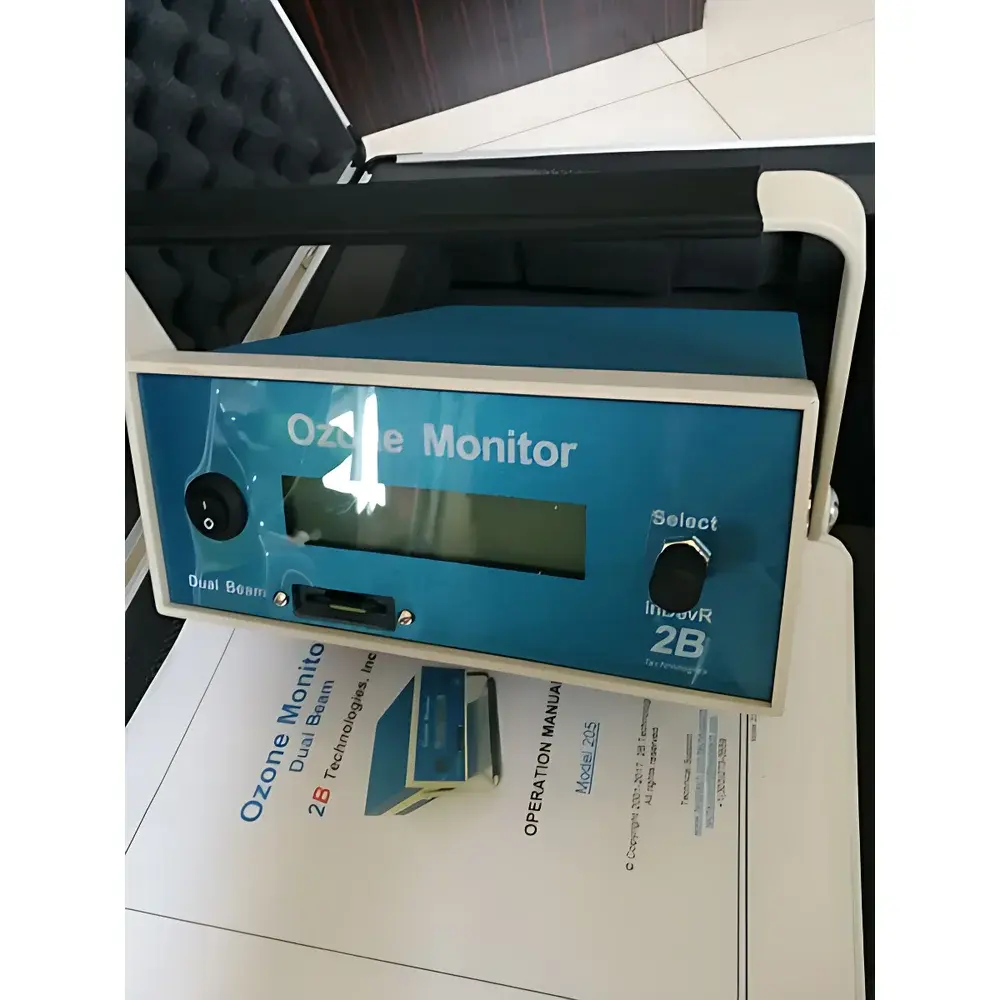

2B Technologies MODEL 205 Dual-Beam UV Ozone Analyzer

Overview

The 2B Technologies MODEL 205 Dual-Beam UV Ozone Analyzer is a field-deployable, NIST-traceable gas analyzer engineered for high-precision, real-time measurement of atmospheric ozone (O₃) concentrations across environmental, aerospace, and occupational monitoring applications. It operates on the fundamental principle of dual-beam ultraviolet absorption spectroscopy at 254 nm — a well-established, reference-grade method defined in EPA Method EQOA-01 and aligned with ISO 13964 and ASTM D5012 standards. Unlike single-beam systems, the MODEL 205 simultaneously measures sample air and ozone-scrubbed reference air using matched optical paths and photodetectors, enabling continuous baseline correction and eliminating drift caused by lamp intensity fluctuations or window fouling. This architecture delivers exceptional long-term stability and measurement integrity under variable ambient conditions — critical for stratospheric profiling via balloon-borne payloads, UAV-based atmospheric campaigns, or fixed-site urban monitoring networks.

Key Features

• Dual-beam 254 nm UV absorption design with real-time differential measurement of sample and ozone-scrubbed reference air
• Wide dynamic detection range: 1.0 ppbv to 250 ppmv (extendable to 100 ppmv per standard configuration)
• Low detection limit: 0.1 ppbv (1σ RMS noise); typical precision ±1.5 ppbv or ±2% of reading, whichever is greater
• Fast response: <2-second optical response time; configurable averaging intervals (2 s, 10 s, 1 min, 5 min, 1 hr)
• Compact, lightweight enclosure: 2.1 kg (4.7 lb) main unit; optimized for airborne, mobile, and remote deployments
• Low-power operation: 5.0 W nominal @ 12 V DC; compatible with battery packs, solar chargers, and aircraft power systems
• DewLine™ active humidity management system minimizes water vapor interference without chemical scrubbers or heated sample lines
• Integrated data logger with 14,336-line memory capacity (e.g., 1.4 months at 5-minute averaging)
• Real-time clock with timestamped output; RS-232 serial interface for synchronous transmission of O₃ concentration, internal temperature, barometric pressure, and user-defined analog inputs
• Three 0–2.5 V analog outputs support external logging of temperature, humidity, and pressure (with optional sensors)

Sample Compatibility & Compliance

The MODEL 205 is designed for direct analysis of ambient air, stack effluents (when diluted), and cabin/indoor air streams with flow rates ≥1.2 L/min (nominal flow: 1.8 L/min). Its dual-beam optical path tolerates moderate particulate loading and condensable organics when used with standard inlet filters. The instrument meets performance criteria specified in U.S. EPA Federal Reference Method (FRM) equivalency guidance for ozone monitoring and supports compliance with ambient air quality standards (e.g., WHO, EU Directive 2008/50/EC, and U.S. NAAQS). All factory calibrations are NIST-traceable and documented with individual calibration certificates. The system architecture supports GLP-compliant data handling when paired with validated software; audit trails, electronic signatures, and 21 CFR Part 11–compliant data export are achievable via third-party acquisition platforms.

Software & Data Management

Data acquisition and visualization are supported through 2B Technologies’ proprietary Ozone Analyst software (Windows-compatible), which enables real-time graphing, remote configuration, firmware updates, and batch export to CSV or Excel formats. Logged data include O₃ concentration (in ppb, ppm, pphm, µg/m³, or mg/m³), internal sensor readings (temperature, pressure), and timestamps. Optional GPS integration provides georeferenced measurements for mobile mapping applications. CF card expansion (optional) allows autonomous long-term deployment without PC connectivity. All digital outputs adhere to ASCII protocol over RS-232, facilitating integration into SCADA, DAQ, or IoT edge systems using standard serial-to-IP gateways.

Applications

• Stratospheric and tropospheric ozone profiling via balloon-, aircraft-, or drone-based platforms
• Urban and regional air quality monitoring networks requiring low-maintenance, high-reliability analyzers
• Industrial hygiene assessments in workplaces where ozone is generated (e.g., water treatment, semiconductor fabrication, laser printing)
• Indoor air quality studies in schools, hospitals, and office buildings
• Calibration transfer and field validation of other ozone sensors and reference instruments
• Research applications in atmospheric chemistry, photochemical modeling, and climate feedback studies

FAQ

What is the measurement principle used in the MODEL 205?
It employs dual-beam ultraviolet absorption spectroscopy at 254 nm, measuring the differential absorbance between sample air and ozone-scrubbed reference air.
Is the instrument NIST-traceable?
Yes — each unit ships with a NIST-traceable calibration certificate and factory calibration data.
Can the MODEL 205 operate unattended for extended periods?
Yes — its internal data logger, low power consumption, and DewLine™ moisture control enable multi-week autonomous operation when paired with appropriate power and storage options.
Does it require periodic zero/span calibration in the field?
While stable over time (<2 ppbv/day baseline drift), routine zero checks using the included zero cartridge are recommended per QA/QC protocols; span verification may be performed using certified ozone generators.
What accessories are required for aviation or balloon deployment?
Standard configuration includes mounting brackets and 12 V DC input; optional GPS module, CF card reader, and custom thermal housing are available for extreme-altitude or low-temperature environments.
