3nh PSY01 Portable Spectrophotometric Color Difference Meter with Cloud-Based Color Matching Integration

Overview

The 3nh PSY01 is a handheld spectrophotometric color difference meter engineered for high-precision, on-site color measurement and spectral data acquisition in industrial quality control environments. Operating on the d/8° integrating sphere geometry with diffuse illumination and 8° viewing angle—compliant with ISO 7724-1, CIE No. 15, and ASTM E308—it delivers spectrally resolved reflectance data across the visible spectrum (400–700 nm). Unlike tristimulus colorimeters, the PSY01 captures full spectral curves at 10 nm intervals, enabling robust color difference calculation (ΔE*ab, ΔE00), metamerism assessment, and quantitative evaluation of color consistency under standardized illuminants (D65, A, F2, etc.). Its compact, ergonomic design supports field deployment in tile manufacturing facilities, ceramic glaze labs, grout formulation centers, and architectural coating production lines—where rapid, repeatable, and traceable color verification is required without reliance on benchtop instrumentation.

Key Features

• Integrated LED-based optical system with stable spectral output and no warm-up delay—ensuring consistent illumination across thousands of measurements.
• Non-contact automatic white calibration using proprietary reference plate detection algorithm, eliminating manual alignment errors and reducing operator dependency.
• Dual-mode operation: standalone color measurement via built-in OLED display and wireless synchronization with iOS/Android devices via Bluetooth 5.0.
• “Smart Button” interface with context-aware function mapping—enabling one-touch capture, batch comparison, pass/fail threshold alerts, and real-time ΔE deviation visualization.
• Robust mechanical architecture with IP54-rated enclosure, scratch-resistant sapphire measurement window, and shock-absorbing silicone bumper for workshop and construction site durability.
• On-device storage for up to 2,000 spectral readings with timestamp, GPS-tagged location metadata (when paired), and user-defined sample IDs.

Sample Compatibility & Compliance

The PSY01 accommodates flat, curved, textured, and glossy surfaces—including ceramic tiles, porcelain slabs, epoxy grouts, cementitious joint fillers, and UV-cured sealants—without requiring surface preparation or contact pressure. Its 8 mm aperture and 12 mm measurement area ensure representative sampling even on heterogeneous substrates such as speckled stone-effect tiles or mineral-filled grouts. The instrument conforms to international colorimetric standards including ISO 11664 (CIE colorimetry), ISO 17972-1 (digital color communication), and supports audit-ready reporting per GLP and ISO/IEC 17025 requirements. Calibration traceability is maintained through NIST-traceable ceramic white tile certification (included) and optional annual recalibration service with documented uncertainty budgets.

Software & Data Management

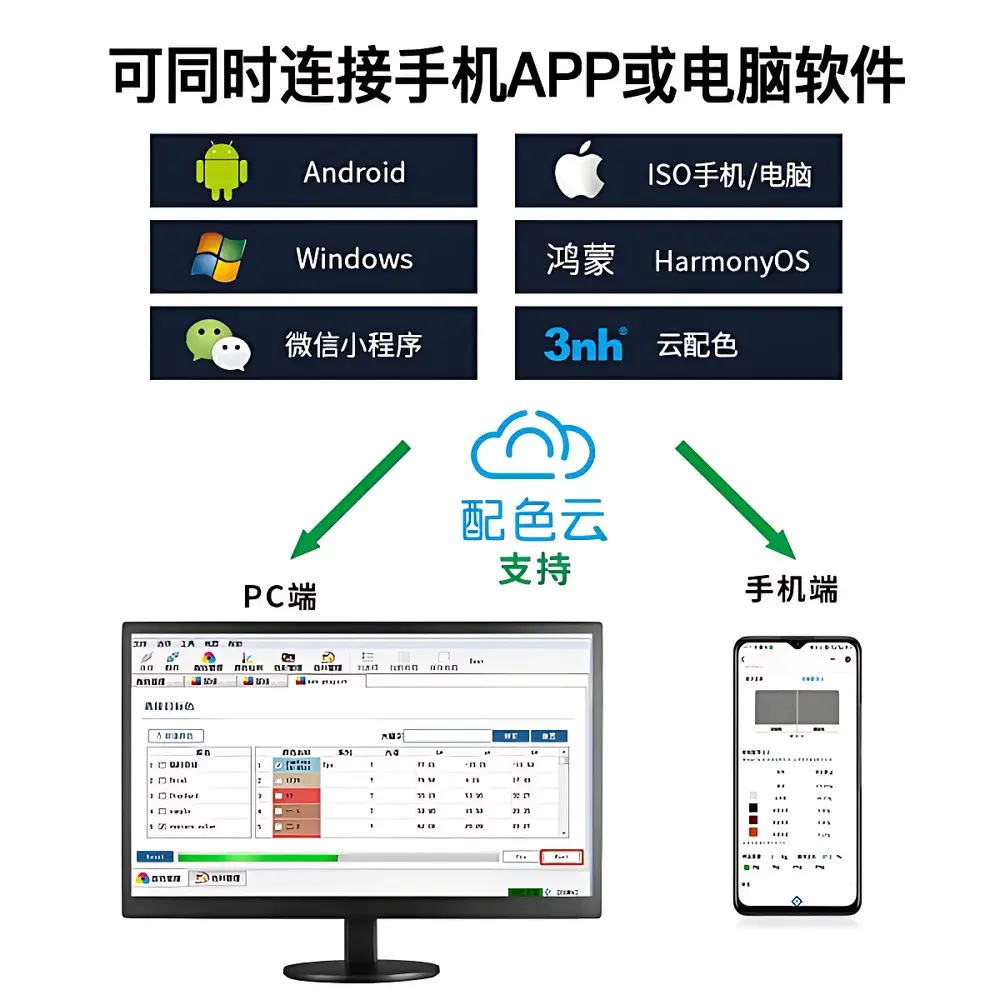

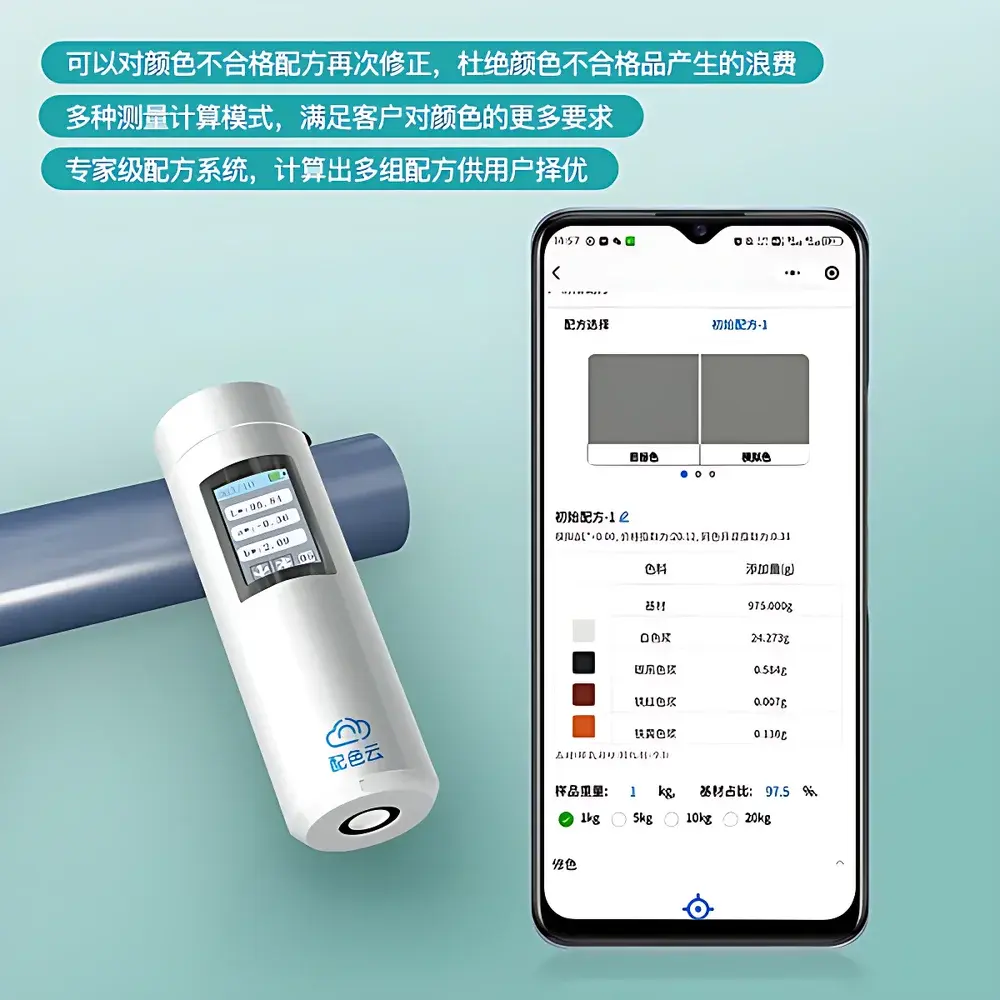

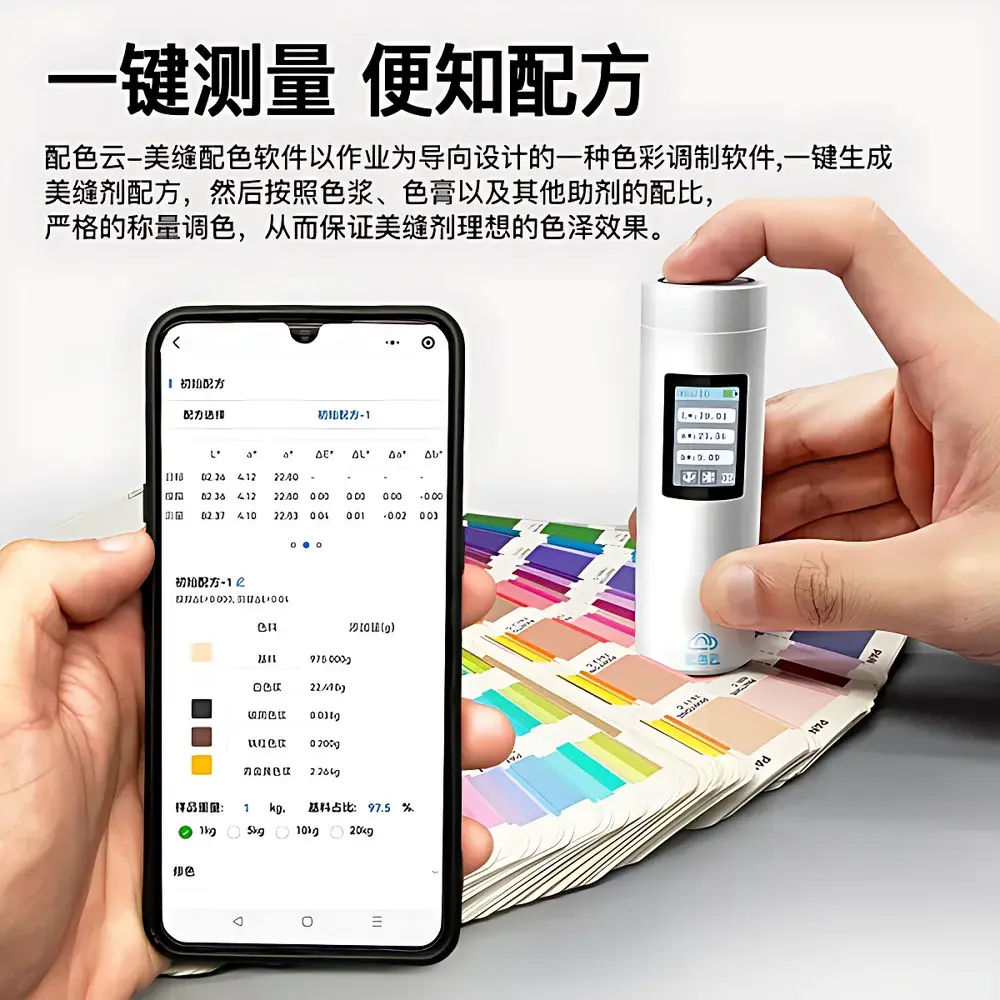

Paired operation leverages the 3nh ColorCloud platform—a secure, browser-accessible SaaS environment supporting multi-user collaboration, version-controlled color libraries, and cross-device synchronization. The mobile application enables real-time spectral visualization, CIELAB vector analysis, tolerance zone mapping (ellipsoidal or rectangular), and automated report generation in PDF/CSV formats. For grout and tile manufacturers, the integrated color matching module supports basic recipe prediction using pre-characterized pigment databases (e.g., iron oxides, chromium greens, cobalt blues) and allows users to generate target formulations within defined ΔE*ab ≤ 0.5 constraints. All data transactions comply with GDPR-compliant encryption protocols; optional 21 CFR Part 11 add-on provides electronic signature support, audit trails, and role-based access control for regulated QC workflows.

Applications

• Quality assurance of floor and wall tile batches during firing and glazing—verifying chromatic consistency across production runs and kiln zones.
• Grout and caulk color validation prior to packaging, ensuring compliance with architectural specification sheets (e.g., ANSI A137.1, EN 1341).
• In-process monitoring of pigment dispersion stability in water-based and solvent-based tile adhesives and joint compounds.
• R&D support for developing low-VOC, antimicrobial, or UV-stabilized grout formulations—tracking color shift under accelerated aging (QUV, xenon arc).
• Field verification of installed tile systems against approved submittals—documenting as-built conditions for LEED documentation or warranty claims.
• Cross-functional color communication between designers, specifiers, contractors, and suppliers via standardized spectral data exchange (CxF/XRGA format support).

FAQ

Does the PSY01 require periodic recalibration by an accredited lab?
Yes—while daily white calibration suffices for routine use, annual recalibration against NIST-traceable standards is recommended to maintain metrological integrity per ISO/IEC 17025 guidelines.
Can spectral data from the PSY01 be imported into third-party color management systems (e.g., X-Rite Color iMatch, Datacolor Match Pigment)?
Yes—the device exports full reflectance spectra (.csv) and CIE-compliant .cxf files compatible with major industrial color formulation software.
Is the PSY01 suitable for measuring highly reflective or mirror-finish surfaces?
It is optimized for matte to semi-gloss surfaces; specular components are excluded via the d/8° geometry, but direct mirror finishes may require specialized accessories (e.g., gloss trap) for accurate results.
How does the “ColorCloud” platform handle version control when multiple users modify shared color libraries?
Each edit is time-stamped, attributed to a specific user account, and preserved in a revision history log—with rollback capability and change-diff visualization.
What is the battery life under continuous Bluetooth-connected operation?
Up to 8 hours of active measurement and streaming; rechargeable Li-ion battery supports USB-C fast charging with 80% capacity restored in under 45 minutes.
