Advance Riko HT-RTA59HD Ultra-High-Temperature Rapid Thermal Annealing System

Overview

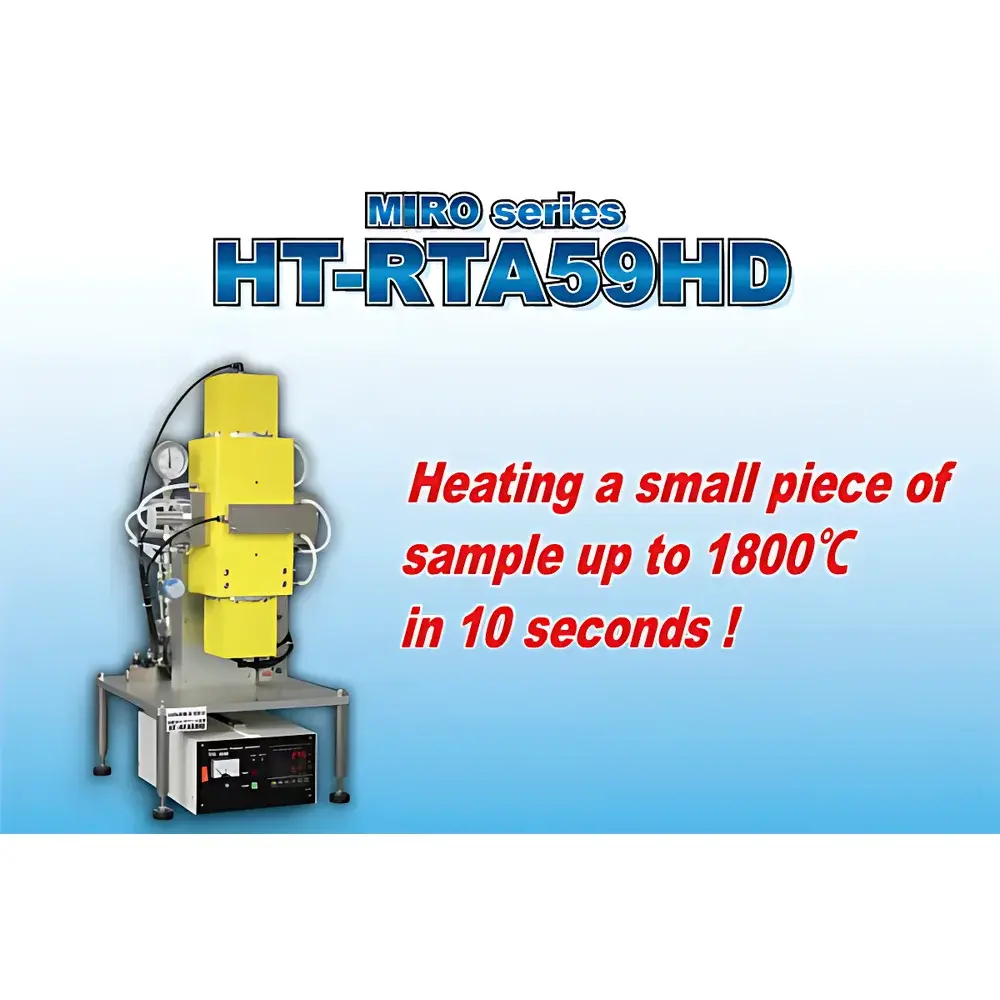

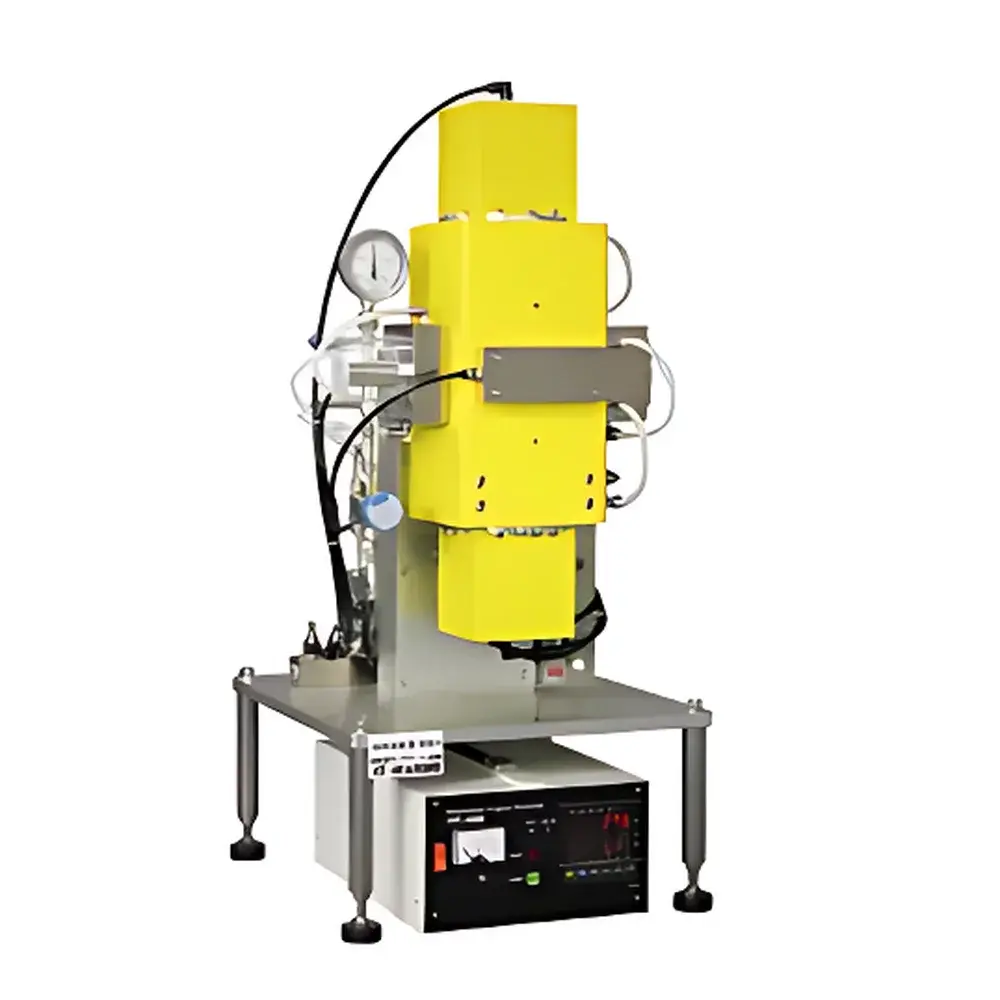

The Advance Riko HT-RTA59HD is a benchtop ultra-high-temperature rapid thermal annealing (RTA) system engineered for precise, transient thermal processing of advanced semiconductor and ceramic materials. It employs high-intensity halogen lamps with gold-coated parabolic reflectors to deliver spatially concentrated radiant energy—enabling localized heating of small-area samples (up to □15 mm) to 1800 °C in under 10 seconds. Unlike conventional furnace-based annealing, the HT-RTA59HD operates on a non-contact, radiation-dominated heat transfer principle, minimizing thermal mass effects and enabling sub-second thermal ramp rates (>100 °C/s). This architecture supports thermally sensitive processes where time-at-temperature control, surface-selective heating, and minimal bulk substrate heating are critical—such as gate oxide densification in SiC power devices, dopant activation in wide-bandgap semiconductors, and controlled recrystallization in thin-film photovoltaic absorbers.

Key Features

• Ultra-fast thermal response: Achieves 1800 °C peak temperature on small-area samples within ≤10 s, with programmable ramp/soak/cool profiles
• Optimized optical heating path: Gold-coated high-reflectivity parabolic mirror focuses lamp output onto sample surface, ensuring >85% radiant coupling efficiency
• Benchtop footprint with manual linear slide rail: Enables repeatable, contamination-minimized sample insertion and extraction without vacuum interlocks or robotic handlers
• Dual inert gas manifold: Independent N₂ and Ar inlets support atmosphere-controlled annealing, oxidation suppression, and process repeatability across multiple thermal cycles
• Quartz encapsulation architecture: Includes fused silica protection tube and low-thermal-mass quartz sample holder, providing chemical inertness up to 1800 °C and optical transparency for in situ pyrometric monitoring
• External PC integration: RS-232/USB interface enables remote temperature program upload, real-time thermal data logging (time-stamped, ±0.5 °C accuracy), and audit-trail generation per FDA 21 CFR Part 11 requirements

Sample Compatibility & Compliance

The HT-RTA59HD accommodates planar substrates up to 15 mm × 15 mm, including SiC wafers, sapphire, graphite, MoSi₂, and refractory metal foils. Its quartz-based chamber design eliminates metallic outgassing and maintains oxygen partial pressure <10⁻⁶ atm under Ar flow—critical for preventing unwanted interfacial reactions during SiC oxide growth. The system meets mechanical and electrical safety standards per IEC 61010-1 and is routinely deployed in laboratories operating under ISO/IEC 17025 accreditation. When operated with validated software protocols and calibrated pyrometry, it supports traceable thermal process documentation required for automotive-grade AEC-Q101 qualification testing and JEDEC JESD22-A108 reliability stress protocols.

Software & Data Management

Temperature sequencing is managed via Advance Riko’s proprietary RTA Control Suite (v3.2+), which runs on Windows-based host PCs. The software provides graphical profile definition (ramp rate, dwell time, cooling slope), real-time overlay of measured vs. setpoint curves, and export of CSV-formatted thermal logs with millisecond timestamp resolution. All user actions—including parameter changes, start/stop commands, and calibration updates—are recorded in an immutable audit trail with operator ID and system clock stamp. Data files comply with ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) and may be archived in LIMS-compatible repositories. Optional integration with LabVIEW or Python APIs allows for automated test sequences in multi-step fabrication workflows.

Applications

• Growth and densification of thermally grown SiO₂ on 4H-SiC for high-voltage MOSFET gate dielectrics
• Activation annealing of Al-doped GaN and N-doped ZnO thin films without decomposition or interdiffusion
• Localized sintering of Ag nanoparticle pastes in power module interconnects
• Zone melting experiments for directional solidification of single-crystal oxides (e.g., YAG, MgO)
• Thermal shock evaluation of ceramic matrix composites using controlled 1800 °C pulse exposure
• Rapid thermal cleaning of epitaxial growth substrates prior to MBE or CVD loading

FAQ

What is the maximum recommended sample thickness for uniform heating at 1800 °C?
For optimal thermal uniformity and reproducible ramp kinetics, samples should not exceed 1.0 mm thickness when using standard quartz holders. Thicker substrates require empirical ramp-rate adjustment to mitigate thermal lag.
Can the HT-RTA59HD operate under vacuum?
No—it is designed exclusively for inert-gas-purged operation at ambient pressure. Vacuum compatibility is not supported due to quartz tube mechanical constraints and lamp cooling requirements.
Is pyrometric calibration traceable to NIST standards?
Yes—each unit ships with a factory calibration certificate referencing blackbody source measurements traceable to NIST SRM 2250, with optional annual recalibration services available through Advance Riko’s ISO/IEC 17025-accredited metrology lab.
How is lamp lifetime monitored and maintained?
Lamp voltage and current are logged continuously; deviation >5% from baseline triggers maintenance alert. Typical operational lifetime exceeds 500 h at 1800 °C peak, with replacement lamps supplied with pre-aligned reflector assemblies.
Does the system support multi-zone temperature profiling?
No—the HT-RTA59HD delivers single-point focused heating. For gradient thermal processing, users integrate external secondary heaters or employ mask-defined irradiation patterns with custom apertures.
