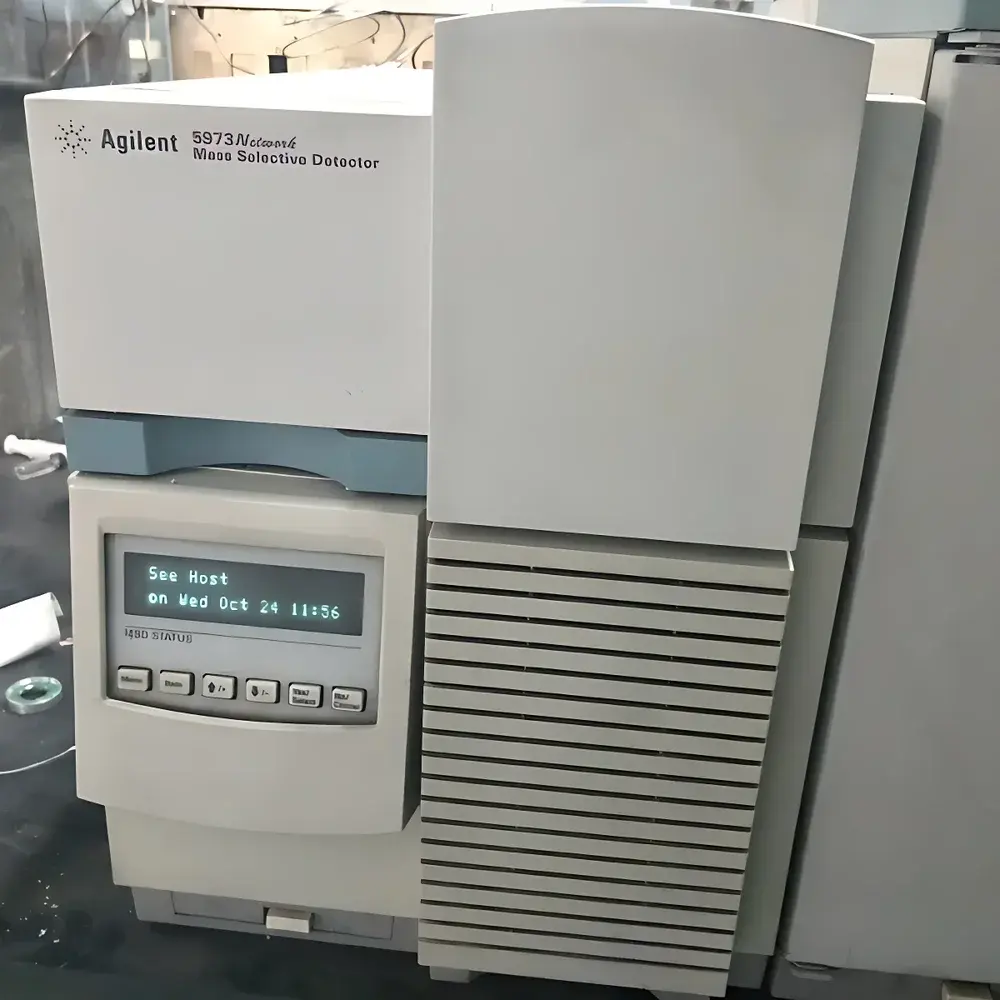

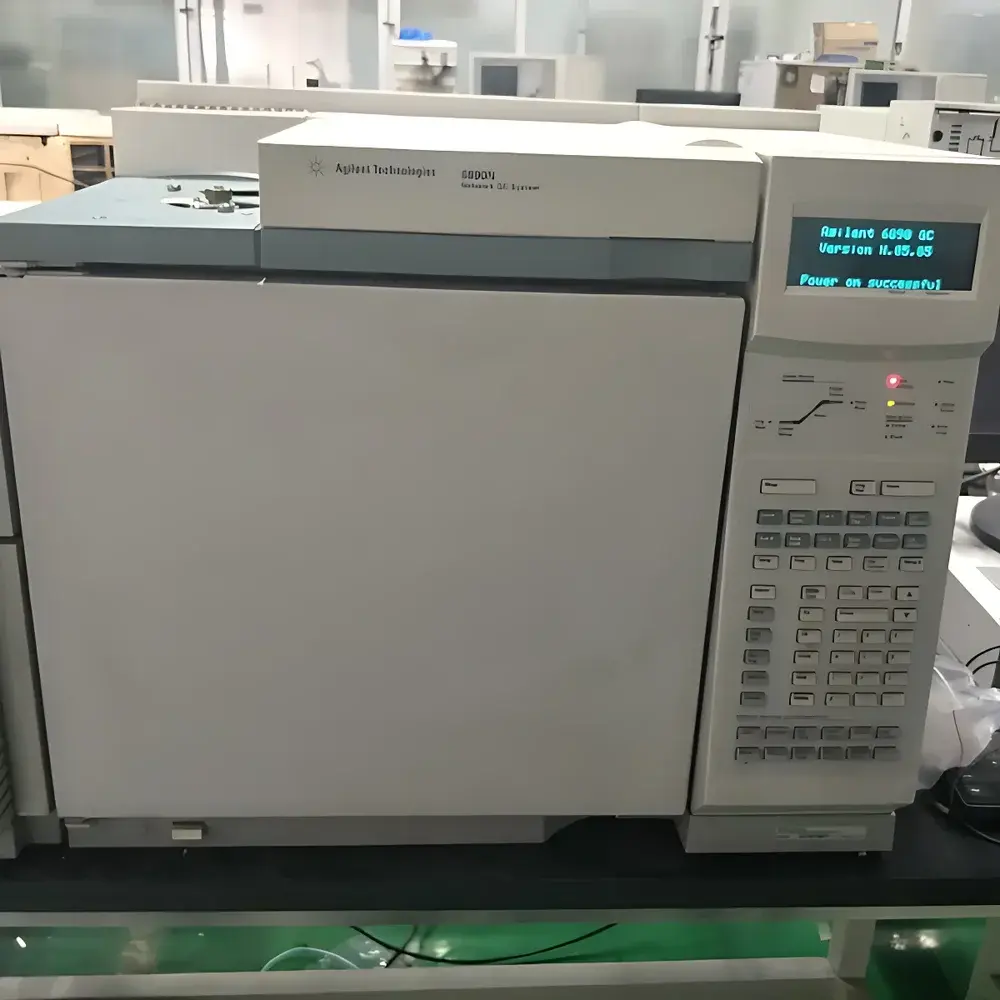

Agilent 6890N-5973N GC-MS System Maintenance and Repair Service

Overview

The Agilent 6890N Gas Chromatograph coupled with the 5973N Mass Selective Detector (GC-MS) represents a widely deployed benchtop analytical platform in pharmaceutical QC, environmental testing, food safety, and academic research laboratories. Engineered for robustness and long-term operational stability, this system relies on precise synchronization between gas chromatographic separation and electron ionization (EI) mass spectrometry detection. Over time, performance degradation may arise from column contamination, detector aging, vacuum system leakage, source fouling, or electronic drift—requiring systematic diagnostics and component-level intervention. Our maintenance and repair service is specifically designed to restore full compliance with original equipment manufacturer (OEM) specifications, ensuring data integrity, reproducibility, and regulatory readiness.

Key Features

• Comprehensive diagnostic protocol covering GC oven temperature accuracy, carrier gas flow calibration, inlet liner integrity, quadrupole mass filter tuning, electron multiplier gain verification, and vacuum system leak detection (down to 1×10⁻⁷ Torr base pressure).
• Source cleaning and reconditioning using OEM-recommended solvents and ultrasonic protocols; optional replacement of critical consumables including EI filaments, ion gauges, and insulators.
• Full system recalibration traceable to NIST-traceable standards, including retention time alignment, mass axis calibration (±0.1 Da), and sensitivity verification (e.g., 1 pg octafluoronaphthalene S/N ≥ 50:1).
• Preventive maintenance packages available—including quarterly or biannual inspections, firmware updates, and firmware version compatibility verification per Agilent’s legacy support matrix.
• On-site or depot-based service options; remote preliminary assessment via secure log file analysis prior to technician dispatch.

Sample Compatibility & Compliance

This service supports all standard operating configurations of the 6890N-5973N platform, including split/splitless injection, PTV, and direct capillary coupling. Repaired systems maintain full compatibility with legacy Agilent ChemStation software (G1701DA, revision E.02.00.492 or earlier) and retain full audit trail functionality required under GLP and GMP environments. All calibration records and service reports are generated in English, formatted for inclusion in laboratory quality management systems (QMS). Where applicable, documentation aligns with ISO/IEC 17025:2017 clause 6.4.10 (equipment maintenance) and supports FDA 21 CFR Part 11 compliance when integrated with validated ChemStation deployments.

Software & Data Management

Technicians verify software-hardware handshake integrity during post-repair validation, confirming correct communication between the GC controller, MSD electronics module, and ChemStation acquisition engine. Firmware versions are cross-checked against Agilent’s official end-of-support notices to identify potential obsolescence risks. Upon completion, customers receive a signed service report detailing all actions performed, test results, replaced components (with serial numbers where applicable), and recommended next-maintenance intervals. Electronic copies are delivered via encrypted PDF; hard copies available upon request for internal archiving.

Applications

Maintained and repaired 6890N-5973N systems continue to deliver reliable performance across regulated and non-regulated applications—including residual solvent analysis (ICH Q3C), pesticide multiresidue screening (EPA Method 8270D), volatile organic compound (VOC) profiling in drinking water (EPA Method 524.2), and small-molecule identification in natural product extracts. The restored system meets typical acceptance criteria for peak shape symmetry (As < 1.5), retention time repeatability (RSD 80% NIST probability).

FAQ

Do you use genuine Agilent spare parts?
Yes—we source OEM-certified components directly from authorized Agilent distributors or certified third-party suppliers meeting MIL-STD-883 and RoHS requirements. Critical assemblies (e.g., quadrupole rods, detector housings) are exclusively OEM-sourced.
Can you support systems running ChemStation on Windows XP or Windows 7?
Yes—our technicians maintain legacy OS-compatible toolsets and drivers. However, we strongly recommend migration planning toward supported platforms per Agilent’s lifecycle policy.
Is remote diagnostics available before dispatch?
Yes—customers may securely upload instrument log files (.log, .mcf, .ch) for pre-assessment. This reduces unnecessary site visits and accelerates root-cause identification.
What documentation is provided after service completion?
A complete service report (in English), calibration certificates (where applicable), parts traceability records, and a 90-day functional warranty covering labor and replaced components.
Do you offer extended service contracts?
Yes—annual maintenance agreements include two scheduled visits, priority response, discounted labor rates, and access to technical consultation for method troubleshooting and instrument optimization.
