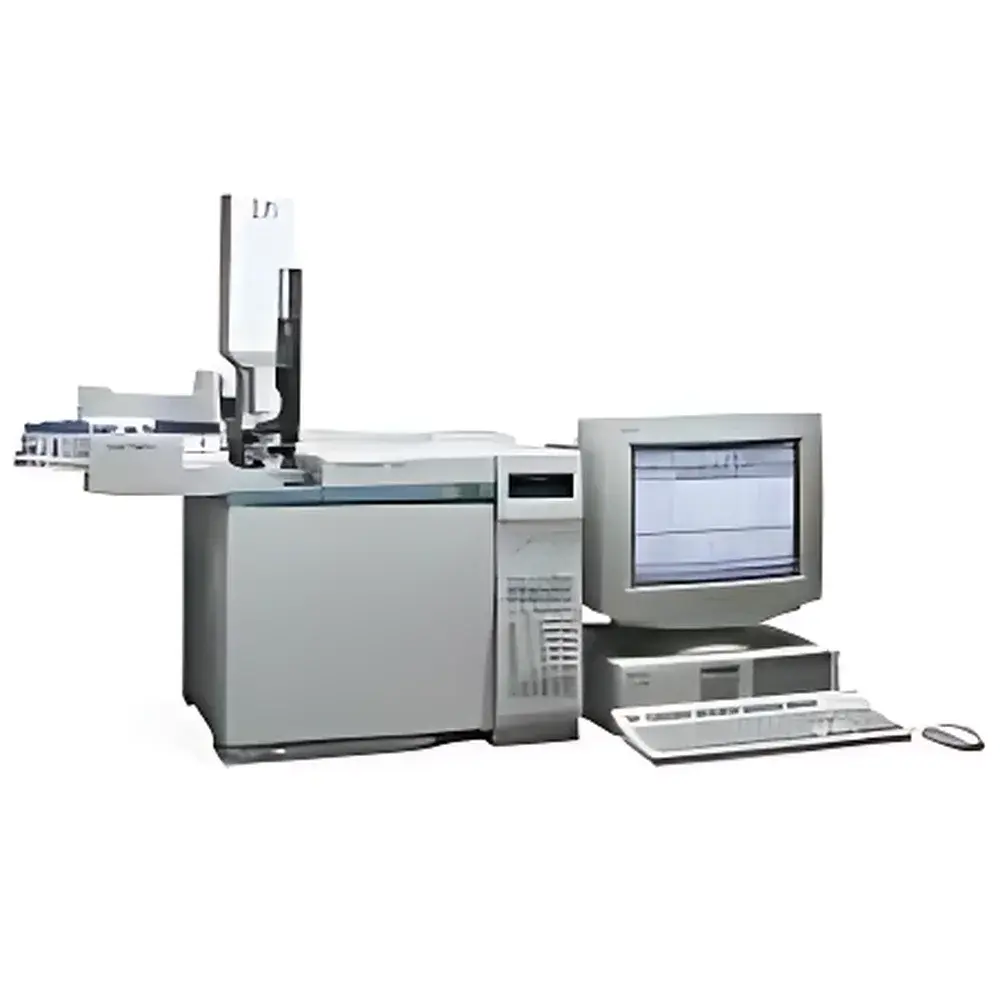

Agilent 6890N Network Gas Chromatograph

Overview

The Agilent 6890N Network Gas Chromatograph is a high-performance, LAN-enabled analytical platform engineered for precision, reproducibility, and regulatory readiness in routine and research-grade gas chromatography applications. Based on proven capillary and packed column separation principles, the system employs carrier gas-controlled elution (typically He, H₂, or N₂) coupled with temperature-programmed oven control to resolve volatile and semi-volatile organic compounds across diverse matrices. Its fourth-generation Electronic Pneumatic Control (EPC) architecture delivers exceptional retention time stability—enabling Retention Time Locking (RTL) across Agilent GC platforms—including method transfer between 6890N, 6850, and later-generation instruments without re-optimization. Designed for continuous operation in QC laboratories, environmental testing facilities, petrochemical QA/QC departments, and pharmaceutical R&D environments, the 6890N integrates seamlessly into networked lab infrastructures while maintaining full compliance with method validation requirements under ISO/IEC 17025, USP , and FDA 21 CFR Part 11 when configured with appropriate software and audit trail modules.

Key Features

• Fourth-generation Electronic Pneumatic Control (EPC) for precise, repeatable pressure and flow regulation across all inlet and detector gas lines
• Column oven temperature range from ambient +4 °C to 450 °C, supporting high-boiling compound analysis and rapid cool-down cycles
• Flexible inlet configuration: split/splitless injectors (0–100 psi standard; 0–150 psi optional), packed column, on-column, programmed temperature vaporizing (PTV), and volatile analyte interface (VAI)
• Large-volume injection (LVI) capability up to 100 µL, eliminating pre-concentration steps for trace-level environmental or biological samples
• Integrated control of Agilent 7683 Autosampler—enabling automated sequence execution, multi-vial sampling, and optional integration with headspace, purge-and-trap, or valve-based sample introduction modules
• Ultra-fast GC mode supports analysis times reduced by up to 90% versus conventional methods, without compromising resolution or quantitation accuracy
• Built-in LAN connectivity for remote monitoring, data sharing, and centralized instrument management within enterprise laboratory networks

Sample Compatibility & Compliance

The 6890N accommodates a broad spectrum of sample types—including hydrocarbons, pesticides, residual solvents, flavor/aroma compounds, fatty acid methyl esters (FAMEs), and halogenated organics—when paired with appropriate column chemistries (e.g., DB-5ms, HP-INNOWax, DB-ALC1) and detector configurations. Its EPC-driven method portability ensures consistent performance across laboratories and operators, fulfilling key GLP/GMP documentation requirements. When operated with Agilent ChemStation Plus software (ChemStore C/S or ChemAccess), the system supports full audit trail generation, electronic signatures, and secure user access controls compliant with FDA 21 CFR Part 11. Optional Cerity LIMS-integrated workflows are available for petroleum and refining QA/QC applications aligned with ASTM D3606, D5503, and IP 542 standards.

Software & Data Management

Data acquisition, processing, and reporting are managed via Agilent ChemStation Plus—a modular, scalable software suite supporting both single-instrument and multi-GC network deployment. ChemStore C/S provides centralized method and sequence storage with version control, while ChemAccess enables secure web-based review and approval of chromatograms and reports. For regulated environments, optional 21 CFR Part 11 compliance packages include role-based permissions, electronic signature capture, and immutable audit logs. All raw data files (.D files) are stored in vendor-neutral formats compatible with third-party reprocessing tools and long-term archival systems. Integration with Agilent’s OpenLab CDS is supported for future scalability into hybrid LC/GC workflows.

Applications

• Environmental analysis: EPA Methods 8021B (aromatics), 8260C (VOCs), and 8270D (SVOCs) using FID, ECD, or MSD detection
• Petrochemical QA/QC: Hydrocarbon type analysis (HTA), simulated distillation (SimDis), and sulfur/phosphorus speciation via FPD or PFPD
• Pharmaceutical residual solvent testing per ICH Q3C guidelines using headspace-GC/FID
• Food and flavor analysis: Volatile profiling, pesticide residue screening, and fatty acid composition determination
• Forensic toxicology: Blood alcohol and drug metabolite quantification using capillary columns and dual-FID detection

FAQ

Is the 6890N compatible with modern LIMS and ELN systems?
Yes—the instrument supports standard ASTM E1384 and ASTM E1482-compliant data export protocols and integrates natively with Agilent OpenLab CDS, Thermo Fisher SampleManager, and Waters Empower via ODBC or direct API connections.
Can retention time locking (RTL) be applied across different Agilent GC models?
Yes—RTL is fully supported between any two Agilent GCs equipped with EPC (e.g., 6890N ↔ 6850 ↔ 7890B), enabling cross-platform method transfer with ≤0.02 min retention time deviation under identical method conditions.
What detector options provide sulfur- and phosphorus-selective detection?
The enhanced Flame Photometric Detector (FPD) offers 5× greater S-sensitivity and 10× greater P-sensitivity versus legacy units; alternatively, the Pulsed FPD (PFPD) and Sulfur Chemiluminescence Detector (SCD) are available through Agilent’s authorized partner network.
Does the system support unattended overnight operation?
Yes—when configured with the 7683 Autosampler (up to 100-position tray), programmable oven cooling, and ChemStation auto-shutdown/restart routines, the 6890N reliably executes extended batch sequences with real-time failure alerts via email or SNMP traps.
Is hardware retrofitting available to upgrade older 6890 systems to 6890N specifications?
No—while many consumables and columns are interchangeable, the 6890N incorporates a redesigned mainboard, EPC firmware architecture, and LAN interface not retrofittable onto earlier 6890 base models. Migration paths include trade-in programs and certified pre-owned unit procurement through Agilent-authorized channels.
