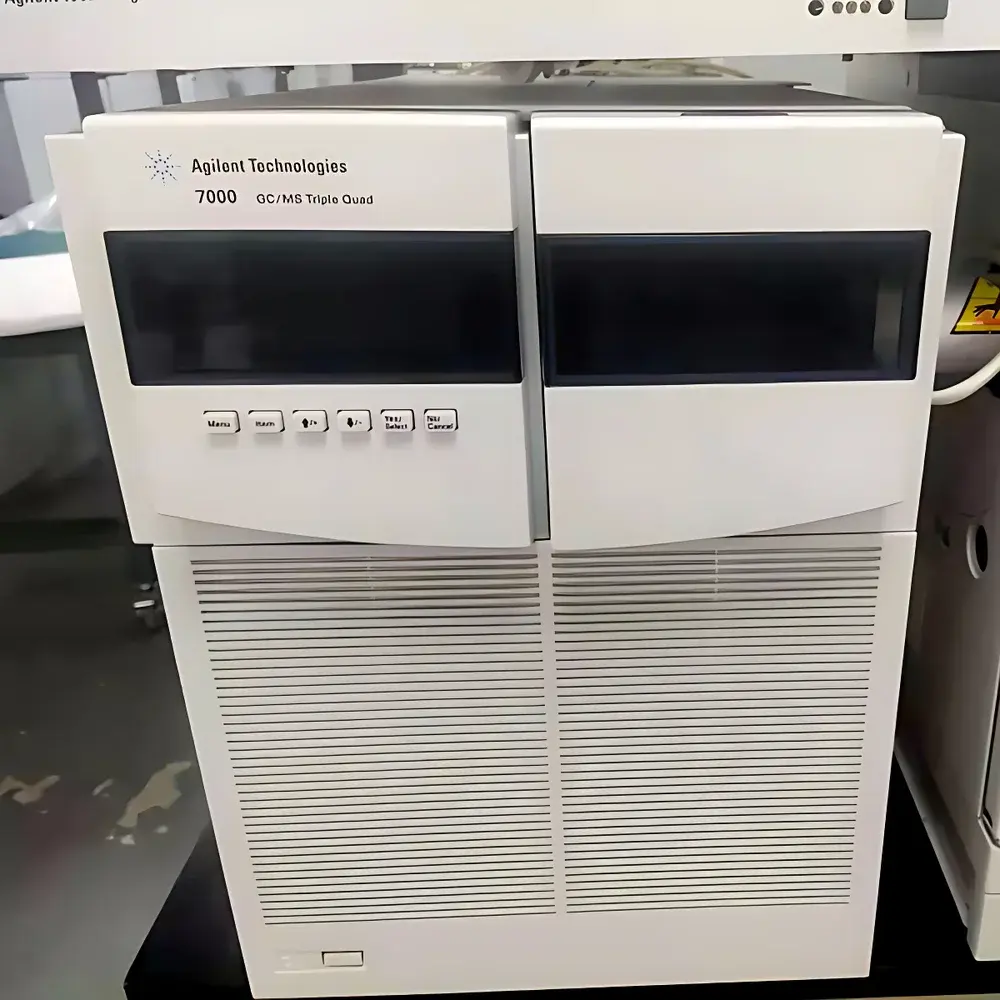

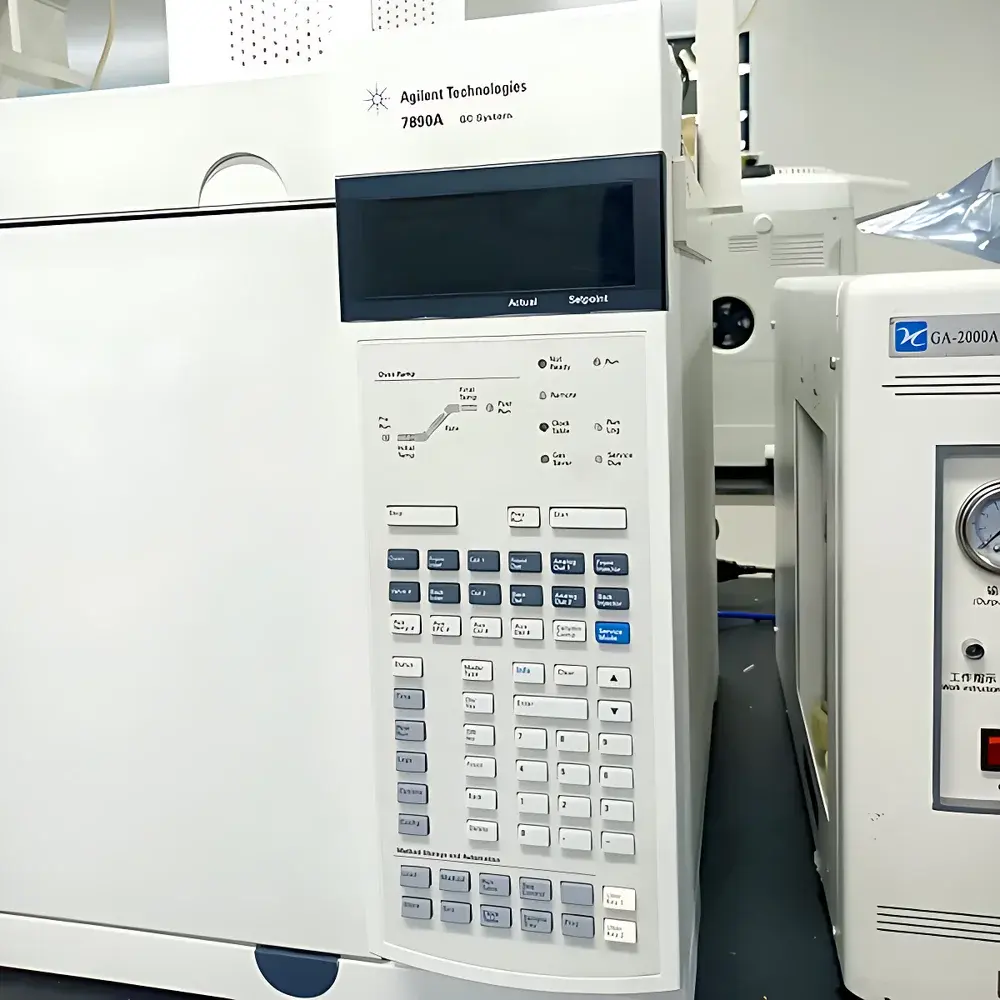

Agilent 7890A-7000 Triple Quadrupole Gas Chromatography-Mass Spectrometry System

Overview

The Agilent 7890A-7000 Triple Quadrupole Gas Chromatography-Mass Spectrometry (GC-MS/MS) System is a high-performance, research-grade analytical platform engineered for ultra-trace quantitative analysis in regulated and complex matrices. Combining the robust, inert-flow-path 7890A gas chromatograph with the 7000 series triple quadrupole mass spectrometer, this configuration delivers exceptional selectivity, sensitivity, and reproducibility through tandem mass spectrometry (MS/MS) operating in multiple reaction monitoring (MRM) mode. The system employs electron ionization (EI) and optional chemical ionization (CI) sources, coupled with a pressurized collision cell (PCC) that enables efficient fragmentation and minimizes memory effects during high-throughput multi-analyte screening. Its design adheres to fundamental principles of separation science and mass spectral detection—retention time alignment, precursor-to-product ion transition specificity, and signal-to-noise optimization—making it suitable for applications demanding compliance with ISO/IEC 17025, FDA 21 CFR Part 11, and EU SANTE/11312/2021 guidelines.

Key Features

• Triple quadrupole architecture with Q1 (mass filter), Q2 (collision cell), and Q3 (mass analyzer) enabling selective MRM, neutral loss, and precursor ion scanning
• Ultra-low detection limits: sub-femtogram (≤300 fg) on-column for reference compounds under optimized conditions
• High-speed acquisition: up to 500 transitions/sec at 1-ms dwell time, maintaining quantitative linearity and precision
• 7890A GC with advanced electronic pressure control (EPC), rapid oven cooling (<1.5 min from 300 °C to 50 °C), and integrated backflash capability
• Full-system inertness: deactivation-treated inlet liners, split/splitless injectors, fused-silica columns, and detector components minimize adsorption of active analytes
• Intelligent system diagnostics: Early Maintenance Feedback (EMF) alerts, real-time gas consumption monitoring, and automated leak detection
• Gas flexibility support: method conversion tools for helium-to-hydrogen or helium-to-nitrogen carrier gas substitution without hardware modification
• Sleep/Wake mode reducing standby power consumption by >65% while preserving column conditioning integrity

Sample Compatibility & Compliance

The 7890A-7000 supports direct injection, split/splitless, and programmable temperature vaporization (PTV) inlets, accommodating liquid, solid-phase microextraction (SPME), and thermal desorption samples. It routinely analyzes pesticide residues in food and water (per EPA Method 1694, EN 15662), pharmaceutical impurities per ICH Q3B, illicit drugs in biological fluids (e.g., urine, plasma) per SAMHSA guidelines, and persistent organic pollutants (POPs) in environmental solids per EPA Methods 8270D and 1613B. All data acquisition, processing, and reporting workflows are compatible with Agilent OpenLAB CDS 2.x, which provides full audit trail, electronic signatures, and 21 CFR Part 11–compliant user access controls. System validation documentation—including IQ/OQ/PQ protocols, performance qualification reports, and instrument-specific calibration certificates—is available upon request for GLP/GMP environments.

Software & Data Management

Agilent OpenLAB CDS serves as the unified software environment for instrument control, data acquisition, processing, and reporting. Its architecture supports parallel processing of large MRM datasets, with peak integration algorithms optimized for co-eluting transitions and retention time shifts. Quantitative workflows include internal standard calibration, matrix-matched standard curves, and isotopic dilution correction. The software embeds built-in calculators for method translation (e.g., GC parameter scaling across column dimensions), carrier gas optimization, and ECD/TCD/EI detector compatibility assessment. Raw data files (.D format) are stored in a secure, version-controlled repository with configurable backup policies and role-based permissions. Export options include CSV, PDF, XML, and LIMS-compatible ASTM E1381-compliant formats.

Applications

• Residue analysis: Multi-residue pesticide screening in fruits, vegetables, cereals, and drinking water
• Environmental monitoring: Quantification of dioxins, furans, PCBs, PAHs, and brominated flame retardants in soil, sediment, and air particulates
• Clinical toxicology: Targeted quantitation of opioids, stimulants, benzodiazepines, and synthetic cannabinoids in serum and urine
• Food safety: Mycotoxin profiling (aflatoxins, ochratoxin A, fumonisins) and veterinary drug residue confirmation
• Forensic chemistry: Confirmation of controlled substances in seized materials per SWGDRUG standards
• Pharmaceutical QC: Genotoxic impurity detection (e.g., alkyl sulfonates) at ≤1 ppm levels per ICH M7

FAQ

Is this system compliant with 21 CFR Part 11 for regulated laboratories?
Yes—the OpenLAB CDS software includes full electronic signature support, audit trail logging, and user permission tiers required for FDA-regulated environments.

What maintenance intervals are recommended for the EI source and detector?
Typical source cleaning frequency is every 2–4 weeks under routine operation; detector replacement is recommended after ~2 years or 10,000 analyses, depending on sample matrix cleanliness.

Can the 7890A-7000 be upgraded to support GC×GC or high-resolution MS capabilities?
No—the 7000 series is a dedicated triple quadrupole platform; GC×GC requires a modulator and specialized data system, while HRMS necessitates a different mass analyzer (e.g., Q-TOF or Orbitrap).

Does the system support automated method development for unknown screening?
While primarily designed for targeted MRM, the 7000B firmware supports enhanced full-scan and product ion scan modes for structural elucidation; however, untargeted screening workflows require complementary software such as MassHunter Unknowns Analysis.

What consumables are required for daily operation?
Standard consumables include HP-5ms or DB-5ms columns, deactivated inlet liners, gold-plated septa, O-rings, pump oil, and tune compound vials (e.g., PFTBA). Agilent part numbers and ordering guidance are embedded in OpenLAB’s consumables manager.
