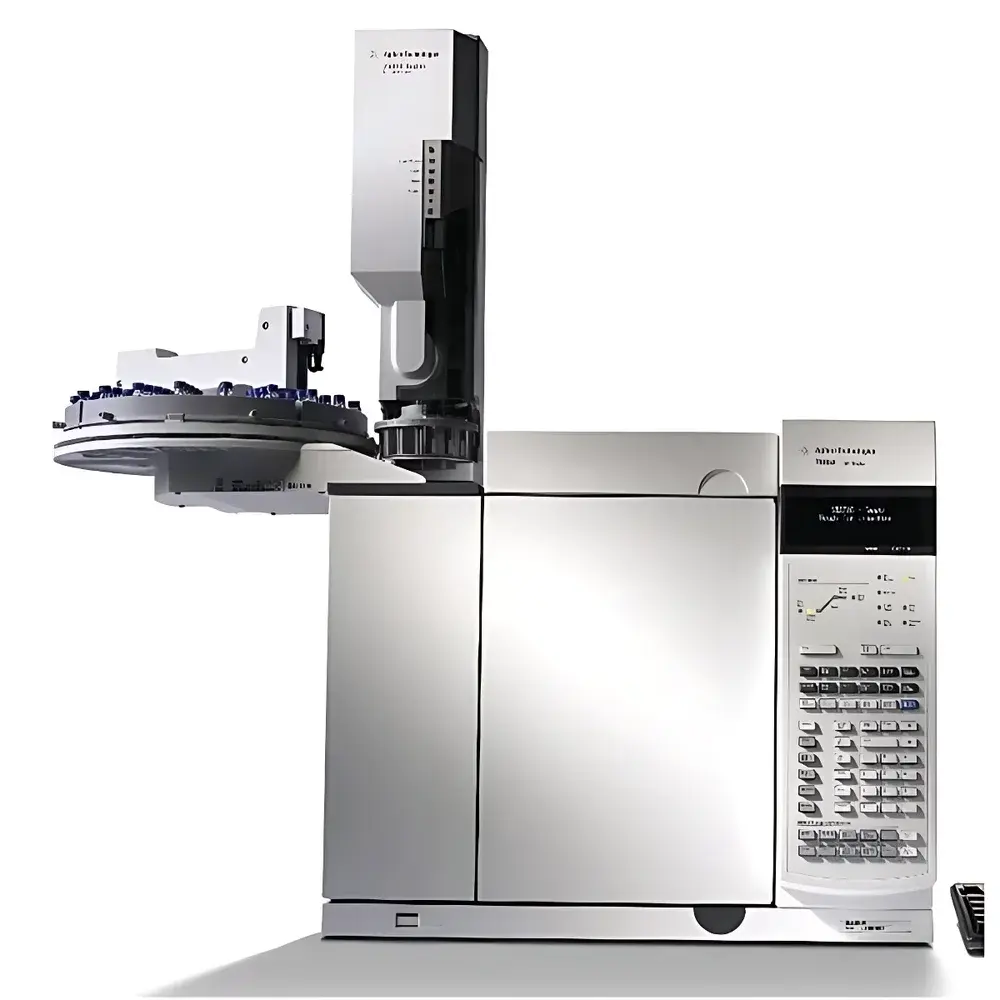

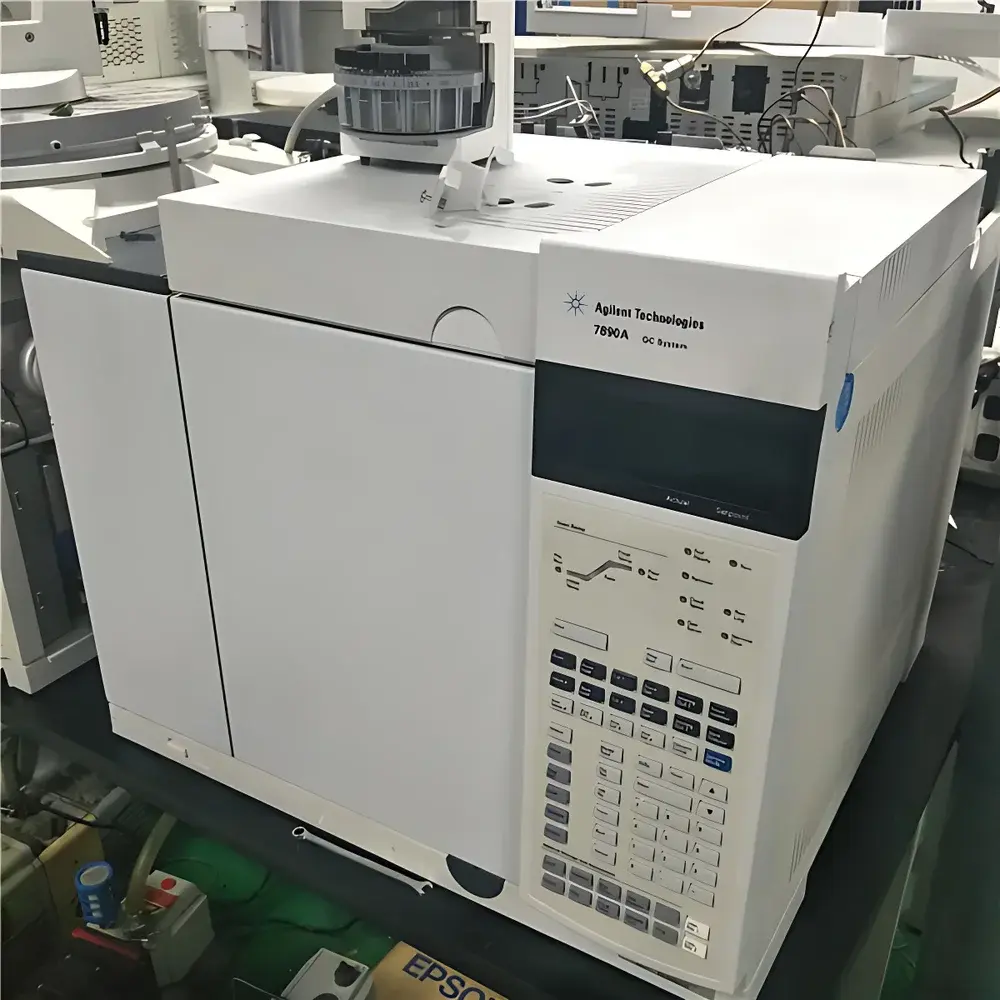

Agilent 7890A Used Gas Chromatograph
| Brand | Agilent Technologies |
|---|---|
| Origin | USA |
| Model | 7890A |
| Instrument Type | Laboratory Gas Chromatograph |
| Application Scope | General-Purpose |
| Oven Temperature Range | Ambient + 4 °C to 450 °C |
| Oven Ramp Rate | 0.1–40 °C/min |
| Oven Cool-Down Rate | 450 °C to 50 °C (typical) |
| Carrier Gas Flow Range & Control | 0–1200 mL/min |
| Carrier Gas Pressure Range & Control | 0–970 kPa |
| Injector Maximum Operating Temperature | 450 °C |
| Injector Pressure Setpoint Range | 0–970 kPa |
| Injector Total Flow Setpoint Range | 0–1200 mL/min |
Overview
The Agilent 7890A Used Gas Chromatograph is a high-performance, modular laboratory gas chromatograph originally engineered by Agilent Technologies (Santa Clara, CA, USA) for robust routine analysis and method development in regulated and research environments. Based on dual-channel, split/splitless injection architecture and precision electronic pneumatic control (EPC), the 7890A delivers reproducible retention time stability, precise flow/pressure regulation, and broad thermal operational flexibility. Its oven system supports rapid heating and controlled cooling—critical for high-throughput labs performing volatile organic compound (VOC) profiling, residual solvent analysis, petrochemical fingerprinting, or environmental contaminant screening per EPA Method 8260/8270. As a pre-7890B generation platform, it remains fully compatible with legacy Agilent ChemStation software and retains full support for flame ionization detection (FID), thermal conductivity detection (TCD), electron capture detection (ECD), and nitrogen-phosphorus detection (NPD)—enabling trace-level quantitation across diverse sample matrices.
Key Features
- Electronic Pneumatic Control (EPC) for carrier, make-up, and detector gases—ensuring ±0.01 psi pressure accuracy and <0.1% RSD flow precision across full operating range
- Temperature-programmable oven with ramp rates from 0.1 to 40 °C/min and rapid cool-down capability (450 °C → 50 °C in <3.5 min under standard conditions)
- Dual independent inlet configuration supporting simultaneous operation of split/splitless, cool-on-column, or programmable temperature vaporizer (PTV) modules
- Injector temperature up to 450 °C with real-time pressure and total flow monitoring and closed-loop control
- Modular detector bays accommodating up to three detectors (e.g., FID + TCD + ECD) with independent temperature zoning and signal digitization
- Back-flush and heart-cutting capabilities via optional 2D-GC valve kits for complex mixture resolution
Sample Compatibility & Compliance
The Agilent 7890A is validated for use with capillary columns (0.1–0.53 mm ID) and packed columns, supporting both polar and non-polar stationary phases (e.g., DB-5ms, HP-INNOWAX, DB-FFAP). It accommodates liquid, gaseous, and headspace-derived samples—commonly applied in pharmaceutical stability testing (ICH Q2(R2)), environmental analysis (ASTM D5504, EPA 8021B), food safety (AOAC 2012.01), and polymer additive screening. All EPC parameters are logged with timestamps and user IDs, enabling audit-ready data integrity for GLP-compliant laboratories. When operated with ChemStation C.01.07 or later and configured with secure user authentication, the system meets foundational requirements for FDA 21 CFR Part 11 compliance—including electronic signatures, audit trails, and data immutability controls.
Software & Data Management
Instrument control, sequence execution, peak integration, calibration curve generation, and report export are managed through Agilent ChemStation (Windows-based, 32-bit). The software supports multi-instrument networking, automated method validation (linearity, LOD/LOQ, repeatability), and customizable reporting templates compliant with ISO/IEC 17025 documentation standards. Raw data (.ch files) are stored in vendor-neutral formats; spectral libraries (NIST, Wiley) integrate directly for compound identification. For long-term archival, ChemStation supports export to CSV, PDF, and XML—facilitating LIMS interoperability and third-party statistical analysis (e.g., PCA, ANOVA) in MATLAB or R environments.
Applications
- Residual solvent analysis in APIs per ICH Q3C guidelines using headspace-GC/FID
- VOC emissions profiling from industrial effluents per EPA Method TO-17
- Fatty acid methyl ester (FAME) composition in biodiesel via GC-FID with polar capillary columns
- Pesticide multiresidue screening in fruits and vegetables using GC-ECD/NPD with QuEChERS extraction
- Hydrocarbon group-type analysis (PIONA) in gasoline by GC-TCD with selective olefin trapping
- Monomer purity assessment in polymer manufacturing (e.g., vinyl chloride, styrene) with sub-ppm detection limits
FAQ
Is this unit refurbished and certified prior to resale?
Yes—each Agilent 7890A undergoes full functional verification including oven temperature calibration, EPC linearity testing, detector baseline noise assessment, and leak integrity checks. A comprehensive Certificate of Inspection is provided.
What consumables and accessories are included?

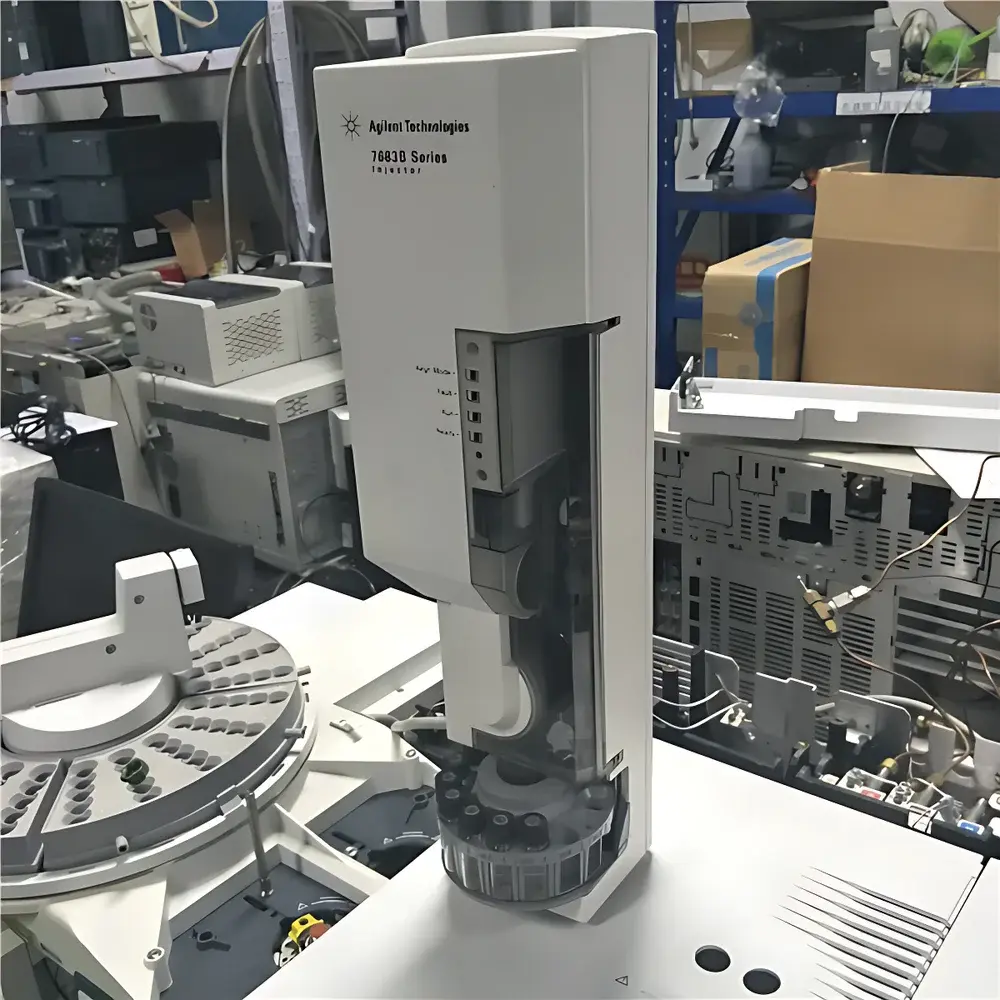

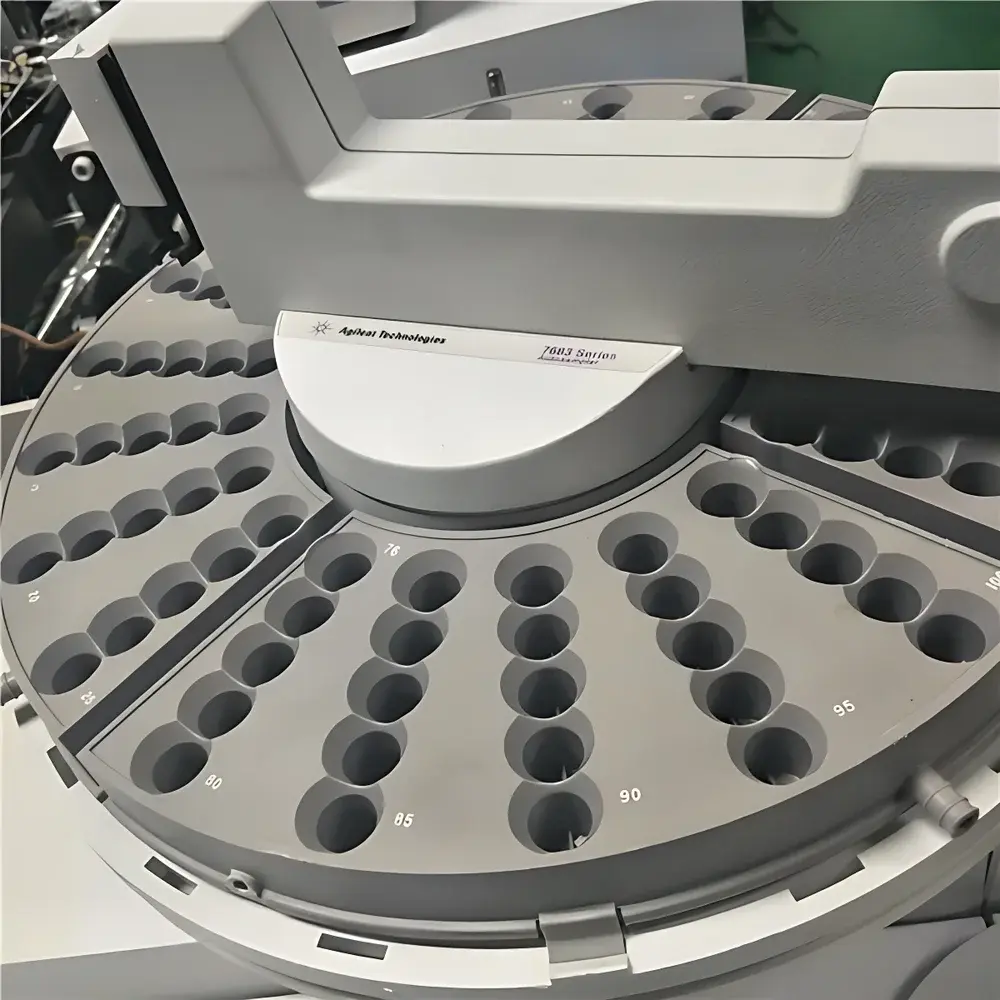

Standard configuration includes one FID, two split/splitless inlets, 1 mL syringes, column nuts, ferrules, and a 30 m DB-5ms column. Optional detectors, autosamplers (G1888/G4513A), and data systems are available separately.
Can this system be upgraded to support newer software or hardware?
While native support for OpenLab CDS is not available, ChemStation C.01.07 remains fully functional on Windows 7/10 (32-bit mode). Mechanical upgrades—such as adding a second oven zone or installing a microfluidic EPC module—are technically feasible but require Agilent-certified service engineers.
What warranty and technical support options are offered?
All units ship with a 12-month limited hardware warranty covering defects in materials and workmanship. Remote diagnostics and application troubleshooting are supported via dedicated engineering channels during business hours (EST).
