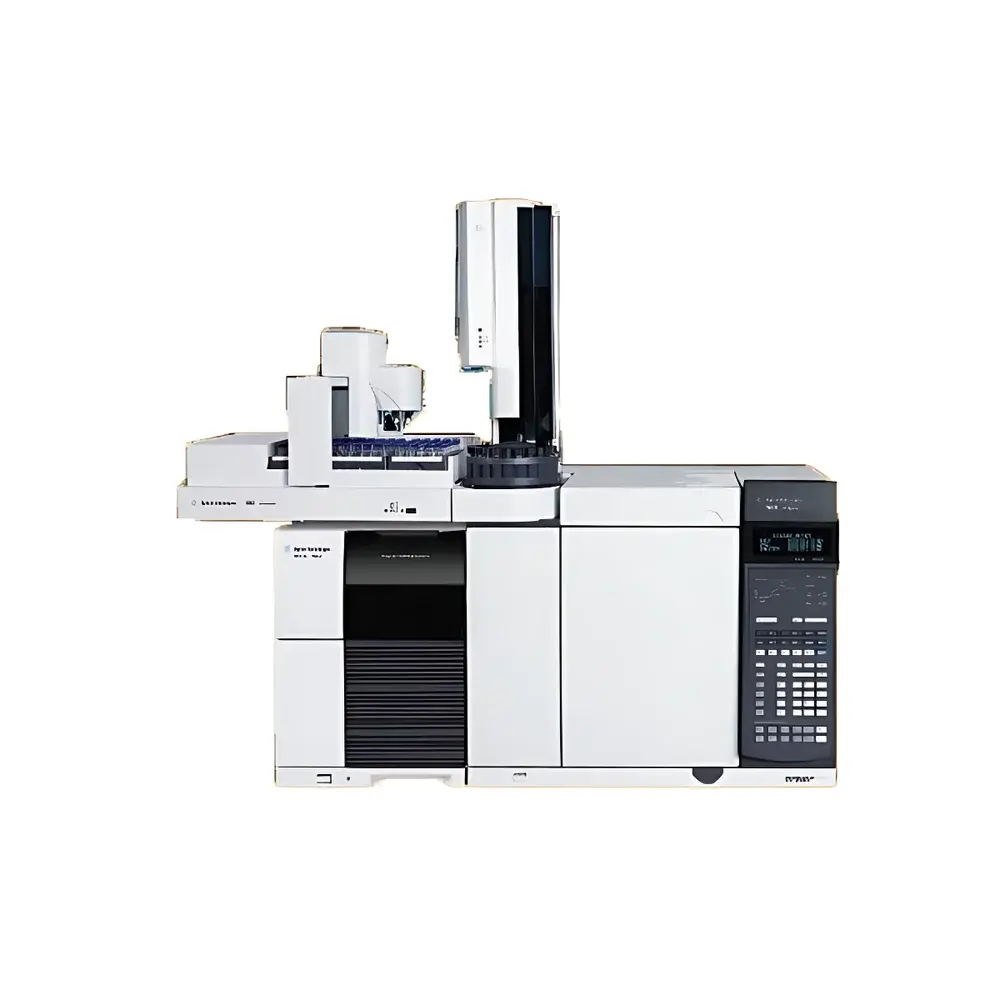

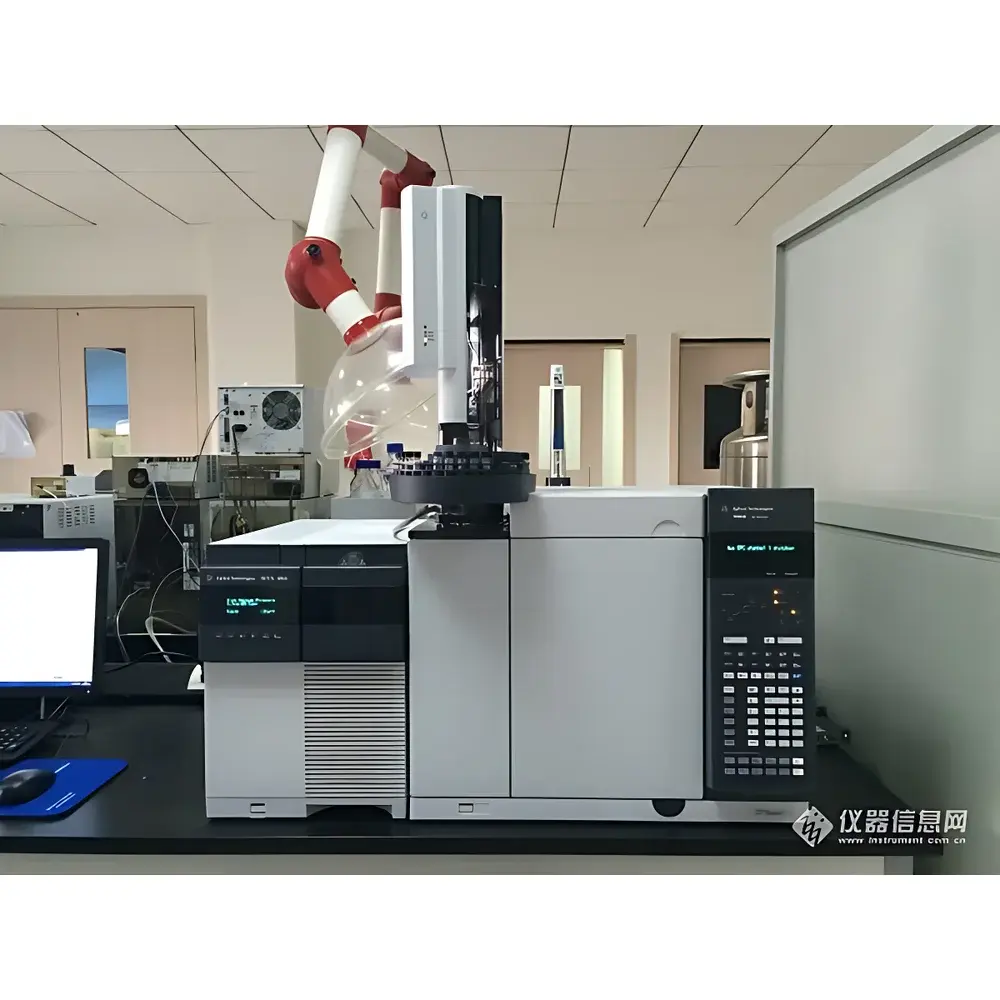

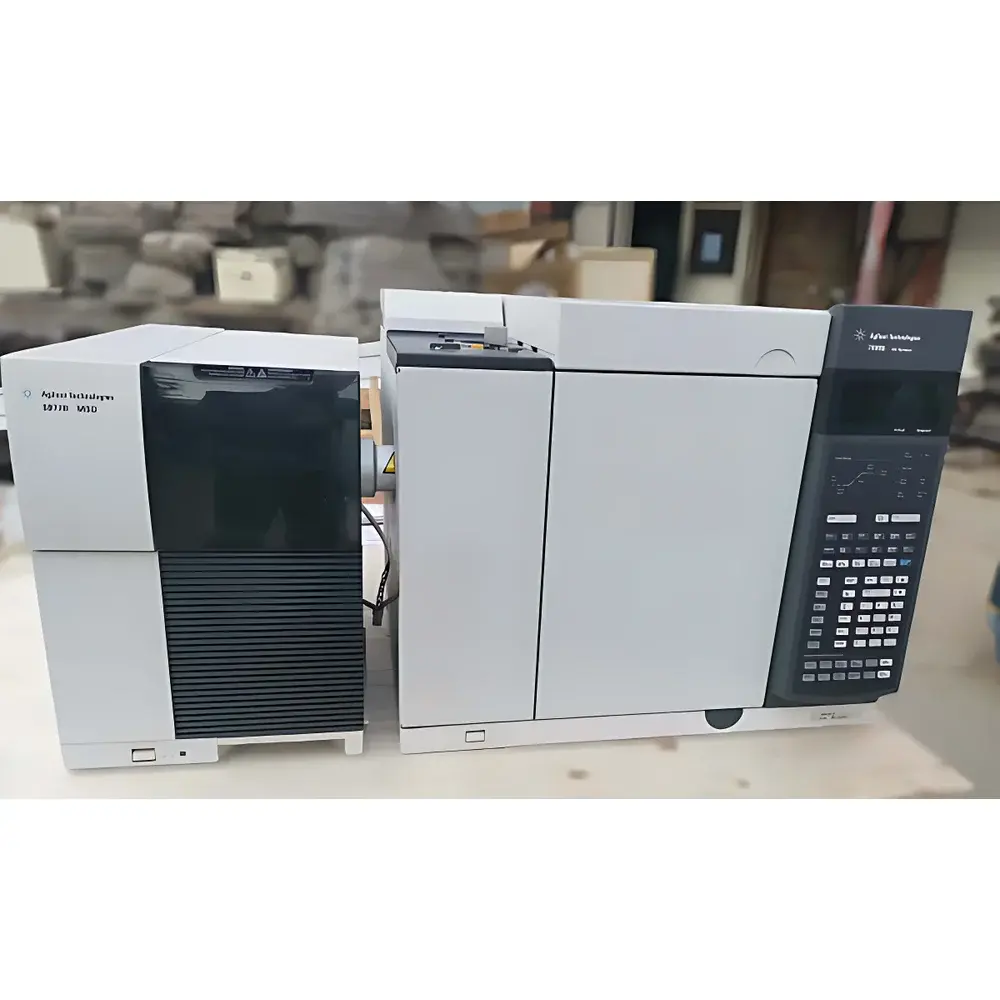

Agilent 7890B-5977B GC/MS System (Refurbished)

Overview

The Agilent 7890B-5977B GC/MS System is a rigorously refurbished single quadrupole gas chromatography–mass spectrometry platform engineered for high-fidelity trace organic analysis in regulated and research-intensive laboratories. It integrates the thermally stable, electronically controlled Agilent 7890B GC with the high-sensitivity 5977B Mass Selective Detector (MSD), leveraging electron ionization (EI) and optional chemical ionization (CI) for robust compound identification and quantification. The system operates on the fundamental principle of separating volatile and semi-volatile analytes via capillary GC, followed by mass-selective detection based on mass-to-charge ratio (m/z) discrimination in a temperature-stabilized quadrupole mass analyzer. Its design prioritizes reproducibility across method transfers—enabled by Retention Time Locking (RTL)—and analytical continuity across instruments, columns, and laboratories. This configuration meets the operational requirements of environmental monitoring (e.g., drinking water, soil, and air toxics), forensic toxicology, pharmaceutical impurity profiling, petrochemical hydrocarbon fingerprinting, and food safety residue screening.

Key Features

• Agilent 7890B GC: Equipped with precision electronic pressure control (EPC) for sub-psi carrier gas regulation, ensuring ±0.001 psi pressure stability and <0.008 min retention time repeatability (RSD <0.05% over 10 injections).
• Advanced inlet architecture: Multi-Mode Inlet (MMI) supports split/splitless, cool-on-column, and large-volume injection (LVI) with programmable temperature vaporizing (PTV) capability.
• Microplate Flow Control (CFT): Enables comprehensive two-dimensional GC (GC×GC) with flow modulation, heart-cutting (MDGC), and column backflush—without external hardware or manual valve manipulation.
• 5977B MSD: Features High-Efficiency Source (HES) and InertPlus Extractor EI ion source, delivering 10× higher signal-to-noise ratio vs. prior-generation single quad systems; instrument detection limit (IDL) of 1.5 fg octafluoronaphthalene (OFN) at m/z 272.
• JetClean Smart Ion Source: Automatically cleans the ion source using hydrogen plasma during standby cycles—reducing manual maintenance intervals by up to 70% and preserving source geometry integrity.
• Low Thermal Mass (LTM) column modules (optional): Support rapid heating/cooling (up to 1200 °C/min ramp rates), enabling cycle times under 3 minutes for routine screening assays.
• Integrated inert flow path: SilcoNert®-treated surfaces from inlet through transfer line minimize adsorption and degradation of active compounds (e.g., pesticides, amines, phenols).

Sample Compatibility & Compliance

The 7890B-5977B accommodates liquid, gaseous, and solid-phase microextraction (SPME) samples across concentration ranges spanning parts-per-trillion (ppt) to percent-level. It supports derivatization workflows (e.g., silylation, acylation) and thermal desorption (TD) interfaces for volatile organic compound (VOC) analysis. Method validation aligns with internationally recognized frameworks: EPA SW-846 Methods 8260D (VOCs), 8270E (SVOCs), and 524.4 (drinking water); ASTM D5845 (gasoline aromatics); and ISO 17025 clause 7.2.2 for measurement uncertainty estimation. When operated with MassHunter’s audit-trail-enabled mode and configured per 21 CFR Part 11 requirements (electronic signatures, secure user roles, immutable data archiving), the system satisfies GLP and GMP documentation standards for regulated QA/QC environments.

Software & Data Management

MassHunter Workstation (v10.2+) provides unified control of GC parameters, MSD acquisition, spectral library searching (NIST MS Search 2.4), quantitative reporting (calibration curves, IS normalization), and compliance-ready data review. Raw data (.D format) is stored in vendor-neutral, timestamped directories with SHA-256 checksum integrity verification. Audit trails record all method modifications, sequence changes, and report exports—including operator ID, timestamp, and action type—with read-only archival options compatible with LIMS integration (via ASTM E1384 or HL7 messaging). Batch processing supports automated peak integration using intelligent deconvolution algorithms (AMDIS), reducing analyst interpretation bias in complex matrices.

Applications

• Environmental: Quantitative analysis of PAHs, PCBs, organochlorine pesticides, and emerging contaminants (e.g., PFAS precursors) in wastewater, sediment, and ambient air.
• Forensics: Confirmation and quantitation of drugs of abuse (e.g., cannabinoids, opioids, stimulants) in blood, urine, and hair matrices per SWGTOX guidelines.
• Pharmaceutical: Residual solvent testing (ICH Q3C), genotoxic impurity screening (ICH M7), and extractables/leachables profiling in packaging materials.
• Food & Agriculture: Pesticide multiresidue analysis (EU SANTE/11312/2021), mycotoxin detection, and flavor/aroma compound profiling in beverages and dairy products.
• Petrochemical: Hydrocarbon group-type analysis (HTA), oxygenate determination (MTBE, ETBE), and sulfur speciation using integrated SCD/NCD interfaces.

FAQ

Is this a factory-refurbished unit or dealer-refurbished?
This system undergoes Agilent-certified refurbishment protocols performed by an Agilent Authorized Refurbishment Partner, including full functional validation against original equipment specifications, replacement of consumables (ion source, detector, GC injectors), and firmware updates to current stable release levels.
What documentation accompanies the instrument?
Customers receive a Certificate of Refurbishment, full calibration report (including RTL verification, sensitivity check, mass axis calibration), MassHunter software license transfer documentation, and a traceable serial-number-matched warranty certificate.
Can the system be upgraded to support GC×GC or TD interfaces?
Yes—the 7890B chassis supports native CFT-based GC×GC configurations and third-party thermal desorption units via analog/digital I/O; compatibility must be confirmed during pre-delivery technical assessment.
Does the 1-year warranty cover both GC and MSD components?
Yes—the warranty is comprehensive and covers all subsystems, including oven, inlet, detector, vacuum system, and electronics, provided maintenance is performed per Agilent-recommended intervals and consumables are replaced using genuine Agilent parts.
Is remote diagnostics supported?
The 7890B-5977B includes embedded LAN connectivity and Agilent’s Remote Monitoring Agent (RMA), enabling secure, encrypted remote access for predictive diagnostics, log file retrieval, and firmware patch deployment—subject to customer network policy approval.
