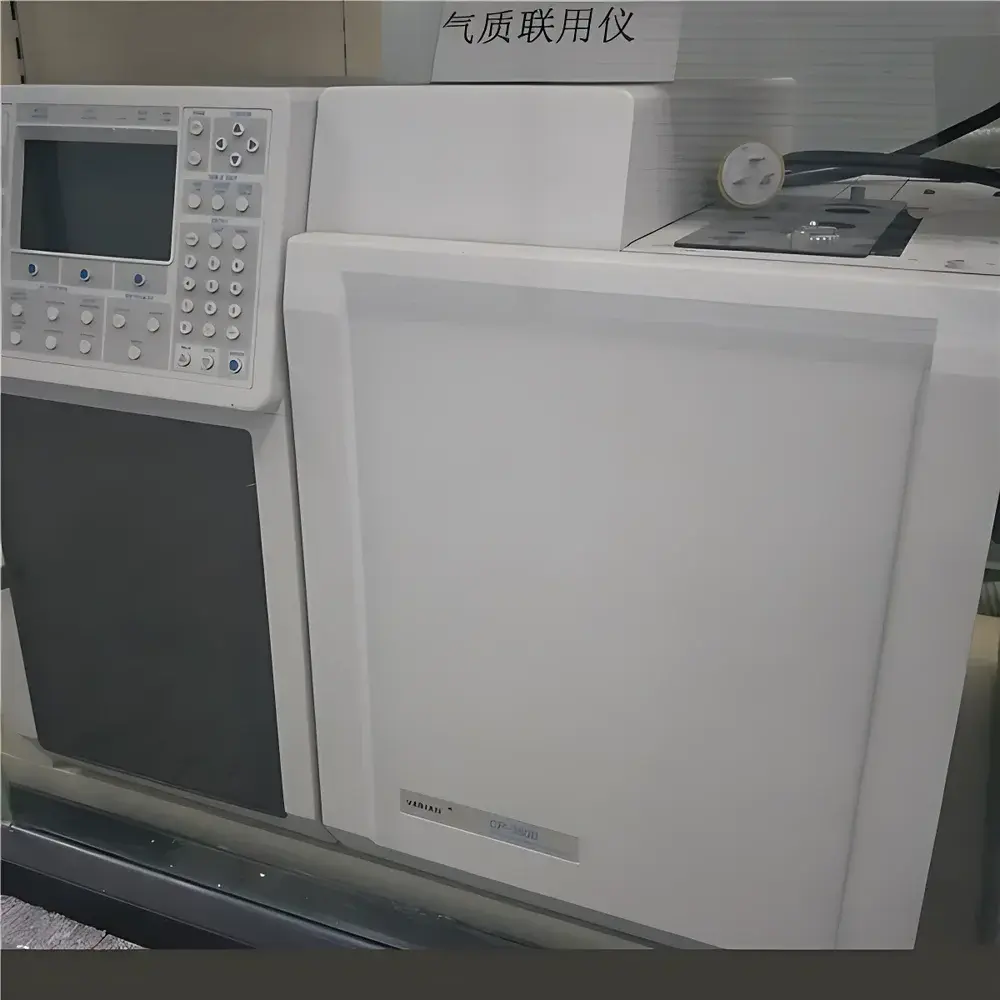

Agilent CP-3800-2200 Gas Chromatography-Mass Spectrometry (GC-MS) System Repair Service

Overview

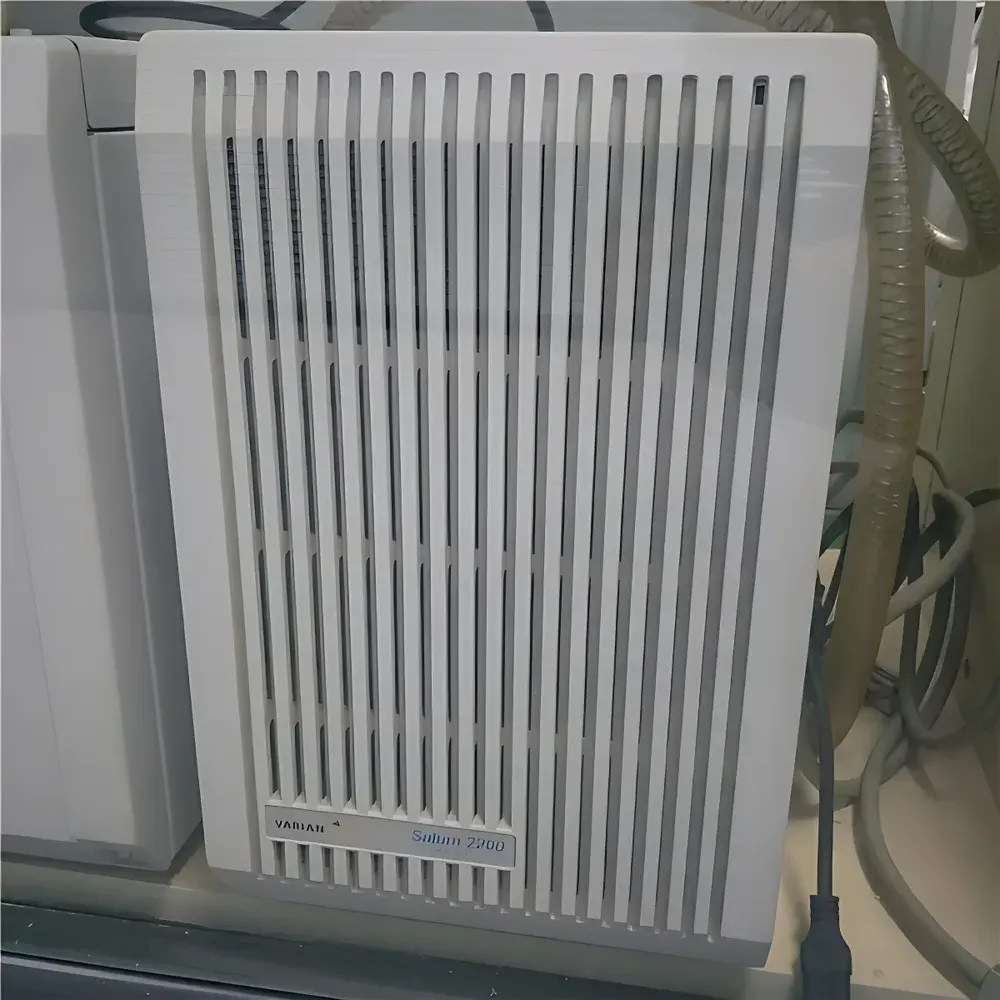

The Agilent CP-3800-2200 is a high-performance gas chromatography–mass spectrometry (GC-MS) system originally developed by Varian and later integrated into the Agilent portfolio following the 2010 acquisition. This platform combines the CP-3800 gas chromatograph with the Saturn 2200 ion trap mass spectrometer — an architecture engineered for robust qualitative and quantitative analysis of volatile and semi-volatile organic compounds. The Saturn 2200 employs internal ion trap technology enabling full-scan sensitivity down to 1 pg octafluoronaphthalene (OFN) at S/N >50:1 RMS (electron ionization), and 5 pg diacetone alcohol at S/N >20:1 RMS (chemical ionization). Its mass range spans 10–650 amu, with scan speeds up to 5600 amu/s, supporting rapid method development and high-throughput screening. As legacy instrumentation, the CP-3800-2200 remains widely deployed in environmental testing labs, pharmaceutical QC facilities, forensic chemistry units, and academic research centers — particularly where method continuity, spectral library compatibility (NIST/EPA/Wiley), and MS/MS capability for complex matrix analysis are critical.

Key Features

• Ion trap-based mass analyzer with real-time MSⁿ capability for structural elucidation and selective reaction monitoring
• Time-programmable ionization mode switching between EI and CI without hardware reconfiguration
• Integrated solid-phase microextraction (SPME) interface support for solvent-free sample introduction
• Dual-mode ion source operation: electron ionization (EI) and chemical ionization (CI) with optional volatile reagent gases (e.g., methane, isobutane)
• Direct insertion probe (DIP) compatibility for thermally labile or non-volatile analytes
• Multi-detector configuration support including TCD, FID, and ECD alongside MS detection
• Comprehensive diagnostic firmware with built-in self-test routines for vacuum integrity, detector gain, and filament emission stability

Sample Compatibility & Compliance

This service supports instruments operating under regulatory frameworks requiring documented maintenance traceability, including ISO/IEC 17025-accredited laboratories, GLP-compliant environmental testing (EPA Methods 8270, 8260), and pharmaceutical residual solvent analysis per USP Chapter <467>. All repair activities adhere to Agilent’s original equipment manufacturer (OEM) technical bulletins and service advisories. Calibration verification follows NIST-traceable standards where applicable. Preventive maintenance reports include instrument performance qualification (PQ) data aligned with ASTM E260 and ISO 17025 clause 6.4.2 requirements. Remote diagnostics and on-site interventions are fully auditable, with service logs compliant with FDA 21 CFR Part 11 electronic record retention guidelines when requested.

Software & Data Management

Repair services ensure full interoperability with legacy and current software environments, including Varian Star v6.x, Agilent ChemStation G1701DA, and MassHunter Qualitative Analysis B.08+. Firmware updates, driver reinstalls, and workstation configuration recovery are performed to restore native data acquisition fidelity and spectral processing accuracy. All diagnostic logs, calibration reports, and system configuration snapshots are archived in standardized XML and CSV formats compatible with laboratory information management systems (LIMS). For labs transitioning to modern platforms, we provide raw data migration support from *.qgd, *.msd, and *.spc file structures to open formats such as mzML and ANDI-NetCDF.

Applications

• Environmental analysis: PAHs, PCBs, pesticides, and VOCs in soil, water, and air matrices
• Pharmaceutical impurity profiling and residual solvent quantification per ICH Q3C guidelines
• Forensic toxicology screening for drugs of abuse and metabolites in biological fluids
• Food safety testing for flavor compounds, contaminants, and adulterants
• Materials science: outgassing analysis of polymers and packaging components
• Academic research requiring high-resolution spectral matching and MS/MS fragmentation pathway validation

FAQ

Do you provide remote diagnostics prior to dispatching a field engineer?
Yes — all service requests initiate with remote connectivity assessment using TeamViewer or AnyDesk (with customer IT approval), enabling preliminary fault isolation and parts readiness planning.
Is spare part sourcing guaranteed for discontinued Saturn 2200 components?
We maintain strategic inventory of critical consumables (ion trap assemblies, filaments, electron multipliers) and collaborate with Agilent-certified component remanufacturers to fulfill OEM-equivalent replacements.
Can preventive maintenance be scheduled during non-operational hours?
Absolutely — off-shift and weekend PM windows are available upon advance coordination to minimize workflow interruption.
Are service records provided in English with ISO-compliant documentation?
Yes — each completed service generates a bilingual (English/Chinese) Certificate of Service, including instrument ID, technician signature, test results, replaced parts list, and compliance statement referencing relevant ISO/ASTM clauses.
Do you support extended warranty programs or annual service contracts?
Yes — customizable 12- or 24-month maintenance agreements include unlimited labor, two scheduled PM visits, one on-site training session, and priority response SLA (≤8 business hours for critical failures).
