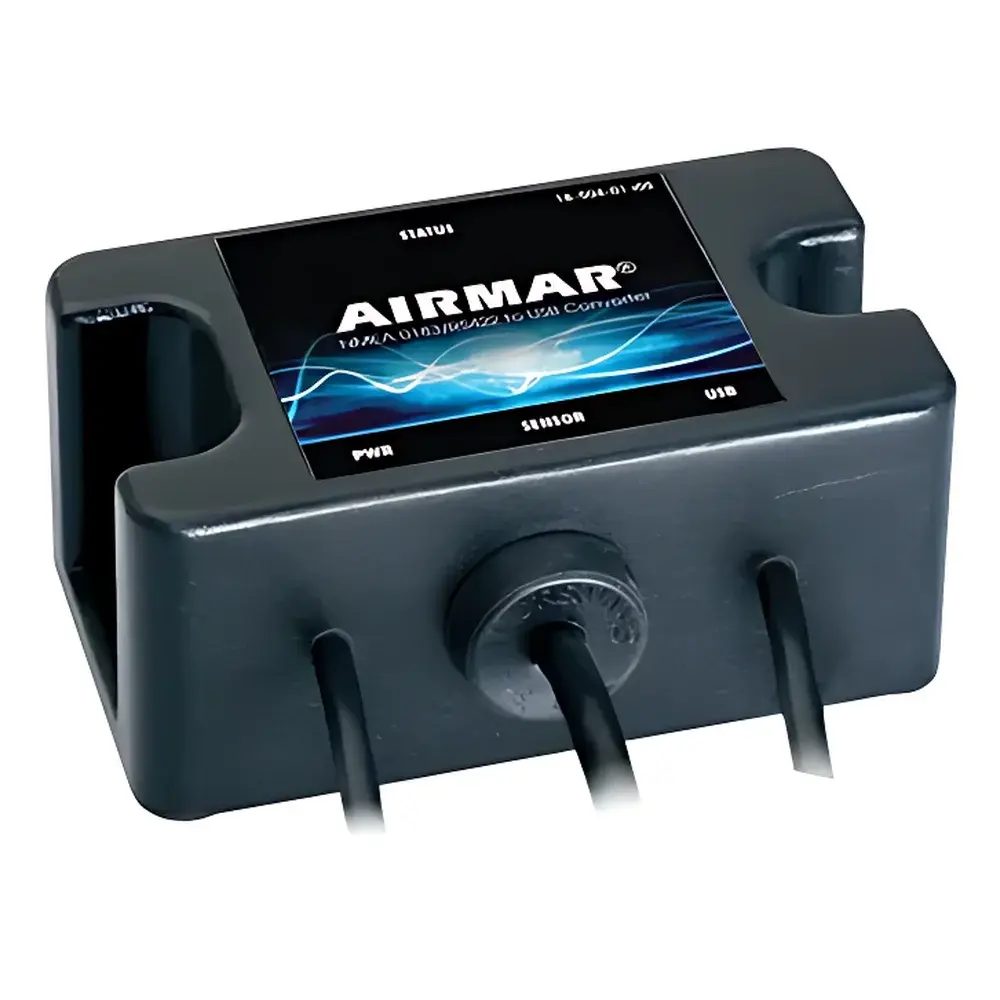

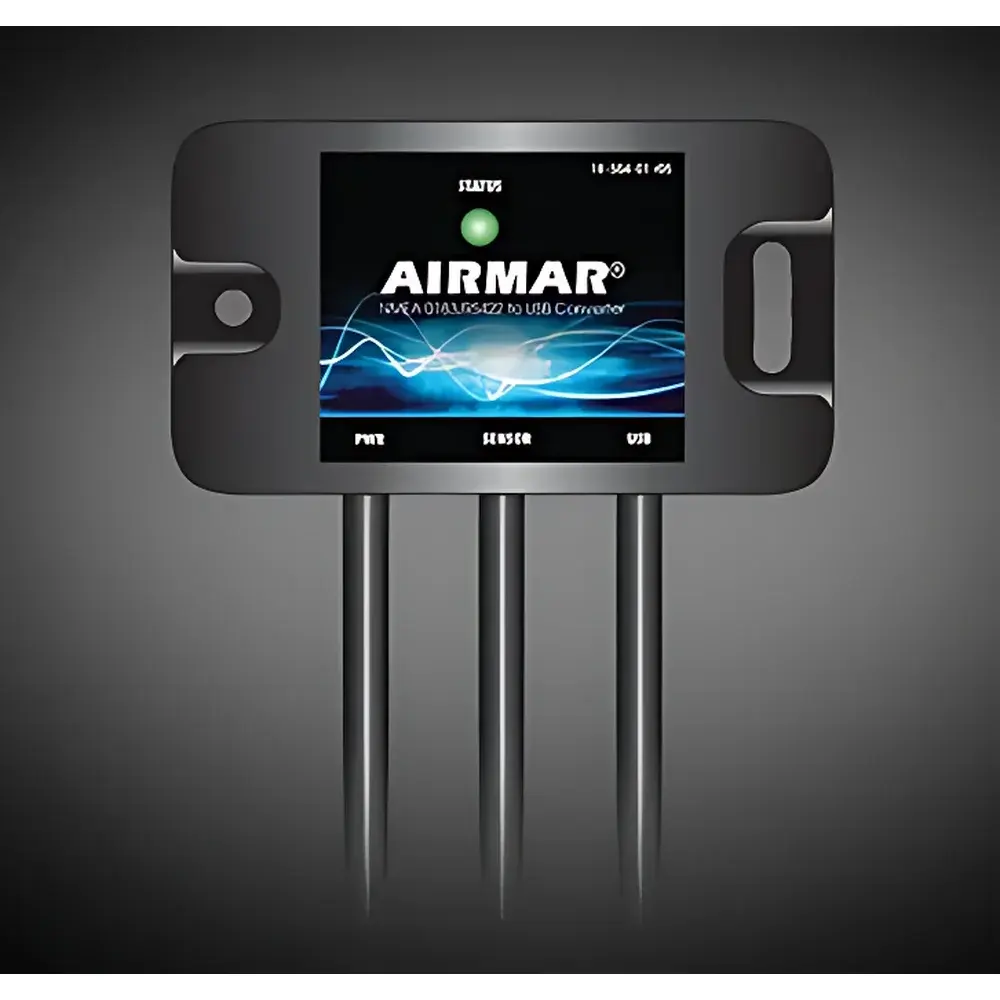

AIRMAR NMEA 0183 USB Interface Converter
| Brand | AIRMAR |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Protocol | NMEA 0183 v3.01 |
| Baud Rate | 4800 bps |
| Interface | USB 2.0 (Type-A), RS-422/RS-232 compatible via internal level-shifting circuitry |
| Operating Temperature | –20 °C to +70 °C |
| Enclosure | IP65-rated ruggedized ABS housing |
| Certifications | FCC Part 15 Class B, CE, RoHS compliant |
| Power Supply | Bus-powered via USB (5 V ±5 %, <100 mA) |
| Latency | <15 ms typical end-to-end |
| Data Buffer | 4 kB FIFO with overflow protection |
Overview
The AIRMAR NMEA 0183 USB Interface Converter is an industrial-grade serial communication bridge engineered to integrate marine-grade sensor data—specifically from AIRMAR’s certified NMEA 0183-compliant transducers—into modern Windows, macOS, and Linux-based host systems. It implements a hardware-accelerated UART-to-USB conversion architecture compliant with the NMEA 0183 v3.01 standard, supporting fixed 4800 bps asynchronous transmission—the mandatory baseline rate for legacy marine GPS, heading, and meteorological sensors. Unlike generic USB-to-serial adapters, this converter incorporates galvanically isolated RS-422 receiver circuitry, enabling noise-immune operation in electrically harsh marine environments where common-mode voltage differentials exceed ±15 V. Its firmware enforces strict NMEA sentence framing (e.g., $GPGGA, $HCHDG, $WIMWV), including checksum validation and automatic line termination (CR/LF), ensuring protocol fidelity required for regulatory-compliant vessel monitoring and scientific data logging.
Key Features
- True NMEA 0183 v3.01 compliance with hardware-level sentence parsing and CRC-8 validation
- Galvanic isolation (2.5 kV RMS) between USB and RS-422 signal paths to suppress ground loops and EMI
- Auto-sensing RS-422/RS-232 compatibility via integrated level-shifting logic—no DIP switches or jumper configuration required
- Bus-powered design eliminates external power supplies; draws <100 mA from USB host port
- Ruggedized IP65 enclosure with UV-stabilized ABS housing rated for continuous operation from –20 °C to +70 °C
- FCC Part 15 Class B, CE, and RoHS certifications for deployment in commercial maritime and research vessels
- Low-latency data path (<15 ms end-to-end) optimized for real-time navigation telemetry and time-synchronized sensor fusion
Sample Compatibility & Compliance
This interface converter is validated for use with AIRMAR’s full portfolio of NMEA 0183 output sensors, including but not limited to the PB200 Precision Weather Station, Triducer series (e.g., DST800, DST810), and GPS modules such as the GPS200 and GDS200. It supports all standard NMEA 0183 sentences defined in IEC 61162-1, including position (GGA, RMC), velocity (VTG), heading (HDT, HDM), wind (MWV), water temperature (MTW), and depth (DPT). The device meets electromagnetic compatibility requirements per EN 60945 (Maritime Navigation and Radiocommunication Equipment) and is suitable for installation on vessels subject to SOLAS Chapter V and IMO Resolution A.694(17) conformance. For GLP/GMP-aligned laboratories conducting hydrographic survey calibration or oceanographic sensor validation, the converter provides auditable timestamped ASCII data streams compatible with FDA 21 CFR Part 11–compliant software platforms when paired with appropriate audit-trail-enabled applications.
Software & Data Management
The converter operates as a CDC ACM (Communication Device Class Abstract Control Model) USB device, requiring no proprietary drivers on Windows 10/11 (native inbox driver), macOS 12+, or current Linux kernels (cdc_acm module). Raw NMEA sentences are delivered as unbuffered ASCII streams over virtual COM ports (e.g., COMx on Windows, /dev/tty.usbmodem* on macOS, /dev/ttyACM0 on Linux). It integrates seamlessly with industry-standard marine visualization and analysis tools—including OpenCPN, MaxSea TimeZero, QGIS with GPS Tools plugin, MATLAB Instrument Control Toolbox, and Python-based frameworks (e.g., pynmea2, pyserial). Timestamping is performed at the host OS kernel level; for microsecond-precision synchronization, users may pair the device with PPS-enabled GPS receivers and apply NTP or PTP alignment in post-processing workflows.
Applications
- Real-time integration of AIRMAR GPS and environmental sensor data into electronic chart display and information systems (ECDIS)
- Calibration and validation of marine sensor networks in offshore research platforms and autonomous surface vehicles (ASVs)
- Data acquisition for coastal zone management studies requiring synchronized positional, meteorological, and bathymetric measurements
- Onboard laboratory instrumentation in fisheries research vessels where NMEA 0183 remains the mandated interface per NOAA and ICES protocols
- Education and training simulators replicating bridge sensor integration architectures under IMO Model Course 1.27 standards
FAQ
Does this converter support NMEA 2000 (CAN bus) networks?
No. This device is strictly an NMEA 0183 RS-422/RS-232 to USB bridge. NMEA 2000 requires separate CAN controller hardware and protocol stack implementation.
Can it handle multiple AIRMAR sensors simultaneously?
Yes—when connected via a properly terminated NMEA 0183 multiplexer (e.g., Actisense NGT-1 or Maretron USB100), provided the host application supports concurrent sentence parsing from merged streams.
Is custom firmware update capability available?
No. Firmware is factory-programmed and locked to ensure long-term protocol stability and regulatory compliance; no field-upgrade interface is exposed.
What operating system versions are officially supported?
Windows 10/11 (64-bit), macOS Monterey (12.0) through Sequoia (15.x), and Linux kernels ≥5.4 with cdc_acm enabled.
Does it provide power to connected AIRMAR sensors?
No. This is a receive-only interface. AIRMAR sensors must be powered separately per their respective installation manuals (typically 12 V DC or 24 V DC).
