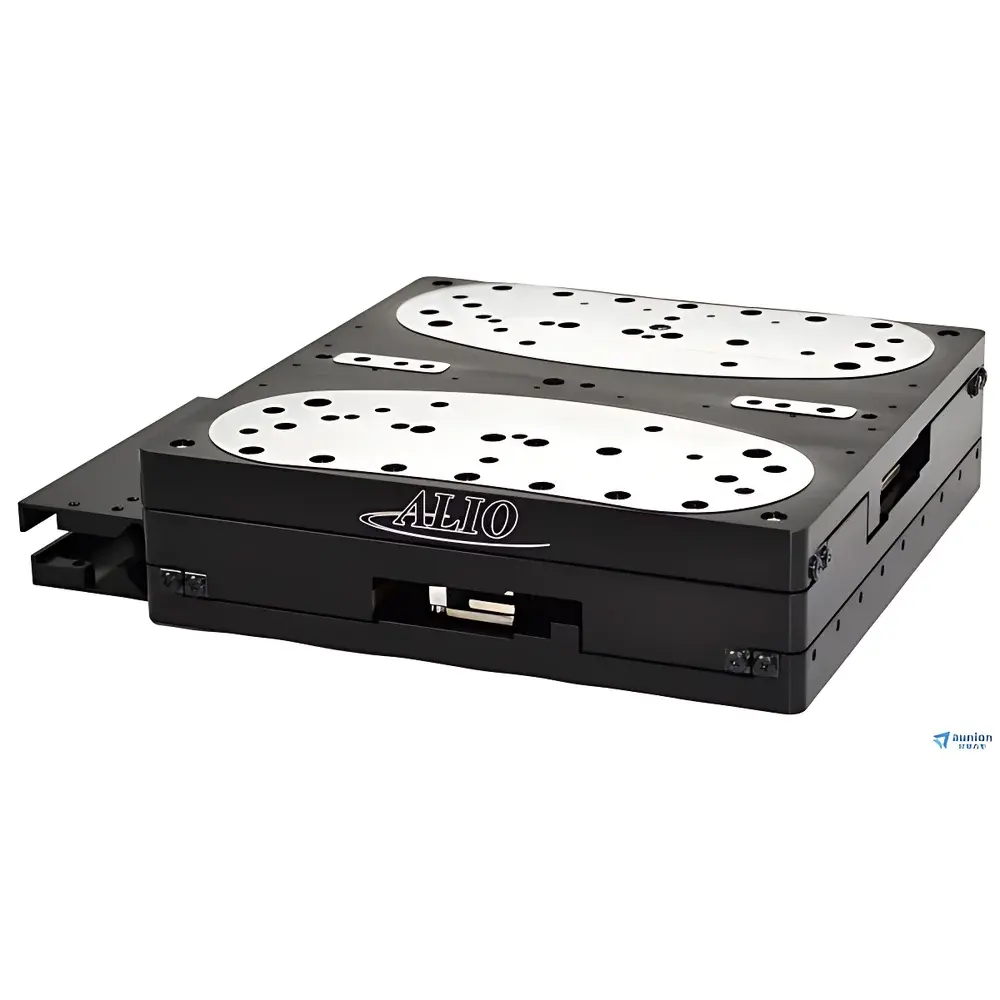

ALIO Nano-Grade High-Load Motorized Linear and XY Translation Stage

Overview

The ALIO Nano-Grade High-Load Motorized Linear and XY Translation Stage is an engineered solution for applications demanding simultaneous high mechanical load capacity and sub-50 nm motion fidelity. Built upon ALIO’s proprietary True Nano™ platform, this stage operates on a fundamental principle of deterministic mechanical metrology—where positional accuracy is defined not by theoretical specifications, but by empirically validated, NIST-traceable 6-degree-of-freedom (6-DOF) error mapping across the full travel envelope. Unlike conventional air-bearing or piezo-based stages that trade stiffness for resolution, the ALIO design leverages precision-ground, preloaded cross-roller bearings integrated into monolithic structural frames—enabling both exceptional rigidity (supporting up to 80 kg centered load) and nanometer-scale linearity (<100 nm straightness over 450 mm) and planarity (<150 nm over XY aperture). This architecture eliminates thermal drift-induced hysteresis and ensures long-term stability under continuous operation in vibration-isolated optical benches, cleanroom-compatible metrology labs, and semiconductor process tool integration.

Key Features

• True Nano™ performance: Verified bidirectional repeatability ≤10 nm (optional configuration), standard <50 nm across all travel ranges
• NIST-traceable 6-D Nano Point Precision™ certification: Full characterization of all six motion error degrees (X/Y/Z translation + pitch/yaw/roll) at discrete points in 3D space
• High-load capability: Structural design supports up to 80 kg centered static load without degradation in positional fidelity or bearing lifetime
• Modular XY architecture: Monolithic cross-roller bearing assembly ensures intrinsic orthogonality and minimizes Abbe error coupling between axes
• Configurable travel: Standard ranges from 25 mm to 450 mm per axis; asymmetric XY configurations (e.g., X=300 mm / Y=150 mm) available for space-constrained integration
• Servo-motor-driven CM-series option: Cost-optimized variant retaining full 6-D precision while delivering controlled acceleration profiles suitable for laser scanning, interferometric alignment, and low-force micro-manipulation
• Central aperture option: Available with through-hole geometry (diameter ≥50 mm) for beam-through or coaxial optical path routing

Sample Compatibility & Compliance

The ALIO translation stage is designed for compatibility with vacuum-compatible enclosures (up to 10⁻⁶ mbar with optional stainless-steel construction), temperature-stabilized optical tables (operating range: 15–30 °C, ±0.5 °C stability recommended), and industry-standard mounting interfaces (M6/M4 tapped holes per ISO 2768-mK). It meets mechanical and electromagnetic compatibility requirements per IEC 61326-1 for laboratory use and supports traceable calibration protocols aligned with ISO/IEC 17025-accredited metrology labs. While not intrinsically certified for FDA-regulated production environments, its audit-ready position logging, deterministic error mapping, and GLP-aligned documentation package make it suitable for GMP-compliant R&D instrumentation where motion traceability is critical (e.g., wafer inspection system development, EUV mask metrology, or quantum optics setup validation).

Software & Data Management

Stages are supplied with ALIO’s MotionControl Studio™ software suite—a Windows-based application supporting real-time trajectory generation, closed-loop PID tuning, and automated 6-DOF error map acquisition via external laser interferometer input (e.g., Keysight 5530 or Renishaw XL-80). All position logs include timestamped metadata (UTC-synchronized), encoder counts, motor current feedback, and thermal sensor readings (integrated RTDs). Export formats include CSV, HDF5, and XML with schema compliance for LabVIEW, MATLAB, and Python (via PyALIO SDK). For regulated environments, optional FDA 21 CFR Part 11-compliant audit trail modules provide electronic signature enforcement, user-role access control, and immutable log archiving.

Applications

• High-precision optical alignment: Fiber coupling, free-space interferometer cavity stabilization, and multi-axis beam steering in ultrafast laser systems
• Nanometrology instrumentation: Coordinate measuring machine (CMM) probe positioning, atomic force microscope (AFM) sample scanning, and scatterfield microscopy stage control
• Semiconductor R&D: Mask alignment in photolithography prototyping, EUV source component testing, and wafer-level packaging metrology
• Quantum technology infrastructure: Trapped-ion trap electrode positioning, superconducting qubit chip mounting, and cryogenic optical table actuation (with optional low-temp materials)
• Advanced manufacturing: Laser micromachining path control, additive manufacturing substrate leveling, and in-line vision inspection stage synchronization

FAQ

What does “NIST-traceable 6-D Nano Point Precision™” mean in practice?
It means each stage undergoes full volumetric error mapping using laser interferometry and autocollimation, generating a point-cloud dataset referenced to NIST-traceable length standards. This enables users to assign a verified uncertainty budget to any commanded position—not just endpoints or midpoints.
Can this stage operate in vacuum or cleanroom environments?
Yes—standard versions are cleanroom-compatible (ISO Class 5); vacuum-rated variants (10⁻⁶ mbar) are available with stainless-steel bodies, dry-lubricated bearings, and non-outgassing cabling.
Is asymmetric XY travel (e.g., X=400 mm, Y=100 mm) supported?
Yes—ALIO offers fully customized mechanical designs without compromising 6-D precision certification or structural stiffness.
How is thermal drift compensated during extended measurements?
Integrated RTD sensors feed real-time temperature data to MotionControl Studio™, enabling optional thermal expansion correction algorithms based on material-specific coefficients and empirical drift models.
Does ALIO provide OEM integration support?
Yes—full mechanical, electrical, and software integration services are offered, including custom firmware, API wrappers (C/C++, .NET, Python), and mechanical interface redesign for embedded tool integration.
