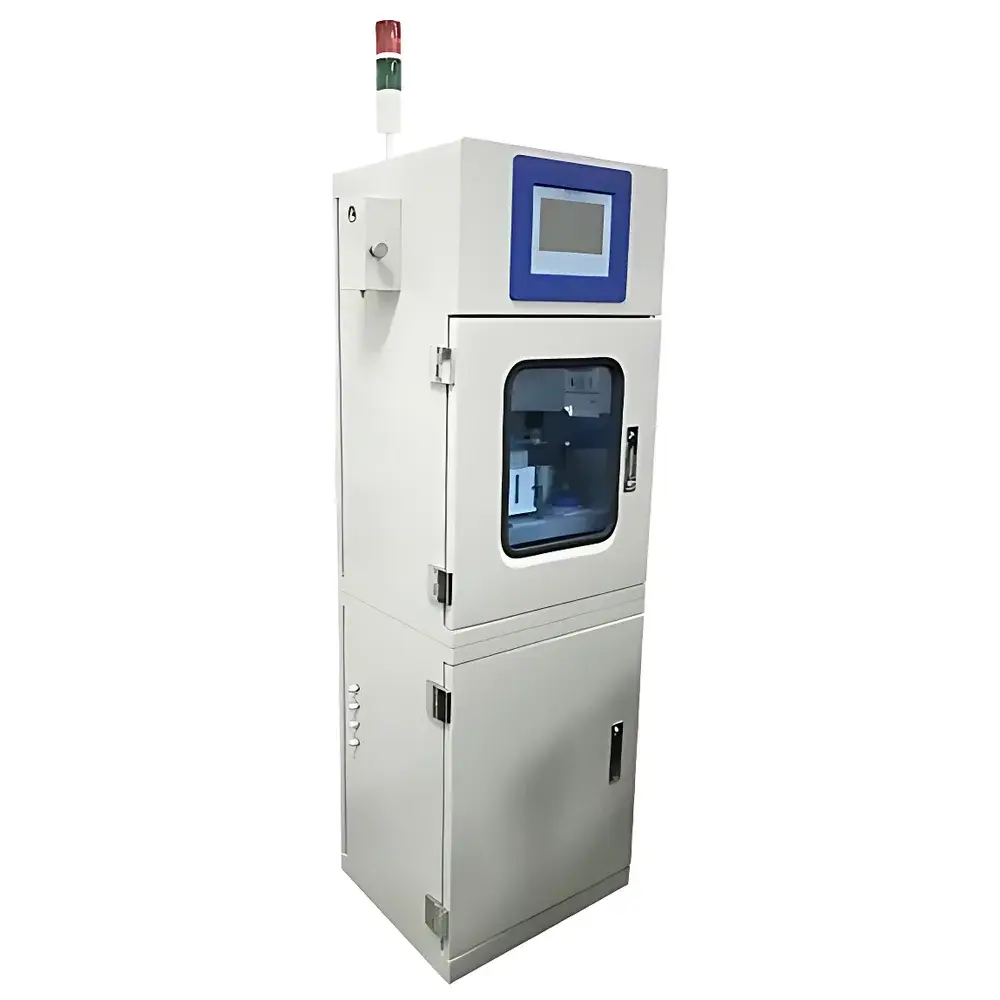

ALT-1-TP Online Analyzer by HOGON

Overview

The ALT-1-TP Online Analyzer by HOGON is an industrial-grade, fully automated process analyzer engineered for continuous monitoring and closed-loop control of zirconium-based silane pretreatment baths in automotive and metal finishing production lines. It operates on dual analytical principles: potentiometric pH measurement in a dedicated buffer cup and quantitative volumetric titration—either via electrode potential endpoint detection or colorimetric endpoint recognition—to determine zirconium ion (Zr⁴⁺) concentration, commonly reported as “zirconium point” in industry practice. Unlike offline lab testing, the ALT-1-TP integrates sampling, conditioning, reaction, detection, cleaning, and chemical dosing into a single synchronized cycle, executing analysis every 30 minutes with high reproducibility and minimal operator intervention. Its architecture supports direct integration into plant DCS/SCADA systems through standardized industrial protocols, enabling real-time bath chemistry optimization and proactive maintenance scheduling.

Key Features

• Fully automated sample handling: Integrated peristaltic pumps circulate bath solution to a temperature-stabilized buffer cup for pH measurement, followed by precise metering into a heated titration cell.
• Dual-mode titration detection: Configurable between potentiometric (ion-selective electrode) and colorimetric (optical endpoint recognition) methods—ensuring robustness across varying bath turbidity, color, or interfering ion profiles.
• Micro-precision dispensing: High-resolution syringe pump delivers titrant with ±1 µL accuracy using a calibrated 20 mL burette, meeting stringent repeatability requirements for low-concentration metal ion quantification.
• Self-maintaining operation: Post-analysis automatic rinsing of pH electrode, titration cup, and fluidic pathways with deionized water prevents cross-contamination and extends sensor lifetime.
• Integrated chemical dosing control: Onboard relay outputs and analog signals drive peristaltic or diaphragm dosing pumps to replenish zirconium and pH-adjusting reagents based on deviation from setpoints.
• Industrial-grade enclosure: IP55/IP65-rated housing (achieved when door is secured), with wetted components fabricated exclusively from chemically inert PTFE and FEP—ensuring long-term stability in aggressive acidic silane environments.

Sample Compatibility & Compliance

The ALT-1-TP is validated for use with aqueous zirconium-containing silane conversion coating solutions (pH 3.5–5.5, conductivity <5 mS/cm, suspended solids <50 ppm). It complies with general requirements for industrial process analyzers under IEC 61000-6-2 (EMC immunity) and IEC 61000-6-4 (EMC emissions). While not certified to specific pharmaceutical or food-grade standards, its design aligns with Good Manufacturing Practice (GMP) principles for instrumentation used in controlled industrial environments—particularly regarding audit-ready event logging, configurable alarm thresholds, and traceable calibration records. The system supports optional 21 CFR Part 11-compliant software extensions for electronic signatures and data integrity controls where required by regulated manufacturing clients.

Software & Data Management

The embedded controller runs a deterministic real-time OS with local storage for ≥30 days of timestamped measurement data (pH, Zr⁴⁺ concentration, titration volume, temperature, alarm events). Data export is supported via CSV over USB or network file transfer. Communication interfaces include Modbus TCP (primary for SCADA integration), RS-485 (for legacy PLC networks), CAN bus (for OEM machine-level coordination), and isolated 4–20 mA analog outputs for hardwired control loops. Optional HOGON Analytical Suite software provides remote configuration, trend visualization, predictive maintenance alerts (e.g., reagent depletion, electrode drift), and batch reporting aligned with ISO 9001 documentation requirements.

Applications

• Automotive OEM and Tier-1 body shop pretreatment lines requiring stable zirconium point control to ensure consistent phosphate-free coating adhesion and corrosion resistance.
• Appliance and general metal fabrication facilities operating low-VOC, chromium-free silane conversion processes.
• Chemical suppliers performing remote performance monitoring of customer bath chemistry as part of technical service agreements.
• Quality assurance labs validating bath stability during process qualification or change control activities.
• Engineering contractors integrating inline analytics into new greenfield or brownfield coating line retrofits.

FAQ

What is the typical maintenance interval for the pH electrode and titration cell?
Electrode recalibration is recommended every 72 hours under continuous operation; full replacement intervals range from 6–12 months depending on bath contamination levels. The titration cell requires no scheduled replacement but benefits from quarterly visual inspection for residue buildup.
Can the ALT-1-TP operate unattended for extended periods?
Yes—designed for 24/7 operation with onboard diagnostics, low-reagent warnings, and fault-lockout behavior. Reagent reservoirs support ≥7 days of continuous analysis at standard 30-minute intervals.
Is third-party calibration verification supported?
All measurement modules accept NIST-traceable reference standards. pH verification uses certified buffer solutions; zirconium titration validation employs standardized ZrOCl₂ solutions with documented uncertainty budgets.
How does the system handle bath variability due to drag-in or evaporation?
The analyzer incorporates adaptive baseline correction during each cycle and allows dynamic setpoint adjustment via Modbus register writes—enabling responsive control even during transient process disturbances.
Does the unit support hazardous area installation?
Not inherently—standard configuration is rated for non-hazardous Zone 2 environments. Explosion-proof variants (ATEX/IECEx) are available upon engineering consultation and require custom enclosure and barrier integration.
