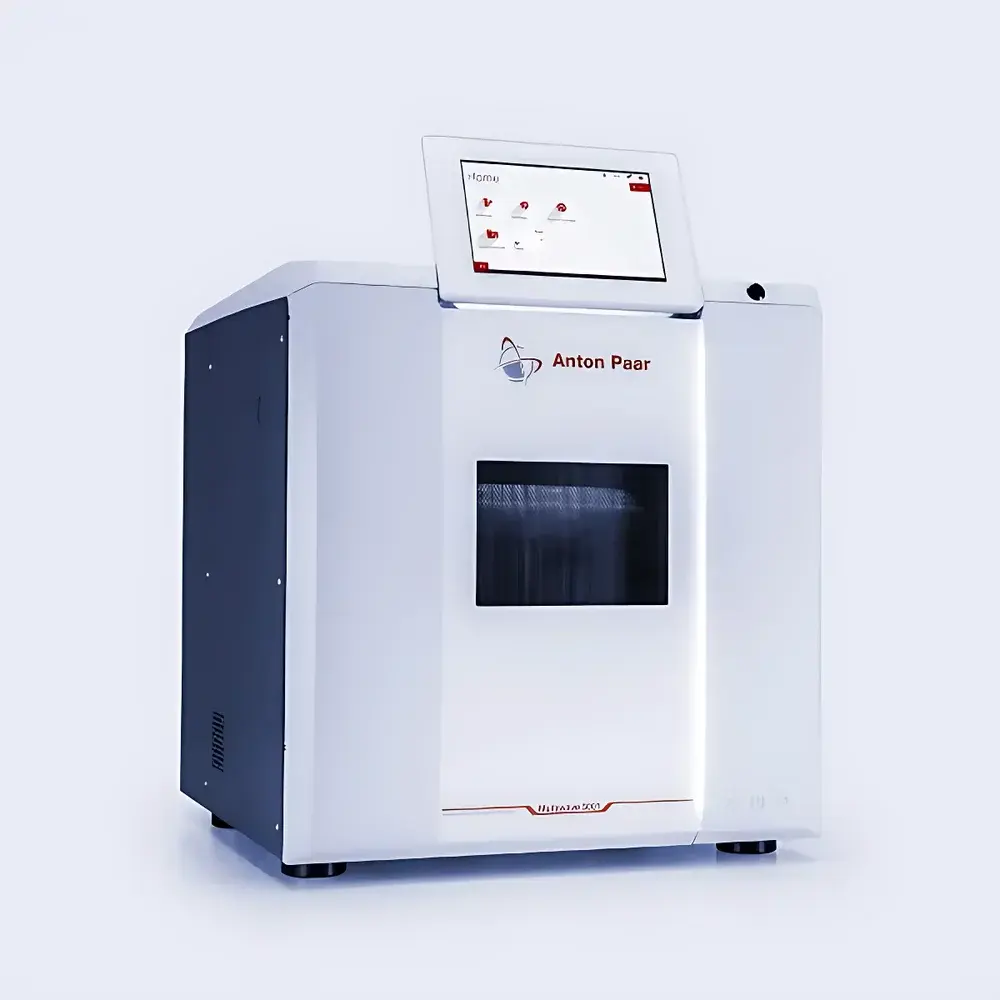

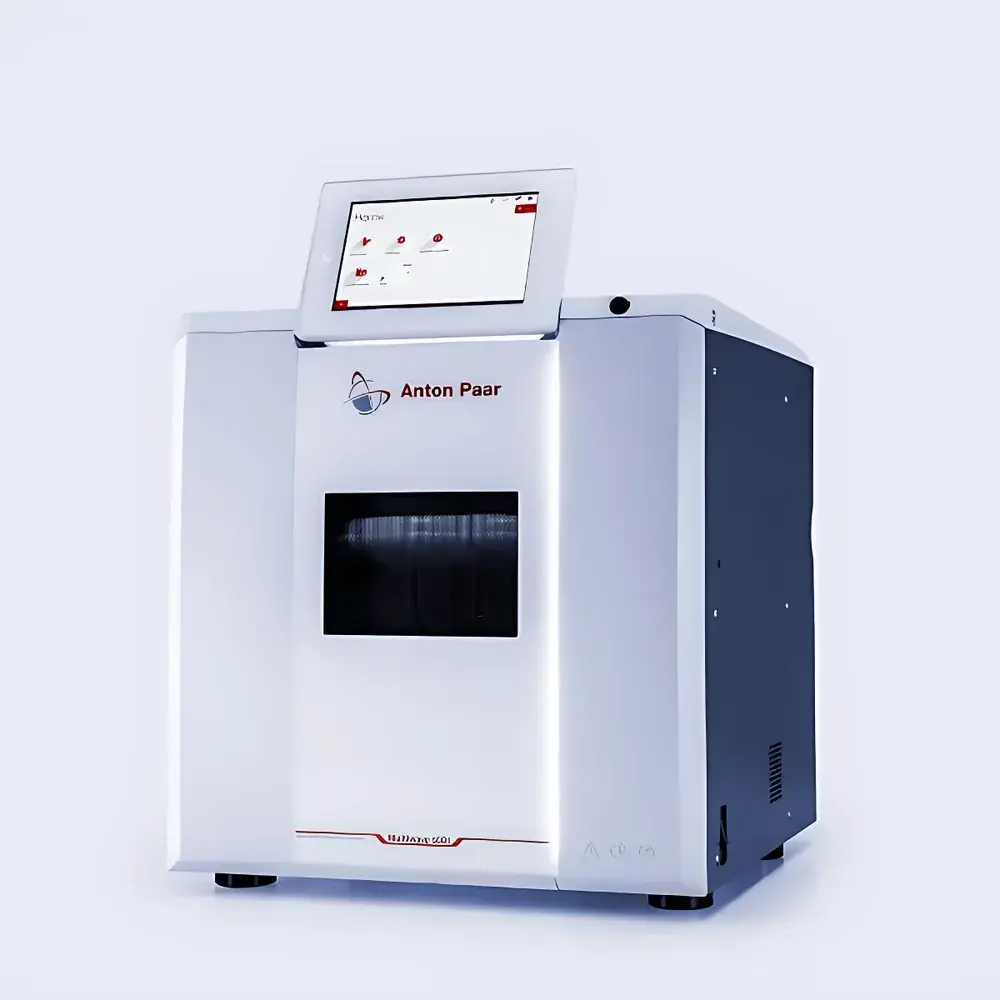

Anton Paar Multiwave Series Microwave Digestion System
| Brand | Anton Paar |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Origin | Domestic (China-manufactured under Anton Paar global engineering standards) |
| Model Series | Multiwave |
| Cavity Class | Industrial-grade |
| Batch Capacity | Up to 96 samples |
| Microwave Source | Dual Magnetron |
| Max Temperature | 300 °C |
| Temp Measurement Accuracy | ±0.1 °C |
| Temp Control Stability | ±1 °C |
| Temp Uniformity Across Cavity | ±1 °C |
| Max Pressure | 200 bar (high-pressure configuration) / 100 bar (standard configuration) |
Overview
The Anton Paar Multiwave Series Microwave Digestion System is an industrial-grade, multi-application sample preparation platform engineered for precision, reproducibility, and operational safety in regulated laboratory environments. Based on over 50 years of Anton Paar’s leadership in wet-chemistry sample preparation—including the world’s first automated wet digestion system introduced in 1973—the Multiwave Series integrates advanced microwave energy delivery, real-time reaction monitoring, and modular rotor architecture to support a full spectrum of thermal chemical processes: closed-vessel microwave-assisted acid digestion, microwave synthesis, extraction, evaporation, and drying. Its core measurement principle relies on simultaneous, position-resolved temperature and pressure monitoring using non-contact SmartTemp 2.0 sensors and intelligent pressure sensing via NOx gas detection—enabling dynamic, reaction-aware control rather than fixed-time or open-loop protocols. Designed for compliance-critical workflows, the system meets ETL (North America), GS (Germany), and CE (EU) safety certifications, and supports audit-ready operation in GLP/GMP and ISO/IEC 17025-accredited laboratories.
Key Features
- Industrial-grade cavity with dual magnetron power delivery (up to 2400 W), ensuring uniform field distribution and robust performance across high-throughput batches.
- SmartTemp 2.0 technology: non-contact internal temperature sensing for each individual vessel—combining the speed of fiber-optic probes with the reliability and maintenance-free operation of IR-based systems.
- Intelligent pressure management: real-time detection of NOx evolution during exothermic decomposition to trigger controlled venting, minimizing corrosion risk and extending vessel lifetime.
- Automated door mechanism with ergonomic push-to-open design—eliminates manual handling of hot rotors during loading/unloading.
- Patented forced-air cooling system (US Patent No. US5435066) with optimized airflow channels reduces post-digestion cooling time to under 10 minutes for standard 24-position runs.
- Modular rotor ecosystem supporting 8–96 sample capacities per batch, including HVT (high-volume TFM), SVT (standard volume TFM), NXF/NXQ (HF-resistant quartz-lined), and MG5 (micro-volume glass) configurations.
- Self-diagnostic firmware, hardware interlocks, and resealable safety door with redundant mechanical and software-based locking logic.
Sample Compatibility & Compliance
The Multiwave Series accommodates diverse matrices—from routine biological, environmental (EPA Methods 3050B, 3051A, 3052), food, pharmaceutical, and cosmetic samples—to challenging materials including polymers, ceramics, alloys, graphite, and petrochemicals. All TFM-lined vessels are HF-compatible; quartz-lined NXF/NXQ rotors enable hydrofluoric acid use where required. Glass micro-vessels (MG5) support sub-20 mg trace analysis with minimal blank contribution. The system complies with ASTM D5511, ISO 11885, and USP , and its electronic records and audit trail functionality align with FDA 21 CFR Part 11 requirements when configured with validated software modules. Full traceability—including method parameters, sensor logs, pressure/temperature profiles, and user authentication—is maintained for regulatory review.
Software & Data Management
The Multiwave Control Software provides intuitive, customizable workflow management: users define method shortcuts on the home screen, embed video SOPs, and assign role-based access permissions. All digestion runs generate timestamped, digitally signed data packages containing raw sensor traces, event logs (e.g., vent detection, power modulation), and calibration metadata. Export formats include CSV, PDF, and XML for LIMS integration. Optional validation packages support IQ/OQ/PQ documentation, and the system supports electronic signatures per ALCOA+ principles. Data integrity safeguards include write-once storage, automatic backup to network drives, and tamper-evident hashing of critical run files.
Applications
- Regulatory-compliant heavy metal analysis (As, Cd, Cr, Pb, Hg) in soils, sediments, and wastewater per EPA and ISO standards.
- Routine digestion of clinical, botanical, and dietary supplement matrices prior to ICP-MS or AAS quantification.
- High-temperature, high-pressure digestion of refractory materials (e.g., SiC, Ti alloys, carbon composites) using HNO3/HF/HClO4 mixtures.
- Parallel microwave synthesis of metal-organic frameworks (MOFs), nanoparticles, and catalyst precursors under inert or controlled-atmosphere conditions.
- Accelerated solvent extraction (ASE) of persistent organic pollutants (POPs) from sludge and biota samples.
- Controlled thermal dehydration of hygroscopic reference materials without oxidation or volatilization loss.
FAQ
Is the Multiwave Series manufactured in Austria or China?
All Multiwave Series instruments are engineered by Anton Paar GmbH (Graz, Austria) and produced at Anton Paar’s ISO 13485-certified manufacturing facility in Shanghai, China, under strict transfer of design specifications, quality control protocols, and final calibration verification.
Can Multiwave 5001 use rotors from older Multiwave models?
Yes—Multiwave 5001 maintains backward compatibility with 16-position rotors and legacy accessories from prior Multiwave platforms, subject to mechanical and software version alignment.
What safety certifications does the system hold?
The Multiwave 5001 and 3001 are certified to ETL (UL 61010-1), GS (EN 61010-1), and CE directives, covering electrical safety, electromagnetic compatibility, and mechanical integrity for unattended operation.
How is temperature measured inside sealed vessels?
Via SmartTemp 2.0: a proprietary non-contact infrared sensor array calibrated to detect thermal emission from the vessel cap interior, eliminating probe insertion while maintaining ±0.1 °C accuracy across all positions.
Does the system support method validation for regulated labs?
Yes—optional qualification packages include documented IQ/OQ procedures, calibration certificates traceable to NIST standards, and software validation reports compliant with GAMP 5 and FDA 21 CFR Part 11 Annex 11 requirements.
