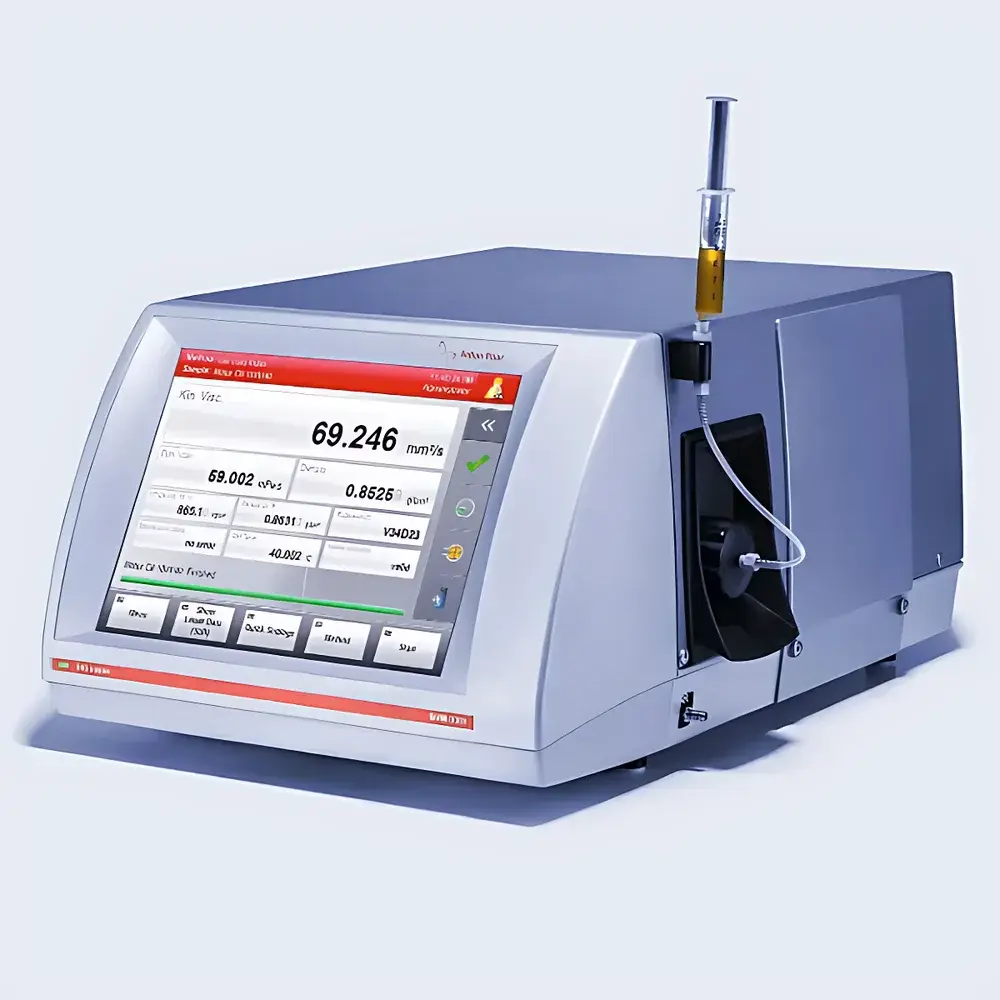

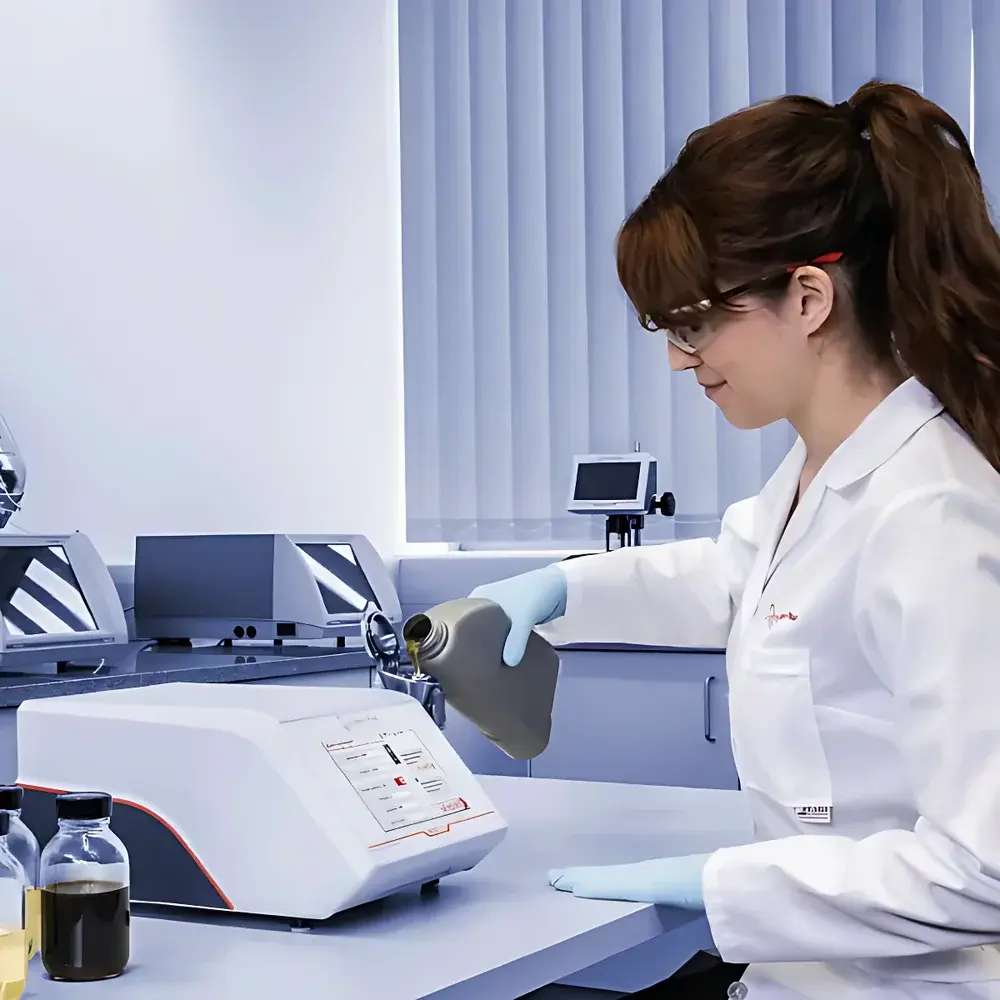

Anton Paar SVM 3001 Stabinger Viscometer with Integrated Density Measurement

Overview

The Anton Paar SVM 3001 is a high-precision, benchtop Stabinger viscometer engineered for simultaneous, traceable measurement of kinematic viscosity, dynamic viscosity, density, and derived parameters—including viscosity index (VI), API gravity, and Saybolt Universal viscosity—within a single sample injection. Unlike capillary or rotational viscometers, the SVM 3001 employs the patented Stabinger principle: a rotating bob suspended in a concentric cylindrical measuring cell, where torque-induced angular acceleration under controlled shear is measured via high-resolution optical encoder. This Couette-flow geometry enables true shear-rate-independent kinematic viscosity determination at defined temperatures, eliminating the need for calibration fluids across wide ranges. The integrated oscillating U-tube densitometer operates in parallel, ensuring fully synchronized, temperature-stabilized dual-parameter acquisition. Designed for compliance-critical environments—including petroleum refineries, lubricant QC labs, aviation fuel certification facilities, and contract testing organizations—the SVM 3001 delivers metrologically traceable results aligned with ASTM D7042, ISO 23581, EN 16896, ASTM D4052, and ISO 12185.

Key Features

• Single-injection multi-parameter analysis: kinematic viscosity, dynamic viscosity, density, VI, API gravity, and Saybolt viscosity—all from ≤1.5 mL sample volume
• Wide operational temperature range: −60 °C to +135 °C; internal air cooling to −20 °C; external glycol/water chiller support down to −60 °C without flammable coolants
• Patented Stabinger measurement cell: single universal cell accommodates samples from jet fuel (0.2 mm²/s) to paraffin wax (30,000 mm²/s) without hardware change or cleaning between dissimilar matrices
• High reproducibility: kinematic viscosity repeatability ≤0.1% RSD, density repeatability ≤0.00005 g/cm³ (per ASTM D4052 protocol)
• Built-in temperature scanning capability for cold flow properties (e.g., pour point estimation, low-temperature viscosity profiling)

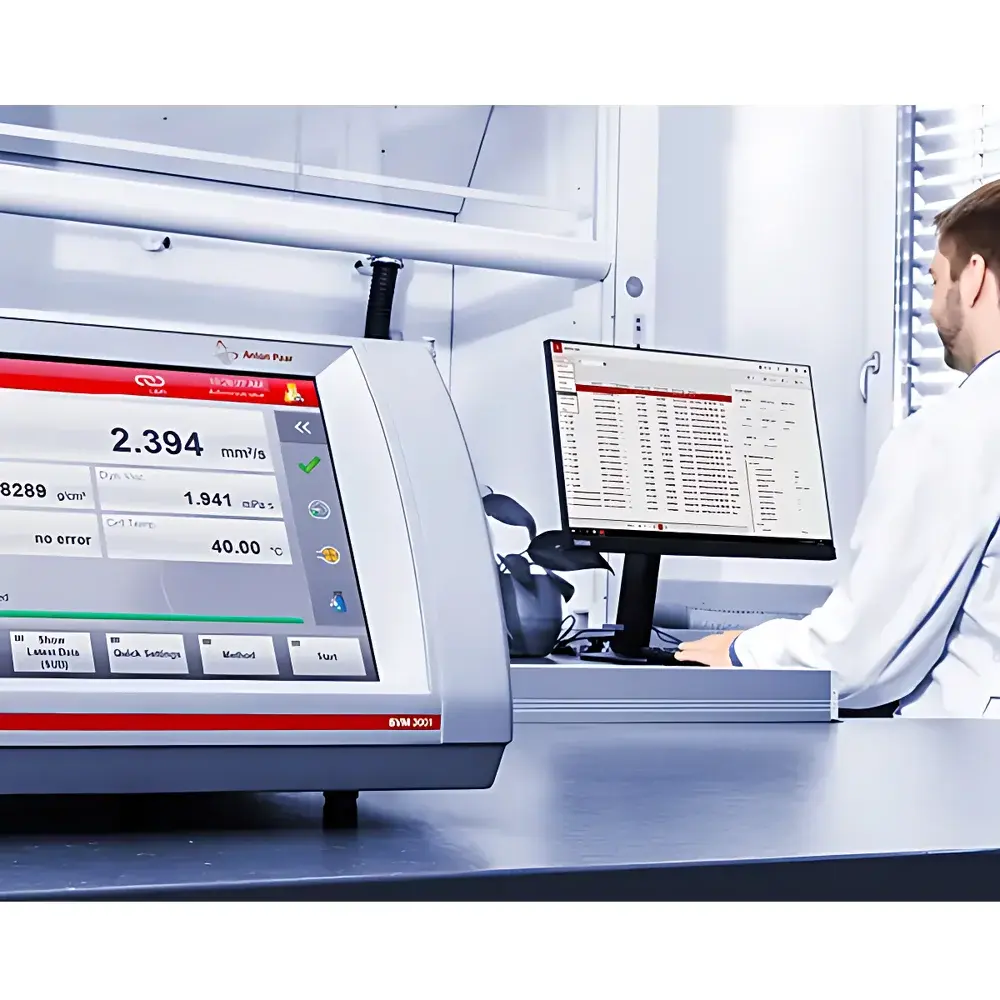

• Touchscreen HMI: 10.4″ industrial-grade display with intuitive workflow navigation, multilingual UI (including English), and on-device validation tools
• Modular expandability: supports optional automatic sampler (71-position), HTV high-throughput platform, magnetic particle trap (MPT), heated inlet adapter (HFA), and chemical-resistant cell kits

Sample Compatibility & Compliance

The SVM 3001 is validated for hydrocarbon-based liquids across the full petroleum and specialty chemical spectrum: aviation turbine fuels (Jet A-1, JP-8), diesel fuels (EN 590, ASTM D975), lubricating oils (engine, gear, hydraulic), biodiesel blends (B5–B100), base oils, bitumen diluents, and waxy distillates. Its universal cell design eliminates cross-contamination risk and enables rapid transition between low- and high-viscosity matrices without recalibration. All measurements comply with international regulatory frameworks: ASTM methods D7042 (kinematic viscosity), D4052 (density), D2270 (VI), D1250 (API gravity), D2161 (Saybolt), and ISO standards 2909, 91, and 23581. The instrument architecture supports GLP/GMP data integrity requirements, including electronic signature enforcement, audit trail logging (per FDA 21 CFR Part 11), and secure user role management.

Software & Data Management

SVM instruments run on Anton Paar’s proprietary mPDS (multi-Parameter Data System) firmware, featuring embedded method templates preconfigured for ASTM, ISO, EN, and GB/T standards. Raw sensor data—including torque transients, oscillation frequency spectra, and thermal equilibrium curves—is stored with full metadata (operator ID, timestamp, environmental conditions, calibration status). The system supports direct export to LIMS via Ethernet (100 Mbit), USB mass storage, or OPC UA interface. Audit trails record all parameter modifications, calibration events, and user logins with immutable timestamps. Optional software modules enable automated VI calculation per ASTM D2270, temperature ramp profiling, and statistical process control (SPC) charting. Data files conform to ASTM E1382-compliant CSV and XML formats for third-party analytics integration.

Applications

• Petroleum product certification: batch release testing of aviation fuels per DEF STAN 91-91 and ASTM D1655
• Lubricant formulation development: real-time VI optimization and shear stability assessment across temperature gradients
• Alternative fuel qualification: biodiesel (FAME) and renewable diesel (HVO) viscosity-density correlation modeling
• Contract laboratory accreditation: ISO/IEC 17025-compliant reporting with uncertainty budgets per GUM (JCGM 100)
• Research on low-temperature flow behavior: characterization of wax crystallization onset and gel point via controlled cooling ramps
• Quality control in additive manufacturing feedstocks: thermal stability screening of high-viscosity resins and metal suspensions

FAQ

Does the SVM 3001 require separate calibration for viscosity and density measurements?
No. The Stabinger principle and oscillating U-tube densitometry are intrinsically calibrated via geometry and fundamental physical constants. Only periodic verification using certified reference materials (e.g., NIST SRM 2783 for viscosity, SRM 850b for density) is required per ISO/IEC 17025.
Can the instrument measure samples containing suspended solids or magnetic particles?
Yes—when equipped with the optional Magnetic Particle Trap (MPT), the SVM 3001 reliably handles engine oil wear debris, catalyst slurries, and ferrofluids without clogging or signal drift.
Is external refrigeration mandatory to reach −60 °C?
Yes. The built-in Peltier cooler achieves −20 °C; operation below that requires an external chiller delivering −60 °C glycol/water mixture at ≥1.5 L/min flow rate.

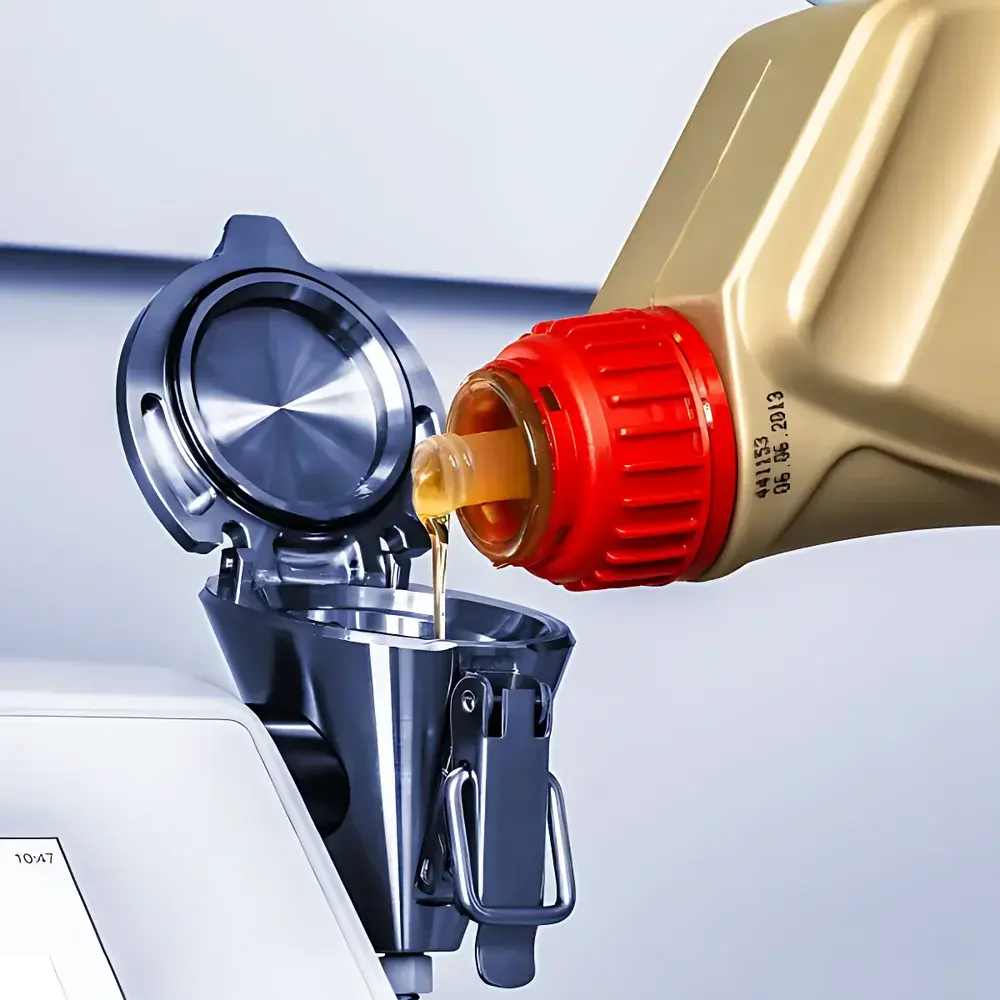

What sample preparation is required prior to injection?
Minimal: filtration through 8 µm mesh is recommended for used oils; degassing is unnecessary due to the instrument’s vacuum-assisted filling sequence and bubble-detection algorithm.
How does the SVM 3001 ensure compliance with FDA 21 CFR Part 11?
Through configurable electronic signatures, time-stamped audit logs with immutable records of all data modifications, role-based access control, and encrypted local database storage—all validated during factory IQ/OQ protocols.
