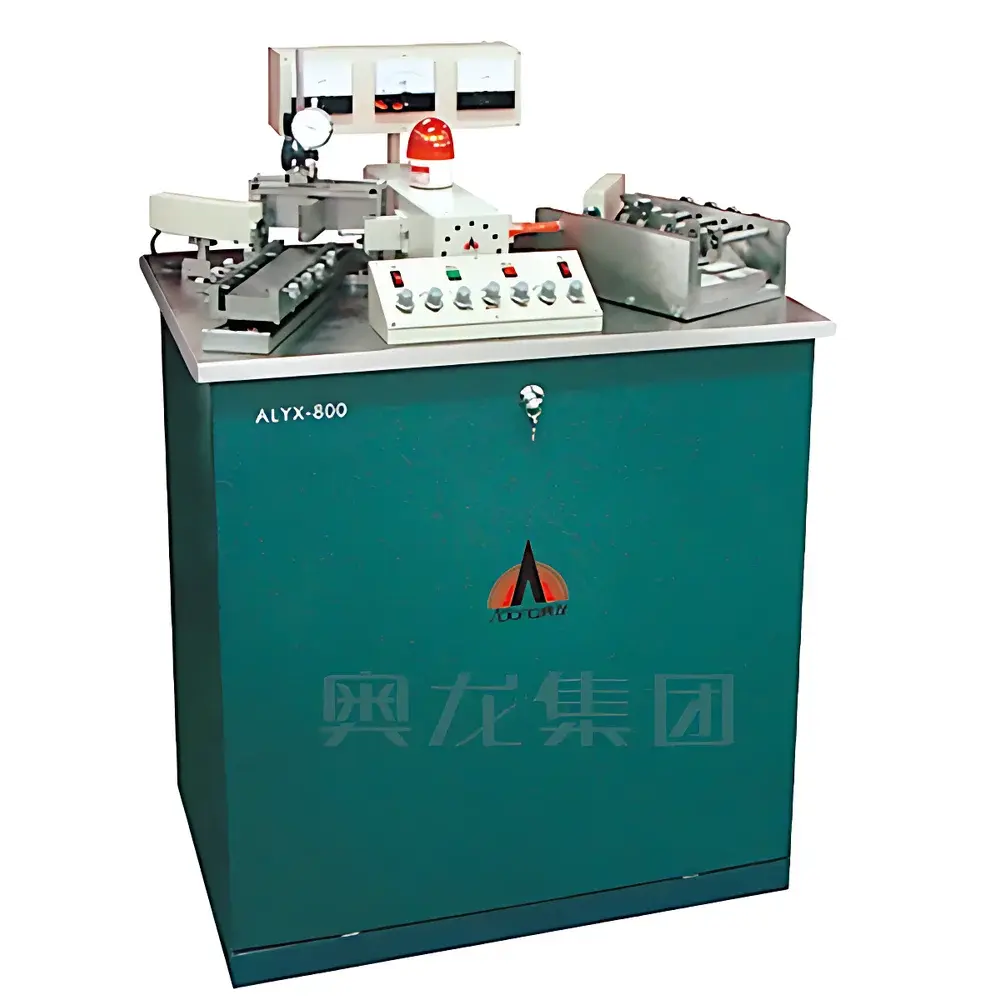

Aolong ALYX-800 Sapphire Adhesive Crystal Orientation Instrument

Overview

The Aolong ALYX-800 Sapphire Adhesive Crystal Orientation Instrument is a dedicated X-ray diffraction-based alignment system engineered for high-precision angular orientation of sapphire crystal rods prior to adhesive bonding in boule fabrication workflows. Unlike general-purpose X-ray diffractometers, the ALYX-800 employs a fixed-angle Bragg geometry optimized for rapid, repeatable identification of key crystallographic planes—particularly the (0001) basal plane and common prism planes (e.g., {10-10}, {11-20})—in single-crystal sapphire (α-Al₂O₃). Its operational principle relies on monochromatic Cu-Kα radiation (λ = 0.15418 nm) incident upon the crystal surface; angular displacement of the sample stage is minimized or eliminated, as the instrument is pre-aligned to interrogate specific interplanar spacings via fixed incidence and detection angles. This design prioritizes reproducibility over flexibility, reducing operator dependency and minimizing angular drift during routine production bonding—a critical requirement in LED substrate, optical window, and RF substrate manufacturing where misorientation >0.1° can induce wafer-level strain, epitaxial defect propagation, or cleavage-plane mismatch.

Key Features

• Fixed-angle Bragg configuration calibrated for sapphire’s dominant reflection families, ensuring sub-degree angular resolution without motorized goniometry
• Air-cooled Cu-target X-ray tube operating at 30 kV / 0–5 mA, delivering stable output with minimal thermal drift over extended duty cycles
• Geiger-Müller counter detector with selectable time constants (0.1 s, 0.4 s, 3 s) to balance signal-to-noise ratio and measurement throughput
• Manual optical shutter for precise exposure control, supporting GLP-compliant procedural documentation and operator verification steps
• Robust steel-frame enclosure (910 × 660 × 1220 mm, 150 kg) designed for vibration damping and electromagnetic shielding in shared cleanroom or fab-line environments
• Single-phase 220 V / 50 Hz / 0.3 kW power interface compatible with standard industrial outlets—no external chiller or high-voltage transformer required

Sample Compatibility & Compliance

The ALYX-800 accommodates cylindrical sapphire rods up to Ø80 mm and 200 mm in length, mounted on a precision-machined aluminum holder with adjustable centering screws. While optimized for sapphire, its fixed-angle geometry can be empirically validated for other hexagonal (e.g., SiC, ZnO) or cubic (e.g., MgO, spinel) single crystals when their d-spacing values align closely with sapphire’s targeted reflections. The instrument complies with IEC 61000-6-3 (EMC emission limits) and IEC 61000-6-2 (immunity standards). Radiation safety adheres to national regulatory requirements for Class II X-ray equipment (GBZ 138–2002 in China); all beam paths are fully enclosed with interlocked access panels. Though not FDA 510(k)-cleared or CE-marked for medical use, its mechanical and electrical architecture supports integration into ISO 9001-certified quality systems and satisfies foundational requirements for GMP-aligned crystallographic process validation.

Software & Data Management

The ALYX-800 operates in hardware-controlled mode without embedded software or touchscreen interface—intentionally minimizing firmware complexity and cybersecurity surface area. All operational parameters (tube voltage/current, time constant selection, shutter actuation) are managed via front-panel rotary switches and tactile push-buttons. Analog signal output from the Geiger counter is routed to optional external chart recorders or data acquisition systems (e.g., National Instruments DAQmx) for time-stamped intensity logging. For auditability, users maintain manual logbooks per ISO/IEC 17025 Clause 7.5.2, recording date, operator ID, sample ID, measured peak channel, and pass/fail determination against predefined angular tolerance bands (e.g., ±0.15° for (0001) alignment). No electronic records are generated internally; thus, 21 CFR Part 11 compliance is achieved through procedural controls rather than digital signature enforcement.

Applications

• Pre-bonding orientation verification of sapphire seed rods in Kyropoulos and EFG crystal growth setups
• Quality assurance of off-axis sapphire wafers destined for GaN-on-sapphire epitaxy
• Root-cause analysis of wafer bow or cracking linked to angular misalignment in adhesive lamination stacks
• Calibration reference setup for secondary angle-measurement tools (e.g., laser interferometric goniometers)
• Teaching laboratories demonstrating Bragg’s law and crystal symmetry in materials science curricula

FAQ

Is the ALYX-800 suitable for measuring non-sapphire crystals?
Yes—provided the target crystal exhibits strong Bragg reflections near 2θ ≈ 34.5° (for (0001) sapphire) or 64.5° (for (10-12)) under Cu-Kα irradiation. Empirical recalibration using certified reference crystals is required.
Does the instrument include automated sample positioning?
No. Sample mounting and coarse alignment are manual. The fixed-angle design eliminates need for theta-2theta scanning motors, reducing maintenance and calibration overhead.
What radiation safety documentation is provided?
A full radiation shielding report, interlock schematic, and operator safety checklist compliant with GBZ 138–2002 are supplied with each unit.
Can raw detector counts be exported digitally?
Only via analog voltage output (0–10 V proportional to count rate); no USB, Ethernet, or RS-232 interface is integrated.
Is service support available outside mainland China?
Technical documentation and spare parts (X-ray tube, GM tube, HV supply modules) are distributed globally through authorized Aolong technical partners; on-site service requires advance coordination.
