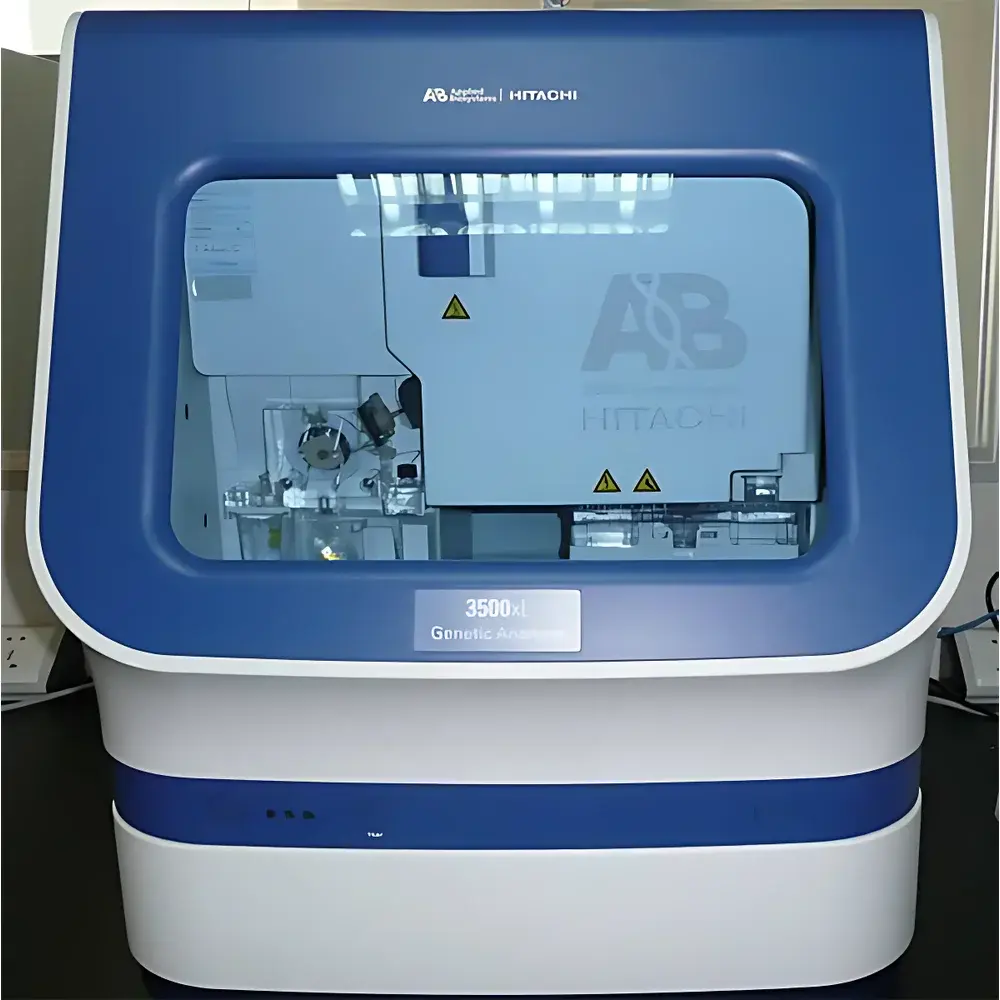

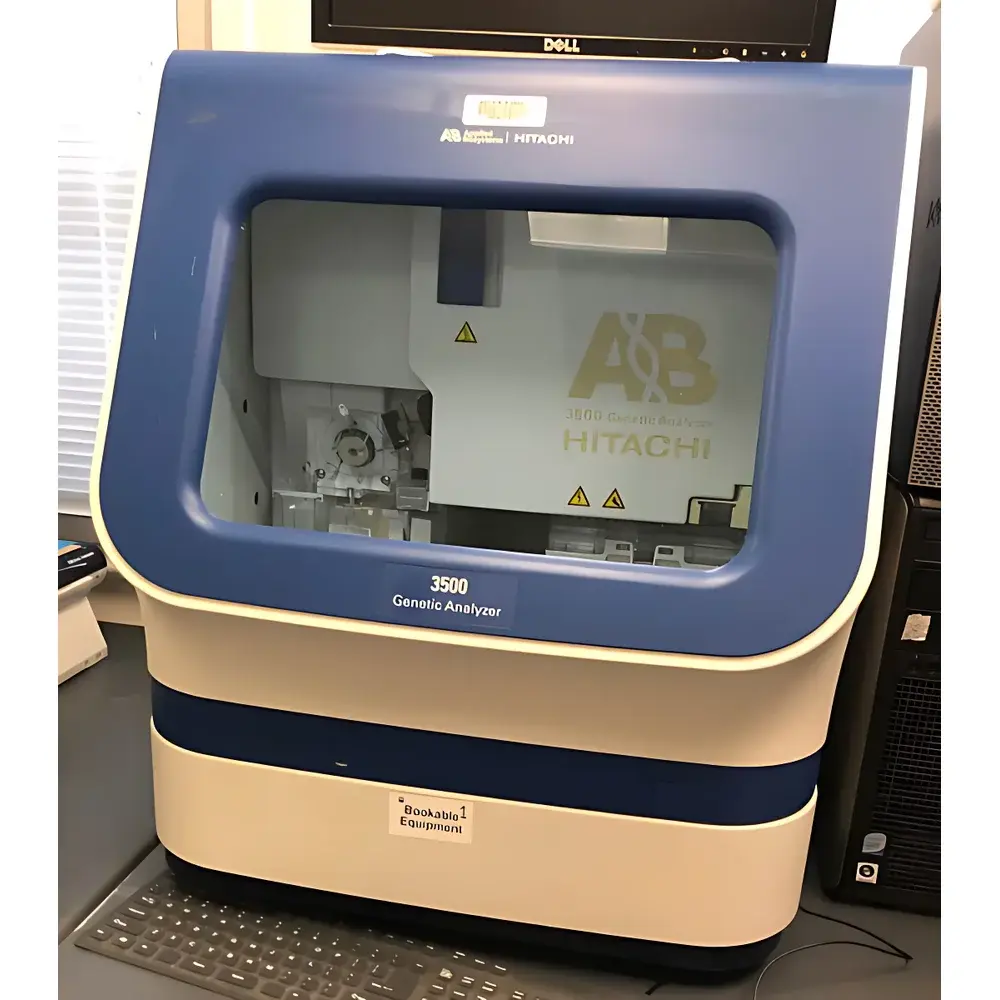

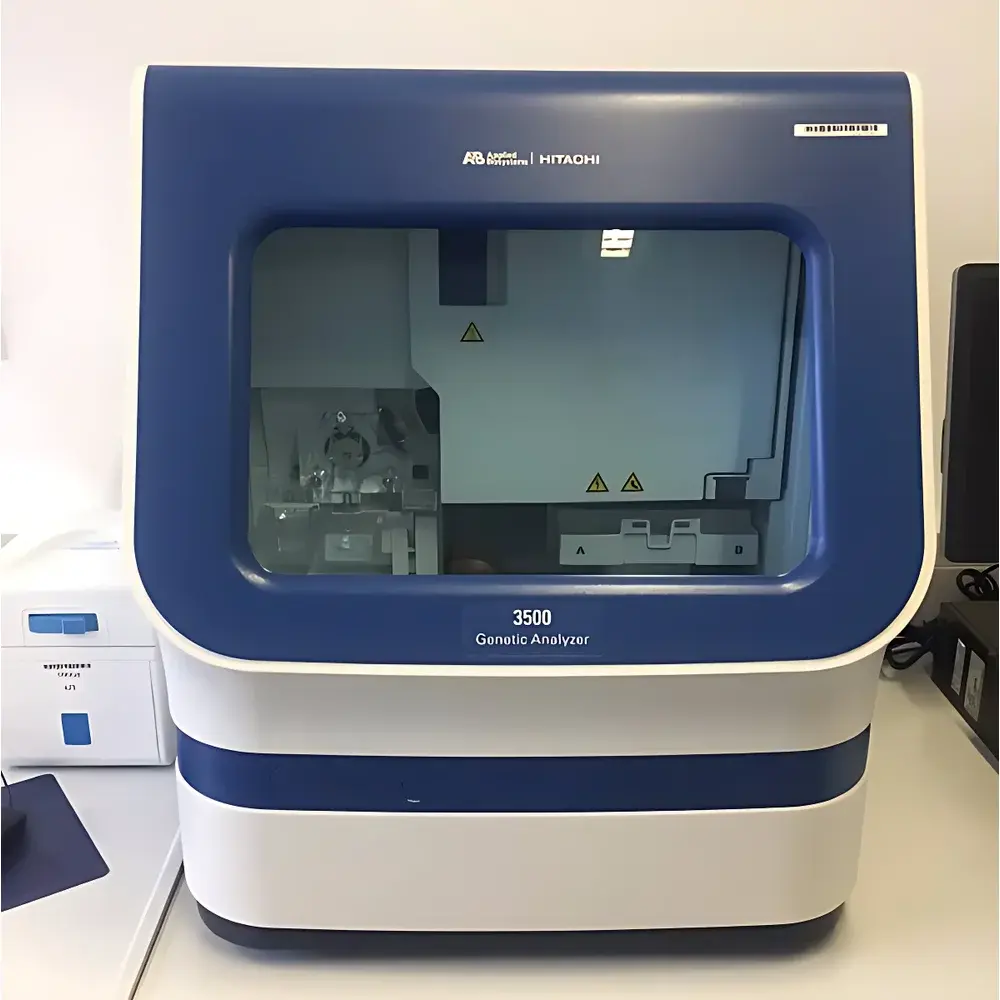

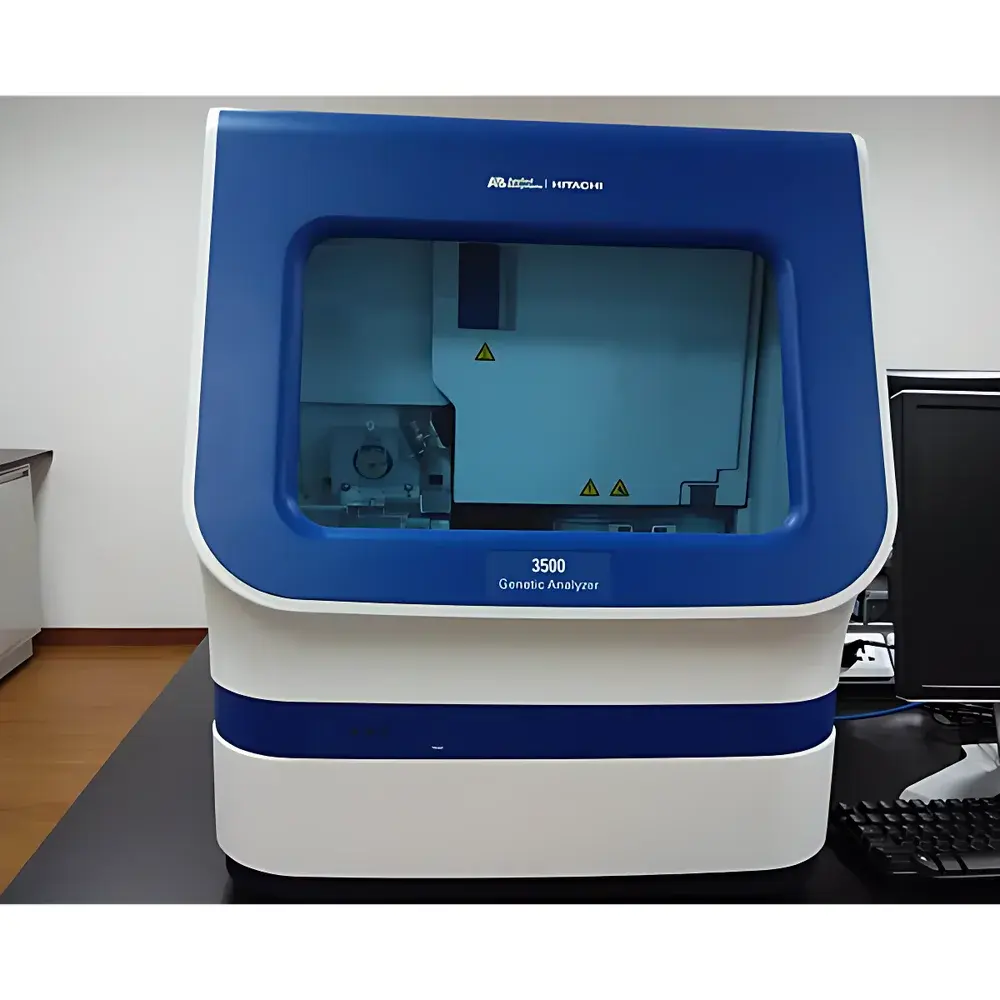

Applied Biosystems ABI 3500/XL Used Genetic Sequencer

Overview

The Applied Biosystems ABI 3500/XL is a high-performance capillary electrophoresis–based genetic sequencer engineered for Sanger sequencing applications. As a validated first-generation platform, it utilizes fluorescent dye-terminator chemistry and laser-induced fluorescence detection to resolve DNA fragments with single-base resolution. The system integrates 24-capillary arrays (ABI 3500) or 48-capillary arrays (ABI 3500XL), enabling scalable throughput while maintaining the gold-standard accuracy and read-length consistency required for clinical validation, plasmid verification, mutation screening, and reference sequence confirmation. Its robust optical architecture—featuring solid-state lasers, high-sensitivity CCD detection, and real-time spectral calibration—ensures reproducible base-calling across diverse sample types and operator environments. Designed for GLP-compliant laboratories, the platform supports audit-ready operation through integrated instrument logs and user-accessible calibration history.

Key Features

• Capillary electrophoresis platform optimized for dye-terminator Sanger sequencing chemistry
• Configurable formats: 24-capillary (ABI 3500) or 48-capillary (ABI 3500XL) array modules
• Integrated thermal cycler for on-instrument PCR setup and post-PCR cleanup compatibility
• Real-time spectral calibration using internal reference dyes (e.g., GS-Rox, GS-LIZ)
• Automated capillary conditioning, polymer loading, and electrokinetic injection protocols
• Onboard data acquisition and base-calling via Data Collection Software v3.x and Sequencing Analysis Software v5.4
• Compliance-ready architecture supporting electronic signatures, audit trails, and user-level access control

Sample Compatibility & Compliance

The ABI 3500/XL accommodates standard Sanger sequencing templates including purified PCR products, plasmid preps, and bacterial colonies (with appropriate colony-pick protocols). It accepts standard 96-well and 384-well plate formats, compatible with common sequencing chemistries such as BigDye Terminator v3.1 and v1.1 Cycle Sequencing Kits. The system meets essential regulatory expectations for analytical instrumentation in regulated environments: raw data files (.fsa) are natively compliant with FDA 21 CFR Part 11 when deployed with validated software configurations and networked authentication. Instrument operation aligns with ISO/IEC 17025 requirements for testing laboratories and supports traceable calibration per manufacturer-recommended intervals. All refurbished units undergo full functional validation—including capillary performance profiling, laser power verification, and baseline noise assessment—prior to delivery.

Software & Data Management

Data acquisition and primary analysis are performed using Applied Biosystems’ native software suite, including Data Collection Software (DCS) v3.0+ and Sequencing Analysis Software (SA) v5.4. These applications support automated base-calling, quality score assignment (Phred QV), and chromatogram visualization. Output formats include standard .fsa (fluorescence signal archive), .ab1 (trace file), and exportable .txt/.csv reports for downstream alignment and annotation. For laboratory information management integration, the platform supports LIMS connectivity via ASCII-based instrument interface protocols. Audit trail functionality records all user actions—including run initiation, parameter edits, and file exports—with timestamps and operator IDs. Backups adhere to ALCOA+ principles: attributable, legible, contemporaneous, original, accurate, complete, consistent, enduring, and available.

Applications

• Clinical molecular diagnostics: confirmation of pathogenic variants in inherited disease panels
• Academic and pharmaceutical research: validation of CRISPR edits, clone verification, and SNP genotyping
• Regulatory submissions: generation of reference-grade sequences for IND/BLA dossiers
• Microbial identification: 16S rRNA and ITS region sequencing for strain-level classification
• Quality control in biomanufacturing: plasmid map verification and vector integrity assessment
• Educational laboratories: hands-on training in electrophoretic separation principles and sequence interpretation

FAQ

Is the ABI 3500/XL compatible with current reagent kits and polymer formulations?

Yes—the platform supports all legacy BigDye Terminator kits and compatible polymers (e.g., POP-7, POP-4) as specified in the original product bulletins. Refurbished units include verified polymer delivery systems and capillary arrays calibrated for optimal resolution.
What documentation accompanies a refurbished unit?

Each system ships with a Certificate of Functional Verification, calibration log summary, maintenance history (where available), and software license transfer documentation. Full traceability records are provided upon request.
Can the instrument be integrated into a modern IT infrastructure?

Yes—it operates on Windows 7/10 (32-bit) environments and supports standard network protocols (TCP/IP, SMB). Remote monitoring and scheduled run initiation are achievable via third-party middleware compatible with ABIs instrument API.
Does the system meet current FDA or CLIA requirements for diagnostic use?

While the hardware itself is not IVD-certified, its validated operational parameters and data integrity features enable use in CLIA-certified labs when deployed within a fully documented SOP framework and supported by ongoing IQ/OQ/PQ validation.
