ASD KA0221 O₂Sense Online Paramagnetic Oxygen Analyzer

Overview

The ASD KA0221 O₂Sense is a high-precision, continuous online paramagnetic oxygen analyzer engineered for demanding industrial process control environments. It operates on the fundamental physical principle of paramagnetism—oxygen molecules exhibit strong magnetic susceptibility in the presence of a non-uniform magnetic field, enabling selective and interference-free quantification without consumables or chemical reagents. Unlike electrochemical or zirconia-based sensors, the paramagnetic detection method delivers inherent linearity, long-term stability, and immunity to background gas composition shifts—critical for applications where trace-level O₂ monitoring must remain unaffected by CO₂, N₂, Ar, H₂, or hydrocarbon vapors. Designed as part of ASD’s proven Sense platform, the KA0221 integrates ruggedized hardware architecture with deterministic real-time firmware, ensuring minimal downtime and compliance-ready operation in 24/7 production settings such as air separation units (ASUs), cryogenic gas plants, and bulk gas filling facilities.

Key Features

• True paramagnetic oxygen sensing core—no drift-prone electrodes or heated elements; measurement based on first-principle physics
• Integrated pressure and temperature compensation algorithms compliant with ISO 8573-1 and ASTM D6299 for volumetric O₂ reporting under variable process conditions
• Advanced analog signal conditioning combined with digital signal processing (DSP) to achieve < ±0.1% O₂ repeatability and detection limit
• Column oven with precise PID-controlled temperature regulation (5 °C to 45 °C), supporting stable retention time for optional GC-coupled configurations
• Industrial-grade embedded OS (Linux-based RTOS) ensuring deterministic I/O response and secure boot integrity
• Three user-configurable dry-contact relays for alarm, fault, or control interlocks—rated for 250 VAC / 5 A resistive load
• Standard 4–20 mA analog output with HART-compatible configuration support; optional Modbus TCP/RTU for SCADA integration
• Ethernet port enabling remote diagnostics, firmware updates, and secure SSH/TLS-based access per IEC 62443-3-3 guidelines

Sample Compatibility & Compliance

The KA0221 is validated for continuous analysis of clean, dry, non-corrosive gas streams with particulate filtration ≤0.1 µm and dew point ≤ −40 °C. It meets IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emissions) for industrial electromagnetic compatibility. When deployed in regulated environments—including FDA-regulated pharmaceutical nitrogen blanketing or ISO 14644-certified cleanroom inerting—the instrument supports audit-ready data integrity via timestamped CSV logs with SHA-256 hash verification. Its calibration workflow aligns with USP <1251>, EP 2.2.43, and ASTM D7607 requirements for documented traceability, including electronic signature support for GLP/GMP-compliant validation protocols.

Software & Data Management

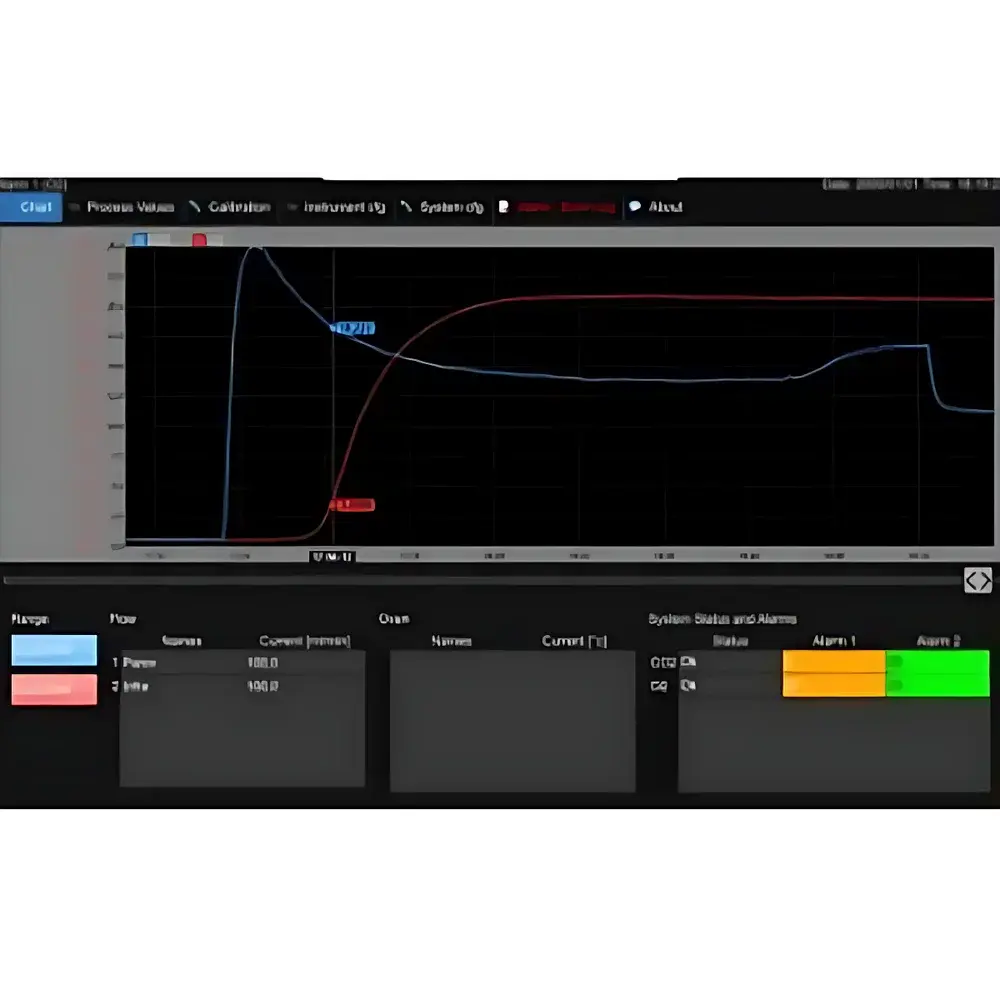

The onboard web interface provides role-based access control (admin/operator/viewer) and full calibration history with metadata (operator ID, ambient conditions, reference gas lot number). All measurements are logged at user-defined intervals (1 s to 1 h) with millisecond-accurate UTC timestamps synchronized via NTP. Data export is native CSV with UTF-8 encoding, compatible with LIMS, MES, and statistical process control (SPC) platforms. Advanced calibration functions include multi-point span verification (up to 5 points), automatic zero drift correction using certified zero gas, and adaptive purge timing triggered by flow-rate and moisture sensor feedback. Audit trails comply with FDA 21 CFR Part 11 requirements, recording all parameter changes, login events, and calibration actions with immutable timestamps.

Applications

• Air separation plant (ASP) product purity verification (liquid O₂, N₂, and argon streams)
• Continuous monitoring of inert gas blankets in chemical reactors and polymerization vessels
• Leak detection and purge verification in vacuum furnaces and semiconductor process chambers
• Quality assurance in medical gas production (USP/NF Grade O₂, N₂, and Air)
• Real-time O₂ control in modified atmosphere packaging (MAP) lines and food freezing tunnels
• Process safety interlocks for oxygen-deficient or oxygen-enriched hazard zones per OSHA 1910.146 and IEC 61511

FAQ

Does the KA0221 require periodic sensor replacement?

No—the paramagnetic sensor has no consumable components and is rated for >10 years of continuous operation under specified environmental conditions.
Can it be integrated into a DCS using standard protocols?

Yes—RS-485 (Modbus RTU) and Ethernet (Modbus TCP) interfaces are standard; optional Profibus DP and Foundation Fieldbus modules are available upon request.
Is calibration traceable to NIST standards?

Yes—calibration gases must be certified to ISO 6141 and accompanied by NIST-traceable certificates; the analyzer stores full calibration chain documentation internally.
What maintenance is required beyond scheduled calibration?

Only quarterly inspection of inlet filters and annual verification of pressure/temperature transducer accuracy—no optical alignment or detector recalibration needed.
How does it handle fluctuating sample pressure?

Integrated absolute pressure and temperature sensors feed real-time compensation coefficients into the O₂ concentration algorithm, ensuring accurate %v/v reporting across ±15% pressure variation from setpoint.
