Asicotech P5100 Explosion-Proof Online Gas Chromatograph

Overview

The Asicotech P5100 Explosion-Proof Online Gas Chromatograph is a compact, fully integrated industrial gas chromatography system engineered for continuous, real-time compositional analysis in hazardous and process-critical environments. Based on capillary or packed column gas chromatography with carrier gas-controlled separation and selective detection, the P5100 employs temperature-programmed elution and multi-channel parallel or sequential analysis architecture to deliver high-resolution separation of permanent gases (H₂, O₂, N₂, CO, CO₂, CH₄), C₁–C₃₀ hydrocarbons, and heteroatom-containing compounds (e.g., sulfur-, nitrogen-, fluorine-, and oxygen-bearing organics). Its certified explosion-proof enclosure (Ex d IIB T4 Gb / Ex tb IIIC T135°C Db per IEC 60079-1 & -31) enables safe deployment in Zone 1/21 and Zone 2/22 classified areas across petrochemical, semiconductor, environmental, and defense sectors.

Key Features

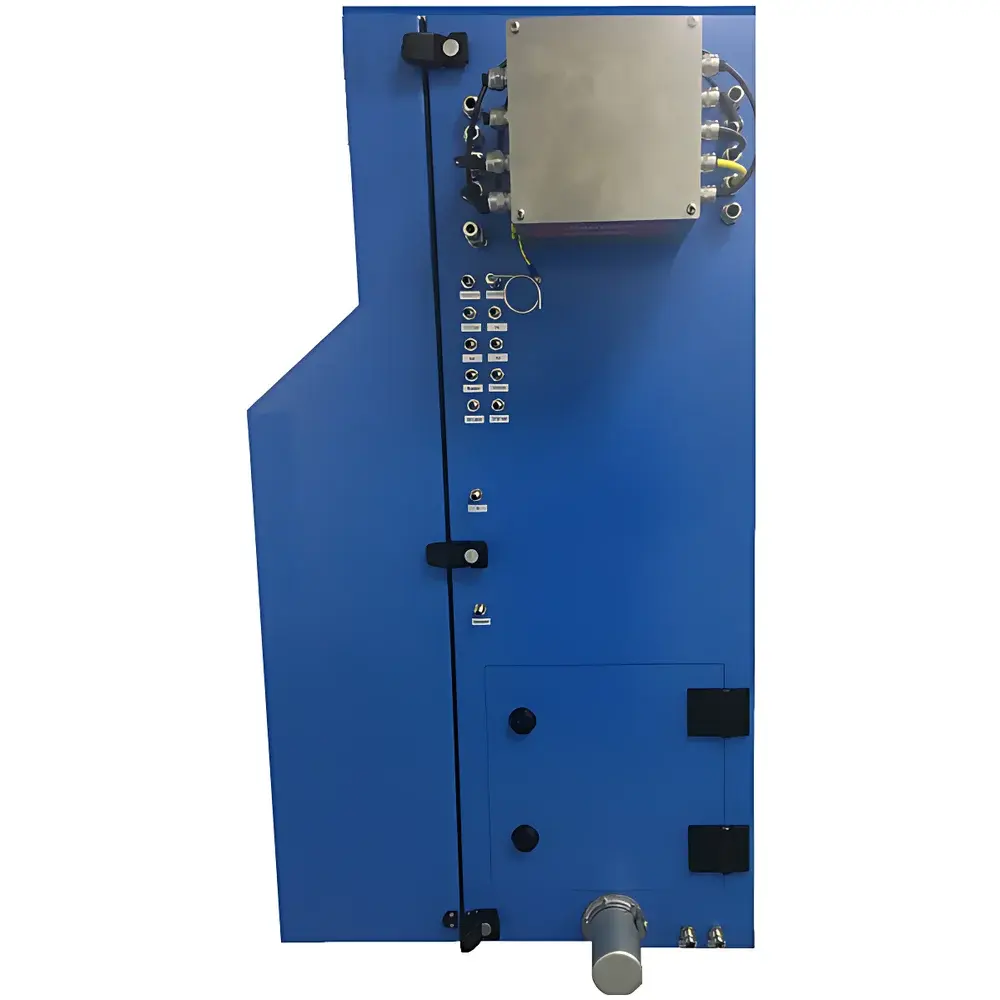

• Ultra-compact monolithic chassis — smallest footprint among fully functional online GC systems globally, optimized for panel-mount or skid-integrated installation
• Modular plug-and-play architecture: interchangeable sample introduction modules (gas/liquid auto-samplers, high-pressure loop injectors, cryo-trap interfaces), multi-zone ovens (up to 4 independently controlled temperature zones), valve manifolds (up to 8-position rotary valves or custom-configured switching sequences), and detector bays supporting concurrent FID, TCD, FPD, SCD, NCD, and PDD configurations
• Embedded industrial-grade computing platform with real-time OS; local HMI touchscreen interface plus remote access via secure web browser (HTTPS), mobile app (iOS/Android), or OPC UA/Modbus TCP integration
• User-customizable chromatographic method templates, display layouts, alarm logic, and report generation — compliant with ISA-88/ISA-95 operational frameworks
• Robust thermal management with PID-controlled oven stability ±0.1°C and rapid cool-down capability (<15 min from 200°C to 40°C)
• Self-diagnostics, automated leak detection, baseline drift compensation, and detector signal normalization algorithms embedded in firmware

Sample Compatibility & Compliance

The P5100 accommodates gaseous samples (0.1–10 mL loop, 0.1–10 MPa pressure rating), liquefied petroleum gas (LPG), light naphthas, syngas, flue gas, ultra-high-purity (UHP) electronic gases (≥99.999% purity), and trace-level environmental air matrices. It meets ISO/IEC 17025 analytical validation requirements for routine calibration verification, retention time locking (RTL), and area precision (RSD <1.5% for major components over 24 h). System design conforms to ATEX 2014/34/EU, IECEx, GB 3836.1–2021, and NEPA 70E electrical safety standards. Optional 21 CFR Part 11-compliant audit trail and electronic signature modules support GLP/GMP-regulated operations in pharmaceutical intermediates or fine chemical manufacturing.

Software & Data Management

ChromVision™ — the proprietary embedded chromatography data system — provides method development, sequence scheduling, peak integration (with adaptive baseline correction), library-based identification (NIST/EPA/Custom libraries), and quantitative reporting (internal standard, external standard, or area normalization). Raw data (.cdf, .dx) and processed reports (.pdf, .csv) are stored locally on encrypted SSD and synchronized to network-attached storage or cloud repositories via TLS 1.3. Role-based user permissions, configurable audit logs (including method changes, calibration events, and manual integrations), and automated backup policies ensure data integrity and regulatory readiness.

Applications

• Petrochemical & Refining: Real-time MTO/MTA/GTO product stream profiling; aromatic fraction monitoring (BTX, C₉⁺); refinery fuel gas composition (C₁–C₅ hydrocarbons + H₂S); tail gas desulfurization efficiency tracking; ethylene glycol synthesis pathway optimization
• Semiconductor & Electronics: Sub-ppb level impurity analysis in Ar, N₂, He, H₂, and specialty gases (NF₃, SiH₄, B₂H₆); moisture and oxygen breakthrough detection in bulk gas delivery lines
• Environmental Monitoring: Continuous ambient air surveillance for CH₄, NMHC, BTEX, Cl-VOCs, H₂S, SO₂, formaldehyde, and acetaldehyde; stack emission compliance testing per EPA Method 18, ISO 10156, and EN 14792
• Defense & Energy: Hydrazine derivative detection in propulsion systems; tritium gas speciation (HT, T₂, HTO); tobacco smoke VOC fingerprinting and food packaging headspace analysis

FAQ

What certifications does the P5100 hold for hazardous area operation?

The system carries IECEx and CCCEx certification for Ex d IIB T4 Gb and Ex tb IIIC T135°C Db protection levels, validated for use in gas group IIB (e.g., ethylene) and dust group IIIC (conductive/non-conductive dusts).
Can the P5100 perform simultaneous multi-detector analysis?

Yes — dual- or triple-detector configurations (e.g., FID+TCD, FPD+SCD) are supported via independent signal acquisition channels and synchronized data logging.
Is remote firmware update and diagnostic support available?

All units include built-in VNC-enabled remote maintenance port with TLS-secured session handshaking; Asicotech’s 24/7 technical center provides real-time troubleshooting and predictive health analytics.
How is method transfer ensured when replacing legacy GC systems?

ChromVision™ supports legacy method import (Agilent ChemStation, Thermo Xcalibur formats) with retention time alignment tools and column database mapping to minimize revalidation effort.
What service life and spare parts availability does Asicotech guarantee?

The P5100 is designed for ≥10 years of continuous operation; critical spares (valves, detectors, ovens) are stocked globally with ≤72-hour dispatch under extended warranty agreements.
