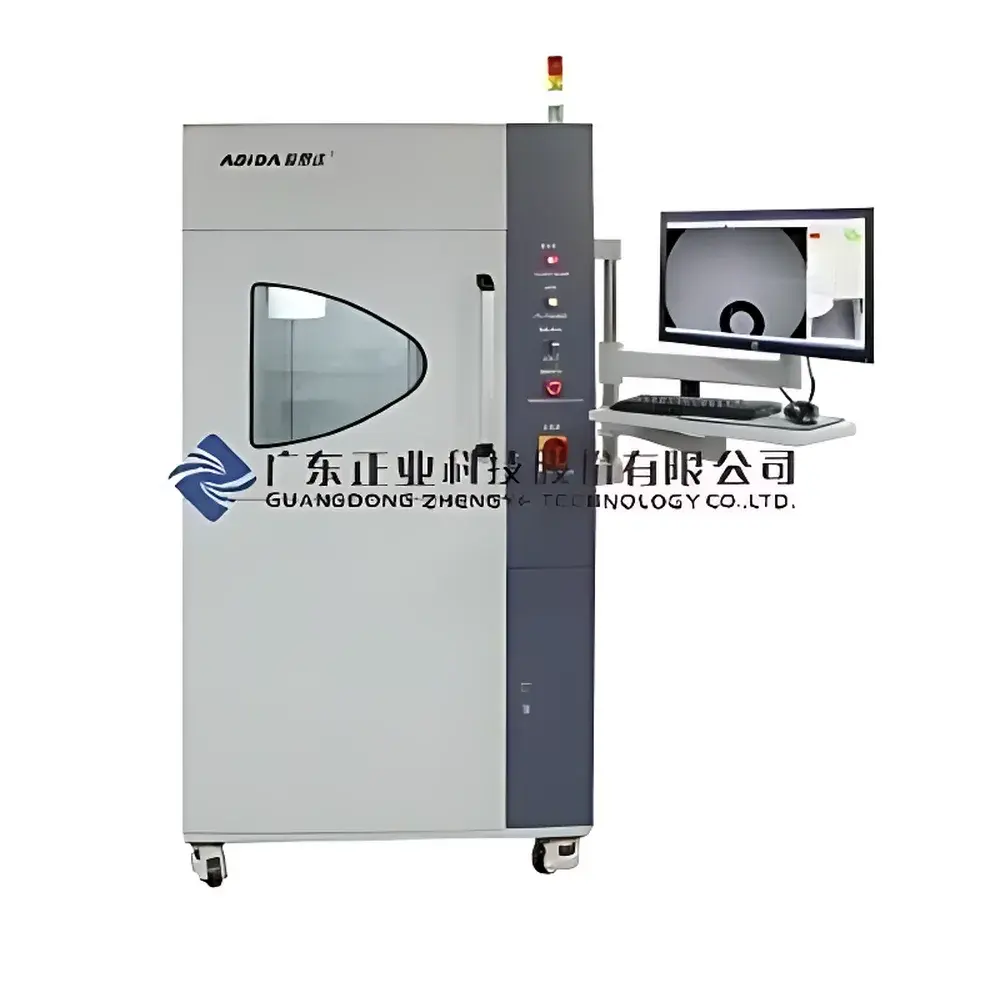

ASIDA XG5000 High-Resolution Microfocus X-ray Radiographic Inspection System

Overview

The ASIDA XG5000 is a high-resolution microfocus X-ray radiographic inspection system engineered for non-destructive evaluation (NDE) of electronic assemblies and precision components. It operates on the principle of differential X-ray attenuation—where photons emitted from a sealed microfocus X-ray tube penetrate materials at varying rates depending on atomic number, density, and thickness—enabling real-time 2D transmission imaging of internal structures without physical disassembly. Designed specifically for high-mix, low-volume to mid-volume production environments, the XG5000 supports critical quality assurance workflows in semiconductor packaging, SMT process validation, BGA/CSP solder joint analysis, and battery cell integrity verification. Its core architecture integrates a stable integrated high-voltage generator with a maintenance-free sealed microfocus X-ray source (target focal spot ≤ 5 µm), delivering consistent beam geometry and long-term intensity reproducibility essential for repeatable defect classification per IPC-A-610 and J-STD-001 standards.

Key Features

• Maintenance-free sealed microfocus X-ray tube with integrated high-voltage power supply—ensures thermal stability, reduced drift, and extended operational lifetime (>8,000 h typical).
• Precision motion control system utilizing ground-precision ball screws and synchronous belt-driven stepper motors—achieving positional repeatability of ±1 µm and smooth sub-pixel stage translation.
• Dual-layer safety architecture: hardware-interlocked door switches trigger immediate X-ray shutdown upon any access panel opening; automatic standby mode activates after 20 minutes of inactivity.
• Real-time interactive imaging interface: mouse-driven digital zoom (via scroll wheel), dynamic centering (click-to-center), on-screen calibrated measurement rulers, and color-coded X-ray enable/disable toggle for unambiguous operational status.
• Integrated tube usage meter with cumulative runtime logging—accessible via main menu for predictive maintenance scheduling and regulatory audit readiness.
• Optional tilt-angle adjustment and auto-navigation path programming—supporting multi-angle tomographic assessment and standardized AOI sequence execution.

Sample Compatibility & Compliance

The XG5000 accommodates samples up to 300 mm × 300 mm × 120 mm (W×D×H) with maximum weight capacity of 5 kg. It is routinely deployed for inspection of BGA/CSP packages (including 0.3 mm pitch devices), flip-chip interconnects, stacked-die modules, lithium-ion pouch/prismatic cells, automotive sensor housings, LED encapsulated arrays, and metal castings (e.g., aluminum wheel hubs). All radiation emission levels comply with FDA 21 CFR §1020.40 (Diagnostic X-ray Systems) and IEC 61331-1:2014 for leakage dose (<1 µSv/h at 5 cm from housing surface). The system meets electromagnetic compatibility requirements per EN 61326-1:2013 and is designed to support GLP/GMP documentation workflows—including user-access logs, parameter change tracking, and image metadata stamping (timestamp, operator ID, magnification, kV/mA settings).

Software & Data Management

The proprietary ASIDA VisionSuite™ software provides ISO/IEC 17025-aligned image acquisition, annotation, measurement, and reporting tools. It supports DICOM 3.0 export for integration into enterprise PACS or LIMS platforms, and includes built-in pass/fail rule engines configurable per IPC-A-610 Class 2/3 criteria. Audit trails record all user actions—including image capture, measurement edits, and system configuration changes—with tamper-resistant timestamps. Raw projection data is stored in lossless TIFF format; compressed JPEG exports include embedded EXIF metadata (kV, µA, exposure time, detector gain, geometric magnification). Software licenses are node-locked and support remote diagnostics via TLS-encrypted SSH tunneling—enabling secure vendor-assisted troubleshooting without exposing internal network infrastructure.

Applications

• Solder joint integrity assessment: void quantification in BGA reflow profiles (per IPC-7095B Annex D), cold solder detection, bridging, and head-in-pillow (HIP) anomaly identification.
• IC package inspection: wire bond lift-off, die attach delamination, mold compound cracks, and cavity contamination in automotive-grade sensors (AEC-Q200 qualified components).
• PCBA process monitoring: component placement accuracy verification, tombstoning detection, and thermal interface material (TIM) distribution uniformity analysis in power electronics modules.
• Battery safety evaluation: anode/cathode foil alignment, separator wrinkling, electrode folding, and foreign particle detection in Li-ion cells prior to formation cycling.
• Plastic & composite part validation: weld line integrity in ultrasonically bonded housings, insert positioning in overmolded connectors, and porosity mapping in injection-molded optical lenses.

FAQ

Does the XG5000 meet FDA radiation safety requirements for industrial X-ray systems?

Yes—the system is certified compliant with FDA 21 CFR §1020.40, including mandatory interlocks, shielding verification reports, and annual leakage testing protocols.
Can the XG5000 perform automated defect recognition (ADR) out of the box?

Basic threshold-based blob analysis is included; AI-powered ADR requires optional ASIDA DeepInspect™ module with pre-trained models for BGA void classification and solder joint morphology segmentation.
Is remote software update and calibration supported?

Firmware updates are delivered via signed USB media; geometric calibration must be performed on-site using NIST-traceable step wedges and resolution test patterns.
What file formats does the system export for traceability in regulated industries?

TIFF (lossless), JPEG (EXIF-embedded), CSV (measurement logs), XML (inspection recipe), and DICOM SR (structured reporting) — all compliant with 21 CFR Part 11 electronic signature requirements when paired with optional PKI authentication module.
How is operator training and service support provided internationally?

ASIDA offers remote instructor-led training (English/Spanish/German), on-site commissioning, and a global partner network for Level 2/3 service; spare parts inventory is maintained in Singapore, Frankfurt, and Dallas distribution hubs.
