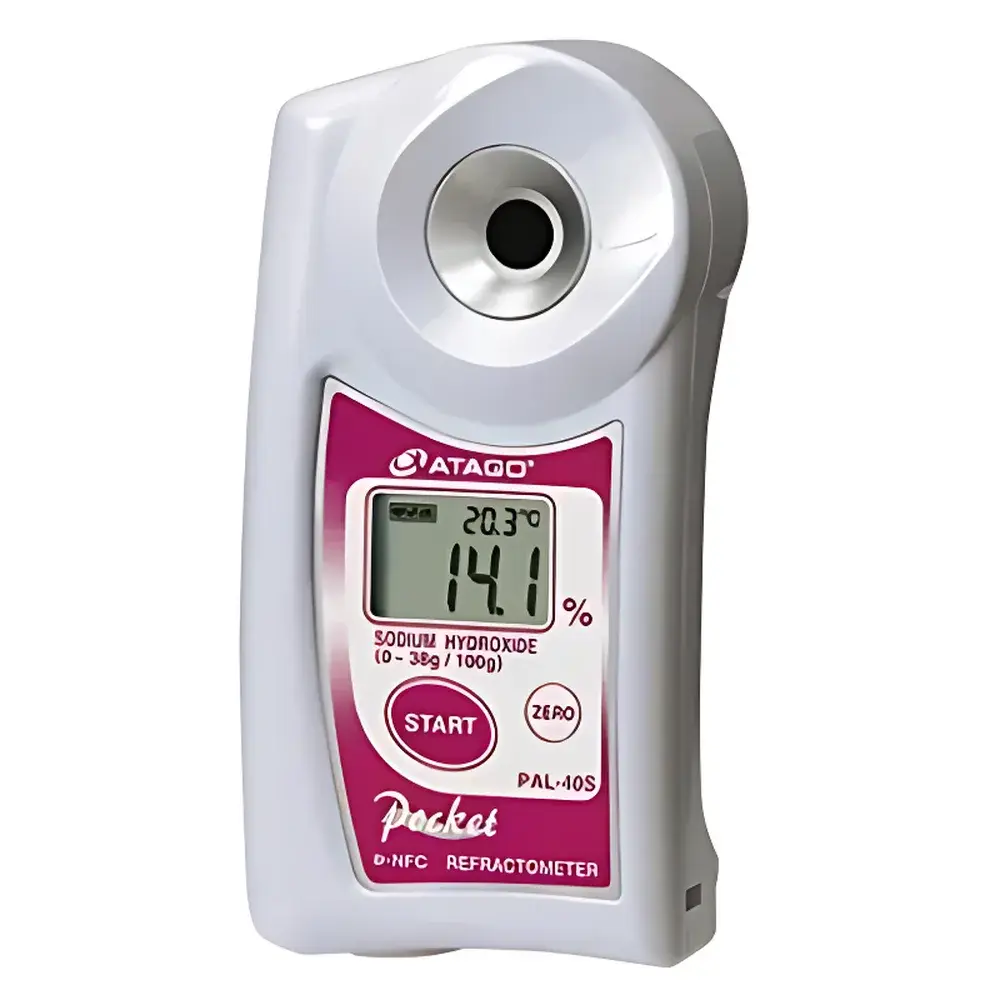

ATAGO PAL-40S Portable Sodium Hydroxide Concentration Refractometer

Overview

The ATAGO PAL-40S Portable Sodium Hydroxide Concentration Refractometer is a precision handheld optical instrument engineered for rapid, field-deployable quantification of aqueous sodium hydroxide (NaOH) solutions. It operates on the principle of critical-angle refractometry: incident light undergoes total internal reflection at the prism-sample interface, with the resulting critical angle directly correlated to the solution’s refractive index—and thus its NaOH mass concentration (w/w %). Unlike generic Brix refractometers, the PAL-40S employs a chemically specific calibration curve traceable to NIST-traceable NaOH reference standards, enabling direct readout in % NaOH—not Brix—eliminating conversion errors and ensuring metrological integrity across industrial process control environments. Its compact, ergonomic design supports single-hand operation and immediate deployment in production lines, wastewater treatment facilities, chemical dosing stations, or laboratory quality assurance workflows.

Key Features

• Direct % w/w NaOH measurement scale—no Brix-to-NaOH conversion required
• Automatic Temperature Compensation (ATC) over 10–35°C using integrated thermistor, minimizing thermal drift in ambient field conditions
• IP65-rated enclosure—dust-tight and protected against low-pressure water jets—suitable for humid, outdoor, or washdown-prone industrial settings
• E.L.I. (External Light Interference) optical shielding system—ensures measurement stability under variable ambient lighting, including direct sunlight
• Distilled water zeroing procedure—simple, repeatable, and traceable to ISO 8655-compliant volumetric standards
• High-contrast LCD with backlight—optimized for readability in low-light factory or field conditions
• Low-power consumption: two AAA batteries provide >10,000 measurements per set, with auto-power-off after 3 minutes of inactivity

Sample Compatibility & Compliance

The PAL-40S is validated for use with clear, homogeneous aqueous NaOH solutions free of suspended solids, oils, or emulsions. It is not suitable for viscous slurries, non-aqueous solvents, or solutions containing glycols or ethanol above 5% v/v, as these alter refractive index behavior outside the calibrated domain. The instrument complies with JIS K 0067 (Japanese Industrial Standard for Refractometers), conforms to IEC 60529 for IP65 ingress protection, and meets RoHS Directive 2011/65/EU for hazardous substance restrictions. While not FDA 21 CFR Part 11–compliant (as it lacks audit trail or user authentication), its measurement traceability supports GLP-aligned documentation when paired with controlled calibration logs and operator training records.

Software & Data Management

The PAL-40S is a standalone, embedded-system instrument with no onboard data logging, Bluetooth, or USB connectivity. All measurements are displayed in real time and must be manually recorded. However, its consistent output format (0.1% resolution, ±0.2% accuracy) enables seamless integration into paper-based or LIMS-integrated QA/QC workflows. For digital traceability, users may pair the device with ATAGO’s optional PAL-PRINT portable thermal printer (sold separately) to generate timestamped, hard-copy measurement reports compliant with ISO/IEC 17025 documentation requirements. Calibration verification can be performed daily using certified NaOH reference solutions (e.g., 5.0%, 15.0%, and 30.0% w/w standards traceable to NIST SRM 1821).

Applications

• Real-time monitoring of caustic soda concentration in pulp & paper digesters and bleach plant circulation systems
• Verification of NaOH strength in semiconductor wafer cleaning baths (SC-1, SC-2 formulations)
• Concentration control during saponification reactions in soap and detergent manufacturing
• Quality assurance of alkaline cleaners used in food processing equipment CIP cycles
• Field verification of neutralization titrant stock solutions in environmental lab mobile units
• Process validation of NaOH dosing in municipal and industrial wastewater pH adjustment systems

FAQ

Does the PAL-40S measure other alkalis like KOH or Na₂CO₃?
No—the optical calibration is specific to NaOH/water binary systems. Using it for KOH or carbonate solutions introduces systematic bias exceeding ±2.0% due to divergent partial molar refraction properties.
Can I use tap water for zeroing?
No—only distilled or deionized water meeting ASTM D1193 Type IV specifications ensures reliable baseline establishment. Tap water contains dissolved ions that elevate refractive index and cause zero drift.
How often should I verify calibration?
Daily verification is recommended before first use and after any temperature excursion beyond 10–35°C. Full recalibration by an ATAGO-certified service center is advised every 12 months or after 5,000 measurements.
Is the prism surface scratch-resistant?
Yes—the sapphire-coated borosilicate glass prism resists abrasion from standard NaOH handling tools but requires cleaning with lens tissue and ethanol—never abrasive cloths or acetone.
Does ATC compensate for sample temperature or ambient temperature?
ATC measures the actual temperature of the sample-prism interface via direct contact thermistor; it does not infer temperature from ambient air readings.
