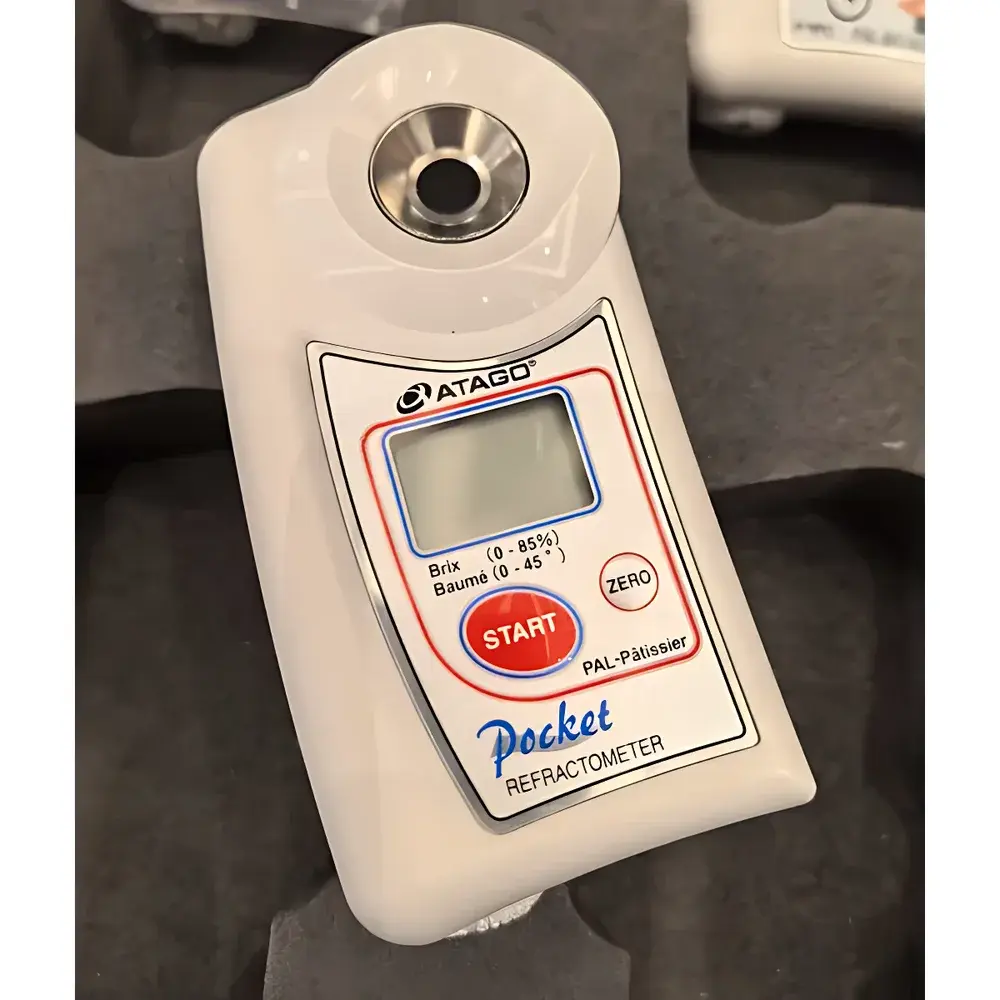

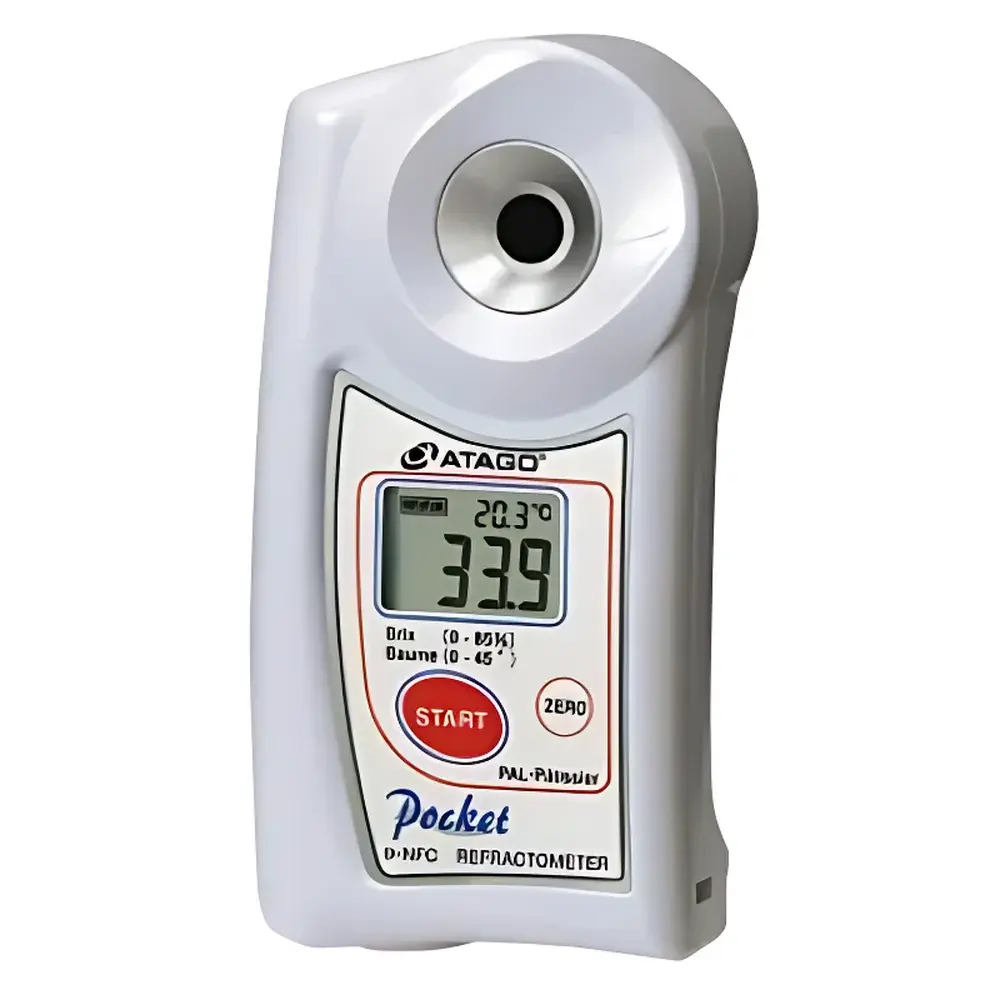

ATAGO PAL-Patissier Bakery-Specific Refractometer
| Brand | ATAGO |
|---|---|
| Origin | Japan |
| Model | PAL-Patissier |
| Measurement Principle | Abbe Refraction (Optical Refractometry) |
| Type | Non-Destructive Handheld Digital Refractometer |
| Brix Range | 0.0–85.0% |
| Baume Scale | 0–45° |
| Brix Resolution | 0.1% |
| Baume Resolution | 1° |
| Brix Accuracy | ±0.2% |
| Baume Accuracy | ±1° |
| Sample Volume | 0.3 mL |
| Measurement Time | 3 s |
| Temperature Compensation | Automatic (10–100°C) |
| Operating Ambient | 10–40°C |
| IP Rating | IP65 |
| Power | 2 × AAA batteries |
| Dimensions | 55(W) × 31(D) × 109(H) mm |
| Weight | 100 g (body only) |
Overview
The ATAGO PAL-Patissier is a purpose-engineered handheld digital refractometer designed specifically for quality control in professional bakery, confectionery, and jam-making operations. It operates on the principle of Abbe refractometry—measuring the refractive index of aqueous sugar solutions to determine solute concentration. Unlike generic refractometers, the PAL-Patissier integrates dual-scale calibration (Brix and Baumé) optimized for high-viscosity, thermally variable matrices encountered during syrup boiling, caramelization, fruit paste reduction, and glaze preparation. Its optical architecture features temperature-compensated prisms and a high-stability LED light source, enabling direct, non-destructive measurement of hot samples up to 100°C without cooling or dilution—critical for real-time process monitoring in dynamic production environments.
Key Features
- Simultaneous dual-scale readout: Brix (0.0–85.0%) and Baumé (0–45°), both calibrated per ISO 2173 and AOAC Official Method 932.12 for sucrose solutions.
- Automatic temperature compensation (ATC) across 10–100°C, eliminating manual correction and ensuring traceable accuracy during thermal transitions typical in sugar cooking.
- Minimal sample requirement (0.3 mL) and rapid 3-second measurement cycle—compatible with small-batch testing and continuous line checks.
- IP65-rated enclosure: dust-tight and protected against low-pressure water jets, supporting rigorous sanitation protocols in food-grade facilities.
- Robust ergonomic design: lightweight (100 g), compact footprint (55 × 31 × 109 mm), and battery-powered operation (2 × AAA) for unrestricted mobility across mixing stations, ovens, and packaging lines.
- No moving parts or consumables—optical path sealed and maintenance-free over extended service life.
Sample Compatibility & Compliance
The PAL-Patissier is validated for use with viscous, particulate-laden, and thermally unstable samples common in artisanal and industrial baking: fruit purées, invert sugar syrups, honey blends, caramelized glucose solutions, fondant bases, and boiled-down jams. It complies with food safety requirements under FDA 21 CFR Part 11 (when paired with ATAGO’s optional data logging software), supports GLP documentation workflows, and meets ISO/IEC 17025 traceability standards when used with certified reference sucrose standards (e.g., NIST SRM 84d). Its non-destructive nature preserves batch integrity and eliminates cross-contamination risk—essential for allergen-controlled environments.
Software & Data Management
While the PAL-Patissier operates as a standalone instrument, it interfaces via optional USB cable with ATAGO’s PAL-Link PC software (Windows-compatible) for automated data capture, statistical analysis (mean, SD, min/max), trend charting, and CSV export. All measurements include embedded timestamp, ambient temperature, and user-defined batch IDs. Audit trails comply with FDA 21 CFR Part 11 requirements—including electronic signatures, password-protected configuration changes, and immutable record retention—supporting regulatory submissions and internal quality audits.
Applications
- Real-time monitoring of sugar syrup boiling endpoints in candying and glazing processes.
- Verification of fruit pulp concentration prior to jam/gelée setting to ensure consistent pectin interaction and shelf-life stability.
- Standardization of invert sugar addition in laminated doughs to control fermentation rate and crumb structure.
- QC verification of honey adulteration resistance by comparing measured Brix/Baumé ratios against regional reference profiles.
- Batch-to-batch consistency validation for chocolate ganache, caramel fillings, and marzipan bases where viscosity and sweetness balance directly impact texture and mouthfeel.
- Training and SOP development for junior bakers—visual scale correlation aids intuitive understanding of concentration–temperature–viscosity relationships.
FAQ
Is the PAL-Patissier suitable for measuring hot sugar syrups directly from the kettle?
Yes. Its ATC system is validated for samples between 10°C and 100°C; no pre-cooling is required.
Does it require recalibration before each use?
No. Factory calibration remains stable under routine use; verification with distilled water (0.0% Brix) and 30% sucrose standard is recommended daily per HACCP protocols.
Can it measure non-sucrose-based sweeteners like glucose or fructose syrups?
It reports apparent Brix values; for precise quantification of non-sucrose sugars, users must apply empirically derived correction factors based on known refractive index deviations.
How does its accuracy compare to laboratory-grade benchtop refractometers?
Its ±0.2% Brix accuracy meets AOAC acceptance criteria for in-process QC; while benchtop instruments offer higher resolution, the PAL-Patissier delivers field-equivalent precision with superior operational flexibility.
Is the prism surface resistant to scratching from coarse fruit particles?
The sapphire-coated prism provides Mohs 9 hardness—resistant to abrasion from seeds, pulp fragments, or crystalline sugar residues when cleaned with soft lint-free cloth and distilled water.
