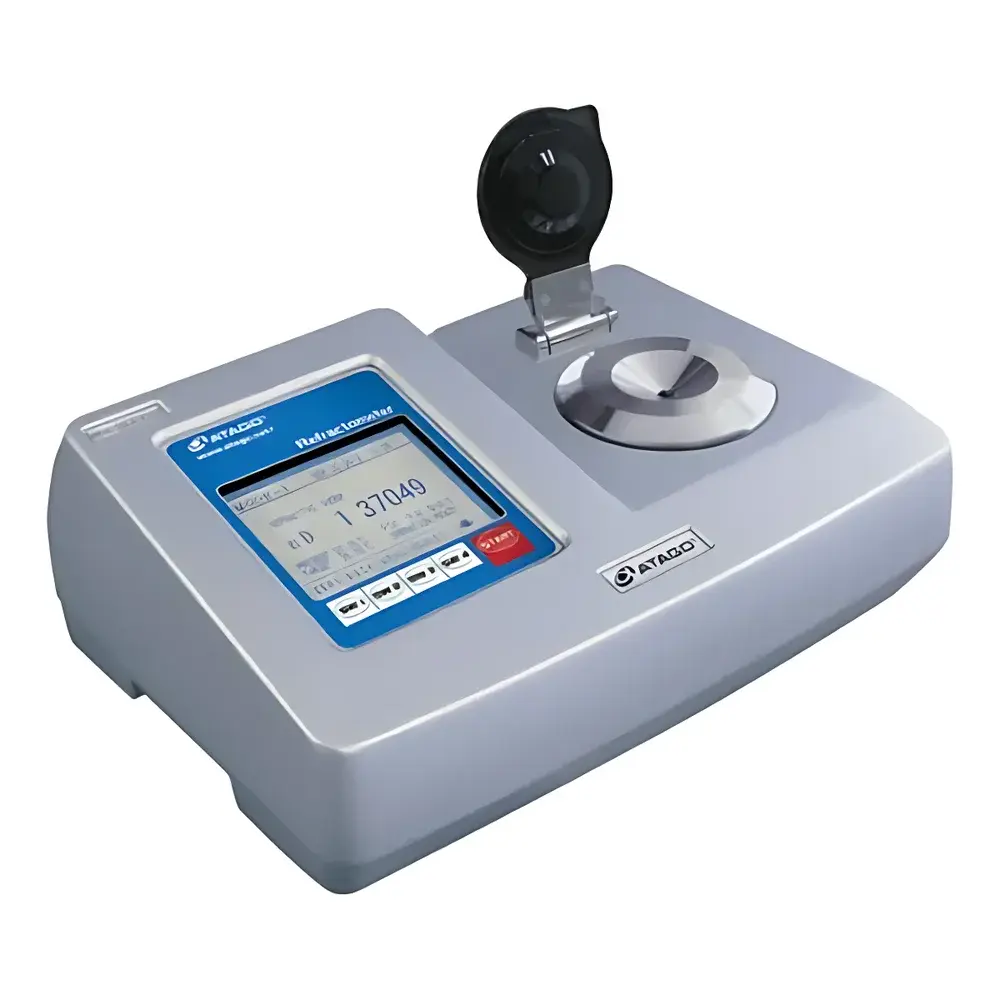

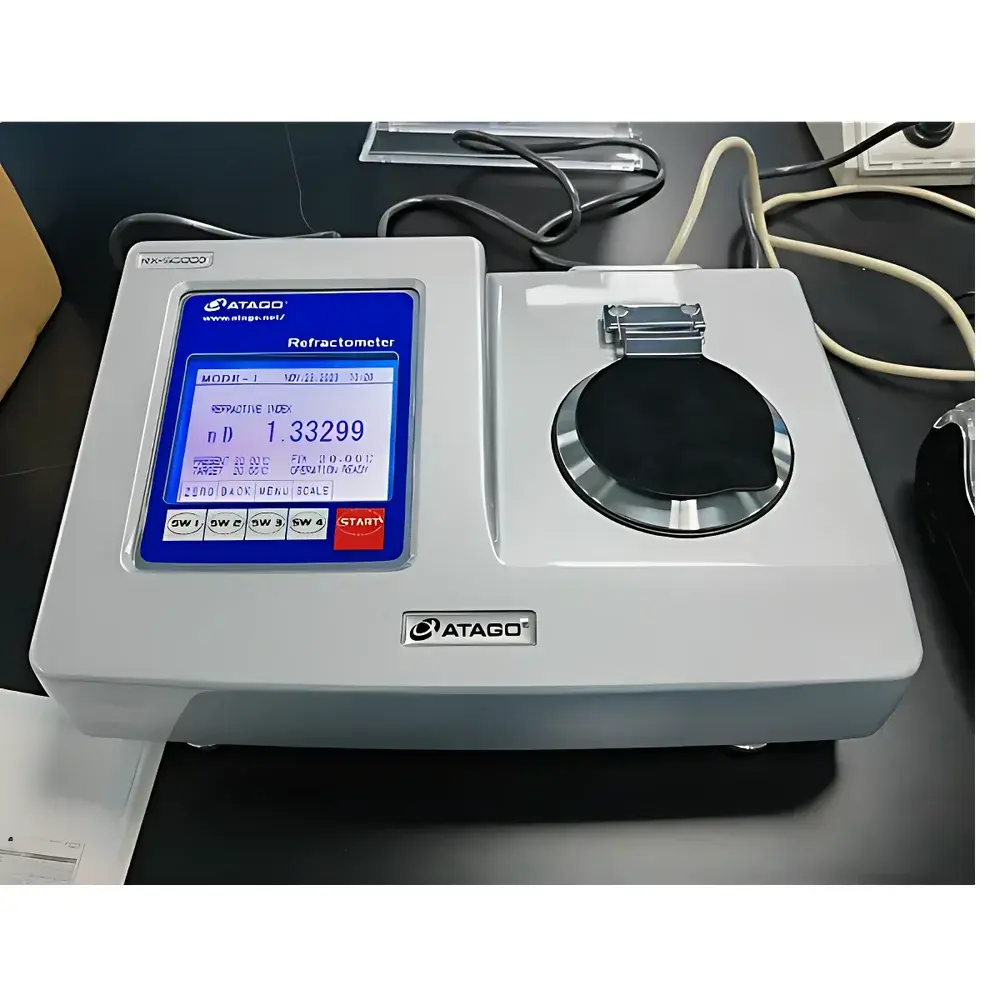

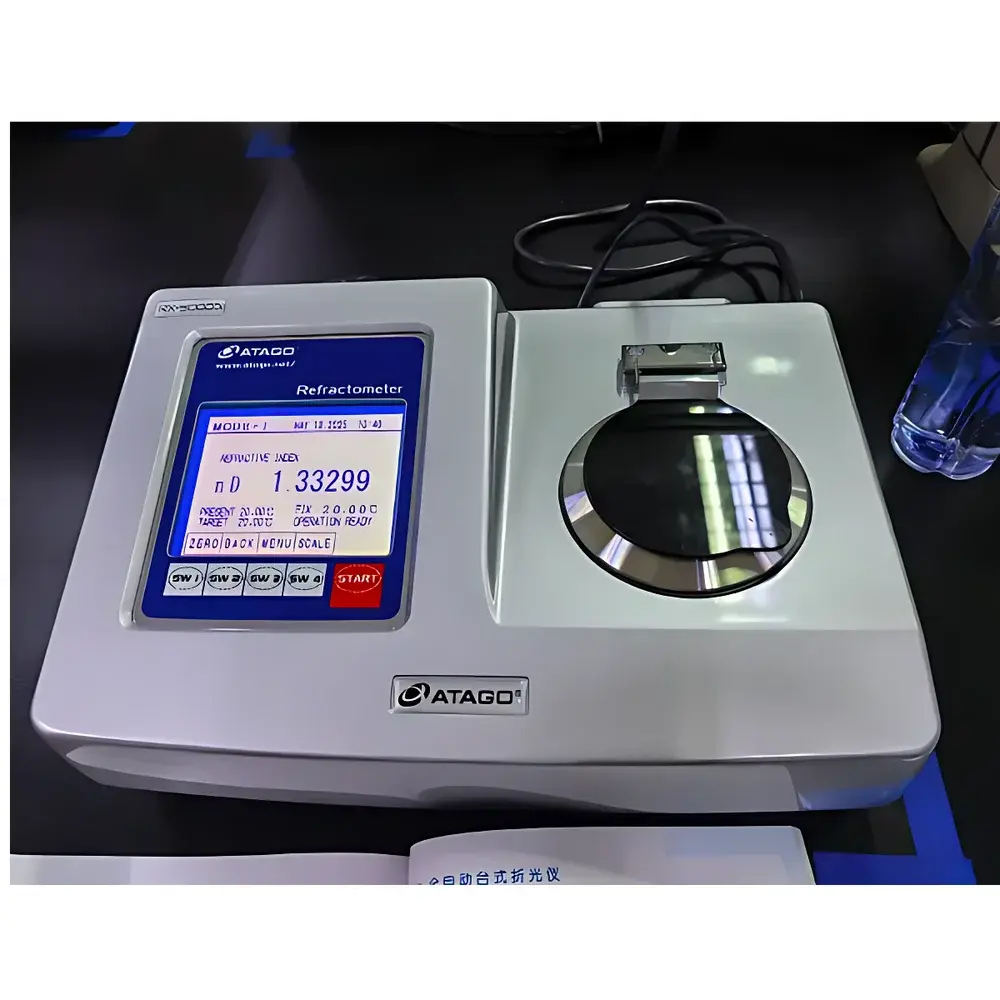

ATAGO RX-5000α Automated Digital Refractometer

Overview

The ATAGO RX-5000α Automated Digital Refractometer is a high-precision benchtop instrument engineered for rigorous quantitative analysis of refractive index (n_D) and soluble solids content (Brix %) in liquid samples. Based on the principle of total internal reflection at the prism–sample interface, the RX-5000α employs a high-stability LED light source and a precision-positioned photodetector array to determine the critical angle of refraction with sub-microsecond response time. Its optical path is sealed and thermally stabilized, minimizing drift during extended operation. Designed specifically for quality control and routine analytical laboratories, the instrument integrates a built-in Peltier temperature control module—eliminating reliance on external water baths—and delivers traceable, ISO/IEC 17025-aligned measurements across a broad operational temperature range (5.00–60.00 °C). The device meets fundamental metrological requirements for calibration traceability to NIST-certified reference standards and supports full auditability under regulated environments.

Key Features

• Four programmable measurement modes: MODE-1 (temperature-equilibrated precision mode), MODE-2 (interval-sampled dynamic tracking), MODE-3 (ambient-temperature rapid mode, result in ≤4 seconds), and MODE-S (stability-triggered acquisition for volatile or thermally sensitive samples)
• Integrated Peltier temperature control with ±0.05 °C accuracy and 0.01 °C resolution, enabling precise thermal stabilization without auxiliary cooling systems
• Synthetic sapphire prism and SUS316 sample stage—chemically inert, scratch-resistant, and compatible with aggressive solvents, acids, and high-Brix syrups
• High-resolution digital display (0.00001 n_D, 0.01% Brix) with real-time temperature readout and status indicators for measurement readiness and thermal equilibrium
• RS-232C serial interface compliant with ANSI/TIA/EIA-232-F standards for direct connection to laboratory printers and LIMS-compatible data acquisition software
• Compliance-ready architecture supporting FDA 21 CFR Part 11 requirements—including electronic signatures, audit trails, and user-access controls—when used with ATAGO’s validated data management software

Sample Compatibility & Compliance

The RX-5000α accommodates aqueous solutions, fruit juices, soft drinks, dairy products, pharmaceutical syrups, chemical reagents, and industrial coolants—provided they are optically homogeneous and non-opaque. Samples with suspended particulates or high viscosity (>1000 mPa·s) require pre-filtration or dilution to avoid prism contamination and measurement scatter. The instrument conforms to key international standards including ISO 21745:2021 (refractometric determination of soluble solids), ASTM D1218 (refractive index of hydrocarbon liquids), and USP (refractometry for pharmaceutical excipients). Its design supports GLP and GMP workflows through configurable user roles, tamper-evident data logs, and exportable CSV/Excel reports with embedded timestamps, operator IDs, and environmental metadata (temperature, humidity, calibration status).

Software & Data Management

Factory-supplied ATAGO Data Manager software provides full 21 CFR Part 11 compliance functionality: role-based access control (administrator, analyst, reviewer), electronic signature capture, immutable audit trails, and automatic backup of all measurement events—including raw sensor output, calculated values, and thermal profiles. Data integrity is enforced via SHA-256 hashing of each record; modifications trigger new versioning rather than overwrites. The software supports batch reporting, statistical process control (SPC) charting (X-bar/R, Cpk), and integration with enterprise LIMS platforms via ODBC or HL7 interfaces. All calibration records—including date, standard lot number, technician ID, and deviation logs—are stored within the same secure database structure.

Applications

• Food & Beverage QC: Brix verification in orange juice, maple syrup, wine must, and soft drink concentrates per AOAC Official Method 932.12
• Pharmaceutical Manufacturing: Excipient concentration checks in oral suspensions and ophthalmic solutions per USP monographs
• Chemical Process Monitoring: Ethanol–water ratio validation in solvent recovery streams
• Agricultural Research: Soluble solids quantification in plant sap for drought stress assessment
• Biotechnology: Cell culture media osmolality estimation via correlated Brix–osmolarity regression models
• Academic Teaching Labs: Hands-on instruction in optical metrology, thermodynamics of solution behavior, and uncertainty propagation in refractometric analysis

FAQ

Does the RX-5000α require external water circulation for temperature control?
No. It features an integrated Peltier thermoelectric module capable of active heating and cooling between 5.00 °C and 60.00 °C without auxiliary equipment.
Can the instrument measure non-aqueous samples such as glycerol or ethylene glycol?
Yes—provided the sample is transparent and does not exceed the refractive index upper limit (1.58000 n_D). Calibration with certified reference materials specific to the solvent matrix is recommended.
Is calibration traceable to national standards?
Yes. ATAGO supplies NIST-traceable sucrose standard solutions (e.g., SRM 84d, 30%, 60%, 90% w/w) with certificate of analysis; instrument calibration procedures are documented per ISO/IEC 17025 clause 6.6.
How is measurement repeatability verified during routine use?
Repeatability is assessed daily using a certified control standard; the RX-5000α’s internal diagnostics log includes standard deviation calculations across five consecutive measurements, automatically flagged if >0.00002 n_D or >0.01% Brix.
What maintenance is required to ensure long-term optical accuracy?
Daily prism cleaning with lint-free wipes and spectroscopic-grade ethanol; annual verification of Peltier thermal response and photodetector linearity by authorized ATAGO service centers.
