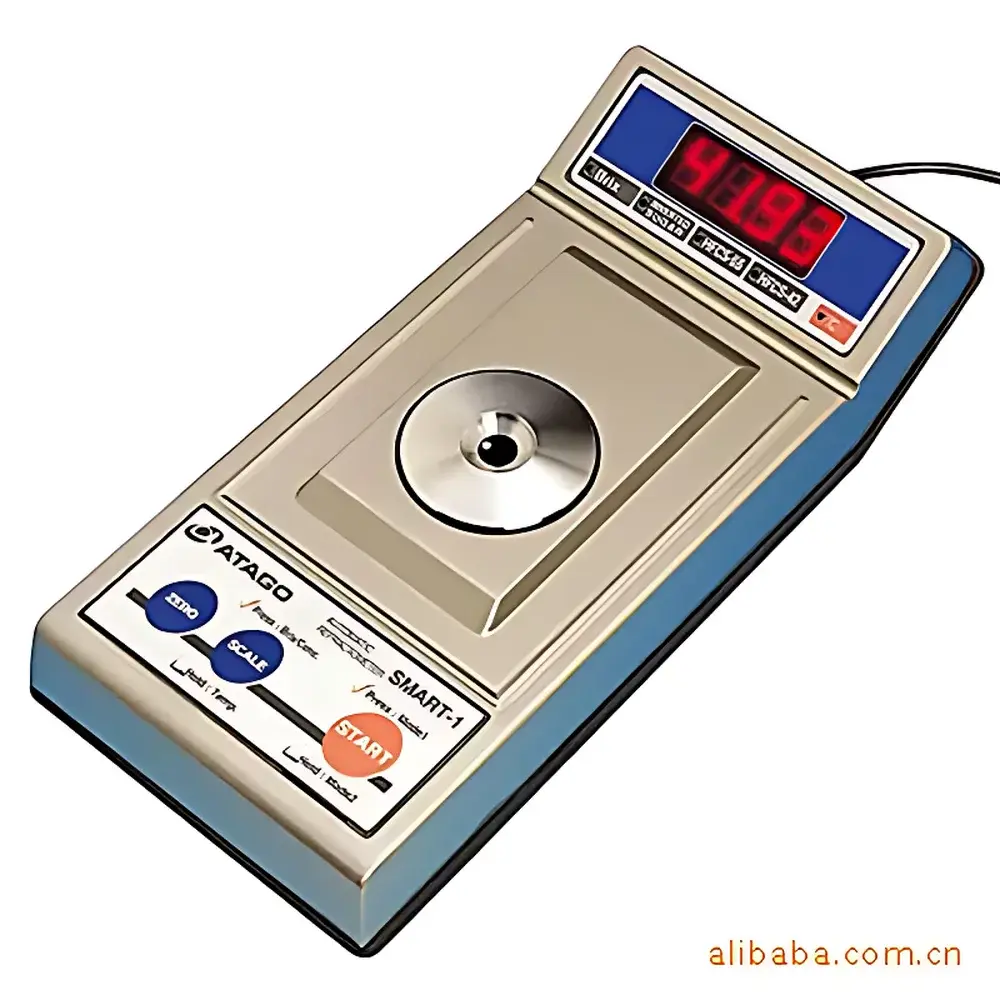

ATAGO SMART-1 Desktop Digital Refractometer
| Brand | ATAGO |
|---|---|
| Origin | Japan |
| Model | SMART-1 |
| Product Type | Benchtop Refractometer |
| Display | Digital LCD |
| Measurement Range | 0.00–95.00 % Brix |
| Temperature Range for Measurement | 5.00–40.00 °C |
| Temperature Compensation | Automatic (ATC, based on built-in thermistor) |
| Compliance | ISO 2173, AOAC 932.12, ICUMSA Methods |
Overview
The ATAGO SMART-1 is a benchtop digital refractometer engineered for high-precision, repeatable measurement of soluble solids concentration expressed as % Brix in liquid and semi-liquid samples. It operates on the fundamental optical principle of total internal reflection: incident light passes through a sapphire prism in contact with the sample; the critical angle of refraction shifts proportionally to the sample’s refractive index, which correlates directly with dissolved sugar content under standardized conditions. Unlike handheld or analog units, the SMART-1 integrates a temperature-compensated optical path and real-time thermistor-based correction—ensuring traceable, laboratory-grade consistency without manual calibration adjustments across its operational range of 5.00–40.00 °C. Designed for routine QC environments in food & beverage production, juice processing, confectionery R&D, and academic food science labs, the instrument delivers stable readings compliant with internationally recognized reference methods including ISO 2173 (fruit juices), AOAC Official Method 932.12 (sugar solutions), and ICUMSA standard procedures for sucrose analysis.
Key Features
- High-resolution digital LCD display showing % Brix to two decimal places (0.00–95.00)
- Integrated temperature sensor with automatic temperature compensation (ATC) aligned to the D-line (589.3 nm) sodium wavelength standard
- Durable sapphire measuring prism—chemically inert, scratch-resistant, and compatible with acidic, alkaline, and viscous samples
- Zero-point calibration function using distilled water at ambient temperature, supporting daily verification per GLP practice
- Benchtop ergonomic housing with non-slip base and recessed sample stage for spill containment
- Low-power consumption design suitable for continuous operation in regulated manufacturing environments
Sample Compatibility & Compliance
The SMART-1 accepts aqueous solutions containing sucrose, glucose, fructose, invert sugar, and other optically active solutes where refractive index correlates linearly with concentration. It is validated for use with fruit juices, soft drinks, syrups, jams, honey, dairy whey, and fermentation broths—provided samples are particle-free and non-opalescent. Turbid or suspended-phase samples require centrifugation or filtration prior to analysis. The instrument conforms to metrological requirements outlined in ISO/IEC 17025 for testing laboratories and supports audit-ready documentation when paired with external data logging systems. While the SMART-1 itself does not embed FDA 21 CFR Part 11 functionality, its analog output (0–5 V DC) and RS-232 interface enable integration into validated LIMS or SCADA architectures where electronic records and operator authentication are enforced.
Software & Data Management
The SMART-1 operates as a standalone instrument with no embedded software stack or touchscreen UI. Measurement data is displayed in real time on the front-panel LCD and can be transmitted via RS-232 serial communication to host PCs running third-party data acquisition platforms (e.g., LabVIEW, MATLAB, or custom Python scripts). Optional ATAGO-recommended software—such as PAL-Link—enables batch export of timestamped Brix values, statistical summaries (mean, SD, CV%), and basic trend visualization. All exported datasets retain native resolution and associated temperature metadata, facilitating retrospective review during internal quality audits or regulatory inspections under GMP or HACCP frameworks.
Applications
- Real-time Brix monitoring during juice concentration and evaporation stages in beverage plants
- Raw material acceptance testing for sugar syrups, corn syrup solids, and malt extracts
- In-process control of jam, jelly, and marmalade boiling endpoints
- Stability assessment of flavored beverage concentrates across shelf-life studies
- Teaching laboratory demonstrations of colligative properties and refractive index relationships
- QC release testing for honey authenticity screening (in conjunction with additional assays such as C4/C3 isotopic ratio or HMF analysis)
FAQ
Does the SMART-1 require periodic recalibration with certified Brix standards?
Yes—ATAGO recommends verification with NIST-traceable sucrose standard solutions (e.g., 10.00 % and 50.00 % Brix) at least once per shift in high-volume production settings, or daily in regulated labs.
Can the SMART-1 measure non-sugar solutes like salt or ethanol accurately?
No—the scale is calibrated exclusively for sucrose-equivalent Brix. Salts, alcohols, or acids yield non-linear deviations; dedicated refractometers with chemical-specific scales or density meters are required.
Is cleaning the sapphire prism compatible with common lab detergents?
Yes—use lint-free wipes moistened with deionized water or 70 % isopropyl alcohol; avoid abrasive pads, acetone, or chlorinated solvents to preserve prism surface integrity.
What is the minimum sample volume required for a valid reading?
Approximately 0.3 mL is sufficient to fully cover the prism surface; excess volume drains passively via the integrated channel design.
Does the SMART-1 support GLP-compliant user access control or electronic signatures?
No—user authentication and audit trail generation must be implemented externally via connected data systems adhering to 21 CFR Part 11 or EU Annex 11 requirements.
