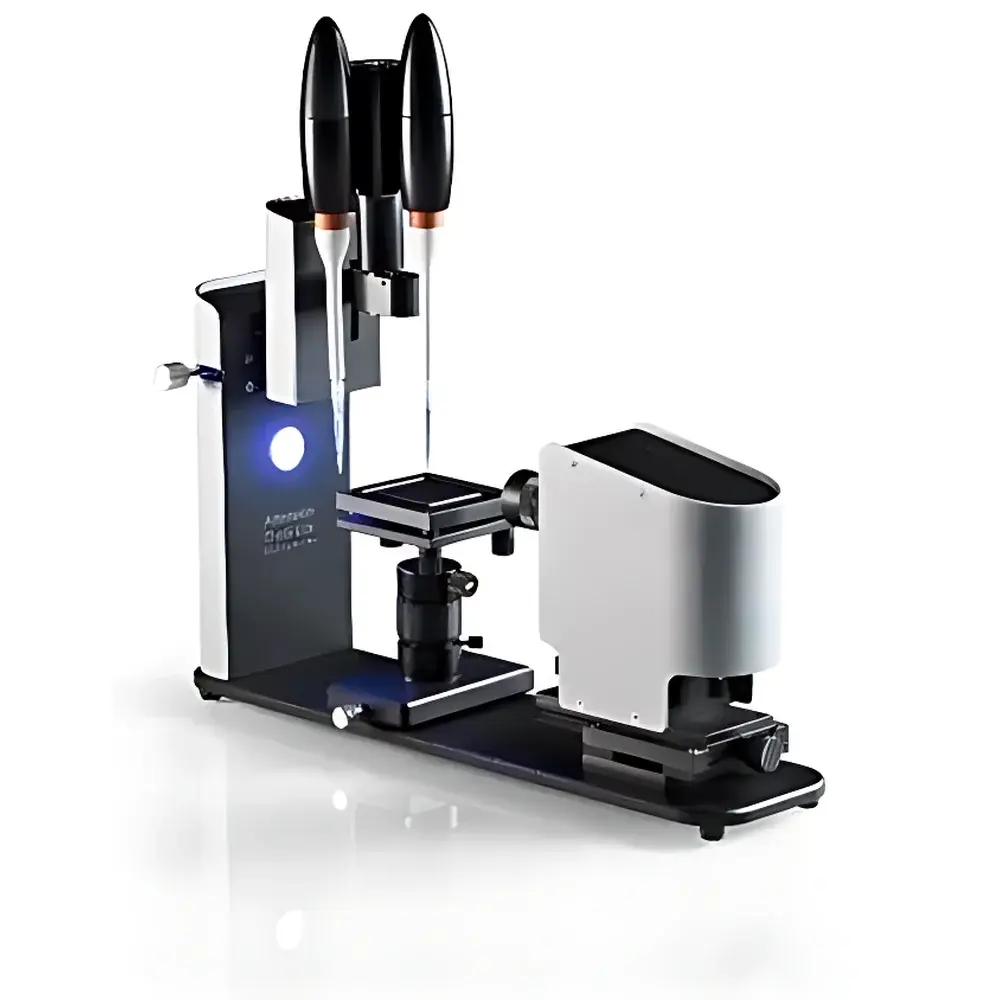

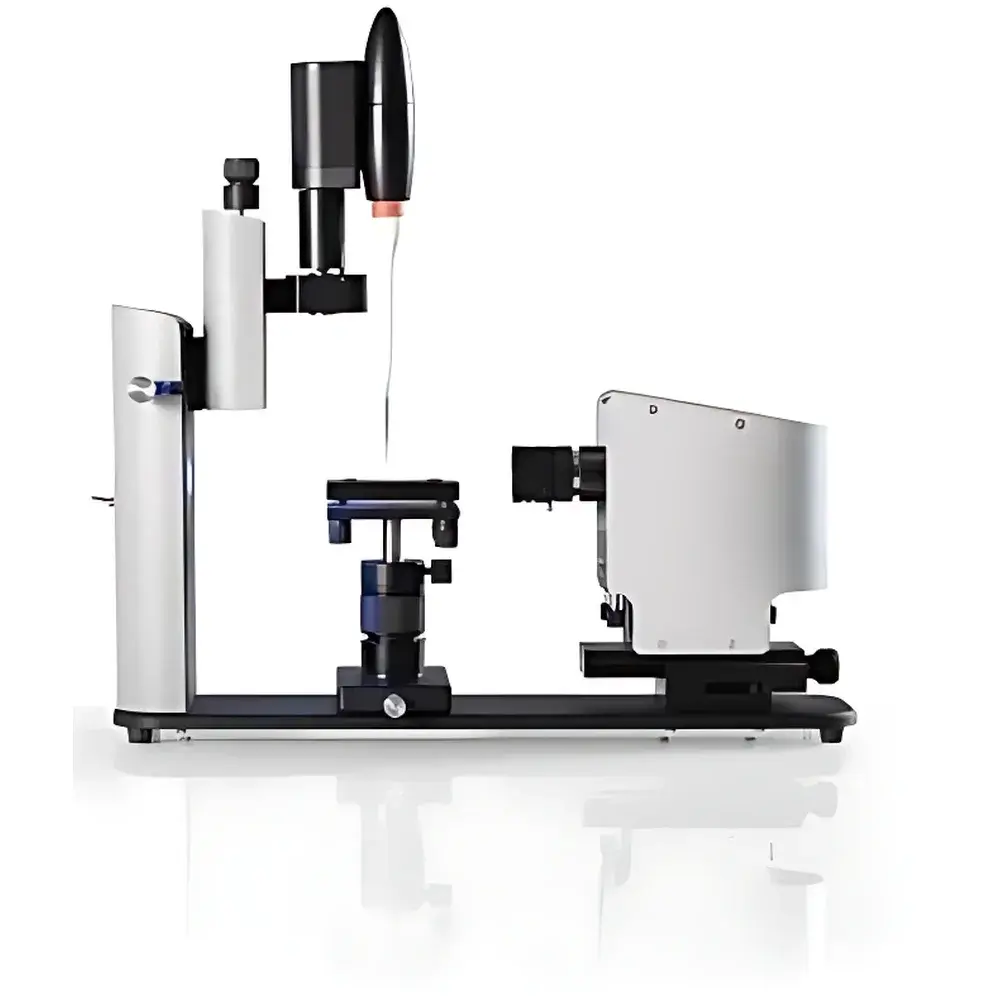

Attension Theta Lite Optical Contact Angle Analyzer

Overview

The Attension Theta Lite Optical Contact Angle Analyzer is a benchtop, video-based instrument engineered for high-precision characterization of solid–liquid and liquid–liquid interfacial phenomena. It operates on the fundamental principle of optical drop shape analysis: a high-resolution digital camera captures side-view or top-view images of sessile, pendant, or captive bubbles, and advanced algorithms fit the liquid–air or liquid–liquid interface contour to physically grounded models—including the Young–Laplace equation for capillary-driven interfaces. This enables quantitative determination of contact angle, surface tension, interfacial tension, and derived thermodynamic properties such as surface free energy (SFE). Designed for both research laboratories and regulated quality control environments, the Theta Lite delivers sub-degree angular resolution and millinewton-per-meter sensitivity without requiring motorized automation—making it ideal for routine static and manually driven dynamic measurements where robustness, ease of use, and metrological traceability are prioritized over full robotic throughput.

Key Features

• Benchtop modular architecture with compact footprint (H 310 × W 130 × L 495 mm; weight: 5 kg), optimized for integration into fume hoods or shared lab spaces.
• High-stability monochrome cold LED backlight system minimizing sample evaporation during acquisition—critical for volatile solvents and time-resolved dynamic measurements.
• USB 2.0 digital camera with native 744 × 480 pixel resolution and adjustable field-of-view (3.5–7.5 mm diagonal), enabling precise pixel-to-length calibration across diverse sample geometries.
• Manual tilt stage (optional upgrade) supporting controlled inclination for advancing/receding contact angle assessment and roll-off analysis.
• Dedicated disposable-tip manual dosing system compatible with standard syringes, ensuring contamination-free dynamic contact angle sequences and rapid method switching between liquids.
• Real-time image acquisition at up to 160 fps, facilitating capture of fast wetting events and transient interfacial relaxation processes.

Sample Compatibility & Compliance

The Theta Lite accommodates samples of arbitrary width (unlimited lateral dimension) with maximum depth and height constraints of 50 mm and 200 mm respectively—suitable for wafers, polymer films, coated metals, textiles, biomaterials, and porous substrates. Its open-stage design allows direct placement of irregularly shaped or oversized specimens without reconfiguration. The instrument supports ASTM D7334 (surface energy of polymer films), ISO 19403-2/-3 (contact angle and surface free energy), and USP guidance for analytical instrument qualification in pharmaceutical development. While not inherently 21 CFR Part 11 compliant out-of-the-box, OneAttension software supports audit trail logging, user access levels, and electronic signature-ready reporting when deployed on validated Windows platforms under GLP/GMP-controlled IT infrastructure.

Software & Data Management

OneAttension software serves as the unified control and analysis environment. It implements industry-standard fitting methods—including Young–Laplace (for contact angle, surface/interfacial tension, and modulus), Bashforth–Adams (for pure tension calculation), circular, and polynomial fits—to ensure method flexibility and cross-laboratory comparability. Real-time parameter visualization eliminates toggling between acquisition and analysis modes. Automated baseline detection and contour initialization reduce operator bias, while batch processing enables statistical evaluation of ≥100 contact angle measurements per session. Data export options include CSV, Excel (.xlsx), PDF reports, and image sequences with embedded metadata (timestamp, environmental conditions, operator ID). For regulatory workflows, optional modules support IQ/OQ documentation templates and version-controlled method storage.

Applications

• Surface free energy quantification using Zisman, OWRK, van Oss acid–base, Wu, Neumann’s Equation of State, and Schultz models—enabling prediction of adhesion, coating uniformity, and printability.
• Static and manually triggered dynamic contact angle measurement via sessile drop, captive bubble, inverted pendant drop, meniscus, and tilting plate methods.
• Surface and interfacial tension determination for surfactant screening, emulsion stability assessment, and formulation optimization.
• Quality assurance of hydrophobic/hydrophilic coatings on medical devices, microfluidic chips, and filtration membranes.

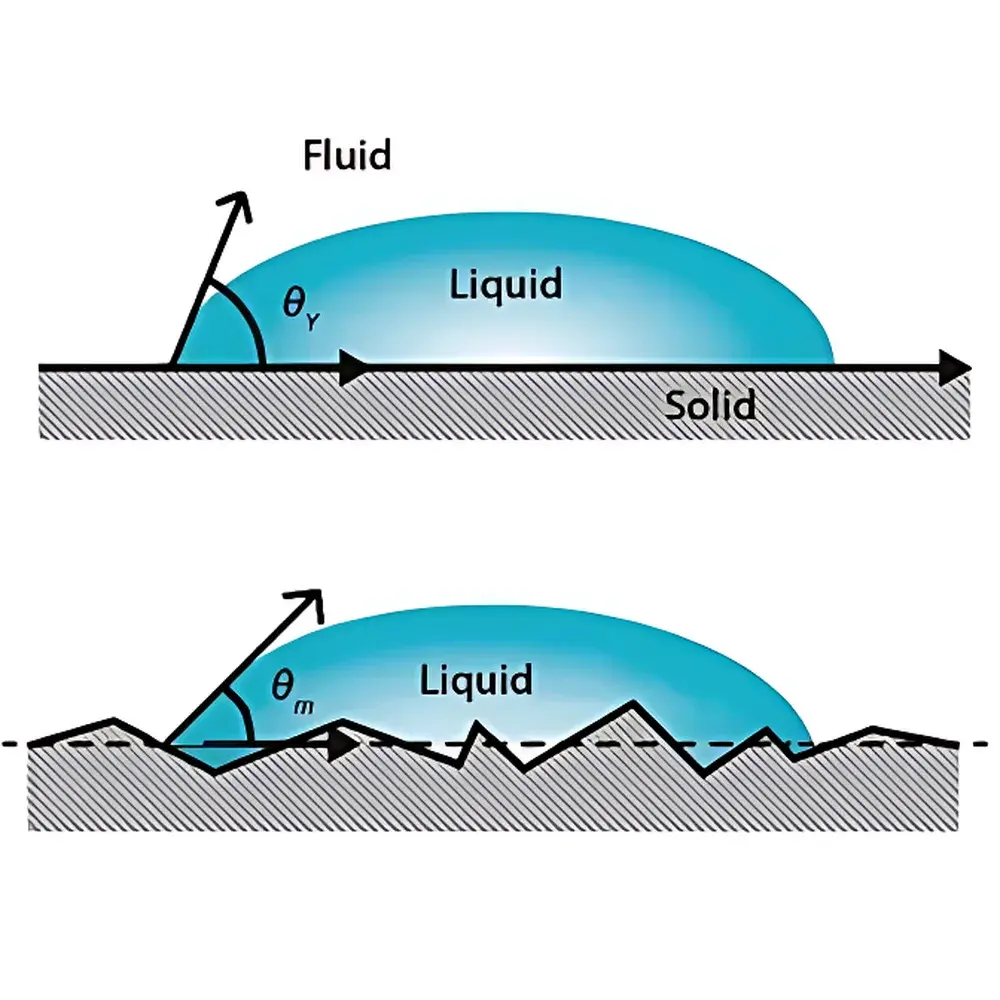

• Correlation studies between contact angle hysteresis and surface roughness or chemical heterogeneity—when combined with optional 3D topography add-ons.

FAQ

What measurement methods does the Theta Lite support?
Sessile drop, captive bubble, inverted pendant drop, meniscus, and manually induced dynamic contact angle via tilt or dosing.
Is the instrument suitable for measuring interfacial tension between two immiscible liquids?
Yes—it supports pendant drop and captive bubble configurations for liquid–liquid interfacial tension analysis in the range 0.01–2000 mN/m.
Can OneAttension software be validated for GxP environments?
Yes—when installed on a qualified Windows platform with appropriate IT controls, its audit trail, user management, and report generation features align with ALCOA+ data integrity principles.
Does the Theta Lite require external vibration isolation?
No—its rigid aluminum frame and passive damping design provide stable operation on standard laboratory benches without active isolation.
What calibration standards are recommended for routine verification?
Certified reference surfaces (e.g., PTFE ≈ 110°, glass ≈ 20°) and standard tension liquids (e.g., ultrapure water, diiodomethane) traceable to NIST or equivalent national metrology institutes.
